Digital Cities Overview and WiMax Update

1

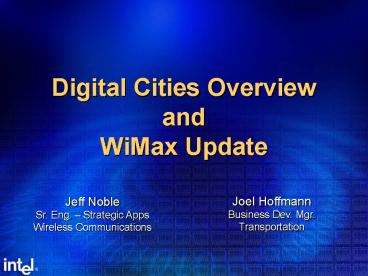

Digital Cities Overview andWiMax Update
Jeff NobleSr. Eng. Strategic AppsWireless
Communications
Joel HoffmannBusiness Dev. Mgr.Transportation
2
Digital Cities Overview
3
WiMax UpdateWorldwide Interoperability for
Microwave Access
All referenced dates are best estimates and are
subject to change.
4
WiMAX Vision
Established Connectivity Models
WiMAX Will Meet Emerging Customer Needs
Broadband, but Fixed
Mobile, but Narrowband
Rich Connectivity to Fixed Mobile Devices
5
Evolution of WWAN leads to WiMax

• WiMax supports a Data Centric Business
  Model/Distribution
• WiMax is targeted for broadband wireless
  spectrum, not cellular
• OFDM technology provides greater spectral
  efficiency
• WiMax is optimized for data with headroom for
  growth

Personal Mobile Broadband
Many carriers see OFDM as the basis of 4G
6
The Evolution of 802.16
802.16 (2001)
Fixed wireless broadband Air Interface 10 66
GHz
Samsung developing a parallel effort WiBro
802.16 Amendment Fixed wireless broadband MAC
PHY 2 - 11 GHz
802.16a (2003)
802.16 Revision PAR for 802.16, 802.16a Fixed
wireless broadband System Profiles, Errata for 2
- 11 GHz (Formerly 802.16REVd)
802.16-2004 (June 2004)
July 2004 Korea Govt. Decision Converges WiBro
with 802.16e
Changes to 802.16e ratified that allowed for a
unified profile completed
802.16e Harmonization
802.16 Amendment for Combined Fixed and Mobile
wireless broadband at vehicular speeds in
Licensed bands from 2-6 GHz
802.16e (Mid 2005)
7
802.16 Network Deployment Phases
Early 802.16e
802.16e
Metro Zone
Mobile
Fixed Indoor
Enterprise Campus Piconet
Mobile Service
Portable Service
Access Service
2006
2007
Late 2004
Deployment begins
8
WiMAX 4 Primary Business Models
Metro Govt. WiFi Backhaul (Digital Cities)
802.16-2004
WiFi
Urban Broadband Replacement (DSL, T1, Cable)
WiFi
WiFi
WiFi
WiFi
802.16-2004
WiFi
802.16-2004
WiFi
Rural
Rural
Rural Broadband (Overcomes Traditional Cost
Barrier)
Rural
Cellular Operators (Data Overlay Network)
9
Companies/Govts Aligning Frequencies

• Licensed Bands
• 2.5GHz (2.3-2.4 2.5-2.7)
• 3.5GHz (3.3-3.8)

• Unlicensed Band
• 5.8GHz (5.25-5.85)

10
WiMAX Forum Update

• Consortium of over 210 companies (25 SP)
• Forum fosters cooperation among Service
  Providers, Standards bodies, Vendors, Regulators,
  System Integrators and Manufacturers, and
  Component Vendors throughout the ecosystem
• WiMAX Forum charter
• Promote the deployment of WiMAX Forum Certified
  Products
• Develop certification test suites qualified
  test labs
• Host interoperability events (plug fests)
• Provide WiMAX-Certified stamp of approval for
  compliant equipment
• Seven Working Groups
• Eleven Board of Director Companies
• ATT, Airspan, Alvarion, Aperto Networks, BT,
  Fujitsu,
• Intel, OFDM Forum, Proxim, Wi-LAN, ZTE
• WiMAX Forum communications
• http/www.wimaxforum.org
• PR, News Bureau, Events, Speakers Bureau
  Collateral,
• White papers, case studies, CDs, presentations

Other names and brands may be claimed as the
property of others. As of January 30, 2005
11
Future VII SnapshotComplex Network
Backhaul Communications
Referenced brands logos are the property of
their respective owners.
