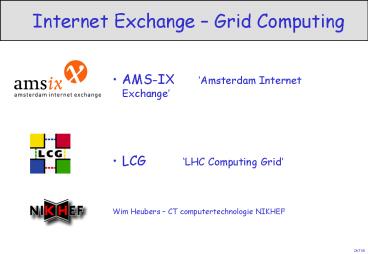

Internet Exchange Grid Computing

1
Internet Exchange Grid Computing

• AMS-IX Amsterdam Internet Exchange
• LCG LHC Computing Grid
• Wim Heubers CT computertechnologie NIKHEF

OKT05
2
AMS-IX association
AMS-IX B.V.
AMS-IX NOC
Housing locations
Science Park Amsterdam x x x
National Institute for Nuclear Physics and
High-Energy Physics
Computing and Network Services
3

• Particle physics at NIKHEF
• NIKHEF participates in international
  collaborations
• Particle physics detectors produce large data
  sets
• Now building the LHC Computing Grid LCG

4
ATLAS detector data production
One of the four LHC detectors
40 MHz (40 TB/sec)
online system multi-level trigger filter out
background reduce data volume
level 1 - special hardware
75 KHz (75 GB/sec)
level 2 - embedded processors
5 KHz (5 GB/sec)
level 3 - PCs
100 Hz (100 MB/sec)
data recording offline analysis
5
ATLAS detector data production
6
ATLAS detector data production
ATLAS 200 miljoen detektor elementen
7
Large Hadron Collider LHC
8
Data distributie (using the internet)
9
Data distributie (using the internet)
canada
VS
taipei
10
LCG a distributed computer and storage grid
connected by high-bandwidth networks

11
Grid projects

• Research, development, deployment
• Participation NIKHEF in
• European grid project E-GEE
• National grid project VL-E
• Industrial partnerships
• IBM, LogicaCMG, InTouch .
• UvA, SARA, SURFnet, etc

12
Amsterdam Internet Exchange AMS-IX
13
Why AMS-IX at Science Park Amsterdam?

• Spin-off from international scientific projects
• Our scientists need high-bandwidth networks
• Early involvement in internet developments (1980
  )

Sciencepark Amsterdam x x x
14
Internet exchange

• Internet knooppunt
• Internet infrastructuur

15
A brief history of networking at science park
Adam

• 1980 First connection to CERN 1200 Baud modem
  by telephone

• 1982 Eunet becomes into existing (CWI at WTCW)

• 1983 ARPAnet in the USA switches to employ TCP/IP

• 1985 The campus network at WTCW is established
  (10 Mbps shared)
• elelectronic mail and Usenet news are
  relayed (CWI again)

• 1986 SURFnet is started to establish an academic
  research network in NL
• The .nl domain is registered.

• 1990 TCP/IP is globally accepted as the
  network protocol
• The predecessor of the AMS-IX is
  established at WTCW

• 1991 The private NIKHEF-CERN line is
  decommissioned

• 1992 The World Wide Web comes into action
  (invented at CERN!)

• 1994 Informal start Internet Exchange
• 1997 The AMS-IX is started as a neutral Internet
  traffic exchange

• Now The AMS-IX is one of the largest
• Internet exchanges in
  the world

16
Internet Exchange
Chello
ISP 2
ISP Internet Service Provider
does not scale up .
17
Internet Exchange
18
Amsterdam Internet Exchange (AMS-IX)

• An Internet Exchange is a neutral and independent
  place for Internet Service Providers to exchange
  internet traffic
• AMS-IX is an association (vereniging)
• Execute board (5 elected members)
• AMS-IX BV responsible for daily operations
• AMS-IX NOC responsible for technical operations

19
Amsterdam Internet Exchange (AMS-IX)
Two type of AMS-IX members

• Telecom operators (carriers) e.g.
• KPN Telecom Versatel
• MCI BT Ignite (Telfort)
• Colt Telecom Global Crossing

• Internet Service Providers (ISPs) e.g.
• Xs4all Wanadoo
• Planet Online TeleDanmark
• Internet Access Eindhoven Tiscali
• Internet admin organizations
• RIPE NCC
• NL Domain Registration

20
Multiple carriers - multiple cables
21
Amsterdam Internet Exchange (AMS-IX)

• Statistics (October 2005)
• 230 members
• 398 connected ports
• 30 carriers supply bandwidth capacity
• Aggregate volume of all connections 21000
  TB/month
• equals to an average bit rate of 75 Gbit/sec
• equivalent of to 500.000 e-mails/sec !

22

• Aggregate volume of all ISPs connected to AMS-IX

• hourly graph
• October 22, 2004
• Maximum at 900 PM
• 105 Gbit/sec
• Minimum at 600 AM
• 45 Gbit/sec

monthly graph Average volume Jul 2004 23
Gbit/sec Oct 2005 70 Gbit/sec
23
AMS-IX housing locations

• 1994 WTCW
• SARA
• NIKHEF
• 2000/2001
• TeleCity (Z.O.)
• Global Switch (W.)

sciencepark
24
AMS-IX star topology
3x10 Gbit/sec
25
Amsterdam Internet Exchange (AMS-IX)

• The heart of the internet exchange
• Foundry Networks gigabit switches

26
Euro-IX Affiliated Internet Exchange Points
27
More info www.ams-ix.net
28
NIKHEF AMS-X housing location

• NIKHEF housing services include
• Rack space rental
• Power feed (no break), cooling
• Cabling infrastructure
• Access control
• Fire protection
• Intelligent hands and feet during regular working
  hours
• NIKHEF housing services does not include
• Equipment installation, configuration,
  maintenance (customers)
• Network operation (AMS-IX BV)

29
What happens in case of failures?

• Problems .
• power outage
• broken central switches
• cabling problems
• Solutions
• No-break installations
• Internet topology offers redundancy (rerouting)
• Large ISPs connected to more then one exchange
• Cable feed from two directions

30
In case of a power failure
Installation of the diesel generator on October
16th 2002
31
