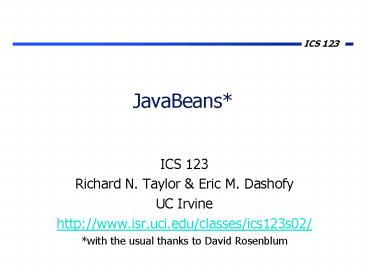

JavaBeans*

1
JavaBeans

• ICS 123
• Richard N. Taylor Eric M. Dashofy
• UC Irvine
• http//www.isr.uci.edu/classes/ics123s02/
• with the usual thanks to David Rosenblum

2
What Is JavaBeans?

• (One of) Sun Microsystemss entry in the
  component sweepstakes
• Currently realized in Beans Development Kit (BDK)
  1.1 spec (1999)
• Component model for Java
• Platform-independent
• Language-dependent
• Implemented as language extensions
• Additional classes and interfaces in the Java
  Class Library
• Basically a design pattern
• Based on standard naming conventions
• The naming conventions allow beanboxes and other
  beans to dynamically discover a beans
  capabilities
• But naming conventions have well-known problems
• Detailed documentation is available at
• http//java.sun.com/products/javabeans/

3
Three Levels of Use

• Building applications from beans written by bean
  developers
• Developing individual beans
• Developing beanboxes and other tools for
  graphically manipulating beans
• A more neutral term for such tools is sandboxes

4
What Is a Bean?

• A bean is a Java object
• Exports properties, events and methods
• Interface conforms to certain naming rules
• Conforms to certain packaging rules
• Usually (but not always) has a visual form for
  manipulation in beanboxes
• Supported by package java.beans
• Any Java class can be a bean
• No predefined Bean class
• Many AWT components are beans

5
A Bare-Bones Bean
public class Airplane extends Canvas public
Airplane() setBackground(Color.white) //
Plus other visual settings and
setForeground(Color.blue) // other
initialization public Dimension
getPreferredSize() return new
Dimension(50,50) // Or whatever is appropriate
public Dimension getMinimumSize()
return getPreferredSize() // Or return an
actual Dimension

• Canvas is subclassed to make the bean a GUI
  object having its own window
• Can subclass Component instead to create a
  lightweight component without its own window

6
Elements of JavaBeans (I)

• Events signal a beans response to changes in its
  properties and other phenomena
• Properties represent attributes of a bean
• BeanInfo customizes the information about a bean
  that is made available within a beanbox

7
Elements of JavaBeans (II)

• Customizers allow customization of a beans
  appearance and behavior in beanboxes
• PropertyEditors define custom editors for a
  specific property
• JAR files are archive files containing all the
  artifacts related to a bean
• Manifest files describe the content of JAR files

8
Events

• Java events are used heavily in JavaBeans
• An event in Java is an object
• Events are instances of (subclasses of)
  java.util.EventObject
• An event is sent by an object to a specific
  object
• The identity of the sender is associated with the
  event
• An event is sent as an argument in a method call
• An object that generates events must keep track
  of its own listeners

9
So Whats So Special About Java Events?

• How do they differ from regular method calls?
• They define a protocol for asynchronous
  interaction
• They are generated by many predefined Java
  components
• They are the primary mechanism for wiring
  interoperation paths between beans
• But theres still something missing ...

10
ReviewImplicit Invocation

• Advantages
• Allows for decoupling and autonomy of components
• Java events require tight coupling
• Enhances reuse and evolution
• Easy to introduce new components without
  affecting existing ones
• Disadvantages
• Components announcing events have no guarantee of
  getting a response
• Components announcing events have no control over
  the order of responses
• Event abstraction does not cleanly lend itself to
  data exchange
• Difficult to reason about the behavior of an
  announcing component independently of the
  components that register for its events

11
Listeners and Adapters

• Listeners are interfaces
• They define methods that an object must implement
  in order to receive event notifications
• Listeners add and remove themselves (i.e.,
  register and unregister) with the source of
  events theyre interested in
• Event sources must provide methods to add and
  remove listeners
• Adapters are classes
• They are bare-bones implementations of listener
  interfaces
• They provide a convenient way of quickly creating
  event listeners
• They are usually subclassed to override a single
  listener method of interest

12
Predefined Events in Java

• ActionEvent high-level user event
• AdjustmentEvent event from an Adjustable object
  (such as a scrollbar)
• ComponentEvent event from a GUI Component
  object
• Container, Focus, Input (Key or Mouse), Paint,
  Window
• ItemEvent event from an ItemSelectable object
• TextEvent event from the editing of a
  TextComponent
• Many of these have associated Adapters and/or
  Listeners

13
Event Handling Scenario(involving ActionEvents)
ActionEventSource
ActionEvent Listener
ActionEvent Listener
addActionListener()
actionPerformed(ae)
addActionListener()
actionPerformed(ae)
actionPerformed(ae)
removeActionListener()
actionPerformed(ae)
14
Action EventProgramming Example
public class Button extends Component //
defined in java.awt public synchronized void
addActionListener(ActionListener l) ...
protected void processEvent(ActionEvent ae)
// called internally ...
l.ActionPerformed(ae) public class
ButtonListener implements ActionListener
Button button public ButtonListener()
button new Button("Press Me")
button.addActionListener(this) public
void ActionPerformed(ActionEvent buttonClick)
...
15
Properties

• A property of a bean is a public attribute,
  accessed via Get and Set methods
• Read-only properties have only a Get method
• Write-only properties have only a Set method
• Read/Write properties have both

16
Kinds of Properties (I)

• Simple properties a single value P of some type
  T
• public T getP()
• public void setP(T newP)
• public boolean isP() // same as getP when T is
  boolean
• Indexed properties an array of values
• public T getP()
• public void setP(T newP)
• public T getP(int index)
• public void setP(int index, T newP)
• Not supported in BDK 1.0
• How does a beanbox know that something is a
  simple or indexed property?

17
Example Simple Properties
public class Airplane extends Label protected
String serialNumber "N173UA" public String
getSerialNumber() return serialNumber
public Airplane() setText(getSerialNumb
er()) protected int flightNumber 0
public int getFlightNumber() return
flightNumber public void
setFlightNumber(int n) flightNumber n

• FlightNumber is a read/write property
• SerialNumber is a read-only property
• Attributes storing the property values are made
  protected

18
Kinds of Properties (II)

• Bound properties signal a PropertyChange event
  when changed
• One event listener list for all bound properties
• Supported by classes and interfaces in package
  java.beans
• public class PropertyChangeEvent extends
  java.util.EventObject
• public interface PropertyChangeListener extends
  EventListener
• class PropertyChangeSupport implements
  Serializable
• public void addPropertyChangeListener(PropertyChan
  geListener l)
• public void removePropertyChangeListener(PropertyC
  hangeListener l)
• How does a beanbox know that something is a bound
  property?

19
Example Bound Property
import java.beans. // Needed for PropertyChange
stuff public class Airplane extends Label
protected int altitude 0 protected
PropertyChangeSupport changes new
PropertyChangeSupport(this) public int
getAltitude() return altitude public void
setAltitude(int a) int oldAltitude
altitude altitude a
changes.firePropertyChange("Altitude", new
Integer(oldAltitude),
new Integer(a)) public void
addPropertyChangeListener(PropertyChangeListener
l) changes.addPropertyChangeListener(l)
public void removePropertyChangeListener(Prop
ertyChangeListener l) changes.removeProperty
ChangeListener(l)
20
Kinds of Properties (III)

• Constrained properties changes can be vetoed by
  other objects
• One event listener list for all constrained
  properties
• Supported by classes and interfaces in package
  java.beans
• exception PropertyVetoException
• public interface VetoableChangeListener extends
  EventListener
• class VetoableChangeSupport implements
  Serializable
• public void setP(T newP) throws
  PropertyVetoException
• public void addVetoableChangeListener(VetoableChan
  geListener l)
• public void removeVetoableChangeListener(VetoableC
  hangeListener l)
• Usually also implemented as bound properties
• Bound property listeners also get notified of
  changes to constrained properties
• Only registered vetoers are given the opportunity
  to veto a change

21
Example Constrained Property
public class Airplane extends Label protected
int heading 0 protected VetoableChangeSupport
vetoes new VetoableChangeSupport(this)
public int getHeading() return heading
public void setHeading(int h) throws
PropertyVetoException int oldHeading
heading vetoes.fireVetoableChange("Heading",
new Integer(oldHeading),
new Integer(h)) // heading h
changes.firePropertyChange("Heading", new
Integer(oldHeading),
new Integer(h)) public void
addVetoableChangeListener(VetoableChangeListener
l) vetoes.addVetoableChangeListener(l)
public void removeVetoableChangeListener(Veto
ableChangeListener l) vetoes.removeVetoableC
hangeListener(l)

• This is also a bound property (using the setup
  for Altitude)
• PropertyVetoException would be raised within call
  at

22
JAR Files

• JAR archives contain files related to a bean
• .class files
• .ser files (serialized Beans)
• .html files
• image files
• audio files
• Manifest file
• Manifest entries can include several fields,
  including an optional indication of whether or
  not a file is a bean
• In the absence of a manifest file, all .class and
  .ser files are treated as beans

23
Packaging the Airplane Bean

• Create a MANIFEST file
• Name Airplane.classJava-Bean TrueName
  AirplaneBeanInfo.classJava-Bean FalseName
• Create the JAR file
• jar cfm Airplane.jar MANIFEST Airplane.class \
  AirplaneBeanInfo.class Airplane.gif
• The jar command creates a file called
  META-INF/MANIFEST in the .jar file it creates,
  using the information contained in MANIFEST above

24
BDK Directory Structure
ltroot-directorygt
beanbox
jars

GNUmakefile
docs

• Run beanbox from beanbox directory
• run.sh in UNIX, run.bat in Windows
• Beanbox looks in jars directory for .jar files
• Look at GNUmakefile for ideas on how to automate
  creation of beans
• Lots of documentation in docs directory

25
The BDK Beanbox

• A simple beanbox for graphically composing beans
  and testing bean interactions
• Three windows
• Beanbox A canvas where beans are placed and
  wired together
• Toolbox A palette of available beans
• Property sheet Properties of the selected bean
• The beanbox finds read-only and write-only
  properties for a bean but by default doesnt
  display them in the property sheet for the bean

26
The BDK Beanbox with the Airplane Bean
Property Sheet
Beanbox
Toolbox
27
Additional BDK Beanbox Expectations

• Each bean class needs a zero-argument constructor
  method
• The beanbox calls this method when you drop a
  bean in the beanbox
• Helpful to define a package for all classes
  related to a bean

28
Wiring Beans Together in the BDK Beanbox

• Beanbox customizes Edit menu according to
  capabilities of currently selected bean
• Wiring events
• Event from generated bean passed as argument to
  method of target bean
• Predefined events for the beans class
• Component, container, key, mouse, focus,
  mouseMotion events
• PropertyChange events
• VetoableChange events
• Any other events generated by the bean
• Wiring bound properties
• Change in bound property in one bean can be bound
  to a property in another bean

29
Wiring Up Two Beans (I)

• An Airplane bean and a Juggler bean
• Airplane is currently selected

30
Wiring Up Two Beans (II)

• Select propertyChange event in Airplane bean

31
Wiring Up Two Beans (III)

• Wire the propertyChange event to the Juggler

32
Wiring Up Two Beans (IV)

• Have the jugglers startJuggling method called
  upon receiving the Airplanes propertyChange event

33
Wiring Up Two Beans (V)

• Juggler is now selected
• Select mouseClicked event in Juggler bean

34
Wiring Up Two Beans (VI)

• Wire the Jugglers mouseClicked event to itself

35
Wiring Up Two Beans (VII)

• Have the jugglers stopJuggling method called
  upon receiving its own mouseClicked event

36
Wiring Up Two Beans (VIII)

• Everything is now wired up
• Click on the Juggler to stop its juggling
• Change the altitude of the airplane to start the
  Juggler juggling
