Shibboleth

1

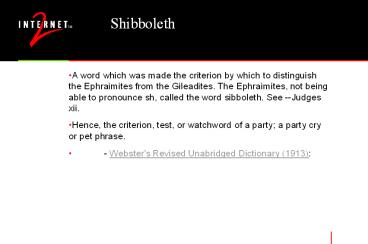

Shibboleth

• A word which was made the criterion by which to
  distinguish the Ephraimites from the Gileadites.
  The Ephraimites, not being able to pronounce sh,
  called the word sibboleth. See --Judges xii.
• Hence, the criterion, test, or watchword of a
  party a party cry or pet phrase.
• - Webster's Revised Unabridged Dictionary
  (1913)

2
Shibboleth - What is it?

• an initiative to analyze and develop
  mechanisms(architectures, frameworks, protocols
  and implementations) for inter-institutional web
  access control
• facilitated by Mace (a committee of leading
  higher ed IT architects) and Internet2
• authenticate locally, act globally the
  Shibboleth shibboleth
• oriented towards privacy and complements
  corporate standards efforts
• open solution
• http//middleware.internet2.edu/shibboleth
• vendor participation - IBM et al

3
Isnt This What PKI Does?

• PKI does this and a whole lot more as a
  consequence, PKI does very little right now
• End-to-end PKI fits the Shibboleth model, but
  other forms of authentication do as well
• Uses a lightweight certificate approach for
  inter-institutional communications - uses the
  parts of PKI that work today (server side certs)
  and avoids the parts of PKI that dont work today
  (eg client certs).
• Allows campuses to use other forms of
  authentication locally
• May actually have benefits over the end-user to
  target-site direct interactions...

4
Related Work

• Previous DLF work
• http//www.clir.org/diglib/presentations/cnis99/sl
  d001.htm
• OASIS Security Services Technical Committee
  (vendor activity, kicked off 1/2001)
• http//www.oasis-open.org/committees/security/inde
  x.shtml
• http//lists.oasis-open.org/archives/security-serv
  ices/
• UK - Athens and Sparta projects
• http//www.jisc.ac.uk/pub00/sparta_disc.html
• Spain - rediris project
• http//www.rediris.es/app/papi/index.en.html

5
Assumptions

• Leverage vendor and standards activity wherever
  possible (OASIS)
• (Initially) disturb as little of the existing
  campus infrastructure as possible
• Work with common, minimal authorization systems
  (eg htaccess)
• Encourage good campus behaviors
• Learn through doing
• Create a marketplace and reference
  implementations
• Protect Personal Privacy!

6
Stage 1 - Addressing Three Scenarios

• Member of campus community accessing licensed
  resource
• Anonymity required
• Member of a course accessing remotely controlled
  resource
• Anonymity required
• Member of a workgroup accessing controlled
  resources
• Controlled by unique identifiers (e.g. name)
• Taken individually, each of these situations can
  be solved in a variety of straightforward ways.
• Taken together, they present the challenge of
  meeting the user's reasonable expectations for
  protection of their personal privacy.

7
Architectural Model

• Local Authentication
• Local Entity Willing to Create and Sign
  Entitlement
• Set of assertions about the user (Attribute/value
  pairs)
• User has control over disclosure
• Identity optional
• active member of community, Associated with
  Course XYZ
• Target responsible for Authorization
• Rules engine
• Matches contents of entitlements against ruleset
  associated with target object
• Cross Domain Trust
• Previously created between origin and target
• Perhaps there is a contract (information
  providers..)

8
Shibboleth ArchitectureConcepts - High Level
Browser
Pass content if user is allowed
Target Web Server
Authorization Phase
Authentication Phase
First Access - Unauthenticated
Target Site
Origin Site
9
Shibboleth ArchitectureConcepts (detail)
Target Web Server
Browser
Authentication Phase
Authorization Phase
Success!
Entitlements
Attribute Server
Ent Prompt
Req Ent
Second Access - Authenticated
Auth OK
Pass entitlements for authz decision
Web Login Server
Redirect User to Local Web Login
Pass content if user is allowed
Authentication
Ask to Obtain Entitlements
First Access - Unauthenticated
Target Site
Origin Site
10
Charge -- OASIS Security Services Technical
Committee

• Standardize
• an XML format for "assertions (authentication,
  authorization, authorization decision, access
  yes/no)
• (maybe) a (stateless ?) request/response protocol
  for obtaining assertions
• transport bindings for this protocol to HTTP,
  S/MIME, RMI, etc.
• This will be accompanied by requirements/scenarios
  , compliance info, security considerations, etc
• Out of Scope
• How authentication is done
• Defining specific attributes (eg member of
  community
• Establishing trust between origin and target
• Note..
• Inter-product, not explicitly inter-domain

11
Component Relationship Model
TARGET
ORIGIN
12
Authorization Attributes

• Typical Assertions in the Higher Ed Community
• EPPNgettes_at_georgetown.edu
• active member of the community
• active in course X
• member of group georgetown.giia
• ?
• Signed by the institution! (optional in OASIS,
  required in Shib

13
Isnt This What LDAP Does?

• Since this doesnt exist yet, it can do a lot
  more than LDAP! (-
• XML is so extensible that this is the last
  protocol that well ever need! (-
• OK, tell me really..
• The key here is the CONTROLLED dissemination of
  attribute information, based on multiple factors.

14
Shibboleth Architecture -- Managing Trust

• TRUST

Shib engine
Attribute Server
Target Web Server
Browser
Target Site
Origin Site
15
Personal Privacy

• An Attribute Authority releases Personal
  Information to site X based on
• Site Defaults
• Contract provisions
• Business Rules
• User control
• myAA

16
Shibboleth vs OASIS Security Effort vs Products

• OASIS Security Effort
• Defining Standards to support inter-operation of
  web access control products
• Vendor Products
• Implement Standards
• Add value in Authentication, Attribute Authority,
  PDP
• Shibboleth
• Open Source Implementation!
• Create Trust Framework
• Define Higher Ed specific Attributes
• (hopefully) Where are you from? service

17
Campus and Resource Requirements

• To Participate in Shibboleth, a site must have
• campus-wide authentication service
• campus-wide identifier space (EPPN)
• Implementation of Eduperson objectclass
• Ability to generate attributes (eg active member
  of the community)

18
Issues

• Personal Privacy (reasonable expectation, laws)
• Relation to local weblogin (Single Signon)
• Portals
• Use of Shibboleth framework by services beyond
  the web
• Grid resources and users

19
Relationship - Shibboleth to Portals
Apps
Portal
Web Res
Web Resource
Portal
Dir
Shibboleth
Shibboleth
Shibboleth
Shibboleth
PDP
AuthN
Dir
Web Login
20
Project Status/Next Steps

• Requirements and Scenarios document nearly
  finished
• IBM and Mace-Shibboleth are refining architecture
  and evaluating issues
• IBM intends to develop an Apache web module
• Internet2 intends to develop supporting materials
  (documentation, installation, etc) and web tools
  (for htaccess construction, filter and access
  control, remote resource attribute discovery).
• Technical design complete - April, 2001
• Coding...
• Pilot site start-up - Aug, 2001
• Public demo- Internet2 Fall Member Meeting 2001

21
Shibboleth, eduPerson, and everything else
Middleware Inputs Outputs
Licensed Resources
Embedded App Security
Grids
JA-SIG uPortal
OKI
Inter-realm calendaring
futures
Shibboleth, eduPerson, Affiliated Dirs, etc.
Enterprise authZ
Enterprise Directory
Enterprise Authentication
Legacy Systems
Campus web sso
22
Questions?
