Table Extraction Using Conditional Random Fields

1

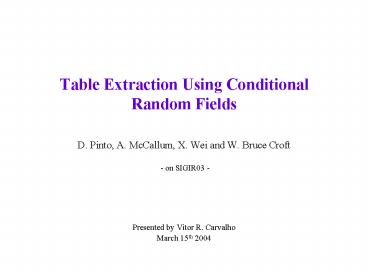

Table Extraction Using Conditional Random Fields

• D. Pinto, A. McCallum, X. Wei and W. Bruce Croft
• - on SIGIR03 -
• Presented by Vitor R. Carvalho
• March 15th 2004

2
Warm up

• Why table extraction?
• Applications Question-Answering, data mining and
  IR
• Tables textual tokens laid out in tabular form

• Tables databases designed for human eyes
• Related Work
• Pyreddy and Croft,1997 purely layout-based
  approach a Character Alignment Graph (CAG) is
  used to identify the whole table
• Ng et. al. ,1999 machine learning to identify
  rows and columns positions no extraction of
  content.
• Hurst, 2000 combination of layout and language
  perspective text are broken into blocks by
  spatial and linguistic evidence
• Pinto et. al., 2002 based on CAG, heuristic
  method to extract table cells for QA system.

3
Objectives

• On this paper
• Only text tables are studied, not HTML tables
• Table extraction can be broken down into 6
  subproblems
• Locate the table ()
• Identify the row positions and types ()
• Identify columns positions and types
• Segment tables into cells
• Tag cells as data or headers
• Associate data cells with their corresponding
  headers
• Only () tasks are addressed in the paper
• CRFs are compared to MaxEntropy and to HMM

4
Example

• From www.FedStats.com , July 2001

5
12 Line Labels

• Non-extraction labels
• NONTABLE, BLANKLINE, SEPARATOR
• Header Labels
• TITLE, SUPERHEADER, TABLEHEADER, SUBHEADER,
  SECTIONHEADER
• Data Row Labels
• DATAROW, SECTIONDATAROW
• Caption Labels
• TABLEFOOTNOTE, TABLECAPTION

6
Feature Set

• White Space Features
• Presence of 4 consecutive white spaces, 4 space
  indents, 2 consecutive white space between
  non-space characters, a complete white space
  line, single space indent, etc
• Percentage of white space from the first
  non-white space on
• Text Features
• Presence of 3 cells on a line, etc
• Percentage of digits (0-9) on a line, alphabet
  characters(a-z) on a line, header features (year
  strings, month abreviations, etc) on a line
• Separator Features
• Presence of 4 consecutive periods
• Percentage of separator characters(-,,! ,,,)
  on a line
• Conjunction of Features
• Conjunctions currentprevious line, currentnext
  line, nextnextnext

7
Task 1 Table Line Location

• A table line is any label but NONTABLE, BLANKLINE
  and SEPARATOR
• F-Measure (2Precision Recall)/(RecallPrecisi
  on)
• Both CRFs used a Gaussian Prior and were trained
  using L-BFGS
• Training set (52 documents), develop. set (6
  documents), test set (62 docs)

8
Task 2 Line Identification

• How many of these lines were actually table lines?

9
Task 2 Line Identification
10
Additional Results

• Pinto et. al. heuristic method
• 4 labels CAPTIONS, HEADERS, DATA, NON-TABLE

11
Conclusions

• The Table extraction problem has complex
  linguistic and formatting characteristics. In
  order to attack this problem, a combination of
  textual and spatial features was used.
• CRFs can handle very well arbitrary and
  overlapping features, and offer the combined
  benefits of conditional-probability training
  models and Markov finite-state context models.
