12/9 Circular Motion

1

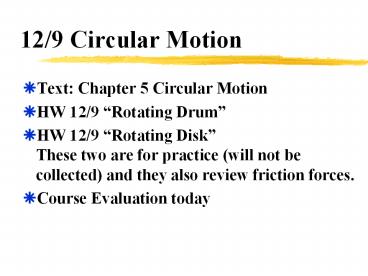

12/9 Circular Motion

• Text Chapter 5 Circular Motion
• HW 12/9 Rotating Drum
• HW 12/9 Rotating DiskThese two are for
  practice (will not be collected) and they also
  review friction forces.
• Course Evaluation today

2
The Pendulum
Stationary
If the Tension is greater, then acceleration must
point up.
What happens to the Tension?
Is there acceleration?
3
Find the acceleration
a ?v/?t as usual
Draw vi, vf, and ?v as usual(Place vs tail to
tail and draw tip to tip.
4
In one second
?v
5
In one second
?v
6
In one second
?v
What is the acceleration?
7
In one second
a
What is the acceleration?
8
In one second
What if the speed is doubled?
?v
9
In one second
a
10
In one second
4 times the acceleration for twice the velocity,
same radius.
For v
For 2v
11
What if the radius is halved?
In one second
12
What if the radius is halved?
In one second
?v
13
What if the radius is halved?
In one second
2 times the acceleration for half the radius,
same velocity.
r
a
r/2
14
In one second
4 times the acceleration for twice the velocity,
same radius.
2 times the acceleration for half the radius,
same velocity.
For r
For v
a
a
For r/2
For 2v
15
Centripetal Acceleration

• perpendicular to the velocity, points towards the
  center of the circle
• ac v2/r v is the instantaneous velocity
  tangent to the path, r is the radius.

16
Some Equations and Definitions
The period, T, is the time for one revolution.
The distance for one revolution is 2?r, the
circumference.
The speed, v, is distance time or 2?r/T
17
The Pendulum
Stationary
If the Tension is greater, then acceleration must
point up.
a and Fnet both point up
a v2/r and we can get v from energy.
18
Example
Fnet,y Ty - WE,B 0 so Ty WE,B
Fnet,x Tx ma mv2/r
v 2?r/T
19
What about the centrifugal force?

• There is no such force, regardless of what Mr.
  Wizard says.

20
Bucket of water problem

• You swing a bucket of water (m3kg) in a vertical
  circle at constant speed of 5 m/s. The radius of
  the circle is 2 m. What is the normal force by
  the bottom of the bucket on the water ata. the
  top of the circle, andb. the bottom of the
  circle.

21
Bucket of water problem at the top
v
Acceleration points
Fnet WE,W NB,W ma
Draw a FBD of the water.
mw 3 kgr 2 mv 5 m/s(constant v)
Want NB,W, find WE,W and ma
Apply Newtons 2nd law.
WE,W mg 3(9.8) 29.4 N
ma mv2/r 3(52)/2 37.5 N
Fnet 37.5 29.4 NB,W
NB,W 8.1 N
If you swing slow enough the water will come out.
How slow do you have to swing?
Slow enough so that NB,W becomes zero.
22
Bucket of water problem at the bottom
Acceleration points
Fnet NB,W - WE,W ma
Draw a FBD of the water.
mw 3 kgr 2 mv 5 m/s(constant v)
Want NB,W, find WE,W and ma
Apply Newtons 2nd law.
WE,W mg 3(9.8) 29.4 N
ma mv2/r 3(52)/2 37.5 N
Fnet NB,W - 29.4 37.5
NB,W 66.9 N
