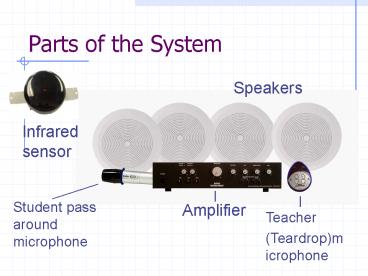

Parts of the System

1
Parts of the System
Speakers
Infrared sensor
Student pass around microphone
Amplifier
Teacher (Teardrop)microphone
2
Infrared How It Works!
3
Microphones
4
Positioning the Microphone

• Slide the Microphone Up on the Lanyard
• Position the Microphone within 4 to 6 of your
  mouth
• As close as is comfortable
• Jewelry, pins and other items around neck may
  cause noise by rubbing or bumping the microphone

5
AERC-07 Teacher Microphone

• On/off switch
• Mic Volume Remote control
• Power Indicator
• External Aux input Port

• Volume control selector
• Aux Volume Remote control
• Charging Light
• Battery Charger Port

6
Charging the AERC-07 Teacher Microphone
Off is Down

• Make Sure Microphone is off

• Plug Charger AEBC-07
• into Microphone

• Make Sure Charger
• Diod Flashes Red Slowly!

Charge Every Night!
7
Student Pass Around Microphone
Aux Input
(on side)

• On/off switch

• Battery charging port

Charge LED
(red)
Power LED
(green)
8
Charging the Student Pass Around Microphone
Charging Indicator Slow Flash Charging Quick
Flash Error Steady On Charged
Make Sure Microphone is Off
Charging Port on the Bottom
Off is Down
