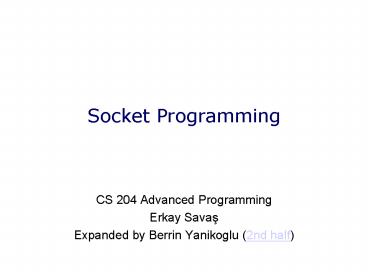

Socket Programming

1
Socket Programming

• CS 204 Advanced Programming
• Erkay Savas
• Expanded by Berrin Yanikoglu (2nd half)

2
Client/Server Architecture
ftp server
telnet server
web server

• Client has to know the servers addressand port
  number initially not vice versa.

3
A TCP/IP Network
application
TCP
IP
(e.g. Ethernet)
Router
4
Communication Protocols
Application protocol
Web client
Web server
HTTP
5
TSP vs IP

• The Transmission Control Protocol (TCP) is one of
  the core protocols of the Internet protocol
  suite, often simply referred to as TCP/IP. Using
  TCP, applications on networked hosts can create
  connections to one another, over which they can
  exchange streams of data using Stream Sockets.
  The protocol guarantees reliable and in-order
  delivery of data from sender to receiver. TCP
  also distinguishes data for multiple connections
  by concurrent applications (e.g., Web server and
  e-mail server) running on the same host.
• TCP supports many of the Internet's most popular
  application protocols and resulting applications,
  including the World Wide Web, e-mail, File
  Transfer Protocol and Secure Shell.
• In the Internet protocol suite, TCP is the
  intermediate layer between the Internet Protocol
  (IP) below it, and an application above it.
  Applications often need reliable pipe-like
  connections to each other, whereas the Internet
  Protocol does not provide such streams, but
  rather only best effort delivery (i.e.,
  unreliable packets). TCP does the task of the
  transport layer in the simplified OSI model of
  computer networks. The other main transport-level
  Internet protocol is UDP.
• Applications send streams of octets (8-bit bytes)
  to TCP for delivery through the network, and TCP
  divides the byte stream into appropriately sized
  segments. TCP then passes the resulting packets
  to the Internet Protocol, for delivery through a
  network to the TCP module of the entity at the
  other end.
• TCP checks to make sure that no packets are lost
  by giving each packet a sequence number, which is
  also used to make sure that the data are
  delivered to the entity at the other end in the
  correct order. The TCP module at the far end
  sends back an acknowledgement for packets which
  have been successfully received a timer at the
  sending TCP will cause a timeout if an
  acknowledgement is not received within a
  reasonable round-trip time (or RTT), and the
  (presumably lost) data will then be
  re-transmitted. The TCP checks that no bytes are
  damaged by using a checksum one is computed at
  the sender for each block of data before it is
  sent, and checked at the receiver.

6
Alternatives to TCP

• For many applications TCP is not appropriate. One
  big problem is that the application cannot get at
  the packets coming after a lost packet until the
  retransmitted copy of the lost packet is
  received. This causes problems for real-time
  applications such as streaming multimedia (such
  as Internet radio) and voice over IP (VoIP) where
  it is sometimes more useful to get most of the
  data in a timely fashion than it is to get all of
  the data in order.
• Generally where TCP is unsuitable the User
  Datagram Protocol (UDP) is used. This provides
  the application multiplexing and checksums that
  TCP does, but does not handle building streams or
  retransmission, giving the application developer
  the ability to code those in a way suitable for
  the situation and/or to replace them with other
  methods like forward error correction or
  interpolation.

7
What is a Socket?

• A mechanism through which an application may send
  and receive data.
• Two processes can communicate by creating sockets
  and sending messages through sockets
• Information written to a socket by an application
  on one machine can be read by an application on
  another machine, and vice versa.
• Two flavors
• stream sockets (uses TCP is reliable)
• datagram sockets (uses UDP)
• Sockets are an interface between application
  programs and network protocols

8
Socket API (1)
TCP ports
IP
9
Creating a Socket

• Defining a socket
• int mySocket // a socket descriptor
• SOCKET mySocket // using SOCKET type of
  winsock.h
• Creating a socket

int socket(int protocolFamily,int type,int
protocol)

• First parameter usually PF_INET
• Second parameter socket type
• SOCK_STREAM (TCP)
• SOCK_DGRAM (UDP)
• Third parameter end-to-end protocol.
• Use constants IPPROTO_TCP or IPPROTO_UDP

mySocket socket(PF_INET, SOCK_STREAM,
IPPROTO_TCP)
10
mySocket socket(PF_INET, SOCK_STREAM,
IPPROTO_TCP)
int socket(int protocolFamily, int type, int
protocol)

• return value is an integer.
• A nonnegative value mean success and can be used
  as a handle (similar to file descriptor)
• (-1) indicates a failure
• Closing a socket

int close(int socket) //for UNIX int
closesocket(SOCKET socket) //for Windows

• the parameter is the socket descriptor obtained
  as return value of a successful socket creation
  operation
• (0) means success, (-1) indicates a failure

closesocket(mySocket)
11
Socket API

• Sockets API provides a generic interface for a
  large number of protocol families.
• The wildcard PF_INET specifies a socket that uses
  protocols from the Internet protocol family.
• The wildcard AF_INET specifies a socket that uses
  addresses from the Internet protocol family.

12
Socket Addressing

• When a socket is first created, it has an
  associated protocol but no IP address or port
  number
• A socket descriptor is used by the application to
  identify a socket (similar to a file descriptor)
• So it can be closed later
• A socket is later bound to an address and a port
  number
• Otherwise it cannot send/receive messages

13
Addresses

• Needed to locate applications running on other
  machines
• Two pieces of address in TCP/IP
• Internet (or IP) address
• 32-bit binary number (Four 8-bits number)
• dotted-quad notation (e.g. 10.1.2.3)
• refer to a connection (thus, a host can have more
  than one IP address)
• Port number
• 16-bit unsigned numbers (1 to 65535)
• used by UDP and TCP

14
Specifying Addresses

• Applications using sockets need to specify
  Internet addresses and port numbers to the kernel
  (OS).
• A client must specify the address of a server
  application with which it needs to communicate.
• The sockets API defines a generic data type for
  specifying addresses associated with sockets

struct sockaddr / Structure used by kernel to
store most addresses / unsigned short
sa_family / Address family (AF_INET)/ char
sa_data14 / Family-specific address
/ /
information /
15
Address Structure Details
struct sockaddr_in /socket address
internet style / unsigned short sin_family
/ Address family (AF_INET)/ unsigned short
sin_port / Address port (16 bits) / struct
in_addr sin_addr / Internet Addr (32 bits
/ char sin_zero8 / Not
used/ struct in_addr unsigned long s_addr
16
Windows Sockets Client Example 1

• Example
• //Create a socket
• SOCKET theSocket socket (PF_INET,
  SOCK_STREAM,
  IPPROTO_TCP)
• SOCKADDR_IN saServer
• saServer.sin_family AF_INET
• //retrieve host information corresponding to
  host name string
• LPHOSTENT lpHostEntry gethostbyname(serverName)

• //set the Servers address and port
• saServer.sin_addr.s_addr ((LPIN_ADDR)lpHostEn
  try-gth_addr_list)
• //convert 32-bit values between host and
  network byte order
• saServer.sin_port htons(nPort)

17
Details 1/2

• gethostbyname retrieves host information
  corresponding to a host name string from a host
  database.
• Note  The gethostbyname function has been
  deprecated by the introduction of the getaddrinfo
  function.
• inet_addr If no error occurs, inet_addr returns
  an unsigned long value containing a suitable
  binary representation of the Internet address
  given.
• Declared in Winsock2.h.winsock2.h
• If the string in the cp parameter does not
  contain a legitimate Internet address, for
  example if a portion of an "a.b.c.d" address
  exceeds 255, then inet_addr returns the value
  INADDR_NONE.
• unsigned long inet_addr( const char cp )

18
Getting the Host Address

• The getaddrinfo function provides
  protocol-independent translation from host name
  to address.
• Prototype
• int getaddrinfo( const char nodename, const
  char servname, const
  struct addrinfo hints, struct addrinfo res)
• Parameters
• nodename Pointer to a null-terminated string
  containing a host (node) name or a numeric host
  address string. The numeric host address string
  is a dotted-decimal IPv4 address or an IPv6 hex
  address.
• servname Pointer to a null-terminated string
  containing either a service name or port number.
• hints Pointer to an addrinfo structure that
  provides hints about the type of socket the
  caller supports.
• res out Pointer to a linked list of one or
  more addrinfo structures containing response
  information about the host.
•

19
Details 2/2

• htons do the appropriate conversion for byte
  order
• Little Endian (Little End In) the lower end
  (bytes) are stored first in memory
• the Hex value 0x1234 is stored in memory as (0x34
  0x12).
• the Hex value 0x12345678 would be stored as (0x78
  0x56 0x34 0x12).
• BigEnd In" does this in the reverse fashion
• 0x1234 is stored as (0x12 0x34) in memory.
• This is the method used by Motorola computers and
  can also be used on RISC-based computers.

20

• You can also specify a given IP number directly
• sockaddr_in sa
• sa.sin_familyAF_INET
• Sa.sin_addr.s_un.s_un_b.s_b1 192
• Sa.sin_addr.s_un.s_un_b.s_b2 255
• Sa.sin_addr.s_un.s_un_b.s_b3 100
• Sa.sin_addr.s_un.s_un_b.s_b4 4
• struct in_addr
• union struct u_char s_b1,s_b2,s_b3,s_b4
  S_un_b
• struct u_short s_w1,s_w2 S_un_w
• u_long S_addr
• S_un
• define s_addr S_un.S_addr
• struct sockaddr_in

21
Client
22
TCP Client

• A typical TCP client goes through four basic
  steps
• Create a TCP socket using socket().
• Establish a connection to the server using
  connect().
• Communicate using send() and recv().
• Close the connection with close().

23
Functions for TCP Client - 1/2
int socket(int protocolFamily, int type, int
protocol)
int connect(int socket, struct sockaddr
serverAddress, unsigned int addressLength)

• Parameters
• First parameterthe descriptor obtained as a
  return value of a successful socket creation
  operation
• Second parameter the address of the server (the
  struct data type must appropriately filled by the
  server address)
• Third parameter always use sizeof(sockaddr).

24
What Happens After Connect
socket()
connect()
When a socket is first created, queues
(illustrated above) are closed. During connect,
local port and local IP address is assigned to
it, as well as the remote IP/port.
25
Functions for TCP Client - 2/2
int send(int socket, constant void msg, unsigned
int msgLength, int flags) int recv(int socket,
void rcvBuffer, unsigned int bufferLength, int
flags)

• Default behavior for send() is to block until all
  of the data is sent
• Default behavior for recv() is to block until at
  least some bytes are received.
• flags (default 0) provides a way to change the
  default behavior

26
Server
27
TCP Server

• Four steps of constructing a TCP server
• Create a TCP socket using socket().
• Assign a (local) port number to the socket with
  bind().
• Tell the system to allow connections to be made
  to that port, using listen().
• Repeatedly do the following
• Call accept() to get a new socket for each client
  connection
• Communicate with the client via that new socket
  using send() and recv().

28
Bind

• int bind(int socket, struct sockaddr
  localAddress, unsigned int
  addressLength)

• First parameter the descriptor returned by an
  earlier call to socket().
• Second parameter a pointer to a sockaddr. For
  TCP/IP applications, it will actually point to a
  sockaddr_in containing IP address of the server
  and a port number to listen on
• Third parameter use sizeof(sockaddr_in)
• Return value 0 for success 1 for failure

29
Windows Sockets Server Example 1(code demoed
in class)

• SOCKET listenSocket
• listenSocket socket (PF_INET, // Address
  family
• SOCK_STREAM, // Socket type
• IPPROTO_TCP) // Protocol
• ...
• SOCKADDR_IN saServer
• saServer.sin_family AF_INET
• saServer.sin_addr.s_addr INADDR_ANY // Let
  WinSock supply address
• saServer.sin_port htons(nPort) // Use port
  from command line
• // bind the name to the socket
• int nRet bind (listenSocket, // Socket
• (LPSOCKADDR)saServer, // Our
  address
• sizeof(struct sockaddr)) // Size of address
  structure

30
Listen
int listen(int socket, int queueLimit)

• Incoming TCP connection requests will be handled
  and then queued for acceptance by the program
• The queueLimit specifies an upper bound on the
  number of incoming connections that can be
  waiting at any time
• The current socket is only used for listening to
  incoming connections and it is not used for
  sending and receiving actual data.

31
Server Side Under the Hood
socket()
bind()
listen()
32
Accept
int accept(int socket, struct sockaddr
clientAddress, unsigned int
addressLength)

• It removes one connection request from the queue.
• If no pending connections are present on the
  queue and the socket is not marked as
  non-blocking, accept() blocks until a connection
  is present.
• If the socket is marked as non-blocking and no
  pending connections are present on the queue,
  accept() returns an error.
• When successful, accept()
• creates a new socket with the same properties of
  socket, and returns a new handle to the socket
• fills in the sockaddr structure pointed by the
  clientAddress.
• returns a descriptor for a new socket that is
  connected to the client
• The accepted socket is used to read and write
  data to and from the socket that connected to it.
• The original socket is returned to the listening
  state.

33
Windows Sockets Server Example 2

• nRet listen (listenSocket, // Start listening
  to this socket
• SOMAXCONN) // Number of
  connection request queue
• ...
• SOCKET remoteSocket
• remoteSocket accept (listenSocket, //
  Listening socket
• NULL, // Optional client address
• NULL)
• ...

34
Server Side Under the Hood
listen()
accept()
35
Client/Server Interaction
36
TCP Server vs. TCP Client

• Creating the socket, sending, receiving, and
  closing are the same in both party.
• The differences
• The server binds an address to the socket
• By calling bind() function
• We say that the server listens to this address
• i.e. underlying TCP protocol implementation waits
  for connections from clients by calling listen()
  on the socket
• The server accepts the connection request
• It gets a new socket for the incoming connection
  by calling accept().

37
Review

• Steps of a TCP Server
• socket() - Get a socket
• bind() - bind to the socket
• listen() - listen for traffic on the socket
• accept() - accept incoming connections on the
  socket
• recv() - receive incoming traffic
• send() - send traffic to connection
• Steps of a TCP Client
• socket() - Get a socket
• connect() - Connect to a server
• send() - send traffic to server
• recv() - receive traffic from server

38
Windows Sockets

• Windows Sockets are based on the UNIX sockets
  implementation in the Berkeley Software
  Distribution (BSD, release 4.3)
• Two socket types are available
• Stream sockets provide for a data flow without
  record boundaries a stream of bytes. Streams
  are guaranteed to be delivered and to be
  correctly sequenced and unduplicated.
• Datagram sockets support a record-oriented data
  flow that is not guaranteed to be delivered and
  may not be sequenced as sent or unduplicated.
• Sequenced means that packets are delivered in
  the order sent.
• Unduplicated means that you get a particular
  packet only once.

39
Windows Sockets

• Both kinds of sockets are bi-directional they
  are data flows that can be communicated in both
  directions simultaneously (full-duplex).
• The network transport layer may break up or group
  data into packets of reasonable size.

40
Windows Sockets Client Example 1

• Example
• //Create a socket
• SOCKET theSocket socket (PF_INET,
  SOCK_STREAM,
  IPPROTO_TCP)
• SOCKADDR_IN saServer
• saServer.sin_family AF_INET
• //retrieve host information corresponding to
  host name string
• LPHOSTENT lpHostEntry gethostbyname(serverName)

• //set the Servers address and port
• saServer.sin_addr.s_addr ((LPIN_ADDR)lpHostEn
  try-gth_addr_list)
• //convert 32-bit values between host and
  network byte order
• saServer.sin_port htons(nPort)

41
Windows Sockets Client Example

• ...
• nRet connect (theSocket,
• (LPSOCKADDR)saServer, // Server address
• sizeof(struct sockaddr)) // Length
  of server address structure
• ...
• ...

42
Windows Sockets Client Example

• printf("Enter the data to be sent to the
  server(up to 256 bytes)\n")
• gets(szBuf)
• nRet send (theSocket, // Connected socket
• szBuf, // Data buffer
• strlen(szBuf), // Length of data
• 0) // Flags
• ...
• nRet recv (theSocket, // Connected client
• szBuf, // Receive buffer
• sizeof(szBuf), // Max length of
  buffer
• 0) // Flags
• ...
• closesocket(theSocket)

43
Windows Sockets Server Example 1(code demoed
in class)

• SOCKET listenSocket
• listenSocket socket (AF_INET, // Address
  family
• SOCK_STREAM, // Socket type
• IPPROTO_TCP) // Protocol
• ...
• SOCKADDR_IN saServer
• saServer.sin_family AF_INET
• saServer.sin_addr.s_addr INADDR_ANY // Let
  WinSock supply address
• saServer.sin_port htons(nPort) // Use port
  from command line
• // bind the name to the socket
• int nRet bind (listenSocket, // Socket
• (LPSOCKADDR)saServer, // Our
  address
• sizeof(struct sockaddr)) // Size of address
  structure

44
Windows Sockets Server Example 2

• nRet listen (listenSocket, // Start listening
  to this socket
• SOMAXCONN) // Number of
  connection request queue
• ...
• SOCKET remoteSocket
• remoteSocket accept (listenSocket, //
  Listening socket
• NULL, // Optional client address
• NULL)
• ...

45
Windows Sockets Server Example 3

• nRet recv (remoteSocket, // Connected client
• szBuf, // Receive buffer
• sizeof(szBuf), // Length of buffer
• 0) // Flags
• ...
• nRet send (remoteSocket, // Connected socket
• szBuf, // Data buffer
• strlen(szBuf), // Length of data
• 0) // Flags
• ...
• closesocket(remoteSocket)
• closesocket(listenSocket)

46
Winsock DLL

• The WSAStartup function must be the first Windows
  Sockets function called by an application or DLL.

• WORD wVersionRequested MAKEWORD(1,1)
• //include winsock.h if higher versions, may
  need winsock2.h
• WSADATA wsaData
• int nRet
• // Initialize WinSock and check version
• nRet WSAStartup(wVersionRequested, wsaData)
• if (wsaData.wVersion ! wVersionRequested)
• fprintf(stderr,"\n Wrong version\n")
• return
• Complete info (latest versions etc)
• http//msdn2.microsoft.com/en-us/library/ms742213.
  aspx

47
Winsock DLL

• The WSACleanup function terminates use of the
  Winsock 2 DLL (Ws2_32.dll).
• Sockets that were open when WSACleanup was called
  are reset and automatically deallocated as if
  closesocket were called.
• //Release Winsock DLL
• WSACleanup()
• Complete info (latest versions etc)
• http//msdn2.microsoft.com/en-us/library/ms741549.
  aspx

48

• You will need to check the documentation to find
  more details.

49
UNIX Examples
50
UNIX example TCPEchoClient.c - 1/4

• include ltstdio.hgt / for printf()
  /include ltsys/socket.hgt / for
  socket(), connect(), send()
  and recv() / include
  ltarpa/inet.hgt / for sockaddr_in and inet_addr()
  /include ltstdlib.hgt / for atoi()
  /include ltstring.hgt / for
  memset() /include
  ltunistd.hgt / for close()
  /
• define RCVBUFSIZE 32 / Size of receive buffer
  /
• void DieWithError(char errorMessage) / error
  handling function /
• int main(int argc, char argv)
• int sock struct sockaddr_in echoServAddr
  unsigned short echoServPort char servIP
  ...

51
TCPEchoClient.c - 2/4

• ...int main(int argc, char argv) ...
• char echoString char echoBufferRCVBUFSIZE
  unsigned int echoStringLen int bytesRcvd,
  totalBytesRcvd
• if (argc ! 2)) printf(Usage s
  ltServer IPgt ltEcho Wordgt \n, argv0)
  exit(1)
• servIP argv1 echoString argv2
  echoServPort 7 / well-known port for echo
  service / ...

52
TCPEchoClient.c - 3/4

• ... / Create a reliable, stream socket using
  TCP / if(sock socket(PF_INET, SOCK_STREAM,
  IPPROTO_TCP)) lt 0) DieWithError(socket()
  failed)
• / Construct the server address structure /
  memset(echoServAddr, 0, sizeof(echoServAddr)
  echoServAddr.sin_family AF_INET / Convert
  Servers IP address string to proper IP address
  /
• echoServAddr.sin_addr.s_addr
  inet_addr(ServIP)
• / Convert the port num to proper order /
• echoServAddr.sin_port htons(echoServPort)
• / Establish a connection to the echo server
  / if(connect(sock, (struct sockaddr )
  echoServAddr, sizeof(echoServAddr)) lt 0)
  DieWithError(socket() failed)
• echoStringLen strlen(echoString) /Determine
  the input length /
• ...

53
TCPEchoClient.c - 4/4

• ... / Send the string to the server /
  if(send(sock, echoString, echoStringLen, 0)) !
  echoStringLen) DieWithError(send()
  failed)
• / receive the same string back from the server
  / totalBytesRcvd 0 printf(Received )
  while (totalBytesRcvd lt echoStringLen)
  if(bytesRcvd recv(sock, echoBuffer, RCVBUFSIZE
  - 1, 0)) lt 0) DieWithError(socket()
  failed)
• totalBytesRcvd bytesRcvd
  echobufferbytesRcvd \0
  printf(echoBuffer)
• prinft(\n) close(sock) exit(0)

54
TCPEchoServer.c 1/4

• include ltstdio.hgt / for printf() and
  fprintf() /include ltsys/socket.hgt / for
  socket(), connect(), send()
  and recv() / include
  ltarpa/inet.hgt / for sockaddr_in and inet_addr()
  /include ltstdlib.hgt / for atoi()
  /include ltstring.hgt / for
  memset() /include
  ltunistd.hgt / for close()
  /
• define MAXPENDING 5 / Maximum outstanding
  conn. requests /
• void DieWithError(char errorMessage) / error
  handling func. /void HandleTCPclient(int
  clntSocket) / for TCP client handling
  function /
• int main(int argc, char argv)
• int ServSock, clntSock
• struct sockaddr_in echoServAddr
• struct sockaddr_in echoClntAddr
• unsigned short echoServPort unsigned int
  clntLen / Length of client address data
  structure
  / ...

55
TCPEchoServer.c 2/4

• ...int main(int argc, char argv) ...
• echoServPort 7 / well-known port for echo
  service /
• / Create socket for incoming connections /
  if((servSock socket(PF_INET, SOCK_STREAM,
  IPPROTO_TCP)) lt 0) DieWithError(socket()
  failed)
• / Construct Local address structure /
  memset(echoServAddr, 0, sizeof(echoServAddr)
  echoServAddr.sin_family AF_INET
  echoServAddr.sin_addr.s_addr htonl(INADDR_ANY)
  echoServAddr.sin_port htons(echoServPort)
  ...

56
TCPEchoServer.c 3/4

• ...int main(int argc, char argv) ...
• / Bind to the local address /
  if(bind(servSock, (sturct sockaddr )
  echoServAddr, sizeof(echoServAddr)) lt 0)
  DieWithError(bind() failed)
• / Mark the socket so it will listen for
  incoming connections / if(listen(servSock,
  MAXPENDING) lt 0) DieWithError(listen()
  failed) ...

57
TCPEchoServer.c 4/4

• ...int main(int argc, char argv) ...
• for()
• / Wait for a client to connect /
  if((clntSock accept(servSock, (struct
  sockaddr ) echoClntAddr, sizeof(echoClntAddr))
  lt 0) DieWithError(bind() failed)
• / clntSock is connected to a client /
• printf(Handling client s\n,
  inet_toa(echoClntAddr.sin_addr))
• HandleTCP(clntSock) / NOT
  REACHED /

58
HandleTCPClient.c 1/2

• include ltstdio.hgt / for printf() and
  fprintf() /include ltsys/socket.hgt / for
  send() and recv() / include
  ltunistd.hgt / for close()
  /
• define RCVBUFSIZE 32
• void DieWithError(char errorMessage) / error
  handling func. /
• void HandleTCPclient(int clntSocket)
• char echoBufferRCVBUFSIZE int
  recvMsgSize
• / Receive message from client /
  if((recvMsgSizerecv(clntSocket, echoBuffer,
  RCVBUFSIZE, 0)) lt 0) DieWithError(recv()
  failed)
• ...

59
HandleTCPClient.c 2/2

• ...
• / Send received string and receive again until
  the end of transmission /
  while(recvMsgSize gt 0) / zero indicates end of
  transmission /
• / Echo message back to client /
  if(send(clntSock, echoBuffer, recvMsgSize, 0)) !
  recvMsgSize) DieWithError(send()
  failed)
• / Receive message from client /
  if((recvMsgSizerecv(clntSock, echoBuffer,
  RCVBUFSIZE, 0)) lt 0) DieWithError(recv()
  failed)
• close(clntSocket)

60
CSockets
61
MFC CSockets

• Class based on Windows Sockets
• CSocket mysocket
• Main gain is that CSockets allows you to use
  CArchive to send/receive Serializable objects,
  without converting them into a byte string.
• e.g. a rectangle shape object is sent
  automatically (not first sending the top-left
  point coordinates, then ...)

62
Csocket Class
63
Csocket Class

• A CArchive object manages a buffer. When the
  buffer of a storing (sending) archive is full, an
  associated CFile object writes out the buffer's
  contents.
• Flushing the buffer of an archive attached to a
  socket is equivalent to sending a message. When
  the buffer of a loading (receiving) archive is
  full, the CFile object stops reading until the
  buffer is available again.
• Class CSocketFile derives from CFile, but it does
  not support CFile member functions (Seek,
  GetLength, ...).
• All the CSocketFile object must do is write or
  read sequences of bytes to or from the associated
  CSocket object. Because a file is not involved,
  operations such as Seek and GetPosition make no
  sense.
• CSocketFile is derived from CFile, so it would
  normally inherit all of these member functions.
  To prevent this, the unsupported CFile member
  functions are overridden in CSocketFile to throw
  a CNotSupportedException.
• The CSocketFile object calls member functions of
  its CSocket object to send or receive data.

64
Csocket Class http//msdn.microsoft.com/library/d
efault.asp?url/library/en-us/vccore98/HTML/_core_
windows_sockets.3a_.sequence_of_operations.asphtt
p//msdn.microsoft.com/library/default.asp?url/li
brary/en-us/vccore/html/_core_Windows_Sockets_in_M
FC.asp

• SERVER
• // construct a socket
• CSocket sockSrvr
• // bind to the port
• sockSrvr.Create(nPort)1,2
• // start listening
• sockSrvr.Listen( )
• -------

• CLIENT
• // construct a socket
• CSocket sockClient
• // create the SOCKET
• sockClient.Create( )2
• -------
• // seek a connection
• sockClient.Connect(svrAddr,nPort)3,4

same
65
Csocket Class

• SERVER ctd.
• ...
• // construct a new, empty socket
• CSocket sockRecv
• // accept connection
• sockSrvr.Accept(sockRecv) 5
• // construct file object
• CSocketFile file(sockRecv)

• CLIENT ctd.
• -------
• // construct file object
• CSocketFile file(sockClient)

66
Csocket Class

• SERVER OR CLIENT
• // construct an archive
• CArchive arIn (file,CArchiveload) or
• CArchive arOut (file,CArchivestore)
• // use the archive to pass data
• arIn gtgt dwValue or
• arOut ltlt dwValue6

67
Footnotes for the Previous Slides

• 1. Where nPort is a port number.
• 2. The server must always specify a port so
  clients can connect. The Create call sometimes
  also specifies an address. On the client side,
  use the default parameters, which ask MFC to use
  any available port.
• 3. Where nPort is a port number and strAddr is a
  machine address or an Internet Protocol (IP)
  address.
• 4. Machine addresses can take several forms
  ftp.microsoft.com, ucsd.edu. IP addresses use
  the dotted number form 127.54.67.32. The
  Connect function checks to see if the address is
  a dotted number (although it doesnt check to
  ensure the number is a valid machine on the
  network). If not, Connect assumes a machine name
  of one of the other forms.
• 5. When you call Accept on the server side, you
  pass a reference to a new socket object. You must
  construct this object first, but do not call
  Create for it. Keep in mind that if this socket
  object goes out of scope, the connection closes.
  MFC connects the new object to a SOCKET handle.
  You can construct the socket on the stack, as
  shown, or on the heap.
• 6. The archive and the socket file are closed
  when they go out of scope. The socket objects
  destructor also calls the Close member function
  for the socket object when the object goes out of
  scope or is deleted.

68
CSocket.Create()

• BOOL Create (          UINT nSocketPort 0,
           int nSocketType SOCK_STREAM,
           long lEvent FD_READ FD_WRITE
  FD_OOB FD_ACCEPT FD_CONNECT FD_CLOSE,
           PCTSTR lpszSocketAddress NULL)
• nSocketPort - A port for our socket. If zero (it
  is the default) MFC will choose it automatically.

• nSocketType -  Type of our socket. SOCK_STREAM
  for connection oriented sockets and SOCK_DGRAM
  for connections message oriented sockets.
• lEvent - Events that user wants receive
  notifications for them. For example if FD_READ is
  included then OnReceive method will be called (of
  course when this event will occur). Default value
  means that all notifications are included.
• lpszSocketAddress - Address of our host to which
  we want bind our socket. If it's NULL (it's
  default) then one can bind socket with Bind
  method.
• Returned value is non zero on success and zero
  otherwise. Specific error code can be accepted
  through GetLastError method.

69
Further Info - Useful Sites

• MSDN help files or on the web
• http//msdn.microsoft.com
• http//www2.rad.com/networks/1999/sockets/SockMFC
  .htm

70
Demo Hw5

• Run (using !) hw5-demo.exe
• Start as server
• Run (using !) hw5-demo.exe
• Start as client //must come after the server
• Draw shapes and see the server and client
  communicate
• Once the communication is done, each program
  should work as before , on its own

71
(No Transcript)
72
Hints Socket Class for Hw5

• class CClientSocket
• SOCKET mySocket
• int Port //port number
• char Server //server's name
• char Buffer //buffer is char array
• int MaxBuffer //maximum buffer
  size
• ..
• public
• CClientSocket(..) //constructor
• virtual CClientSocket() //destructor
• void Connect()
• int Read()
• void Send(.)
• //You will need to fill-in parameters where dots
  are.

73
Hints Starting as Server or Client

• Start as server or client
• client new CClientSocket("localhost",9999,256,
  this)
• server new CServerSocket(9999,256,this)
• You may connect to localhost which is a
  reserved name for your own computer (where the
  program refering to localhost is running)
• You may also connect to your friends machine as
  needed, by specifying the server (through command
  line arguments or program settings, as we have
  done before)

74
Hint Start as Server

• The relationship between the socket and thread
  may be as follows (but can be different as well)
• void CDrawViewOnStartAsServer()
• .
• //create a socket using arbitrary parameters
• server new CServerSocket(9999,1000,this)
• //Listen and accept
• server-gtListen()
• if(connected)
• MessageBox("A Client Connected") //inform the
  user
• myThread new CMyThread(this) //create
  thread to read messages
• myThread-gtStart() //start thread

75
Hint thread class

• class CMyThread
• public
• CMyThread(CDrawView parent) virtual
  CMyThread()
• int Start()
• void Run()
• void Close()
• private
• CDrawView Parent //handle to CDrawView
• static UINT ThreadFunc (LPVOID pParam)
• Note this is just one possibility, you can
  construct your thread differently

76
Hint thread class

• int CMyThreadStart()
• pThreadAfxBeginThread()
• UINT CMyThreadThreadFunc(LPVOID pParam)
• .
• You would need to fill these out, if you use this
  class given as hint.

77
Hints Starting as Server or Client

• void CMyThreadRun()
• char buffer
• while (1)
• try
• if (Parent-gtIsServer())
• nRet Parent-gtserver-gtRead(buffer)
• if (nRet -1)
• throw ..
• else
• nRet Parent-gtclient-gtRead(buffer)
• if (nRet -1)
• throw ..
• catch (char str)
• Parent-gtMessageBox(str)

78
Synchronization

• You dont need synchronization (Mutex objects)
  for this homework.
• There may be a slight need , like elements being
  inserted into the list in the wrong order if both
  parties draw at the same time, but this is too
  small, unimportant for this homework
