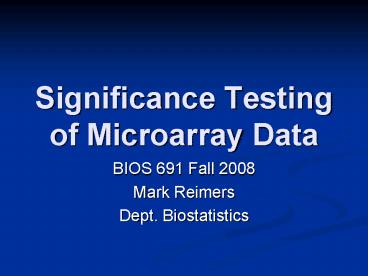

Significance Testing of Microarray Data

1
Significance Testing of Microarray Data

• BIOS 691 Fall 2008
• Mark Reimers
• Dept. Biostatistics

2
Outline

• Multiple Testing
• Family wide error rates
• False discovery rates
• Application to microarray data
• Practical issues correlated errors
• Computing FDR by permutation procedures
• Conditioning t-scores

3
Reality Check

• Goals of Testing
• To identify genes most likely to be changed or
  affected
• To prioritize candidates for focused follow-up
  studies
• To characterize functional changes consequent on
  changes in gene expression
• So in practice we dont need to be exact
• but we do need to be principled!

4
Multiple comparisons

• Suppose no genes really changed
• (as if random samples from same population)
• 10,000 genes on a chip
• Each gene has a 5 chance of exceeding the
  threshold at a p-value of .05
• Type I error
• The test statistics for 500 genes should exceed
  .05 threshold by chance

5
Distributions of p-values
Real Microarray Data
Random Data
6
Characterizing False Positives

• Family-Wide Error Rate (FWE)
• probability of at least one false positive
  arising from the selection procedure
• Strong control of FWE
• Bound on FWE independent of number changed
• False Discovery Rate
• Proportion of false positives arising from
  selection procedure
• ESTIMATE ONLY!

7
Corrected p-Values for FWE

• Sidak (exact correction for independent tests)
• pi 1 (1 pi)N if all pi are independent
• pi _at_ 1 (1 Npi ) gives Bonferroni
• Bonferroni correction
• pi Npi, if Npi lt 1, otherwise 1
• Expectation argument
• Still conservative if genes are co-regulated
  (correlated)
• Both are too conservative for array use!

8
Holms FWER Procedure

• Order p-values p(1), , p(N)
• If p(1) lt a/N, reject H(1) , then
• If p(2) lt a/(N-1), reject H(2) , then
• Let k be the largest n such that p(n) lt a/n, for
  all n lt k
• Reject p(1) p(k)
• Then P( at least one false positive) lt a
• Step-up procedure
• Proof doesnt depend on distributions

9
Hochbergs FWER Procedure

• Find largest k p(k) lt a / (N k 1 )
• Then select genes (1) to (k)
• Step-down procedure starting from largest
  p-values and working down
• More powerful than Holms procedure
• But requires assumptions independence or
  positive dependence
• When one type I error, could have many

10
Simes Lemma

• Suppose we order the p-values from N independent
  tests using random data
• p(1), p(2), , p(N)
• Pick a target threshold a
• P( p(1) lt a /N p(2) lt 2 a /N p(3) lt 3 a /N
  ) a

a/2
A a/2 a/2 a2/4 a2/4
a/2
11
Simes FWER Procedure

• Pick a target threshold a
• Order the p-values p(1), p(2), , p(N)
• If p(1) lt a /N then
• If p(2) lt 2 a /N then
• if p(k) lt k a /N
• Select the corresponding genes (1) to (k)
• Step-up procedure
• starting with the smallest p-values and working up

12
Truth vs. Decision
Decision
Truth
13
False Discovery Rate

• In genomic problems a few false positives are
  often acceptable.
• Want to trade-off power .vs. false positives
• Could control
• Expected number of false positives
• Expected proportion of false positives
• What to do with E(V/R) when R is 0?
• Actual proportion of false positives

14
Catalog of Type I Error Rates

• Per-family Error Rate
• PFER E(V)
• Per-comparison Error Rate
• PCER E(V)/m
• Family-wise Error Rate
• FWER p(V 1)
• False Discovery Rate
• i) FDR E(Q), where
• Q V/R if R gt 0 Q 0 if R 0 (B-H)
• ii) FDR E( V/R R gt 0) (Storey)

15
Benjamini-Hochberg

• Cant know what FDR is for a particular sample
• B-H suggest procedure specifying Average FDR
• Order the p-values p(1), p(2), , p(N)
• If any p(k) lt k a /N
• Then select genes (1) to (k)
• q-value smallest FDR at which the gene becomes
  significant
• NB acceptable FDR may be much larger than
  acceptable p-value (e.g. 0.10 )

16
Argument for B-H Method

• If no true changes (all null Hs hold)
• Q 1 condition of Simes lemma holds
• P lt a
• If all true changes (no null Hs hold)
• Q 0 lt a
• Build argument by induction

17
Storeys pFDR

• Storey argues that E(Q V gt 0 ) is the quantity
  of real interest
• Sometimes quite different from B-H

18
A Bayesian Interpretation

• Suppose nature generates true nulls with
  probability p0 and false nulls with P p1
• Then pFDR P( H true procedure)

19
Storeys Procedure
20
Practical Issues

• Actual proportion of false positives varies from
  data set to data set
• Mean FDR could be low but could be high in your
  data set

21
The Effect of Correlation

• If all genes are uncorrelated, Sidak is exact
• If all genes were perfectly correlated
• p-values for one are p-values for all
• No multiple-comparisons correction needed
• Typical gene data is highly correlated
• First eigenvalue of SVD may be more than half the
  variance
• Distribution of p-values may differ from uniform
• True FDR more variable

22
Symptoms of Correlated Tests
P-value Histograms
23
Distributions of numbers of p-values below
threshold

• 10,000 genes
• 10,000 random drawings
• L Uncorrelated R Highly correlated

24
Permutation Tests

• We dont know the true distribution of gene
  expression measures within groups
• We simulate the distribution of samples drawn
  from the same group by pooling the two groups,
  and selecting randomly two groups of the same
  size we are testing.
• Need at least 5 in each group to do this!

25
Permutation Tests How To

• Suppose samples 1,2,,10 are in group 1 and
  samples 11 20 are from group 2
• Permute 1,2,,20 say
• 13,4,7,20,9,11,17,3,8,19,2,5,16,14,6,18,12,15,10
• Construct t-scores for each gene based on these
  groups
• Repeat many times to obtain Null distribution of
  t-scores
• This will be a t-distribution ? original
  distribution has no outliers

26
Multivariate Permutation Tests

• Want a null distribution with same correlation
  structure as given data but no real differences
  between groups
• Permute group labels among samples
• redo tests with pseudo-groups
• repeat ad infinitum (10,000 times)

27
Critiques of Permutations

• Variances of permuted values for truly changed
  genes are inflated
• artificially low p-values
• Permuted t -scores for many genes may be lower
  than from random samples from the same population

28
Permutations for FWER

• Typically tests are correlated
• Extreme case all tests highly correlated
• One test is proxy for all
• Corrected p-values are the same as
  uncorrected
• Intermediate case some correlation
• Usually probability of obtaining a p-value by
  chance is in between Sidak and uncorrected values

29
Westfall-Young Approach

• How often is smallest p-value less than a given
  p-value if tests are correlated to the same
  extent and all Nulls are true?
• Construct permuted samples n 1,,N
• Determine p-values pn for each sample

30
Permutations for FDR - B-H Style

• Estimate p-values in the spirit of W-Y (but
  without multiple testing correction
• t.j is the permutation p-value for gene j
• N is the number of tests
• I is the number of permutations
• Apply B-H procedure to these p-values

31
Permutations FDR Korn Style

• B-H procedure only guarantees long-term behavior
  of method
• can be quite badly wrong
• Korn addresses issue of correlations

32
Moderated Tests

• Many false positives with t-test arise because of
  under-estimate of variance
• Most gene variances are comparable
• (but not equal)
• Can we use pooled information about all?

33
Steins Lemma

• Whenever you have multiple variables with
  comparable distributions, you can make a more
  efficient joint estimator by shrinking the
  individual estimates toward the common mean
• Can formalize this using Bayesian analysis
• Suppose true values come from prior distrib.
• Mean of all parameter estimates is a good
  estimate of prior mean

34
SAM

• Statistical Analysis of Microarrays
• Uses a fudge factor to shrink individual SD
  estimates toward a common value
• di (x1,i x2,i / ( si s0)
• Patented!

35
limma

• Empirical Bayes formalism
• Depends on prior estimate of number of genes
  changed
• Bioconductors approach free!
