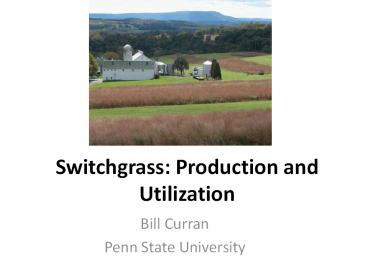

Switchgrass: Production and Utilization

1
Switchgrass Production and Utilization

• Bill Curran
• Penn State University

2
Outline For Today

• What is switchgrass?
• Some thoughts about management
• Local research

3
Switchgrass(Panicum virgatum)

• Perennial warm season bunch grass native to tall
  grass prairies and elsewhere in North America
• Currently grown as ground cover, conservation
  plant, and forage crop
• Frequent species in CRP, CREP, and other
  conservation/wildlife habitat programs
• Most recently - attractive biomass crop for
  biofuel production due to rapid growth, winter
  hardiness, and other traits.

4
Warm-Season Native Grasses

• Where do they fit?
• Marginal soils
• Summer forage
• Complement to
• cool-season forages
• Conservation uses
• Wildlife
• Renewable source of energy?

5
Switchgrass for forage production

• Can be grazed or harvested and stored as hay
• Produces well during the hot and dry weather of
  July and August
• Management very different than for cool season
  grasses
• Higher in fiber and not suitable for some types
  of livestock - most success with beef cattle
  producers
• Problem for sheep and horses - hepatotoxin (liver
  damage)

6
CREP Planting
7
Switchgrass - Potential Bioenergy Crop
8
Why switchgrass? DOE-McLaughlin

• Native prairie species
• High yield/Energy gain
• Low energy input
• Widely acceptable
• Soil/water conservation
• Wetland protection
• Reduced agrochemical use
• Increased carbon storage
• Excellent wildlife habitat
• Grow/harvest like hay
• Multiple use on/off farm
• Parrish, D.J., and J.H. Fike. 2005. The biology
  and
• agronomy of switchgrass for biofuels.
• Critical Reviews in Plant Science 24423-459..

9
Establishment Challenges

• Achieving adequate stands
• Seed dormancy or poor quality
• Improper or nonuniform planting depth
• Lack of weed control
• Variable weather and soil conditions
• Possible solutions
• Appropriate planting dates, seeding rates, seed
  scarification, reduced seed dormancy, new
  herbicides, interplanting opportunities.

10
Switchgrass Establishment

• Address the basics and plan ahead at least 9
  months out
• Consider basic agronomic practices
• Soil test, look at pH, nutrient levels
• Control problems (weeds, pests, compaction)
• Think about residue management and seed to soil
  contact
• Typically plant later in spring than cool-season
  grasses

11
Establishment (cont.)

• Established from seed
• In PA, should be seeded between May 1 and June 10
  (no-till, mulch-till, conventional till).
• Seed shallow (0.25-0.50 in) at 10 to 15 lb
  PLS/acre
• Slow to establish two to three growing seasons
• Weed competition, seed dormancy, and poor
  seedling vigor are frequent limitations to rapid
  establishment
• Herbicide choices limited establishment year
• Does not tolerate close or frequent cutting or
  grazing
• Stubble height of 6 to 8 inches

12
Soil and Site Adaptation

• Most productive on moderately well drained soils
  of medium fertility at a soil pH range from 5.5
  to 7.0.
• Adapted to a wide range of soil conditions
  including dry and shorter-term wet sites
• Lowland and upland varieties are available, but
  upland varieties tend to be better adapted for
  northern regions
• Common varieties include Cave-in-Rock, Shawnee,
  Trail Blazer, Shelter, etc. Research is
  currently looking at traits better suited for
  cellulosic fuel production.

13
Fertility

• Switchgrass does not fix nitrogen and will
  require N for biomass production (0-150 lb/acre)
  depending on use
• Switchgrass requires less P and K than corn
• Fertilization needs for long-term annual biomass
  removal have not yet been determined, but annual
  maintenance practices will be necessary.

14
Mid-Atlantic Forage RecommendationsParrish et
al., 2002

• Maintain soil pH above 5.0
• Apply 50 lb/acre P when soil test P is low
• Apply 100 lb/acre K, when soil test K is low to
  medium
• Apply 50 lb/acre N in spring for a one-cut system
  and another 50 lb/acre for a two cut system
• Midwest 10 to 12 lb/acre for each 1000 lb
  yield (Vogel et al., 2002)

15
Pest Management

• Weeds at establishment are the biggest pest
  problem.
• Insect pests are not generally a major concern
• Leaf and stem fungal diseases are occasionally a
  problem in some years.
• Tilletia maclagani, a head smut has been
  identified in some stands in recent years. This
  has reduced seed and biomass yield.

16
First year seeding - Is there switchgrass in
there?
17
Seedling switchgrass Slow to
establish (photos courtesy of Ernst Conservation
Seeds)
18
Weed Control

• Herbicides
• Same as are labeled in grass pasture and hay
• Some additional products available for CREP and
  conservation mixes (Plateau, Outrider, etc.)
• Biggest problem to control is grasses
• foxtail, panicum, etc.
• Johnsongrass
• Cool-season species quackgrass, fescue, etc.
• Mowing
• Once or twice after establishment leave 4 to 6
  inches of stubble

19
Weed Control is Critical for Successful Stand
Establishment
No weed control
Post herbicide program
End of first season - establishment year
20
Effect of planting date on switchgrass and weed
yield one year after seeding (Panciera and Jung,
1983)
21
Established

• Management inputs will vary depending on use
• Occasional weed control will still be necessary
• Harvest management will determine fertility needs
• Burning
• Fire in late spring has increased production in
  some areas
• PA regulations will determine suitability
• Not an issue if biomass is harvested?

(photo courtesy of K. Vogel)
22
Native Grasses can be Exciting!
23
Yield

• Switchgrass yield is limited during the first two
  to three years following seeding
• Established switchgrass yields vary, but range
  from 1 to 6 tons/acre (3-4 ton avg. in central
  PA)
• Optimum harvest management trials are currently
  taking place.

24
Switchgrass Yield Rock Springs (Adler et al.,
2006. Agron. J.)
Fall Harvest Spring Harvest
Field Scale Tons/acre dry matter Tons/acre dry matter
2001 3.0 3.0
2002 3.1 2.1
2003 3.1 1.8
Plot Scale
Cave-In-Rock 3.8 3.0
Shawnee 3.8 3.0
Trailblazer 3.0 2.3
Yields could be higher in different years and at
different locations
25
Estimated Cost

• Seeding year - 125-225/acre
• Established - 100-150/acre

26
Estimated Switchgrass Costs (/acre) Curran
and Roth, 2007
Variable costs Seeding year Established
---------------------------/acre---------------------- ---------------------------/acre---------------------- ---------------------------/acre----------------------
seed (12 lb PLS/acre) seed (12 lb PLS/acre) 120 0
lime 0 15
fertilizer 0 40
herbicide 30 20
insecticide 0 0
soil test 1 1
labor 10 5
fuel 6 3
repairs and maintenance repairs and maintenance 5 3
custom mowing 10 13
custom raking 0 8
custom baling (large rounds) custom baling (large rounds) 0 7
Total variable costs Total variable costs 182 115

Fixed costs
tractors 3 3
equipment 7 7
land 0 0
Total fixed costs 10 10
Total Costs 192 125
Costs do not include interest on capital or land costs (taxes, rent, interest, etc.) and income is not considered
27
Switchgrass Establishment Costs from C. Ernst

• Three examples (include labor)
• 1. Abandoned farmland (contained small brush,
  goldenrod, quackgrass, and yellow nutsedge)
•   92.67/acre chemicals and spraying costs
•   27.76/acre tillage costs
•   95.85/acre seed and drilling costs
  (approximately 6 PLS lb/acre)
• 216.28/acre Total
•
• 2. Annually hayed farmland
•   42.52/acre chemicals and spraying costs
•   13.36/acre tillage costs
•   63.11/acre seed and drilling costs
• 118.99/acre Total
• 3. Annual row crop production
•   25.47/acre chemicals and spraying costs
•   74.66/acre seed and planting costs
• 100.13/acre Total
• Above cost estimates exclude land or management
  costs and any income.

28

• Switchgrass production and management
• Economic production-costs information. Avg. of 10
  farms in the central great plains.

Year 1 Year 2-5 Year 2-5
/ac/yr /ac/yr /ton
Machinery and labor 33.00 47.00 13.00
Materials 42.00 24.00 9.00
Pro-rated establishment costs 43.00 13.00
Land rent 60.00 60.00 22.00
Total costs 135.00 174.00 57.00
Avg. yield was 4.2 tons/ac/year Source Perin
and Vogel. 2006. Univ. Nebraska and USDA-ARS.
29
Penn State Research

• Switchgrass yield, nutritive value, soil carbon
  changes under grazing/clipping USDA, Sanderson
• NE marginal croplands survey - USDA,
  Adler/Sanderson
• Grassland mgt practices harvest time and
  frequency USDA, Adler/Sanderson
• Life cycle assessment greenhouse gas emissions-
  USDA, Adler/Sanderson
• Suitability for nutrient stability in coal mine
  reclamation PSU, Stehouwer
• Weed management at establishment PSU/USDA,
  Curran/Adler
• Switchgrass use in mushroom compost PSU
  Mushroom Test Demonstration Facility

30
Useful Websites

• www.attra.org/attra-pub/switchgrass.html
• www.extension.iastate.edu/Publications/PM1710.pdf
• www.extension.iastate.edu/Publications/AG200.pdf
• www.hort.purdue.edu/newcrop/proceedings1999/v4-282
  .html

31
Questions?
