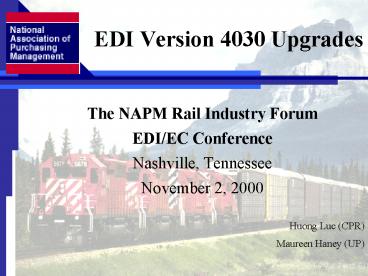

EDI Version 4030 Upgrades

1
EDI Version 4030 Upgrades

• The NAPM Rail Industry Forum
• EDI/EC Conference
• Nashville, Tennessee
• November 2, 2000
• Huong Luc (CPR)
• Maureen Haney (UP)

2
Why Rail Industry Guidelines for EDI?

• The Rail Industry Guidelines were created to
  speed the development and implementation of
  electronic commerce in three ways
• They represent a commitment by the rail industry
  to a common format for electronic commerce.
• They arrange the ASC X12 documentation into a
  self-contained and abbreviated format.
• They concentrate on the portion of the standards
  which are pertinent to the rail industry.

3
Why Upgrade?

• Each year, ASC X12 updates the EDI standard
  creating a new version or release of the
  standard.
• In turn, the Subcommittee on Information
  Standards creates a new Rail Industry Guideline
  that recognizes the new X12 version/release.
• Each receiver and sender must be prepared to
  accept transmissions in either of the two active
  version/releases.

4
Version 4030 Upgrades

• 810 Invoice
• 820 Payment Advice/ Remittance Advice
• 824 Application Advice
• 832 Price Sales Catalog
• 850 Purchase Order
• 855 Purchase Order Acknowledgment
• 856 Ship Notice/ Manifest
• 861 Receiving Advice
• 870 Order Status Report

5
X12 EDI 850 Changes

• REF02 element changed length from 1/ 30 to
  1/ 50
• PER03 and PER05 elements added code EM
• PER04 and PER06 elements changed length from 1/
  80 to 1/ 256
• N404 element changed from optional to
  conditional and added country code MX

6
X12 EDI 850 Additions

• CUR02 element added code MXP
• PER01 element added code IC
• PER07 PER08 elements added to transaction (to
  give sender an additional contact means)
• REF01 element added code SA
• NI address loop added at the line item level

7
X12 EDI 810 Changes

• REF02 element changed length from 1/30 to 1/50
• N101 element dropped code BF as an option by the
  RIF, dropped code RE by X12, and the RIF would
  like to add code RI
• N404 element added country code MX
• PER03 and PER05 elements added code EM
• PER04 and PER06 elements changed length from 1/
  80 to 1/ 256

8
X12 EDI 810 Changes (cont.)

• SAC02 element has a code change - Inspection Fee
  code D860 removed by X12, the RIF will now use
  D870 labeled Inspection
• SAC13 element changed length from 1/30 to 1/50
• CAD08 element changed length from 1/30 to 1/50

9
X12 EDI 810 Additions

• CUR02 element added code MXP
• PER07 PER08 elements added to transaction (to
  give sender an additional contact means)
• TXI Segments added at the line item and summary
  level

10
EDI 810 - TXI Segment
11
Where to Obtain More Information?
12
(No Transcript)
13
(No Transcript)
14
Questions?
