The Lower Mon Project

1

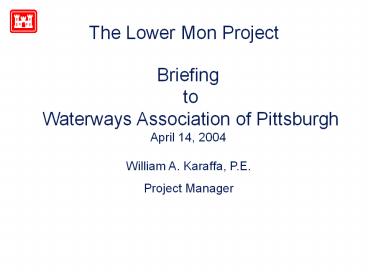

The Lower Mon Project
Briefing to Waterways Association of
Pittsburgh April 14, 2004
William A. Karaffa, P.E. Project Manager
2
The Lower Mon Project
Braddock Dam
Demolition of Old Dam 2
3
The Lower Mon Project
Braddock Dam
Demolition of Old Dam 2
4
The Lower Mon Project
Charleroi Locks
Independent Value Engineering Study Project
Status
5
The Lower Mon Project
Charleroi LocksIndependent Value Engineering
Study Best Value Trade-Off Evaluation
6
The Lower Mon Project
Charleroi LocksIndependent Value Engineering
Study Final Recommendation
? The Evaluation Team and the PRB acknowledged
the potential cost savings of 25M was very
speculative, due to the preliminary nature of the
VE design. ? The PRB concluded that the risks
associated with the long term operability,
maintainability, and navigation safety of the VE
to be unacceptable, regardless of the potential
cost savings.
7
The Lower Mon Project
Charleroi Locks
Project Status ? Right
Bank Work Features - Ongoing ? River Chamber
Demolition Ongoing ? New River Wall
Construction Advertise April 26, 2004 ?
Waterways Site Visit April 22, 2004
8
Lower Monongahela River Project Efficient
Constrained Funding Streams
9
Lower Monongahela River Project Current Schedule
(30 M / Year)
10
Lower Monongahela River Project Impacts of
Constrained Funding

• Completion of Charleroi Locks is delayed 6 years
• Risk of failure at L/D 3 increases significantly
  major rehabilitation may be required to extend
  project life until 2016 when Dam 3 is removed.
• Increased OM costs to maintain depreciated lock
  operating equipment at Locks 3 4
• Total benefits foregone with FY-05 constrained
  schedule are estimated at 1.2 billion.

11
Lower Monongahela River ProjectAdditional OM
Requirements

• Locks 3 4 (Normal Maintenance Schedule)
• 2007 Repair Valves Gate Miter Sills
  2.0 M
• 2010 Lock Gate Replacement or Rehab
  1.5 M
• 2017 Repair Valves Gate Miter Sills
  2.2 M
• Total (Each Project) 5.7 M
• Dam 3
• Significant potential for foundation failure
  without major Rehabilitation. Pool 3 could be
  lost, resulting in significant impacts to Locks 4
  stability, Municipal water intakes, and private
  facilities.
