Maps

1

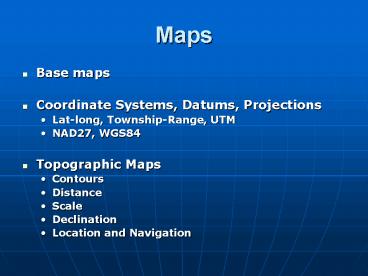

Maps

• Base maps
• Coordinate Systems, Datums, Projections
• Lat-long, Township-Range, UTM
• NAD27, WGS84
• Topographic Maps
• Contours
• Distance
• Scale
• Declination
• Location and Navigation

2
Base Maps

• Starting point for depicting or recording spatial
  data.
• Shows geographic, cultural, topographic features
  that are references to the data plotted.
• Typically airphotos, satellite images, and
  topographic maps are used as bases.

3
Base Maps

• Need to have a minimum of distortion e.g. they
  need to be planimetrically correct.
• Since Earth is curved, this requirement leads to
  map projections, etc. as ways to depict a curved
  surface on a flat map.

4
Base Maps

• Topographic maps (1250k to 124k or larger)
• Aerial photographs
• Oblique substantial distortion (perspective)
• Vertical less distortion (lens and topography
  effects)
• Othorectified planimetrically corrected

5
(No Transcript)
6
Coordinate Systems

• Ellipsoid (spheroid) define the shape of the
  physical Earth.
• Geoid defines the shape of the Earths
  gravitational field e.g. the shape of surfaces of
  equipotential.

7
Coordinate Systems

• Datum defines a reference for the shape and size
  of the earth, based on specific parameterizations
  of the ellipsoid and geoid.
• Many, some for local use, some for global use.
• Common ones are NAD27, NAD83, and WGS84

8
Coordinate Systems

• Any particular datum is based on a model for the
  shape of the Earth.
• Flat models for local surveying
• Spherical models for airplane radio navigation
  aids (VOR-DME-TACAN)
• Ellipsoidal models for precision, global ranging
  using radio Loran and GPS.

9
Coordinate Systems

• For maps, datums set the zero point for
  horizontal and vertical measurements.
• Converting between datums is a transformation of
  coordinates e.g. shifting the origin.
• Very important to use the correct datum or you
  will mislocate yourself and your data!

10
(No Transcript)
11
(No Transcript)
12
Coordinate Systems

• Earth is divided into a spherical grid system of
  latitude and longitude.
• Planes through the equator and the poles define
  circular intersections with the Earths surface.

13
Coordinate Systems

• Longitude Intersection circles defined by set
  of all planes parallel to the rotation axis.
• North-south, NON-parallel lines (meridians).
• Origin (zero point) is the Greenwich Prime
  Meridian.
• Longitude measured in degrees East or West of
  Greenwich.

14
Coordinate Systems

• Latitude Intersection circles defined by set of
  all planes perpendicular to rotation axis
  (parallel to equator).
• East-west, NON-intersecting lines (parallels).
• Origin (zero point) is the Equator.
• Latitude measured in degrees North or South of
  the Equator.

15
(No Transcript)
16
(No Transcript)
17
Coordinate Systems

• Township and Range Old system to subdivide US
  for survey purposes.
• Origin (initial point or IP) is intersection of a
  principal meridian and a base line.
• Gridded in 6 mile increments.
• N-S increments are townships.
• E-W increments are ranges.
• Grid further subdivided by quartering

18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Map Projections

• Curved surfaces are hard to depict on flat
  surfaces.
• No matter what you do, there will always be some
  distortion of
• Areas
• Angles/Directions
• You can fix one or the other, but not both.

23
Map Projections

• Just what it sounds likeimagine you are
  projecting an image of the Earth onto a flat
  plane.
• The trick is figuring out how to do it to achieve
  the result you want.
• Mathematically, projections are a class of
  geometric transformation of coordinate systems.

24
(No Transcript)
25
Map Projections

• Images and maps contain inherent distortion ?
  display of a curved surface on a flat medium.
• Projections are systematic representations of
  curved surfaces on planes
• Perspective projection through a projection
  center onto a plane
• Conic projection through object center onto
  enveloping cone
• Cylindrical projection through object center
  onto enveloping or intersecting cylinder
• Projections can be conformal (preserve shape and
  angles) or equivalent (preserve areas and
  distances)

26
(No Transcript)
27
Map Projections

• Question to ask What kind of distortion do you
  need to minimize? Areas? Angles? Both? Neither?
• Purpose of the map dictates the answer and the
  answer dictates the appropriate projection to
  use.
• Scale of the map and location on Earths surface
  also affects the magnitude of the potential
  distortions.

28
Map Projections

• Mercator Projection onto a circumscribing
  vertical cylinder results in rectangular maps
  with latitude and longitude in a grid pattern.
• Since longitude lines are not parallel, this
  results in distortion in polar areas (where
  meridians converge).
• Useful because directions and angles are
  preserved. But at the cost of distorting areas.
  Conformal.
• Scale changes with latitude.

29
(No Transcript)
30
Map Projections

• Transverse Mercator Projection onto a horizontal
  circumscribing cylinder.
• One meridian line (central meridian) is tangent
  to the cylinder (compare to regular Mercator
  where the equator is tangent).
• This results in minimal area distortion along
  that tangent line and /- 15 to either side
  (just as distortion is minimal near the equator
  in the regular Mercator projection).
• Conformal projecton.

31
(No Transcript)
32
Map Projections

• Universal Transverse Mercator (UTM) grid system
  for numbering maps produced in a Transverse
  Mercator projection.
• Grid covers globe from 84 N to 80 S.
• Grid divided into 60 N-S zones (each 6 wide)
  numbered from E to W starting at 180 longitude.

• Zones divided into 20 quadrangles 8 high
• Each quadrangle has its own grid with separate
  origin.
• Origin is intersection of central meridian and
  equator. UTM coordinates are distance in meters
  in N-S (northing) and E-W (easting)
  directions from the origin.

33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Map Projections

• Polyconic Cut globe into strips. Flatten and
  stretch out to form a continuous surface.
• Scale constant along given line of latitude.
  Scale changes in N-S direction.
• Portion in center has minimal area distortion.

38
(No Transcript)
39
(No Transcript)
40
Map Projections

• Lambert Conformal Conic Useful for areas that
  are elongated in E-W direction.
• Latitude and longitude grid projected onto a
  cone.
• Distance is preserved only along two standard
  parallels tangent to cone .
• Shapes and directions are preserved. Conformal.
• Projection used in most quadrangle maps.

41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
Topographic Maps

• Depicts the shape of the earth by showing lines
  of constant elevation (contours).
• Contours are shown at regular intervals of
  elevation (on USGS maps typically 20 ft).
• Understanding shape and density of contours is
  critical skill for effective use of topographic
  maps.

47
(No Transcript)
48
Topographic Maps

• Rule of Vs
• Spacing of contours.
• Hatched contours.
• Contours cant cross.
• Saddles, peaks, valleys

49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
Topgraphic Maps

• Closely-spaced contours steep topography.
• Hatched contour lines are closed contours
  (depressions).
• Contour lines can never cross!
• Peaks, valleys, and saddles are useful for
  locating yourself

53
Topographic Maps

• Ground distance vs. Map distance
• Ground distance is the total distance you would
  have to walk from point A to point B. Takes into
  account that terrain isnt flat.
• Map distance is the straight line distance you
  could take if you could fly from point A to point
  B. Assumes flat surface (no relief).
• In general Map distance lt Ground distance.

54
Topographic Maps

• Map scale the relationship between the size of a
  feature on the map and the actual size on the
  ground.
• Indicated on maps by a scale bar, a verbal scale,
  or a fraction.

55
(No Transcript)
56
(No Transcript)
57
Topographic Maps

• Large scale vs. small scale not intuitive!!!
• Large-scale maps show details of small areas.
  Large scale-fractions e.g. 11000.
• Small-scale maps show large areas. Small
  scale-fractions e.g. 11000000.

58
Topographic Maps

• Declination angular measure of the difference
  between true and magnetic north.
• USGS maps are aligned with true north (rotation
  axis of Earth).
• Magnetic north is not at the rotation axis AND it
  changes!
• But our compasses point to magnetic NOT true
  north

59
Topographic Maps

• Thankfully, we can correct for declination on our
  Brunton compass.
• Within a map area, declination is constant
  (essentially).
• Declination changes slowly (decade timescale).

60
(No Transcript)
61
(No Transcript)
62
Topographic Maps

• Locating yourself takes practice! We will start
  practicing on Friday.
• Need to use the contours on the map and careful
  observation of your surroundings.
• Need to be aware of scale and distance.
• Using a compass to take bearings to landmarks
  helps

63
Topographic Maps

• Bearing direction of a straight line between two
  points in terms of angular distance E or W of N-S
  line. Example N70W.
• Azimuth direction given in terms of clockwise
  angular distance from North. Example 290.
• Brunton compasses use either convention.

64
(No Transcript)
65
Topographic Maps

• Profiles can be made using the contour data on a
  map
• Draw the profile line on the map.
• Mark the intersection of each contour line on the
  profile line.
• On a separate paper, draw the profile line to the
  same scale and transfer the intersection points.
• Select an appropriate vertical scale (with or
  without vertical exaggeration) and for each
  intersection point, plot the appropriate
  elevation on the vertical scale.
• Connect the dots.

66
(No Transcript)
67
(No Transcript)
68
Topographic Map Rules

• Contours never cross.
• Contours never branch/merge.
• Contours dont disappear (except at edge of the
  map).
• Also

69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
Location and Navigation

• Locating yourself takes practice! We will start
  practicing on this afternoon
• Need to use the contours on the map and careful
  observation of your surroundings.
• Need to be aware of scale and distance.
• Using a compass to take bearings to landmarks
  helps

73
Location and Navigation

• Bearing direction of a straight line between two
  points in terms of angular distance E or W of N-S
  line. Example N70W.
• Azimuth direction given in terms of clockwise
  angular distance from North. Example 290.
• Brunton compasses use either convention.

74
(No Transcript)
75
(No Transcript)
76
Location and Navigation

• Vertical accuracy of USGS maps is within ½
  contour interval.
• Horizontal accuracy of USGS maps is to within 40
  feet on the ground for 124k maps. This is about
  0.5 mm on the map
• so you must learn to locate yourself and
  features to within the size of a pencil point!

77
Location and Navigation

• Find north with the compass.
• Orient yourself and the map with north.
• Locate yourself by comparing the map with the
  surrounding terrain.
• Mark approximate location.
• Refine the location

78
Location and Navigation

• Find yourself at a unique feature (intersections,
  bends, hilltops, etc.)
• Locate yourself along a linear feature by taking
  a bearing
• Locate yourself along a linear feature by
  determining your elevation
• Take a bearing and distance to a nearby landmark
• Triangluate to three or more landmarks
• Take a bearing to a landmark and determine your
  elevation

79
Brunton Compass
Good to w/in ca. ½ degree. Metal is bad!
80
Brunton Compass
81
Brunton Compass
10
82
Brunton Compass
83
Shooting a Bearing
84
Shooting a Bearing
85
(No Transcript)
86
Triangulation
87
Triangulation
88
Triangulation
angle should be ca 60-90 degrees.
Triangulation Finding a feature
Resection Finding yourself
89
Topographic Map Symbology
90
Topographic Maps
91
Topographic Map Symbology
92
Topographic Map Symbology
93
Topographic Map Symbology
94
Topographic Map Symbology
95
Topographic Map Symbology
96
Topographic Maps

• How are they made?
• Ground surveys
• Stereo air photographs
• How can you make one (as we all will a few weeks
  from now)?

97
Topographic Maps

• Collect elevations at a set of spaced points.
  Take some on ridge crests and in stream bottoms.
• Mark ridges with dashed lines along ridges toward
  stream intersections.
• Decide on appropriate contour interval (depends
  on relief and scale and number of control
  points).
• Mark points on ridges and streams corresponding
  to contour interval.
• Connect the dots smoothly and realistically.

98
(No Transcript)
99
(No Transcript)
100
Topographic Maps

• Profiles can be made using the contour data on a
  map
• Draw the profile line on the map.
• Mark the intersection of each contour line on the
  profile line.
• On a separate paper (or below the map), draw the
  profile line to the same scale and transfer the
  intersection points.
• Select an appropriate vertical scale (with or
  without vertical exaggeration) and for each
  intersection point, plot the appropriate
  elevation on the vertical scale.
• Connect the dots.

101
(No Transcript)
102
(No Transcript)
