An update on the Goodness of Fit Statistical Toolkit

1

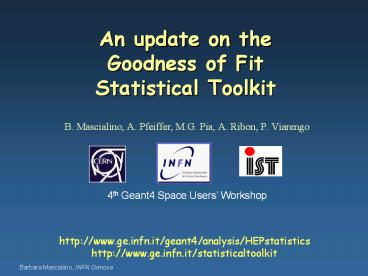

An update on the Goodness of Fit Statistical
Toolkit

• B. Mascialino, A. Pfeiffer, M.G. Pia, A. Ribon,
  P. Viarengo

4th Geant4 Space Users Workshop
http//www.ge.infn.it/geant4/analysis/HEPstatistic
s http//www.ge.infn.it/statisticaltoolkit
2
Goodness of Fit testing
Goodness-of-fit testing is the mathematical
foundation for the comparison of data
distributions

• Regression testing
• Throughout the software life-cycle
• Online DAQ
• Monitoring detector behaviour w.r.t. a reference
• Simulation validation
• Comparison with experimental data
• Reconstruction
• Comparison of reconstructed vs. expected
  distributions
• Physics analysis
• Comparison with theoretical distributions
• Comparisons of experimental distributions

Use cases in experimental physics
3
(No Transcript)
4
Software process guidelines

• Adopt a process
• software quality
• Unified Process, specifically tailored to the
  project
• practical guidance and tools from the RUP
• both rigorous and lightweight
• mapping onto ISO 15504 (and CMM)
• Incremental and iterative life-cycle
• 1st cycle 2-sample GoF tests
• 1-sample GoF in preparation

5
Architectural guidelines

• The project adopts a solid architectural approach
• to offer the functionality and the quality needed
  by the users
• to be maintainable over a large time scale
• to be extensible, to accommodate future
  evolutions of the requirements
• Component-based architecture
• to facilitate re-use and integration in diverse
  frameworks
• layer architecture pattern
• core component for statistical computation
• independent components for interface to user
  analysis environments
• Dependencies
• no dependence on any specific analysis tool
• can be used by any analysis tools, or together
  with any analysis tools
• offer a (HEP) standard (AIDA) for the user layer

6
(No Transcript)
7
The algorithms are specialised on the kind of
distribution (binned/unbinned)
8
GoF algorithms in the Statistical Toolkit
TWO-SAMPLE PROBLEM

• Binned distributions
• Anderson-Darling test
• Anderson-Darling approximated test
• Chi-squared test
• Fisz-Cramer-von Mises test
• Tiku test (Cramer-von Mises test in chi-squared
  approximation)

It is the most complete software for the
comparison of two distributions, even among
commercial/professional statistics tools. It
provides all 2-sample (edf) GoF algorithms
existing in statistics literature

• Unbinned distributions
• Anderson-Darling test
• Anderson-Darling approximated test
• Cramer-von Mises test
• Generalised Girone test
• Goodman test (Kolmogorov-Smirnov test in
  chi-squared approximation)
• Kolmogorov-Smirnov test
• Kuiper test
• Tiku test (Cramer-von Mises test in chi-squared
  approximation)
• Weighted Kolmogorov-Smirnov test (2 flavours)
• Weighted Cramer-von Mises test

9
User Layer

• Simple user layer
• Shields the user from the complexity of the
  underlying algorithms and design
• Only deal with the users analysis objects and
  choice of comparison algorithm
• First release user layer for AIDA analysis
  objects
• LCG Architecture Blueprint, Geant4 requirement
• Second release added user layer for ROOT
  analysis objects
• in response to user requirements

10
Which test to use?

• Do we really need such a wide collection of GoF
  tests? Why?
• Which is the most appropriate test to compare two
  distributions?
• How good is a test at recognizing real
  equivalent distributions and rejecting fake ones?
• The choice of the most suitable GoF test can be
  performed on the basis of two different criteria
• Computational performance
• Statistical performance (power)

11
A) Performance of the GoF tests
AVERAGE CPU TIME Binned Distributions Unbinned Distributions
Anderson-Darling (0.690.01) ms (16.90.2) ms
Anderson-Darling (approximated) (0.600.01) ms (16.10.2) ms
Chi-squared (0.550.01) ms
Cramer-von Mises (0.440.01) ms (16.30.2) ms
Generalised Girone (15.90.2) ms
Goodman (11.90.1) ms
Kolmogorov-Smirnov (8.90.1) ms
Kuiper (12.10.1) ms
Tiku (0.690.01) ms (16.70.2) ms
Watson (14.20.1) ms
Weighted Kolmogorov-Smirnov (AD) (14.00.1) ms
Weighted Kolmogorov-Smirnov (Buning) (14.00.1) ms
Weighted Cramer-von Mises (14.00.1) ms
12
B) Power of GoF tests
The power of a test is the probability of
rejecting the null hypothesis correctly

• Systematic study of all existing GoF tests in
  progress
• made possible by the extensive collection of
  tests in the Statistical Toolkit
• GoF tests power evaluated in a variety of
  alternative situations considered
• No clear winner the statistical performance of a
  test depends on the features of the distributions
  to be compared (skewness and tailweight) and on
  the sample size
• Practical recommendations
• first classify the type of the distributions in
  terms of skewness and tailweight
• choose the most appropriate test given the type
  of distributions evaluating the best test by
  means of the quantitative model proposed
• Topic still subject to research activity in the
  domain of statistics

General recipe
plt0.0001
13
Examples of practical applications
14
Statistical Toolkit Usage

• Geant4 physics validation
• rigorous approach quantitative evaluation of
  Geant4 physics models with respect to established
  reference data
• see for instance K. Amako et al., Comparison of
  Geant4 electromagnetic physics models against the
  NIST reference dataIEEE Trans. Nucl. Sci. 52-
  4 (2005) 910-918
• LCG Simulation Validation project
• see for instance A. Ribon, Testing Geant4 with a
  simplified calorimeter setup, http//www.ge.infn.i
  t/geant4/events/july2005
• CMS
• validation of new histograms w.r.t. reference
  ones in OSCAR Validation Suite
• Usage also in space science, medicine,
  statistics, etc.

15
Validation of Geant4 e.m. physics models vs. NIST
reference data
Experimental set-up
Electron Stopping Power
centre
p-value stability study
Geant4 LowE Penelope Geant4 Standard Geant4 LowE
EEDL NIST - XCOM
c2 test (to include data uncertainties in the
computation of the test statistics value)
p-value
Geant4 LowE Penelope Geant4 Standard Geant4 LowE
EEDL
The three Geant4 models are equivalent
H0 REJECTION AREA
Z
16
Validation of Geant4 Atomic Relaxation vs NIST
reference data
Shell-end Kolmogorov-Smirnov D p-value
10 0.0192 1
11 0.0175 1
13 0.0250 1
14 0.0256 1
18 0.0294 1
19 0.0312 1
21 0.1429 0.997085
22 0.0588 1
Fluorescence - Shell-start 3
? Geant4 ? NIST
17
Validation of Geant4 electromagnetic and hadronic
models against proton data

• Low Energy EM ICRU49 p, ions
• Low Energy EM Livermore g, e-
• Standard EM e
• HadronElastic with BertiniElastic
• Bertini Inelastic

LowE EM ICRU49
BertiniElastic
Bertini Inelastic
0.5 M events
p-value p-value p-value
CvM KS AD
Left branch 0.977
Right branch 0.985
Whole curve 0.994
CvM Cramer-von Mises test KS
Kolmogorov-Smirnov test AD Anderson-Darling
test
Geant4 Experimental data
mm
18
Test beam at Bessy Bepi-Colombo mission
c2 not appropriate (lt 5 entries in some bins,
physical information would be lost if rebinned)
Experimental measurements are comparable with
Geant4 simulations
Anderson-Darling Ac (95) 0.752
19
Comparison of alternative vehicle concepts in
human missions to Mars
Reference rigid structures as in the ISS (2 - 4
cm Al)

• Kolmogorov-Smirnov test
• Multi-layer 10 cm water equivalent to 4 cm Al
• Multi-layer 5 cm water equivalent to 2.15 cm
  Al

Shielding material Energy deposited in phantom (MeV) Energy deposited in phantom (MeV) Energy deposited in phantom (MeV)
Shielding material EM Bertini Binary
ML 5 cm water 73.5 0.3 130.2 0.5 119.3 0.4
ML 10 cm water 71.9 0.3 128.0 0.5 117.3 0.5
4 cm Al 72.9 0.3 127.5 0.5 117.0 0.4
2.15 cm Al 73.9 0.3 130.5 0.5 119.3 0.5
Inflatable habitat vs a conventional rigid
habitat
An inflatable habitat exhibits a shielding
capability equivalent to a conventional rigid one
20
Conclusions

• A novel, complete software software toolkit for
  statistical analysis is being developed
• all the two-sample GoF tests available in
  statistical domain chi-squared test
• rigorous architectural design
• rigorous software process
• It is the most complete software for the
  comparison of two distributions, even among
  commercial/professional statistics tools.
• A systematic study of the power of GoF tests is
  in progress
• unexplored area of research
• Application in various domains
• Geant4, HEP, space science, medicine
• Feedback and suggestions are very much
  appreciated
