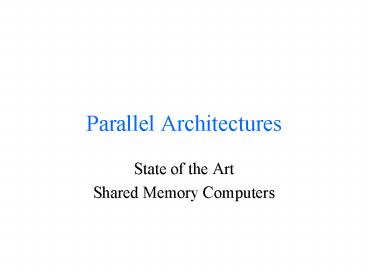

Parallel Architectures

1
Parallel Architectures

• State of the Art
• Shared Memory Computers

2
Agenda

• System level
• Shared memory
• Distributed memory
• Microprocessor level
• Multithreading
• Multicore

3
Classification of Architectures

• Flynns taxonomy not very accurate but widely
  used
• SISD (Single Instruction Single Data stream)
• sequential von Neumann architecture
• MISD (Multiple Instruction Single Data stream)
• do any exist?
• SIMD (Single Instruction Multiple Data stream)
• Lock-step machines
• MIMD (Multiple Instruction Multiple Data stream)

• modern data and instruction parallel systems

4
SIMD Architectures

• Lock-step parallel computers, developed as
  alternative to vector computers
• Front end (control unit) and back end (SIMD
  system)
• Sequential instructions performed by front end
• Parallel instructions broadcast to back end at
  each instruction cycle
• Massive parallelism maybe thousands of
  processors
• Examples
• Historical Connection machines, MasPar
• Today SIMD instructions (MMX, SSE) graphics
  processors (Cells SPE)

5
MIMD Architectures

• Computer with multiple independently operating
  CPUs
• CPUs are connected with each other and with
  memory
• Many types of topologies Linear (Bus), ring,
  tree, mess, 3D-torus
• CPUs have independent channels to memory
• Two major kinds of MIMD machines
• shared memory
• distributed memory
• now also distributed shared memory systems
• Most current HPC systems are MIMD machines
• Examples SGI PowerChallenge, IBM SP2, HP Exemplar

6
Examples
Distributed Memory Systems
Shared Memory Systems
LAN
7
Shared Memory Architectures

• Built during the 1980s, now popular again
• Multiple processors that access same main memory
• connected to main memory via bus
• Each processor has local cache
• Cache coherence when a memory location is
  updated, any copies in the local cache of other
  processors must be invalidated
• Advantage easy to program, easy processor
  communication
• Disadvantage
• Bus is bottleneck only small systems possible

8
Shared Memory

• All processes/threads access same shared memory
  data space

Shared memory space
proc1
proc2
proc3
procN
9
More Realistic View of Shared Memory Architecture
Shared memory
Bus
cache1
cache2
cache3
cacheN

cpu1
cpu2
cpu3
cpuN
10
Distributed Memory Architecture

• Built during late 1980s and since then
• Multiple processors, each with its own local
  memory
• No shared memory
• Processormemory nodes connected via network
• If data in processors memory is needed by
  another processor, it must be transmitted as
  messages via network
• Data exchange slow in comparison to clock speed
• Hard to program
• message passing assembly language in parallel
  programming
• Advantage Distributed memory parallel
  architectures scale easily
• Examples Intel iPSC, Paragon IBM SP2, Cray T3D,
  T3E

11
Distributed Memory

• The alternative model to shared memory

mem1
mem2
mem3
memN
proc1
proc2
proc3
procN
network
12
Distributed Memory Multicomputers

• Each node is von Neumann machine
• Cost of local memory access ltlt remote memory
  access
• Variety of interconnects used (butterfly
  networks, hypercubes, multistage networks)

13
Distributed Shared Memory Systems

• Recent architecture, overcomes size limits of
  shared memory systems
• Distributed memory system but memory is globally
  addressed
• So looks like shared memory system to users
• Hardware supports cache coherency
• Examples HP Exemplar, SGI Origin, Altix

Program as shared memory system
14
Distributed Shared Memory

• For larger numbers of processors

Global shared memory space
mem2
mem3
memN
mem1

Interconnect
cache2
cache1
cache4
cache3

proc1
proc2
proc3
procN
15
Why Shared Memory Parallelism?

• Shared memory parallelism was introduced to
  desktop computing
• Now it is becoming the basis for general-purpose
  computing
• Shared memory parallelism is powerful and very
  flexible
• can provide large amounts of memory for a program
• More power without raising the clock speed
• Easy to program compared to distributed memory
• Also a good start point for learning more
  aggressive parallel programming
• Technology was fairly cost-effective
• Can help avoid excessive power consumption and
  overheating
• Multicore/multithreading

16
Agenda

• System level
• Shared memory
• Distributed memory
• Microprocessor level
• Multithreading
• Multicore

17
Generations of Microprocessors

• Serial processors
• handle each instruction back to back
• IPC (instruction per cycle)lt1)
• Pipelined processors
• overlap different stages of handling of different
  instructions
• IPC 1 as throughput
• Superscalar processors
• issue/execute multiple instructions in parallel
  (Instruction level parallelism ILP)
• Multiple function units Out-of-order/speculative
  execution
• IPCgt1
• Multicore/multithreaded processors
• IPC gtgt 1

18
Limitations of superscalar uniprocessor computers

• Limited instruction level parallelism
• Data hazards
• Instruction depends on result of prior
  instruction still in the pipeline
• Structural hazards
• limited resources to support parallel execution
  of instructions
• Control hazards
• Branches and jumps cause wrong instructions are
  fetched/executed
• Difficulties in increasing clock frequency
• Power consumption
• Heat dissipation
• Solution thread level of parallelism

19
Multithreading

• Thread a lightweight stream of instructions
  within a process
• Shared resources memory address space, file
  descriptors
• Private state information (context) registers,
  program counter, stack, etc.
• Software multithreading context maintained by
  software (OS)
• Useful for overlapping I/O and computation
• Hardware multithreading thread context
  maintained by hardware
• Multiple processors SMP
• A multithreading processor
• Fine-grained and Coarse-grained multithreading
• Simultaneous multithreading
• multicore

20
MultiThreaded Processors

• Fine-grain switch threads on every instruction
  issue
• Round-robin thread interleaving (skipping stalled
  threads)
• Advantage can hide throughput losses that come
  from both short and long stalls
• Disadvantage slows down the execution of an
  individual thread, frequent thread switching is
  costly.
• Coarse-grain switches threads only on costly
  stalls (e.g., L2 cache misses)
• Advantages thread switching is cheaper, much
  less likely to slow down the execution of an
  individual thread
• Disadvantage limited ability to overcome
  throughput loss
• Pipeline must be flushed and refilled on thread
  switches

21
Simultaneous Multithreading

• A combination of ILP and TLP
• Superscalar issue/execute multiple instructions
  per cycle
• TLP hardware support for instructions from
  multiple threads simultaneously

• Improved resource utilization
• Shared function units, cache, TLB, etc
• Pentium 4 HyperThread 5 size increase with
  30 performance gain

22
Hyper-Threading from Intel

• 1 physical processors supporting 2 logical
  processors
• Shared Instruction Trace Cache and L1 D-Cache
• Replicated PC and register renamer
• Other resources partitioned equally between 2
  threads
• Recombines partitioned resources when single
  threaded (ensure single thread performance)

Intel NetBurst Microarchitecture Pipeline With
Hyper-Threading Technology
23
ILP and TLP
Issue slots
Fine-grained Multithreading
SMT
Superscalar
Courtesy of Pratyusa Manadhata_at_CMU
24
Multicore Processors

• Multicore (chip multiprocessing)
• Several processors integrated into one chip
• Dedicated execution resources for each core
• Shared L1, off-chip datapath
• L2 shared or dedicated
• Benefits of integration compared to SMP
• Increased communication bandwidth between
  processors
• Decreased latency
• Cost/performance efficiency

25
Dual-core Intel vs. AMD

• Major difference how to ensure scalability
  limited by Memory I/O bandwidth
• Intel increases front side bus frequency
• AMD integrated memory controller 3
  HyperTransport links (to I/O and other CPUs)

26
Performance SMT vs. Multicore
Sun Fire V490 4 dual-core processors (4 x 2
threads)
Intel Xeon 2 SMT processors (2 x 2 threads)
NAS parallel benchmark in OpenMP
Chunhua Liao, Zhenying Liu, Lei Huang, and
Barbara Chapman. "Evaluating OpenMP on Chip
MultiThreading Platforms". First International
Workshop on OpenMP, IWOMP 2005. Eugene, Oregon
USA. June 1-4, 2005.
27
Hybrid Multicore/multitheading

• Suns UltraSparc T1(Niagara) throughput
  computing, not ideal for scientific computing.
• 8 single-issue, in-order cores, each is 4-way
  fine-grained multithreaded

I/O shared functs
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
4-way MT SPARC pipe
Crossbar
4-way banked L2 Cache
Memory controllers
28
More hybrid Multicore/multitheading
Intel's Itanium 2 Dual core 2-way
coarse-grained multithreading
IBM Power5 Dual core 4-way SMT
29
An aggressive one Tera MTA

• A large-scale multithreading pioneer
• Tera MultiThreaded Architecture
• Up to 256 of processors
• Up to 128 threads per processor
• Fine-grained multithreading
• 257x12832,768 threads!
• Uniform shared memory
• No data cache
• up to 2.5 gigabytes per second via
  interconnection network.
• About 25 active streams per MTA processor are
  needed to overlap memory latency with
  computational processing.

Tera Computer Company bought the remains of the
Cray Research division of Silicon Graphics in
2000 and promptly renamed itself Cray Inc.
30
Asymmetric (Heterogeneous) Multiprocessing

• Combining general-purpose and special-purpose
  cores together
• Cell18 cores in one chip
• 1 Power Processor Element (PPE)
• general purpose, 64-bit RISC
• 8 Synergistic Processor Elements (SPE)
• SIMD units, support both parallel and stream
  processing

Cell Processor for game consoles
31
Summary

• Almost all modern supercomputers are MIMD
  architectures
• SIMD components are also popular
• Main distinction is between shared memory and
  distributed memory
• But also distributed shared memory with cache
  coherency
• Microprocessors are increasingly powerful
• More relying on thread level parallelism rather
  than increasing frequency and complexity.

32
