Title: Complex Power, Reactive Compensation, Three Phase


1

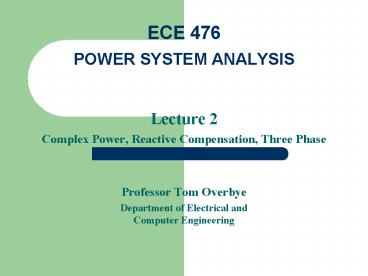

ECE 476POWER SYSTEM ANALYSIS
  • Lecture 2
  • Complex Power, Reactive Compensation, Three Phase
  • Professor Tom Overbye
  • Department of Electrical andComputer Engineering

2
Reading and Homework
  • For lectures 2 through 3 please be reading
    Chapters 1 and 2
  • HW 1 is 2.7, 12, 21, 26 due Thursday 9/4

3
Vertical Monopolies
  • Within a particular geographic market, the
    electric utility had an exclusive franchise

In return for this exclusive franchise, the
utility had the obligation to serve all existing
and future customers at rates determined
jointly by utility and regulators It was a cost
plus business
4
Vertical Monopolies
  • Within its service territory each utility was the
    only game in town
  • Neighboring utilities functioned more as
    colleagues than competitors
  • Utilities gradually interconnected their systems
    so by 1970 transmission lines crisscrossed North
    America, with voltages up to 765 kV
  • Economies of scale keep resulted in decreasing
    rates, so most every one was happy

5
Current Midwest Electric Grid
6
History, contd -- 1970s
  • 1970s brought inflation, increased fossil-fuel
    prices, calls for conservation and growing
    environmental concerns
  • Increasing rates replaced decreasing ones
  • As a result, U.S. Congress passed Public
    Utilities Regulator Policies Act (PURPA) in 1978,
    which mandated utilities must purchase power from
    independent generators located in their service
    territory (modified 2005)
  • PURPA introduced some competition

7
History, contd 1990s 2000s
  • Major opening of industry to competition occurred
    as a result of National Energy Policy Act of 1992
  • This act mandated that utilities provide
    nondiscriminatory access to the high voltage
    transmission
  • Goal was to set up true competition in generation
  • Result over the last few years has been a
    dramatic restructuring of electric utility
    industry (for better or worse!)
  • Energy Bill 2005 repealed PUHCA modified PURPA

8
State Variation in Electric Rates
9
The Goal Customer Choice
10
The Result for California in 2000/1
11
The California-Enron Effect
12
August 14th, 2003 Blackout
13
2007 Illinois Electricity Crisis
  • Two main electric utilities in Illinois are ComEd
    and Ameren
  • Restructuring law had frozen electricity prices
    for ten years, with rate decreases for many.
  • Prices rose on January 1, 2007 as price freeze
    ended price increases were especially high for
    electric heating customers who had previously
    enjoyed rates as low as 2.5 cents/kWh
  • Current average residential rate (in cents/kWh)
    is 10.4 in IL, 8.74 IN, 11.1 WI, 7.94 MO, 9.96
    IA, 19.56 CT, 6.09 ID, 14.03 in CA, 10.76 US
    average

14
Review of Phasors
  • Goal of phasor analysis is to simplify the
    analysis of constant frequency ac systems
  • v(t) Vmax cos(wt qv)
  • i(t) Imax cos(wt qI)

Root Mean Square (RMS) voltage of sinusoid
15
Phasor Representation
16
Phasor Representation, contd
(Note Some texts use boldface type for
complex numbers, or bars on the top)
17
Advantages of Phasor Analysis
(Note Z is a complex number but not a
phasor)
18
RL Circuit Example
19
Complex Power
20
Complex Power, contd
21
Complex Power
(Note S is a complex number but not a
phasor)
22
Complex Power, contd
23
Conservation of Power
  • At every node (bus) in the system
  • Sum of real power into node must equal zero
  • Sum of reactive power into node must equal zero
  • This is a direct consequence of Kirchhoffs
    current law, which states that the total current
    into each node must equal zero.
  • Conservation of power follows since S VI

24
Conversation of Power Example
Earlier we found I 20?-6.9? amps
25
Power Consumption in Devices
26
Example
First solve basic circuit
27
Example, contd
Now add additional reactive power load and resolve
28
Power System Notation
Power system components are usually shown
as one-line diagrams. Previous circuit redrawn
Arrows are used to show loads
Transmission lines are shown as a single line
Generators are shown as circles
29
Reactive Compensation
Key idea of reactive compensation is to supply
reactive power locally. In the previous example
this can be done by adding a 16 Mvar capacitor at
the load
Compensated circuit is identical to first example
with just real power load
30
Reactive Compensation, contd
  • Reactive compensation decreased the line flow
    from 564 Amps to 400 Amps. This has advantages
  • Lines losses, which are equal to I2 R decrease
  • Lower current allows utility to use small wires,
    or alternatively, supply more load over the same
    wires
  • Voltage drop on the line is less
  • Reactive compensation is used extensively by
    utilities
  • Capacitors can be used to correct a loads
    power factor to an arbitrary value.

31
Power Factor Correction Example
32
Distribution System Capacitors
33
Balanced 3 Phase (?) Systems
  • A balanced 3 phase (?) system has
  • three voltage sources with equal magnitude, but
    with an angle shift of 120?
  • equal loads on each phase
  • equal impedance on the lines connecting the
    generators to the loads
  • Bulk power systems are almost exclusively 3?
  • Single phase is used primarily only in low
    voltage, low power settings, such as residential
    and some commercial

34
Balanced 3? -- No Neutral Current
35
Advantages of 3? Power
  • Can transmit more power for same amount of wire
    (twice as much as single phase)
  • Torque produced by 3? machines is constrant
  • Three phase machines use less material for same
    power rating
  • Three phase machines start more easily than
    single phase machines

36
Three Phase - Wye Connection
  • There are two ways to connect 3? systems
  • Wye (Y)
  • Delta (?)

37
Wye Connection Line Voltages
-Vbn
(a 0 in this case)
Line to line voltages are also balanced
38
Wye Connection, contd
  • Define voltage/current across/through device to
    be phase voltage/current
  • Define voltage/current across/through lines to be
    line voltage/current

39
Delta Connection
40
Three Phase Example
  • Assume a ?-connected load is supplied from a 3?
    13.8 kV (L-L) source with Z 100?20?W

41
Three Phase Example, contd
42
Delta-Wye Transformation
43
Delta-Wye Transformation Proof
44
Delta-Wye Transformation, contd
45
Three Phase Transmission Line
