Title: LEED Sustainability Highlights


1

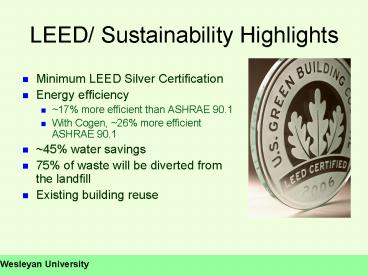

LEED/ Sustainability Highlights
  • Minimum LEED Silver Certification
  • Energy efficiency
  • 17 more efficient than ASHRAE 90.1
  • With Cogen, 26 more efficient ASHRAE 90.1
  • 45 water savings
  • 75 of waste will be diverted from the landfill
  • Existing building reuse

2
LEED/ Sustainability Strategies
  • Promoting Alternative Transportation
  • Preferred parking for Low Emitting and Fuel
    Efficient Vehicles
  • Bike storage and showering facilities provided

3
LEED/ Sustainability Strategies
  • Energy and Water Efficiency
  • Active Chilled Beams
  • Very efficient (low temp) heating and cooling
  • Enthalpy wheel
  • Heat recovery from exhaust air
  • Occupancy sensors and daylight sensors
  • Reduce excessive use of electricity
  • Dual Flush toilets and low flow fixtures.
  • Central Plant Cogeneration System
  • Combined heat and power greatly improves
    buildings overall energy usage

4
LEED/ Sustainability Strategies
  • Sustainable Healthy Materials
  • Recycled materials cotton batt insulation,
    carpet tiles,
  • Rapidly renewable materials (bamboo flooring)
  • Certified Wood from Sustainably Managed Forests
  • Reuse of existing walls and finishes (wood trim,
    doors)
  • Interior finishes such as paints, coatings,
    adhesives, sealants, and carpets are low
    off-gassing materials.
  • Green roof planted roofs at flat roof areas.

5
LEED/ Sustainability Strategies
Chilled beams
Cotton batt acoustical insulation
Daylight dimming controls
FSC Certified Wood Doors
Triple pane windows
Recycled content carpet tiles
6
CoGen
  • 16 Cylinder reciprocating natural gas fired
    engine and generator located in the Central Power
    Plant.
  • CoGen supplies 85 of Wesleyans annual electric
    usage.
  • CoGen supplies 25 of the total campus thermal
    usage.
  • The water that cools the engine is used for hot
    water and heating in High Rise.
  • The exhaust gas from the engine produces 3,500
    pounds/hour steam that goes to heat the campus.
  • CoGen generates electricity at 80 efficiency,
    utilities generate and distribute electricity at
    30 efficiency.

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
