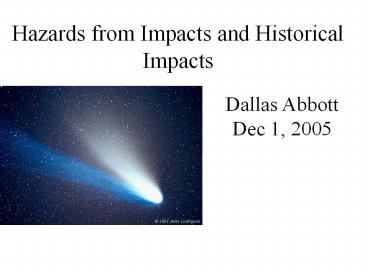

Hazards from Impacts and Historical Impacts

1
Hazards from Impacts and Historical Impacts
Dallas Abbott Dec 1, 2005
2
Collaborators

• Andrew Matzen
• Stephen Pekar
• Edward Bryant
• Mauri McSaveney
• Mohi Kumar
• Paul Krusic

3
Goals of Talk

• Hazards from Impact from Historical Impacts
• A) Explosion
• B) Pressure Pulse
• C) Wildfires
• D) Tsunami (Oceanic Impacts only)
• Holocene Impact Rate Could Be High

4
6 historical impacts

• Shoemaker-Levy
• Lunar Impact in Medieval Times
• Lunar Impact in 1953
• Tunguska 1908
• Brazilian Tunguska 1930
• Mahuika crater 1443 A.D.

5
Typical Comet near Sun
6
Shoemaker-Levy July 16-22, 1994string of pearls
before collision
7
Impacts G and H (out of over 21)
8
Infrared ImagesCometShoemaker-Levyhits Jupiter
9
Lessons from Shoemaker-Levy

• Most comets hit Jupiter, not Earth
• Jupiter is our safety net
• Comets rock plus ice weak, friable
• Gravity of Jupiter breaks up comet
• Shoemaker Levy type event multiple impacts
  common from comets
• Impact produces explosions

10
June, 1178 Gervase of Canterbury
On the evening of June 18, 1178 after sunset when
the moon had first become visible a marvelous
phenomenon was witnessed by some five or more
men...Now there was a bright new moon...its horns
were tilted toward the east and suddenly the
upper horn split in two. From the midpoint of the
division a flaming torch sprang up, spewing out,
over a considerable distance, fire, hot coals,
and sparks. Meanwhile the body of the moon which
was below writhed, as it were, in anxiety...the
moon throbbed like a wounded snake. Afterwards it
resumed its proper state. This phenomenon was
repeated a dozen times or more, the flame
assuming various twisting shapes at random...Then
after these transformations the moon from horn to
horn...took on a blackish appearance. The present
writer was given this report by men who saw it
with their own eyes, and are prepared to stake
their honor on it.
11
Horns of the Moon
12
Giordano Bruno crater (bright with rays)
13
Giordano Bruno-astronomer
Seven year trial by the inquisition Burnt at the
stake 1600
14
Impact on moon in 1178

• Minimum crater size 20 km to see with naked eye
• Conventional estimate one crater this size every
  311,000-332,000 years (on Earth)
• Moon is smaller than Earth/lower gravity
• Impact rate on Moon lower
• Terrestrial impact rate gt13.5 times higher
• Source crater Giordano Bruno crater (22 km)

15
Photo of Lunar Impact-1953
16
Impact on the moon in 1953

• An amateur astronomer photographed a flash on the
  moon in 1953
• Could not find a source crater (too small)
• Not a satellite (pre Sputnik)
• Bonnie Buratti found 1.5 km source crater in 2002

17
Lessons from Lunar Impacts

• Large impacts have occurred on the Moon in the
  last 1000 years
• High probability of large impacts on the Earth
  during this time period (fragment shower in
  1178?)
• 71 of Earth covered by water
• If large terrestrial impacts occurred, most would
  produce megatsunamis

18
Tunguska June 30, 1908
19
Tunguska

• 2000 square km of forest leveled
• Fallen trees radiate from impact center
• Impactor exploded in the air
• Trees in very center-upright but burned
• Event during Russian revolution
• Nearest survivor knocked to ground, lost hearing

20
Tunguska in ice core data
21
Tunguska results60 meter impactor
(Manhattan18x4km)
22
Brazilian Tunguska August 13, 1930
23
Brazilian Tunguska

• Upper Amazon-Curuca river
• Sun becomes blood red, darkness falls
• Large cloud of red dust, than fine white ash
• Followed by whistling sounds, then 3 explosions
• Ground shakes
• Forest begins to burn, fires last for months
• Several hundred eyewitnesses
• Written accounts lost for years

24
Lessons from Tunguska Type Events

• Impactors exploding in air-more dangerous
• Tunguska impactor-only 60 meters
• Effects of Tunguska-like event
• 1) Pressure wave-knocks over trees/people
• 2) Burning from explosion/ejecta fragments
• 3) Loud noise-deafening
• 4) Ground shaking/earthquake

25
What We Know Happened 1400-1500 A.D.

• 1) Fireball seen-SE Australia
• 2) Large tsunami runups-NZ, Aus, Lord Howe (over
  40 meters in Australia)
• 3) Torrential rain-NZ, Aus
• 4) Wildfires all over New Zealand
• 5) Coast abandoned in New Zealand

26
Aboriginal Legend
Moon rocks Stars fall See Fire Ball In the
morning Steaming pits New caves on coast Rains
and Rains Inference large impact in Tasman
Sea Produced crater.
27
Widespread Fires 1400 A.D.
28
Do These Events Have One Cause?
Crater
29
Location Map-Mahuika Crater
30
Mahuika crater

• Named for Maori goddess of fire
• 24 km in diameter
• Average crater formation rate 1 per 330,000
  years
• Highest rate 1 per 1100 years if comet cloud
  disturbed (Oort cloud)
• Mahuika crater formed at 1443 A.D.

31
How Hot Does It Get?Mahuika tektite on
leftRocks Melt at 1200C
32
Asteriod Impact Off New York City
33
Oblique Impact-2.9 Seconds Later
34
Oblique Impact-8.4 Seconds Later
35
Impact Splash
All impacts into water -make water
vapor Temperatures VERY HIGH 5000-15,000
C Splash to side-all impacts are oblique
36
Rocks Melt and Then Crystallize
Result Impact Spherules! Tektites!
37
Impact Spherules on 1 mm squares
38
Detailed Location Map
F80 has tektite D160 has tektite GreenRippled B
lackUndisturbed RedDisturbed
39
Oceanic Impacts Produce Big Waves How Big?
40
Impact Tsunami
Biggest Wave Height Water Depth Mahuika Water
Depth 300 meters Impactor 1 km to make 20 km
crater Run Up Height 3-10 times wave height
(sometimes more with edge waves)
41
Change in Height of Tsunami over Distance
42
Australian tsunami record-Eastern Australia 2
big events

• Youngest
• 1450 A.D.
• 130 m runup in Jervis Bay
• no obvious seismic source

43
Effects on Australian Coast
44
More Boulders-SE Australia
45
SE Australia-Boulder w Rocks Beneath
46
Interpretation
First Slide-Large Boulders on Cliff- Minimum
Tsunami Height 15 to 20 meters (I have seen
large boulders on top of 32 meter high cliff in
Australia-are from this event.) Third Slide-
Small Rocks Beneath Boulder indicate it settled
out Largest tsunami run up identified 130
meters at Steamers Beach-Jervis Bay- Tsunami
transported boulders.
47
Social Effects of Mahuika Impact
Tsunami removes shellfish (mussels, clams) from
rocks Maori move inland
48
Lessons from Mahuika Impact
Impacts into oceans produce large
waves-megatsunami Large oceanic impacts vaporize
tons of seawater Large impacts produce hot
ejecta-can ignite fires/burn trees
49
Reassuring Lessons
Mahuika impact dated from ice core as 1443
A.D.- no big climate change at 1443 A.D. 24 km
crater-did not destroy civilization big local
effects but no global effects
50
Close up of asteroidnot round-too small
51
How to Move an Asteroid
52
Conclusions
Large impacts dangerous but rare Tunguska size
event 1 or 2 per century-locally devastating-but
planet large Mahuika size event 1 per 1100
years? (This is 300 times average long term rate)
