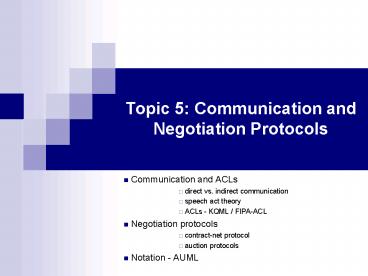

Topic 5: Communication and Negotiation Protocols

1
Topic 5 Communication and Negotiation Protocols

• Communication and ACLs
• direct vs. indirect communication
• speech act theory
• ACLs - KQML / FIPA-ACL
• Negotiation protocols
• contract-net protocol
• auction protocols
• Notation - AUML

2
1. Communication and ACLs

• communication
• the basis for any interaction
• effected through signals

3
Direct communication

• message passing
• some of the challenges
• distributed systems
• brokering, naming services, discovery,
• infrastructure for sending messages
• heterogeneous entities
• language, developer, execution environment,
• multi-agent systems
• objects ? messages
• agents ? speech acts
• why something different?

4

• an example
• MAS with cognitive of practical reasoning agents
• focus on mental states
• messages must have a meaning to other agents
• e.g. agent 1 sends message to agent 2
  doSomething(x)
• what does this mean to agent 2 ? how
  should/could he respond ?
• agent 1 asks agent 2 to do x ? part of
  negotiation protocol ?
• agent 1 tells agent 2 to do x ? assuming a
  commitment ?
• agent 1 relies on the fact that agent 2 will do x
  ? part of task allocation ?
• agent 1 will do x ?
• does agent 2 think agent 1 is waiting for a reply
  ?
• what is x ? a task ? a question ? the name of an
  agent ?
• does agent 1 asks agent 2 to perform task itself,
  or just make sure the result is achieved
• what must agent 2 do with the result ?
• must be semantically clear

5
Agent Communication

• ability to exchange information requires
• 1. ability to physically exchange
  information
• 2. common understanding
• 3. common language
• 4. interaction strategies / protocols

6
Agent Communication

• ability to exchange information requires
• 1. ability to physically exchange
  information
• 2. common understanding
• 3. common language
• 4. interaction strategies / protocols

7
Agent Communication

• ability to exchange information requires
• 1. ability to physically exchange
  information
• 2. common understanding
• exchanging knowledge requires mutual
  understanding ? 2 keys
• translation between languages
• sharing semantic content
• - each agent has implicit assumptions on its
  own semantics
• - translation must preserve semantics!
• to share knowledge, we must have a common
  semantics
• can be shared via common ontologies
• 3. common language
• 4. interaction strategies / protocols

8
Agent Communication

• ability to exchange information requires
• 1. ability to physically exchange
  information
• 2. common understanding
• 3. common language
• incorporates two types of languages
• content language
• communication language Agent Communication
  Language
• 4. interaction strategies / protocols

9
Agent Communication Languages (ACL)

• Agents are typically defined at a high level
• an ACL should support intentional communication
• the intentional descriptions use concepts such
  as beliefs, goals, intentions, commitment
• the language should not define protocols such as
• transport protocols
• high level coordination protocols
• constraints on valid exchanges

10
Speech Act Theory

• speech act theory views human speech actions
  (John Austin, 1962)
• as in an attempt to influence
• three parts of speech
• locution physical utterance
• illocution the intended meaning
• perlocution the action that results from the
  locution
• use performatives to identify illocutionary force
• example
• Please be quiet!
• locution the actual performance of the act
• illocution the purpose of the utterance
• perlocution the consequences of the utterance

11
ACLs FIPA ACL

• Foundation for Intelligent Physical Agents -
  http//www.fipa.org/
• o 1995
• since 2005 IEEE Computer Society standards
  organization
• promotes agent-based technology and the
  interoperability of its standards with other
  technologies
• standardisation of agent-related issues
• FIPA-OS
• FIPA infrastructure architecture
• ...
• FIPA-ACL
• similar to KQML
• consists of a set of message types and the
  description of their pragmatics that is, the
  effects on the mental attitudes of the sender and
  receiver agents.
• describes every communicative act with both a
  narrative form and a formal semantics based on
  modal logic.
• separates the outer language (the intended
  meaning of the message) from the inner language
  (content language).

12
ACL Message
13
FIPA ACL performatives
14
FIPA ACL semantics in SLthe Semantic Language

• SL (Semantic Language)
• can represent propositions, objects, and actions
• formal semantics
• lt message precondition rational
  effect gt
• message the content of the message
• precondition on the situation (mental state) of
  the sender
• rational effect intended effect on mental state
  of receiver

15
FIPA - Communicative Acts (1)

• inform
• the sender informs the receiver that a given
  proposition is true.
• confirm
• the sender informs the receiver that a given
  proposition is true, where the receiver is known
  to be uncertain about the proposition.
• disconfirm
• the sender informs the receiver that a given
  proposition is false, where the receiver is known
  to believe, or believe it likely that, the
  proposition is true.
• failure
• the action of telling another agent that an
  action was attempted but the attempt failed
• accept-proposal
• the action of accepting a previously submitted
  proposal to perform an action
• agree
• the action of agreeing to perform some action,
  possibly in the future
• cancel
• the action of cancelling some previously
  request'ed action which has temporal extent (i.e.
  is not instantaneous)
• cfp
• the action of calling for proposals to perform a
  given action.

16
FIPA - Communicative Acts (2)

• inform-if
• a macro action for the agent of the action to
  inform the recipient whether or not a proposition
  is true.
• inform-ref
• a macro action for sender to inform the receiver
  that an object corresponds to a definite
  descriptor (e.g. a name).
• not-understood
• the sender of the act (e.g. i) informs the
  receiver (e.g. j) that it perceived that j
  performed some action, but that i did not
  understand what j just did.
• propose
• the action of submitting a proposal to perform a
  certain action, given certain preconditions.
• query-if
• the action of asking another agent whether or not
  a given proposition is true.
• query-ref
• the action of asking another agent for the object
  referred to by an expression.
• refuse
• the action of refusing to perform a given action,
  and explaining the reason for the refusal.

17
FIPA - Communicative Acts (3)

• reject-proposal
• the action of rejecting a proposal to perform
  some action during a negotiation.
• request
• the sender requests the receiver to perform some
  action. One important class of uses of the
  request act is to request the receiver to perform
  another communicative act.
• request-when
• the sender wants the receiver to perform some
  action when some given proposition becomes true.
• request-whenever
• the sender wants the receiver to perform some
  action as soon as some proposition becomes true
  and thereafter each time the proposition becomes
  true again.
• request-whomever
• the sender wants an action performed by some
  agent other than itself. The receiving agent
  should either perform the action or pass it on to
  some other agent.
• subscribe
• the act of requesting a persistent intention to
  notify the sender of the value of a reference,
  and to notify again whenever the object
  identified by the reference changes.

18
ACLs KQML

• Knowledge Query Manipulation Language (KQML)
• KQML has 3 layers
• content - ignored by KQML messages
• message
• determines interaction types
• supplies performative content
• may describe ontology, etc.
• communication
• low level communication parameters
• sender, receiver, unique message ID

19
1. Communication ACLs2. Negotiation protocols

• Basic protocols
• contract-net protocol
• auction protocols

20
Negotiation protocols /Market-based Mechanisms

• iterative communication among a group of agents
  in order to reach a mutually accepted agreement
  on something..
• every day approach in resolving conflicts
• needed
• a set of options
• a utility function
• every option has a price and benefit
• this function evaluates the worth of an option to
  an agent.
• a negotiation protocol
• multiple stages or steps in the negotiation
  process
• eventually the process must either terminate or
  converge to a solution

21
The Contract Net Protocol

• introduced by R.G.Smith in 1980
• studied extensively with several variations in
  subsequent years.
• how it works
• a manager
• breaks the problem into several interacting
  sub-problems
• looks for a contractor
• selects the suitable contractor
• assigns a sub-problem
• monitors the progress of the overall solution
• a contractor
• bids for work
• accepts a task
• it has a binding agreement to complete the task
  according to the agreed terms
• and completes the task undertaken.
• recursively, the contractor can be a manager for
  the task it has undertaken.
• Basic assumptions

22
The Contract Net Protocol
I have a problem!
(b) Task Announcement
(a) Recognising the problem
(c) Bidding
(d) Award Contract
23
The Contract Net Protocol
24
Applicability of Contract Net

• The Contract Net is
• a high-level communication protocol
• a way of distributing tasks dynamically
• decentralized / situated
• a means of self-organization for a group of
  agents
• but
• limited (mostly for well-defined hierarchies of
  tasks)
• not scalable
• re-allocation ?

25
Auctions

• an auction takes place between
• an agent known as the auctioneer
• a collection of agents known as the bidders
• goal
• for the auctioneer to allocate the good to one
  of the bidders
• typically
• the auctioneer desires to maximize the price
• bidders desire to minimize price

26
Auction Parameters

• goods can have
• private value
• public / common value
• correlated value
• winner determination may be
• first price
• second price
• bids may be
• open cry
• sealed bid
• bidding may be
• one shot
• ascending
• descending

27
Example Auction protocols

• English auction
• parameter values
• first price
• open cry
• ascending
• Dutch auction
• parameter values
• open-cry
• descending
• (first price)
• First-Price Sealed-Bid Auctions
• parameter values
• sealed bid
• one-shot auction
• first price

28
English Auctions
29
Dutch Auctions
30
4. Notation - Agent UML

• a proposal for an agent-oriented modeling
  language
• Pros
• Likely standardization on UML 2.0
• Accepted by FIPA
• Contras
• UML dialect, not necessarily compatible
• AUML
• AUML class diagram
• AUML interaction diagrams
• esp. AUML sequence diagrams

http//www.fipa.org/repository/ips.php3
31
FIPA TC C 2000Specifies 11 Protocol
Specifications

• http//www.fipa.org/repository/ips.php3
• FIPA Request Interaction Protocol Specification
• FIPA Query Interaction Protocol Specification
• FIPA Request When Interaction Protocol
  Specification
• FIPA Contract Net Interaction Protocol
  Specification
• FIPA Iterated Contract Net Interaction Protocol
  Specification
• FIPA English Auction Interaction Protocol
  Specification
• FIPA Dutch Auction Interaction Protocol
  Specification
• FIPA Brokering Interaction Protocol Specification
• FIPA Recruiting Interaction Protocol
  Specification
• FIPA Subscribe Interaction Protocol Specification
• FIPA Propose Interaction Protocol Specification

32
Summary

• communication
• indirect (later) vs. direct communication
• message-based communication
• ACLs --gt speech act theory
• Negotation protocols
• Notation - AUML
