Airframe, Engine

1

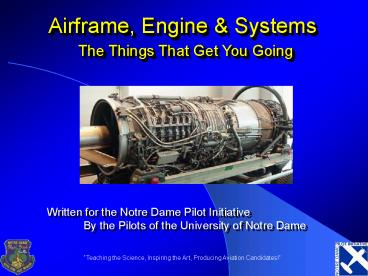

Airframe, Engine Systems
The Things That Get You Going
Written for the Notre Dame Pilot Initiative By
the Pilots of the University of Notre Dame
2
Roadmap

• Airplane Components
• Engine
• Ignition System
• Carburetor vs. Fuel Injection
• Fuel System
• Oil System
• Cooling System
• Electrical System
• Miscellaneous Systems
• Propellers
• Jet Engines

3
Airplane Components

• Fuselage
• Body of the airplane to which the wings,
  empennage, engine, and landing gear are attached
• Wings
• Spars
• Run perpendicular to the fuselage
• Ribs
• Run parallel to the fuselage

4
Spars Ribs (mmm)
5
Airplane Components

• Empennage
• Tail section of the airplane
• Vertical Horizontal Stabilizers
• Control Surfaces
• Elevator
• Controls pitch
• Rudder
• Controls yaw
• Ailerons
• Control roll

6
Airplane Exteriors C172
7
Airplane Exteriors A-10
8
Airplane Exteriors B727
9
Airplane Exteriors B727
10
Airplane Exteriors B727
11
Airplane Components

• Landing Gear
• Tailwheel (Conventional)
• Tri-cycle
• Brakes

12
Ground Steering?
13
Engine

• Engine Types
• Reciprocating (piston)
• In-Line
• Radial
• Horizontally Opposed
• Turboprop
• Turbojet
• Turbofan

14
Horizontally Opposed Engines
15
Reciprocating Engines

• Horizontally Opposed Piston
• 4-stroke operating cycle

Four Stroke Cycle
16
Ignition System

• Provides the spark that ignites the fuel/air
  mixture in the cylinders
• Each magneto is connected to one of the two spark
  plugs in each cylinder
• Increased safety
• Improved engine performance
• Magneto uses a permanent magnet to generate an
  electrical current independent of aircrafts
  electrical system

17
Carburetor

• Mixes incoming air
• with fuel
• Delivers to combustion chamber
• Air enters thru venturi
• Increases velocity
• and decreases
• pressure due to
• change in area

18
Carburetor Icing Carb Heat

• Loss of RPM (fixed pitch) may indicate carburetor
  icing
• Use of carburetor heat decreases energy
  performance

19
Fuel Injection
20
Mixture

• At higher altitudes, the fuel/air mixture must be
  leaned to decrease the fuel flow to compensate
  for the decreased air density
• If you descend to lower altitude without
  enriching mixture, mixture will become leaner
  (could starve engine)

21
Fuel System

• Carbureted or Fuel-Injected
• Gravity-fed and/or pump
• Engine driven pump
• Auxiliary boost pump
• Fuel tanks almost always in wings
• Selector valve
• LEFT, BOTH, RIGHT, OFF
• Mixture Control

22
Fuel System

• Fuel Types
• Fuel Tanks

Grade Color
80/87 Red
100LL Blue
100/130 Green
Jet-A Clear
TOTAL USABLE FUEL TOTAL UNUSABLE FUEL TOTAL FUEL VOLUME
53 3 56
1997 Cessna 172R
23
Refueling

• Park Ground Refuel
• Fuel Vents
• Using lower grade fuel than specified can cause
  cylinder head and engine temperatures to exceed
  normal operating limits. Use higher grade if not
  sure.

24
Fuel Checking

• Always check your fuel before using it

25
Oil System

• Why oil?
• Friction
• Cooling
• Seal
• Contaminants
• Oil Temperature
• Incorrect type/quantity
• Oil Pressure
• Insufficient quantity, leak, pump

26
Engine Temperature

• Excessively high engine temp will cause loss of
  power, high oil consumption and wear on inside of
  engine
• Engine is cooled (in part) by circulating oil
  through system to reduce friction and absorb heat
  from internal engine parts
• Engine oil and cylinder head temps can be too
  high
• Operating with too much power
• Climbing too steeply in hot weather
• Using low-octane fuel
• Mixture too lean
• Oil level too low

27
Cooling Exhaust Systems

• Cooling
• Intense heat caused by combustion
• Cowl flaps allow larger amount of ram air to
  escape from engine compartment
• Engine temp can be reduced by enriching the
  mixture, reducing rate of climb, increasing
  airspeed or reducing power
• Exhaust
• Vent burned gases thru muffler
• Provide heat for cabin from metal shrouds around
  muffler
• Defrost the windscreen
• Firewall
• Separates cockpit from engine

28
Abnormal Combustion

• Detonation occurs when fuel/air mixture explodes
  instead of burning evenly
• Caused by low octane fuel
• Leads to engine wear and high operating temp
• Pre-ignition is the uncontrolled firing of the
  fuel/air mixture before the normal spark ignition

29
Electrical System

• Direct Current
• Battery
• Provides the initial electrical power to start
  engine
• Provides emergency electrical power
• Lead-acid, 12 or 24 volts
• Alternator
• Initially produces alternating current (AC)
• Converts to direct current (DC) for use
• 14 or 28 volts

30
Ammeter

• Left-Zero Ammeter
• Alternator ? Ammeter ? Bus Bar ? Battery
• Center-Aero Ammeter
• Alternator ? Bus Bar ? Ammeter ? Battery

31
Electrical System Schematic Example
C-182 Alternator
32
Miscellaneous Systems

• Stall Warning System
• Static Dischargers
• Fuel Dumping

Fuel Dump Nozzle and Static Dischargers
33
Propellers

• Fixed-pitch
• Blade angle pre-selected by manufacturer for
  primary purpose of aircraft
• Constant Speed
• Variable pitch
• Maximizes efficiency at selected rpm

34
How to Use a Constant Speed Propeller

• Permits the pilot to select the blade angle for
  the most efficient performance
• Throttle controls power output as registered on
  the manifold pressure gauge, and the propeller
  control regulates engine RPM
• Avoid high MP with low RPM
• When increasing throttle, increase RPM first
• When decreasing throttle, decrease throttle first

35
How Constant Speed Propellers Work

• Governor regulates RPM
• Oil pressure regulates angle of blades
• Multiengine
• Increasing RPM Decreasing blade angle
• Decreasing blade angle result of oil being forced
  INTO propeller hub
• Single Engine (generally)
• Increasing RPM Decreasing blade angle
• Decreasing blade angle result of oil being forced
  OUT OF propeller hub
• Why the difference?
• A wind milling propeller creates a lot of drag
• In a multiengine, if we lose one engine, we want
  that propeller to feather (line up directly into
  wind)
• In a single engine, if we lose the engine, we
  want that propeller to windmill as we attempt to
  restart

36
How Constant Speed Propellers Work
37
Propellers
38
Types of Jet Engines
Turboprops
Turbojets
Turbofans
39
Turbofan Example
40
Turbofan Example

• Suck, Squeeze, Bang, Blow

41
Contrails Condensation Trails

• Hot, humid air from jet exhaust mixes with
  environmental air of low vapor pressure and low
  temp
• Contrail becomes visible if condensation (gas to
  liquid) occurs
• Air temp at high altitude is very cold (see lapse
  rate). Only a small amount of liquid is necessary
  for condensation to occur. And, water is a normal
  jet engine byproduct

42
Contrails Condensation Trails
Contrails last longer on humid days. If air is
too dry, no contrail will form.
Distrail formed by warm jet engine exhaust
settling down through cloud layer
