Title: Aircraft Jet Engines oil system


1

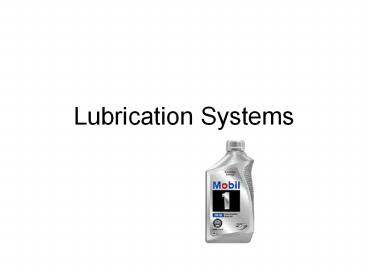

Lubrication Systems
2
Table of Contents
  1. Introduction
  2. Wet Sump System
  3. Dry Sump
  4. Oil Tanks
  5. Oil Pumps
  6. Oil Filters
  7. Bearing Chamber (may be deleted)
  8. Oil System Valves
  9. Other Oil Components
  10. Spectrometric Oil Analysis Program (SOAP)
  11. Trouble Shooting Maintenance

3
1- Introduction
  • The primary function of a lubrication system is
    to provide oil to the various parts of the engine
    which are subject to friction loads from engine
    rotation and heat loads from the gas path.
  • The lubrication system can be divided into two
    sections
  • The Pressure side
  • The Scavenge side.

4
  • There are two basic classifications of gas
    turbine lubrication systems
  • Wet Sump
  • Dry Sump

5
2-Wet Sump System
  • A wet sump lubrication system was used on early
    gas turbine engines and is now more often found
    on smaller engines or APU's.
  • A wet sump system is a lubrication system where
    the oil supply is carried within the engine
    itself or accessory gearbox.
  • Pressurized oil is used to lubricate the main
    engine bearings but the accessory gearbox is
    splash lubricated by oil carried in the gearbox
    housing that also acts as a oil reservoir

6
(No Transcript)
7
3-Dry Sump
  • A dry sump lubrication system carries its oil
    supply in a tank separate from the engine.
  • This now the most common type of lubrication
    system in modern gas turbine engines.

8
Dry sump cont
  • Dry sump lubrication systems are divided into two
    categories
  • hot-tank system and
  • the cold-tank systems.

9
-Hot-Tank Lubrication System
  • Has the oil cooler placed in the pressure side of
    the system, and the oil is returned 'hot' to the
    oil tank.
  • An advantage of this type of system is that a
    maximum heat exchange occurs because the oil has
    less entrained air in the pressure side of the
    system and this allows a smaller oil-cooler to be
    used.

10
Cold-Tank Lubrication System
  • A cold tank system is essentially the same as the
    hot-tank system except that the oil cooler is
    located in the scavenge side of the lubrication
    system and the oil is cooled before being
    returned to the oil tank.
  • In engines that have higher oil temperatures
    this is an advantage, as high oil temperatures
    affect oil service life.

11
5-Oil Tanks
  • A gas turbine engine oil reservoir is usually
    mounted on the engine or nearby airframe.
  • They are usually constructed of aluminum or
    stainless steel and are designed to provide a
    constant supply of oil to the lubrication system.

12
Oil tanks cont
  • Federal Aviation Regulations (FAR's) require that
    the tanks have an oil tight filler cap and an
    expansion space of 10.
  • The expansion space is to make allowance for an
    increase in oil volume due to thermal expansion
    and entrapped air when the engine is operating.
  • Most tanks are pressurized to approximately 4
    psi, this has two purposes
  • Positive flow of oil
  • Suppresses foaming and pump cavitations.

13
Oil tanks cont
  • The tanks can contain
  • A venting system
  • Filler cap and strainer
  • De-aerator to remove air
  • Oil pick up
  • Dip stick
  • Sight gauge
  • Oil quantity transmitter

14
Oil Pumps
  • Vane PumpVane pumps are a constant displacement
    pump more often found in the scavenge side of the
    lubrication system as they are more tolerant of
    debris and have a high volume and relatively low
    pressure.

15
(No Transcript)
16
  • Gerotor PumpGerotor pumps are a constant
    displacement pump and are used in both the
    pressure side and the scavenge side of the
    engine.

17
(No Transcript)
18
Oil pumps cont
  • Gear PumpGear pumps are the most commonly used
    constant displacement pump and can be found in
    the either the scavenge side or the pressure
    side.

19
(No Transcript)
20
6- Oil Filters
  • It is extremely important that the oil used in a
    gas turbine engine is free from foreign particles
    as these particles can cause severe bearing
    damage.
  • To keep the oil clean filters are used as the oil
    leaves the pressure pump and again in what are
    called the 'last chance' filters just before the
    oil is sprayed from the oil jet nozzle.There
    are three common types of filter used in gas
    turbine engines

21
Woven Wire Mesh Filter
  • Easy to clean, but can generally only remove
    particles larger than 40 microns.

22
Disk-type / Wafer Type Filter
  • Made up of a series of screen type filters with
    spacers in between each screen to form a chamber
    which is ported to the central collection tube.
  • This type of filter is easily cleaned and
    provides better filtration than a wire mesh
    filter.

23
(No Transcript)
24
Pleated Fiber Filter
  • Can remove particles as small as 15 microns. Can
    be cleanable or disposable

25
Bearing Chambers
26
(No Transcript)
27
8-Oil System Valves
  • Relief Valve
  • Relief valves are designed to maintain a constant
    pressure in the lubrication system and prevent
    over pressurization and damage.
  • The relief valves are situated on the discharge
    side of the pump, when the oil pressure exceeds
    the valve setting the valve opens and ports oil
    to the inlet side of the pump.
  • Some valve pressure settings can be adjusted by a
    screw.

28
(No Transcript)
29
Bypass valves
  • normally found in oil system components and are
    designed to allow oil to bypass a component
    should the component fail and oil is prevented
    flowing through it.

30
(No Transcript)
31
Check Valve
  • A one-way valve that ensures that oil flows in
    one direction only

32
9-Other Oil Components
  • Chip Detectors
  • Magnetic chip detectors are installed in scavenge
    side of the lubrication system
  • used to determine the level of metallic wear
    occurring in the engine.
  • Some chip detectors are easily removed for visual
    inspections while other may include an electrical
    circuit that illuminates a warning light in the
    flight deck when enough metal chips have
    accumulated to close the gap in the detector.

33
(No Transcript)
34
Heat exchanger
  • The oil in a gas turbine engine gathers a great
    deal of heat from the main bearings and this heat
    maybe transferred to either fuel or air.
  • Most modern gas turbine engines transfer the heat
    to the fuel to prevent the formation of ice
    crystals.

35
(No Transcript)
36
Air-Oil Separator
  • The oil that is picked up by the scavenge pump
    contains a lot of air.
  • Oil tanks contain dwell chambers which allow the
    air to separate and the air-free oil to enter the
    tank.
  • Some engines also utilize a gear driven
    centrifugal air-oil separator.
  • As oil laden air enters the rotating slinger
    chamber, centrifugal action throws the oil
    outwards to collect on the walls and drain down
    into the tank

37
(No Transcript)
38
Breather system
  • The breather system is used to keep the air in
    the oil tank at the same pressure as the air in
    the bearing housing.
  • This ensures that there is a positive flow of oil
    to the inlet of the main pump and prevents
    cavitations.

39
  • After lubricating the bearing the oil drains down
    into the sump and is collected by the scavenge
    pump and returned to the oil tank.
  • The scavenge pump not only collects all the oil,
    but also collects some air as well.
  • This air is transferred to the tank and is
    separated from the oil by the deaerator and is
    used to pressurize the tank.
  • The bearing chamber is vented to the oil tank by
    the vent line and a check valve.
  • The oil tank is also vented to ambient air
    through the pressurizing valve which maintains
    the tank at approximately 3-4 psi.
  • If the scavenge pump lowers the pressure in the
    bearing chamber, the vacuum valve opens and
    allows air to enter the chamber

40
(No Transcript)
41
10-Spectrometric Oil Analysis Program (SOAP)
  • Oil sampling should be done at regular intervals
    just after an engine has been run.
  • The contaminants in the oil provide an indication
    of engine wear.

42
  • Oil samples taken are passed through a
    spectrometer which precisely burns the oil and
    measures the wavelength of the emitted light to
    determine the type and quantity of contaminates
    in the oil.
  • The spectrometer can detect contaminants at 2-3
    parts per million of oil

43
  • The contents of the filters can be examined for
    evidence of metal particles, but by the time
    particles large enough to be visible are
    discovered serious engine damage has already
    occurred

44
(No Transcript)
45
(No Transcript)
