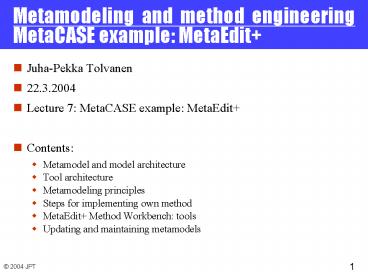

Metamodeling and method engineering MetaCASE example: MetaEdit

1
Metamodeling and method engineering MetaCASE
example MetaEdit

• Juha-Pekka Tolvanen
• 22.3.2004
• Lecture 7 MetaCASE example MetaEdit
• Contents
• Metamodel and model architecture
• Tool architecture
• Metamodeling principles
• Steps for implementing own method
• MetaEdit Method Workbench tools
• Updating and maintaining metamodels

2
Model architecture in MetaEdit

• GOPRR
• Method(ology)
• Concepts
• Rules
• Symbols
• Reports
• Product specifications

Metametamodel
Object
Relationship
Property
Graph
Role
Metamodel
Object X
Object Y
InstanceOf
InstanceOf
InstanceOf
Model
Object X customer
Relationship instance
InstanceOf
System in operation
Customer instance
3
MetaEdit method engineering tools
MetaEdit (model)
Method Workbench (metamodel)
4
Apply in software production

• MetaEdit delivers immediately the method to your
  team (editors, reports, multi-user,
  multi-platform, etc)
• Prototype your design refine and iterate

5
Architecture integrated CASE and metaCASE

• Windows
• Linux
• Solaris
• HP-UX

Method Workbench
6
General metamodeling principles

• On which level one should solve a specific
  problem?
• Domain/modeling language usually fixed, but
  modifications may still be possible (like new
  domain rules etc.)
• Metamodel and reports many various solutions
  usually possible, easy to change
• Platform usually fixed and hard to change
• There are often many ways to solve a specific
  problem
• Good results may require solutions and changes on
  more than one level (e.g. change in metamodel may
  require change in reports)
• As MetaEdit provides flexible metamodeling tool
  support, dont hesitate to experiment (but
  remember to backup first)

7
Identifying the domain concepts 1/2

• How to identify concepts of a domain-specific
  modeling language (DSM)?
• DSL is a bridge between domain and platform ? DSM
  must reflect both worlds
• Identifying concepts from the problem domain
• Results usually with domain-related abstractions,
  procedures, etc.
• Problem may not discover important technical
  details (thus it is important to take a look at
  the platform side also)

8
Identifying the domain concepts 2/2

• Identifying concepts from platform
• Results usually with technical concepts like
  programming language constructs, data structures,
  etc.
• Problem DSM may become transparent, reflecting
  more target platform than domain
• thus it is important to take a look at the
  problem domain side also

9
Steps for implementing DSM
Rules
Generators
3
4
1
2
Concepts
Symbols
10
1. Design domain concepts

• Identify domain concepts
• Map domain concepts accurately to modeling
  concepts
• Concentrate on semantics!
• Enter the concepts in the forms

11
Metamodeling concepts of GOPRR

• Concepts
• Graph
• Object
• Property
• Role
• Relationship
• MetaEdit has own tool for each metamodeling
  concept

12
Metamodeling tools

• Own tool for each concept and their properties
• Graph tool composes objects, relationships and
  roles together

13
Object, Role Relationship Tool

• Define properties
• Name field shows the types name
• Ancestor field shows the supertype
• Properties list shows the properties
• Local name of the property
• Name of the property type
• Data type of the property typeand whether the
  property has
• Unique values within this object
• Layout dialog (optional)
• Symbol definition
• Change acceptance by request

14
Property tool

• Choose data type widget
• Boolean, string, text, number, collection, GORR
  types
• Can refer to (collection of) objectssupertype
  allows all subtypes
• Define list values
• fixed list with default value
• overridable list with predefined values, but own
  are allowed
• editable list with predefined and own new values
  are added to the list for future selection

15
Graph Tool

• Object Tool plus
• Content types
• Bindings of contents
• Constraints for bindings
• Explosions decompositions

16
Dialog Editor

• Define dialog layouts for property editing
• Location of buttons, fields, labels
• Size of buttons, fields, labels
• Scaling factors for fields
• Window size (min/max/default)
• Scrollbars

17
Hints and tips for designing concepts

• Focus first on domain semantics
• Drawing and/or inspecting sample models is
  usually a good starting point
• Add extensions for software production later
• Reflect to output (e.g. generated code)
• Keep in mind the end-user (user-friendliness)
• When starting to metamodel with MetaEdit, always
  remember to choose default project to the
  metamodel!

18
2. Define domain rules

• Define semantics and rules as they exist in the
  domain
• Examples of rule types
• Start state may not be directly connected with
  end state
• Start state may may be in at most 1 transition
  relationship
• State may have substates
• Actions are reused from class
• etc.

19
Metamodeling rules of GOPRR

• Bindings between concepts
• Constraints
• Max 1 connection
• Uniqueness
• Binary or n-ary relationships
• Links between models
• Explosion
• Decomposition
• Reuse
• Non-property
• Property sharing

20
Bindings Tool

• What may be involved in each relationship type
• Role types(first is from role)
• For each role type, object types(supertype
  allows all subtypes)
• Cardinality role repetition
• Minimum (values 0,1,2,)0 optional role1
  obligatory
• Maximum (values 1,2,3,,N)N infinity

21
Constraints Tool

• Stop object being in too many bindings
• Two views
• Text view of all constraints
• Edit a constraint in a form
• Each object of this type
• may only be X times
• in this kind of relationship / role
• E.g. each Start state may only be in one
  Transition

22
Explosions Decompositions Tools

• Define which object types have subgraphs
• Explosion
• Relationships and roles too
• Instance graph specific
• Many explosions for one object
• Decomposition
• Only objects
• Same in all instance graphs
• One decomposition for one object
• Often same type as parent graph

23
Hints and tips for choosing rules

• Do not implement in the beginning too
  restrictive-sounding rules
• Use the method first to find relevant rules
• Parts of the rules can be in metamodel (active)
  and parts of the rules can be checked by reports
  (passive)
• Passive report-based rules should be implemented
  in the end when the metamodel is stable

24
3. Draw symbols (notation)

• Draw symbols for your concepts with Symbol Editor
• Graphical behavior in modeling tools is provided
  automatically
• Note that symbols are used also in documentation
  (Word, HTML) and in matrixes

25
Symbol Editor

• Symbols contain
• Shapes and colours
• Bitmaps
• Line widths
• Font styles
• Text wrapping
• Alignment
• Conditional elements
• Report labels
• Symbol library
• Condition for symbol elements
• Property, wildcard to match 1 char, 0..N
  chars
• For any shape or property label

26
Text Formatting

• Font settings, text alignment, wrapping
• Normally wrap everything but collection property
  labels
• Font size (14 ? Windows default!)
• Colors, lines types, line width, symbol filling
• Conditional symbols

27
Hints and tips for drawing symbols

• Symbols are very important to end-users
• End-users could define them to get method better
  accepted
• Define notation to illustrate the corresponding
  domain concepts natural visualization
• You may provide different representations of the
  symbol
• E.g. simple and full
• Use conditional symbol elements
• Create symbol elements based on report output
  (i.e. running generator)
• Note that different representations makes the
  modeling also more complex
• Connection points can be set differently
• Default, round an element, centre, adding extra
  points
• Different point via ports

28
4. Implement generators (reports)

• Reports access conceptual design data in models
  and generate textual ASCII output (on screen or
  to files)
• You may use reports for various purposes
• Creating configuration data
• Generating code
• Documenting
• Checking
• Review
• etc.

29
Report Browser

• Reports allow to access design data
• Loop through the design elements within the
  model, extract information from them and print it
  out
• Report definitions are always associated with one
  graph type
• Uses own reporting language
• Can have external calls

30
Hints and tips for making reports

• Inspect samples of required outputs and related
  model instances
• Implement reports by designing report structure
• Consider reuse or report definitions with a type
  hierarchy
• Implement stable parts and non-properties first
  into subreports
• Implement output sorting and file writing last
• Test reports with the sample models
• You may (re)use available predefined reports

31
Updating and maintaining metamodel 1/2

• Problem How to change a metamodel that is used
  in production?
• Metamodel modifications affect all the models
  where the metamodel element (type) is used
• Non-destructive
• Inform developers on metamodel changes, if
  necessary. You may use reports to highlight the
  model items influences
• Check model changes (based on metamodel change)
  in separate project
• Login and open only the type project and your
  test project
• Working with these projects do not affect the
  others
• Commit only when everything is ready as the
  changes propagates to others when committed

32
Updating and maintaining metamodel 2/2

• How to organise metamodel changes?
• Not a big deal in single-user environment
  changes are distributed as patches
• In multi-user environment
• Small changes can be done in production
  environment
• exclusive metamodeling rights
• metamodeling done off business-hours
• A separate metamodeling environment for large
  changes
• Suspend server, take backup, metamodel and
  restore backup if something went wrong
• or use single-user environment
• Always backup before metamodeling

33
Metamodeling task Family tree

• Download MetaEdit
• Youll receive instructions later by email
• Make the tutorial of Family tree
• Includes a step-by-step exercise on how to
  implement a modeling language and then how to use
  it
• Sections 1-4 5.3 takes 2 hours
• Send generated HTML-page to jpt_at_cs.jyu.fi
• After implementing the metamodel, make sample
  model and run the generator you made in C 5.3
• Zip the generated HTML files and use your name as
  file name
