Mouse-Based Viewing

1

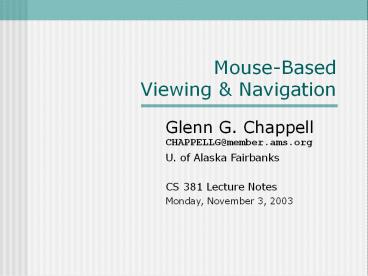

Mouse-BasedViewing Navigation

• Glenn G. ChappellCHAPPELLG_at_member.ams.org
• U. of Alaska Fairbanks
• CS 381 Lecture Notes
• Monday, November 3, 2003

2
ReviewAdvanced Viewing 1/4

• In most of the programs we have dealt with, we
  have constructed the model/view transformation
  from scratch each display cycle.
• This becomes inconvenient when we implement some
  of the more advanced viewing interfaces (driving,
  flying, etc.).
• In these interfaces we often want to add an
  increasing number of transformations at the end
  of the sequence ( beginning of the code).
• Solution
• Save the viewing transformation in a (global)
  variable.
• When the transformation needs to be changed,
  modify this variable.
• Use the variable in the display function.
• Remember, the saved matrix should be treated like
  other display-related globals in a GLUT program.
• Cue music for flashback

3
Blast from the PastBack in mid-September

• To add keypress-based display changes to a GLUT
  program
• A global variable is needed to hold the current
  state of whatever part of the display is to
  change.
• Declare the variable.
• Initialize this variable to an appropriate value
  somewhere.
• In its declaration?
• In the init function?
• In the display function
• Use the value of this variable.
• Draw whatever should be drawn, according to the
  current value of the variable.
• Do not change the variable in the display
  function.
• In the keyboard function, when the appropriate
  key is pressed
• Change the value of the variable.
• Call glutPostRedisplay().
• Do not call the display function.

4
ReviewAdvanced Viewing 2/4

• We handle matrix globals similarly to other GLUT
  globals
• Declare the variable.
• GLdouble your_matrix_variable16
• Initialize the variable.
• In the init function, often.
• Or maybe in a reset function, to be called
  during initialization, and also when the user
  does an Im lost keypress.
• glMatrixMode(GL_MODELVIEW)
• glPushMatrix()
• Transformation commands go here?
• glGetDoublev(GL_MODELVIEW_MATRIX,
  your_matrix_variable)
• glPopMatrix()

5
ReviewAdvanced Viewing 3/4

• In the display function
• Use the variable.
• glPushMatrix() // Do NOT forget the push-pop
  pairs!
• glTranslated(0., 0., -3.) // MAYBE this goes
  here.
• // MAYBE it goes in
  init.
• glMultMatrixd(your_matrix_variable)
• Draw something here
• glPopmatrix()
• More on that glTranslate command MAYBE stuff
  in a bit.

6
ReviewAdvanced Viewing 4/4

• Where appropriate (keyboard? special? mouse?
  motion?)
• Change the value of the variable.
• Call glutPostRedisplay().
• glPushMatrix()
• Transformation commands go here?
• glMultMatrixd(your_matrix_variable)
• glGetDoublev(GL_MODELVIEW_MATRIX,
  your_matrix_variable)
• glPopMatrix()
• glutPostRedisplay()

7
More on Advanced ViewingTwo Kinds of Interfaces

• Now, about that translation
• In our zoom pan, driving, the translation
  was done in the display function, not the saved
  matrix.
• But in flying the translation was in the saved
  matrix.
• Advanced interfaces can be divided into two
  categories
• View the world interfaces.
• We look at the scene.
• Rotation and scaling are centered on the point we
  are looking at.
• So the translation does not go in the saved
  matrix.
• Examples
• Driving from above.
• Object manipulation.
• Move in the world interfaces.
• In these, we are explicitly inside the scene.
• Rotation is centered on the camera.
• So the translation goes in the saved matrix.
• Examples
• Flying.
• Driving, where we appear to be inside the car.

8
Mouse-Based ViewingOverview

• Today we will look at two mouse-based viewing
  interfaces.
• Click-and-drag rotation.
• View an object and rotate it in an intuitive way
  with the mouse (click-and-drag).
• Flying with the mouse.
• Fly forward on mouse-button press.
• Turn in the direction of the mouse position.
• Both of these will require the saved-matrix
  techniques we looked at last time.
• Sample code will not be given on the web page
  yet.
• However, hints and code snippets are in these
  slides. Feel free to use them.

9
Mouse-Based ViewingClick-and-Drag Rotation 1/3

• Interface Description
• We view an object, centered in the window.
• The object is normally motionless.
• When we click the left mouse button and drag, the
  object rotates in a reasonable way.
• When the mouse stops moving, or the mouse button
  is released, the object stops moving.
• Questions
• Is this view the world or move in the world?
• How do we determine what axis to rotate the
  object about?
• Does our new rotation come before or after the
  old, in the code?
• How much do we rotate the object?

10
Mouse-Based ViewingClick-and-Drag Rotation 2/3

• My Answers
• Is this view the world or move in the world?
• This is view the world.
• Therefore, the big translation that moves the
  object to where we can see it, should not be in
  the saved matrix.
• How do we determine what axis to rotate the
  object about?
• Rotate about an axis perpendicular to the recent
  mouse motion.
• The recent motion is the difference between the
  last two mouse positions.
• Does our new rotation come before or after the
  old, in the code?
• Before.
• Yes, we are rotating an object (which suggests
  and answer of after). However, we are not
  rotating in the objects own natural coordinate
  system, but in the worlds.
• How much do we rotate the object?
• Rotate the object by an amount proportional to
  the length of the most recent mouse motion (the
  distance between the last two positions).
• Note
• There are other ways to design implement a
  mouse-based object-manipulation interface. Try to
  make a better one!

11
Mouse-Based ViewingPerpendicular Rotation

• If we rotate (x, y) 90? counterclockwise, we get
  (y, x).
• Based on this idea, here is some useful code.
• // perprot
• // Rotates about an axis in the x,y-plane,
  perpendicular to the given
• // vector (vx, vy). Rotation amount is
  proportional to the length of
• // the vector and to rotmultiplier.
• void perprot(double rotmultiplier, double vx,
  double vy)
• double len sqrt(vxvx vyvy)
• glPushMatrix()
• glRotated(rotmultiplierlen, -vy,vx,0.)
• glMultMatrixd(your_matrix_variable)
• glGetDoublev(GL_MODELVIEW_MATRIX,
  your_matrix_variable)
• glPopMatrix()
• glutPostRedisplay()

12
Mouse-Based ViewingClick-and-Drag Rotation 3/3

• A few thoughts about implementing this interface
• GLUT and OpenGL handle y-coordinates differently.
• Save the window dimensions in the reshape
  function. Then subtract GLUTs mouse y to get a
  number useful to OpenGL.
• Save the mouse position whenever the left button
  is down.
• Are we saving it in GLUT or OpenGL format? Be
  consistent!
• Remember mouse motion are called for other
  buttons, too.
• Save the state of the left button in the mouse
  function.
• Test this state in the motion function.
• If the left button is up, do not alter the scene.
• That said, all that is left is for motion to call
  perprot with the difference between the current
  and previous mouse positions.
• Change rotfactor to speed up or slow down the
  rotation.
• Now write it!

13
Mouse-Based ViewingFlying with the Mouse 1/3

• Interface Description
• We are inside the scene, moving and turning.
• If the mouse is centered in the window, we do not
  rotate.
• Otherwise, we rotate toward the mouse point.
• If the left mouse button is down, we fly forward.
• Otherwise, we are stationary (although we may be
  rotating).
• Questions
• Is this view the world or move in the world?
• How do we determine what axis to rotate about?
• Does our new rotation come before or after the
  old, in the code?
• How much do we rotate?

14
Mouse-Based ViewingFlying with the Mouse 2/3

• My Answers
• Is this view the world or move in the world?
• This is move in the world.
• Therefore, the big translation should be in the
  saved matrix.
• How do we determine what axis to rotate about?
• Rotate about an axis perpendicular to the
  difference between the mouse position and the
  center of the window.
• Does our new rotation come before or after the
  old, in the code?
• Before. (This is easier to figure out, right?)
• How much do we rotate?
• Rotate the object by an amount proportional to
  the distance between the mouse position and the
  center of the window.
• So, again, we have a vector. We rotate about an
  axis perpendicular to it, by an amount
  proportional to its length. It looks like we can
  use perprot again.
• We probably need to change rotfactor.
• Note
• Again, can you do better?

15
Mouse-Based ViewingFlying with the Mouse 3/3

• A few thoughts about implementing this interface
• We want to rotate when the mouse button is not
  pressed.
• So we need to use the passive motion function.
• We want the scene to change when the mouse is not
  moving.
• So the scene changing should go in the idle
  function.
• This means that all the mouse, motion, and
  passive motion functions need to do is to save
  the button state and mouse position.
• Idle does the rest.
• We still need the window dimensions from reshape,
  in order to find the center of the window.
• Now write it!
• Another thought we need a roll function.
  Otherwise, we end up flying sideways much of the
  time.

16
Mouse-Based ViewingAnother Flying Interface

• In class I implemented what I call a
  spaceship-style flying interface.
• In such an interface, there is no meaningful up
  direction.
• You can fly in any direction orientation you
  want. ?
• It is very easy to get lost or disoriented. ?
• Another alternative is an airplane-style
  interface.
• Here, there is a well-defined up direction.
• Turning left and right would rotate about the
  worlds up-vector, not the cameras.
• I guess is there a better way?
• To think about
• How would an airplane-style flying interface be
  implemented?
