Structural Analysis of Network Traffic Flows

1

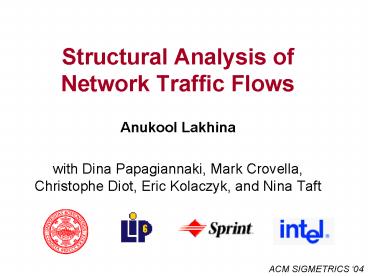

Structural Analysis of Network Traffic Flows

• Anukool Lakhina
• with Dina Papagiannaki, Mark Crovella, Christophe
  Diot, Eric Kolaczyk, and Nina Taft

ACM SIGMETRICS 04
2
Traditional Traffic Analysis

• Focus on
• Short stationary periods
• Traffic on a single link in isolation
• Principal results
• Scaling properties
• Models for single-link traffic

3
Need for Whole-Network Traffic Analysis

• Traffic Engineering How does traffic move
  throughout the network?
• Attack/Anomaly Detection Which links show
  unusual traffic?
• Capacity planning How much and where in network
  to upgrade?

4
Origin-Destination Flows
total traffic on the link
traffic
time

• All link traffic arises from the superposition of
  OD flows
• Traffic carried by OD flows roughly independent
• A useful primitive for whole-network analysis

5
This is Complicated!

• Understanding traffic on all flows simultaneously
  is challenging
• Even single flow traffic analysis is difficult
• 100s of OD flows in large IP networks
• High-Dimensional, multivariate timeseries

6
High Dimensionality A General Strategy

• Look for good low-dimensional representations
• Often a high-dimensional structure can be
  captured via a small number of independent
  variables
• A commonly used technique Principal Component
  Analysis (PCA)

7
Our Work

• Measure complete sets of OD flow traffic from
  two backbone networks
• Use PCA to understand their structure
• Extract common features
• Characterize individual features
• Reconstruct as sum of features
• Describe potential applications of results

8
Datasets

• Two networks
• Abilene 11 PoPs, 121 OD flows
• Sprint-Europe 13 PoPs, 169 OD flows
• Methodology
• Collect sampled traffic from every ingress link
• Use BGP tables to resolve egress points
• Week-long byte timeseries, at 10 minute bins

9
Example OD Flows
Some have visible structure, some less so
10
Specific Questions of Structural Analysis

• Do low dimensional representations for OD flows
  exist?
• Do OD flows share common features?
• What do these features look like?
• Can we get a high-level understanding of a set of
  OD flows in terms of these features?

11
Principal Component Analysis
Coordinate transformation method
Original Data
12
PCA on OD flows

• Each principal axis in the direction of maximum
  (remaining) energy in set of OD flows
• Ordered by amount of energy they capture
• Eigenflow set of OD flows mapped onto a
  principal axis a common pattern
• Ordered by most common to least common pattern
• An OD flow is a weighted sum of eigenflows

13
Low Intrinsic Dimensionality of OD Flows
Plot of energy captured by each principal
component
Energy Captured
Principal Component
14
Approximating With Top 5 Eigenflows
15
Kinds of Eigenflows
Deterministic d-eigenflows
Spike s-eigenflows
Noise n-eigenflows
Roughly stationary and Gaussian
Sudden, isolated spikes and drops
Predictable (periodic) trends
16
D-eigenflows Have Periodicity
Power spectrum
17
S-eigenflows Have Spikes
5-sigma threshold
18
N-eigenflows Are Gaussian
qq-plot
19
Hundreds of OD Flows But Only Three Basic
Patterns
20
Which Eigenflows Are Most Significant?
d-eigenflows are most significant in both
networks s-eigenflows are next important n-
s-eigenflows account for rest
N
S
D
N
S
D
mostcommon
leastcommon
21
An OD Flow, Reconstructed
OD flow
D-components
S-components
N-components
22
Contribution to Each OD Flow (Sprint)
Largest OD flows Strong deterministic
component Smallest OD flows Primarily dominated
by spikes Regardless of size, n-eigenflows
account for a fairly constant portion
(Sprint)
23
Contribution to Each OD Flow (Abilene)
Largest OD flows Strong deterministic
component Smallest OD flows Dominated by noise,
but have diurnal trends also Regardless of size,
spikes account for a fairly constant portion
24
Summary Specific Questions

• Are there low dimensional representations for a
  set of OD flows?
• 5-10 eigenflows are sufficient to describe 100
  OD flows
• Do OD flows share common features?
• The common features across OD flows are
  eigenflows
• What do the features look like?
• Each eigenflow can be categorized as D, S, or N
• Can we get a high-level understanding of a set of
  OD flows in terms of these features?
• Both networks Large flows are primarily diurnal
• Sprint Small flows are primarily spikes noise
  constant
• Abilene Small flows have N and D spikes
  constant

25
New Approaches to Important Problems

• Anomaly detection Low dimensional structure can
  be considered "normal" to identify anomalies (see
  our Sigcomm04 paper)
• Traffic Matrix Estimation Low dimensional
  structure easier to estimate from link traffic
• Traffic Forecasting Build forecasting models on
  d-eigenflows, and forecast all OD flows
• Traffic Engineering Use D/S/N classification to
  identify "heavy hitters", and treat these
  differently

26
Final Thoughts

• OD flows are a useful primitive for whole-network
  traffic analysis
• PCA forms an effective basis for a Structural
  Analysis of OD flows
• Structural Analysis has many benefits
• provides insight into nature of OD flows
• allows feature-based decomposition of OD flows
• provides leverage on many important problems

27
Thanks!

• Help with Sprint-Europe Data
• Bjorn Carlsson, Jeff Loughridge (SprintLink)
• Supratik Bhattacharyya, Richard Gass (ATL)
• Help with Abilene Data
• Mark Fullmer, Rick Summerhill, (Internet2)
• Matthew Davy (Indiana University)
