Title: Active networks and applications

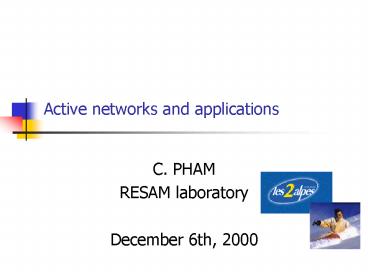

1
Active networks and applications
  • C. PHAM
  • RESAM laboratory
  • December 6th, 2000

2
Outline
  • Introduction
  • Nowadays network technologies
  • Active networking
  • Application Active Reliable Multicast
  • Conclusions

3
Outline
  • Introduction
  • Nowadays network technologies
  • Active networking
  • Application Active Reliable Multicast
  • Conclusions

4
The need for communication
5
The way people are communicating
6
Internet milestone
7
User perspective of the Internet
from UREC, http//www.urec.fr
8
What it is in reality
from UREC, http//www.urec.fr
9
Outline
  • Introduction
  • Nowadays network technologies
  • Active networking
  • Application Active Reliable Multicast
  • Conclusions

10
Links the basic element for networking
  • Backbone links
  • optical fibers
  • 40 to 60 GBits/s with DWDM techniques
  • End-user access
  • V.90 56KBits/s modem on twisted pair
  • 512Kbits/s to 2MBits/s with xDSL modem
  • 1Mbits/s to 10Mbits/s Cable-modem
  • 64Kbits/s to 1930KBits/s ISDN access
  • 9.6KBits/s (GSM) to 2MBits/s (UMTS)

11
Routers key elements of internetworking
  • Routers
  • run routing protocols and build routing table,
  • receive data packets and perform relaying,
  • may have to consider Quality of Service
    constraints for scheduling packets,
  • are highly optimized for packet forwarding
    functions.

12
General architecture of an IP router
  • receives input packets,
  • sends packets to output buffers,
  • transmits packets (with QoS?).

13
Desires put on the general Internet
  • High-bandwidth
  • for bandwidth-consuming applications
  • Ubiquity of the network access (wireless, RTC,
    xDSL, mobile)
  • for remaining connected everywhere
  • Quality of Service
  • for high-quality multimedia receptio
  • Dynamicity, adaptability
  • to take into account recent technologies

14
Challenges for the Internet
  • high-speed www
  • video-conferencing
  • video-on-demand
  • interactive TV programs
  • tele-medecine
  • high-performance computing, grids
  • virtual reality, immersion systems
  • distributed interactive simulations
  • remote archival systems

15
The reality(1)
  • High-bandwidth accesses are not available for
    everybody
  • high-bandwidth is achievable in the core network
    with optical fibers and DWDM techniques but,
  • most end-users have an access ranging from
    56Kbits/s to 2Mbits/s and,
  • it will be the case for many years!

16
The reality(2)
  • An ubiquitous network access
  • generally implies heterogeneity and asymmetric
    performances,
  • how to take into account this heterogeneity?
  • The heterogeneity of bandwidth makes QoS
  • a difficult quest on an end-to-end basis,
  • seems that QoS is the networking forever Graal

17
The reality(3)
  • New technologies require years to be deployed
  • need for standardization
  • IPv6, MPLS
  • new services and protocols are costly to deploy
  • many proprietary implementations, no
    interoperability of services and new technologies
  • DiffServ, TagSwitching, LabelSwitching

18
Towards a better Internet
  • Interoperability of systems
  • Rapid deployment of new services, accelerating
    infrastructure innovation
  • Take into account the heterogeneity of needs and
    network accesses
  • Customization of services, application-oriented
    processing features

19
Towards the concept of
  • Introduction
  • Nowadays network technologies
  • Active networking
  • Application Active Reliable Multicast
  • Conclusions

20
What is active networks?
  • Programmable nodes/routers
  • Customized computations on packets
  • Standardized execution environment and
    programming interface
  • No killer applications, only a different way to
    offer high-value services, in an elegant manner
  • However, adds extra processing cost

21
Motivations behind Active Networking
  • From the user perspective
  • applications can specify, implement, and deploy
    (on-the-fly) customized services and protocols
  • From the operator perspective
  • reduce the latency/cost for new services
    deployment/management
  • From the network perspective
  • globally better performances by reducing the
    amount of traffic

22
Active networks implementations
  • Discrete approach (operator's approach)
  • Adds dynamic deployment features in nodes/routers
  • New services can be downloaded into router's
    kernel
  • Integrated approach
  • Adds executable code to data packets
  • Capsule data code
  • Granularity set to the packets

23
The discrete approach
  • Separates the injection of programs from the
    processing of packets

24
The integrated approach
  • User packets carry code to be applied on the data
    part of the packet
  • High flexibility to define new services

data
25
An active router
some layer for executing code. Let's call it
Active Layer
26
Interoperability with legacy routers
APPLI
APPLI
traditional IP routing
AL
AL
AL
AL
TCP/UDP
TCP/UDP
TCP/UDP
TCP/UDP
IP
IP
IP
IP
IP
IP
27
Some open problems
  • Security and integrity
  • how to be sure that user code are safe?
  • Performances
  • how to add active computation without weeping out
    performances?
  • Standardization of programming interface
  • How to bill the CPU time?

28
Some active network applications
  • Customization of services
  • Web-caching, on-the-fly compression/encryption
  • Filtering
  • Auction, Distributed Interactive Simulations
  • Firewall
  • Congestion control
  • QoS
  • Network management
  • Reliable multicast
  • Middleware collective operation

29
Where to put active components?
  • In the core network?
  • routers already have to process millions of
    packets per second
  • gigabit rates make additional processing
    difficult without a dramatic slow down
  • At the edge?
  • to efficiently handle heterogeneity of user
    accesses
  • to provide QoS, implement intelligent congestion
    avoidance mechanisms

30
ISDN xDSL
PSTN
GSM, UMTS
10Mbits/s
core network Gbits/s
Server
100Mbits/s
wireless LAN 1Mbits/s, 10MBits/s
visio-conferencing
31
Outline
  • Introduction
  • Nowadays network technologies
  • Active networking
  • Application Active Reliable Multicast
  • Conclusions

32
Unicast
  • Problem
  • Sending same data to many receivers via unicast
    is inefficient
  • Example
  • Popular WWW sites become serious bottlenecks

Sender
R
from Gordon Chafee, http//bmrc.berkeley.edu/peopl
e/chaffee
33
Multicast
  • Efficient one to many data distribution

Sender
R
from Gordon Chafee, http//bmrc.berkeley.edu/peopl
e/chaffee
34
Multicast
  • History
  • Long history of usage on shared medium networks
  • Data distribution
  • Resource discovery ARP, Bootp, DHCP
  • Ethernet
  • Broadcast (software filtered)
  • Multicast (hardware filtered)
  • Multiple LAN multicast protocols
  • DECnet, AppleTalk, IP

from Gordon Chafee, http//bmrc.berkeley.edu/peopl
e/chaffee
35
IP Multicast Introduction
  • Efficient one to many data distribution
  • Tree style data distribution
  • Packets traverse network links only once
  • Location independent addressing
  • IP address per multicast group
  • Receiver oriented service model
  • Applications can join and leave multicast groups
  • Senders do not know who is listening
  • Similar to television model
  • Contrasts with telephone network, ATM

from Gordon Chafee, http//bmrc.berkeley.edu/peopl
e/chaffee
36
IP Multicast
  • Service
  • All senders send at the same time to the same
    group
  • Receivers subscribe to any group
  • Routers find receivers
  • Unreliable or reliable delivery
  • Reserved IP addresses
  • 224.0.0.0 to 239.255.255.255 reserved for
    multicast
  • Static addresses for popular services (e.g. SAP)

from Gordon Chafee, http//bmrc.berkeley.edu/peopl
e/chaffee
37
Example video-conferencing
from UREC, http//www.urec.fr
38
video-conferencing (2)
224.2.0.1
Multicast address group 224.2.0.1
from UREC, http//www.urec.fr
39
Multicast difficulties
  • At the routing level
  • management of the group address (IGMP)
  • dynamic nature of the group membership
  • construction of the multicast tree (pruning)
  • multicast packet forwarding
  • At the transport level
  • reliability, loss recovery strategies
  • flow control
  • congestion avoidance

40
Reliable multicast
  • What is the problem of loss recovery?
  • feedback (ACK or NACK) implosion
  • replies/repairs duplications
  • adaptability to dynamic membership changes
  • Design goals
  • reduces recovery latencies
  • reduces the feedback traffic
  • improves recovery isolation

41
Solutions
  • Traditional
  • end-to-end retransmission schemes
  • scoped retransmission with the TTL fields
  • receiver-based local NACK suppression
  • Active contributions
  • cache of data to allow local recoveries
  • feedback aggregation
  • subcast

42
A step toward active services LBRM
43
Active local recovery
  • routers perform cache of data packets
  • repair packets are sent by routers, when
    available

data
data
data5
data1
data2
data1
data3
data2
data4
data3
data5
data4
data5
data4
data1
data2
data3
data5
44
Active feedback aggregation
  • Routers aggregate feedback packets

45
Active subcast features
  • Send repair packet only to the relevant set of
    receivers

46
Active Reliable Multicast Mechanisms
  • Answer general questions such as
  • is active networking beneficial for multicast?
  • where active components should be placed?
  • in what proportion?
  • how fast do they need to be?
  • Answer specific questions such as
  • what mechanisms (global vs local NAK suppression,
    subcast facilities) for what performance?
  • scalabity of the proposed solutions?
  • Design of new multicast protocols

47
Network model
  • F active routers among N.
  • B receivers in a local group
  • 2 kinds of receivers linked and free

48
Benefit of global aggregation on throughput
49
Benefit of the source subcast facility
50
Impact of active router density
51
Conclusion
52
References
  • D. L. Tennehouse, J. M. Smith, W. D. Sincoskie,
    D. J. Wetherall, and G. J. Winden. A survey of
    active network research. IEEE Communications
    Magazine, pages 80--86, January 1997.
  • L. Wei, H. Lehman, S. J. Garland, and D. L.
    Tennenhouse. Active reliable multicast. IEEE
    INFOCOM'98, March 1998.
  • M. Maimour, C. Pham. A Throughput Analysis of
    Reliable Multicast Protocols in an Active
    Networking Environment. TR. http//resam.univ-lyon
    1.fr/cpham/Paper/TR/TR01-2000.ps.gz

53
Web links
  • ANTS
  • http//wind.lcs.mit.edu/activeware
  • Tamanoir and active reliable multicast
  • http//resam.univ-lyon1.fr
  • Active Networking in France
  • http//www.loria.fr/festor/raf/raf.html
Write a Comment
User Comments (0)
About PowerShow.com
