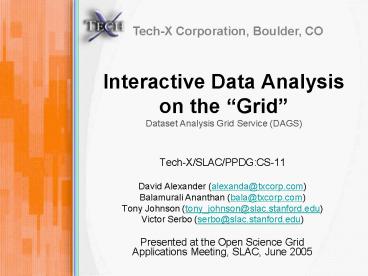

Interactive Data Analysis on the

1
Interactive Data Analysison the GridDataset
Analysis Grid Service (DAGS)
Tech-X Corporation, Boulder, CO

• Tech-X/SLAC/PPDGCS-11
• David Alexander (alexanda_at_txcorp.com)
• Balamurali Ananthan (bala_at_txcorp.com)
• Tony Johnson (tony_johnson_at_slac.stanford.edu)
• Victor Serbo (serbo_at_slac.stanford.edu)
• Presented at the Open Science Grid Applications
  Meeting, SLAC, June 2005

2
Outline

• Motivation for Dataset Analysis Grid Service
• Demo
• Structure Architecture
• Running on the OSG

3
Motivations

• Enable the well-developed JAS3 to use Grid by
  developing a set of grid services
• Aim to produce complete interactive data analysis
  system/framework
• Based as much as possible on CS-11 APIs
• Web Services can use latest Globus (GT4.0) and
  can utilize science grid compute elements via
  OSG/VDT.
• JAS3 is only one implementation of a client that
  can use the service interface

4
Focus on Interactive Analysis

• Intermediate Results in Real Time
• User waits seconds for results
• Plots update as analysis proceeds
• High Degree of Control
• Stop and restart at anytime
• Change cuts/binning etc. and see immediate
  results without restarting

5
Focus Moving Code to Data

• Need portable code (java, scripting, Root Macros,
  etc.)
• Need an interfaces for analysis (some CS-11,
  AIDA, some of our own)

6
The Most Basic Picture
Grid Resources
The Grid
Client Application
REQUEST FOR DATA
Slave Service Node
Main Service Node
Dataset
AVAILABLE DATA IDs
Slave Service Node
STAGING
CODE DATA IDs
RESULTS
Other Service Nodes
Slave Service Node
RESULTS
CODE
7
Usage Procedure

• Create Proxy (Grid sign-on)
• Connect to Service
• Start Session

• Choose Stage Dataset
• Load Analysis Code
• Run Analysis See Results

8
Dataset Catalog Service

• Allows user to browse dataset hierarchy
• Allows user to search using meta-data
  associated with each dataset
• Output is Grid Service Handle (GSH) of the
  Dataset Locator
• The Locator service that knows the actual
  location of the Dataset.
• String ID of the Dataset (An opaque string
  interpreted only by the dataset locator)

9
DEMO(Bala Ananthan)
10
Structure Architecture

• We wanted to use just Globus Web Services
  everywhere, but.
• OSG/VDT is not using Web Service
• Performance is not good enough for interactivity
• Trivial Service Invocation (Globus Toolkit Sample
  Service) over 10Mbit LAN
• RMI 100 calls - 96ms
• Globus (non-secure) 100 calls - 22 seconds
• (excluding first invocation)
• Globus (secure) 100 calls - 133 seconds

11
(No Transcript)
12
Key design goals

• Dataset Analysis Grid Service
• Only install analysis services on a specific node
  called portal. (Compute Element software
  dynamically deployed from portal node)
• Portal can use any OSG site that gives it RMI
  access
• access to portal not client
• may need a head-node configuration
• No Grid software on Client node (needs JavaVM)

13
Running on OSG

• We know how to use GRAM and GridFTP servers on
  OSG sites.
• RMI connectivity needs to be investigated.
• firewalls between service node and compute
  elements will be an issue
• may need relay at OSG site that is a bridge
  across the firewall to the compute elements
• We are looking for test-sites, where we can
  install the portal services on one node that has
  the RMI port exposed to the internet

14
Appendix

• Tech-X Corporation Information

15
Tech-X Corporation Origins

• Founded in 1994 by
• John R. Cary, CEO and Professor of Physics at the
  University of Colorado
• Svetlana Shasharina, Ph.D. and Vice-President of
  Distributed Technologies
• Headquarters in Boulder, Colorado
• Employee-owned
• 31 employees (75 holding a Ph.D.) with physics
  and computer science expertise

16
Employee Expertise

• Scientific computation
• Particle accelerator modelling
• Computational electromagnetics
• Fusion plasma modelling
• Nano-materials modelling
• Infrastructure for scientific computation and
  data management
• Middleware grid technologies, XML data
  integration, bridges (4th Generation Languages
  and distributed technologies), CORBA
• High-performance computing MPI, cluster
  computing
• Visualization graphical user interfaces for
  scientific software, remote visualization of
  large datasets generated at remote clusters and
  supercomputers
