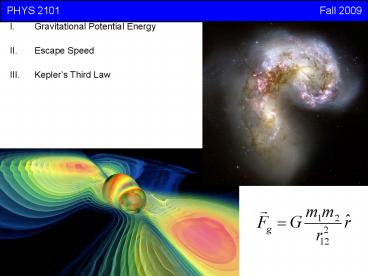

PHYS 2101

1
PHYS 2101
Fall 2009

• Gravitational Potential Energy
• Escape Speed
• Keplers Third Law

2
PHYS 2101
Fall 2009
Two blocks are connected by a string over a
pulley with mass mp. (m1 gt m2) Derive an
expression for the magnitude of the acceleration
of the blocks, in terms of g and the three
masses. Treat the pulley as a uniform disk.
3
PHYS 2101
Fall 2009
Two blocks are connected by a string over a
pulley with mass mp. (m1 gt m2) Derive an
expression for the magnitude of the acceleration
of the blocks, in terms of g and the three
masses. Treat the pulley as a uniform disk.
for disk
no slip condition
4
PHYS 2101
Fall 2009
CT1
Two particles lie along the x-axis separated by a
distance 2d, as shown below. The particle on the
left has a mass of 2m and the particle on the
right has a mass of 3m. At which point on the
axis will the gravitational potential energy on a
third particle with mass m be the least? 1 -
A 2 - B 3 - C
A
B
C
5
PHYS 2101
Fall 2009
EX1
Calculate the gravitational potential energy on a
third particle with mass m at each point? 1 -
A 2 - B 3 - C
6
PHYS 2101
Fall 2009
CT2
Two particles lie along the x-axis separated by a
distance 2d, as shown below. The particle on the
left has a mass of 2m and the particle on the
right has a mass of 3m. At which point on the
axis should you add a third particle with mass m
so that the gravitational potential energy of the
system of particles will be the lowest? 1 -
A 2 - B 3 - C
A
B
C
7
PHYS 2101
Fall 2009
EX2
Calculate the gravitational potential energy of
the system if a particle of mass m is placed at
each point? 1 - A 2 - B 3 - C
8
PHYS 2101
Fall 2009
CT3
Rank the four arrangements shown below according
to the gravitational potential energy of the
particle labeled m, from greatest to least.
2
1
3
4
9
PHYS 2101
Fall 2009
CT4
Rank the four arrangements shown below according
to the gravitational potential energy of the
system of particles, from greatest to least.
2
1
3
4
10
PHYS 2101
Fall 2009
EX3
A rocket is launched vertically upward at 3.1
km/s. How high does it go?
A ball is thrown vertically upward at 3.1 m/s.
How high does it go?
11
PHYS 2101
Fall 2009
EX4
In leaving the solar system, Voyager 1 used
Saturn as a slingshot to attain its escape speed.
What speed did Voyager 1 need to reach to escape
the solar system?
12
PHYS 2101
Fall 2009
EX5
A satellite is placed in an elliptical orbit
around the Earth. At perigee (the point of
closest approach), the satellite is 2.00x106 m
away. At apogee (the point of greatest
distance), the satellite is 1.87x107 m away. If
the speed of the satellite is 8450 m/s at
perigee, how fast is it traveling at apogee?
13
PHYS 2101
Fall 2009
A satellite that is in low Earth orbit moves to a
higher orbit while keeping its total mechanical
energy constant. (b) What happens to the
kinetic energy of the satellite? 1 - increase 2
- decrease 3 - stay the same
A satellite that is in low Earth orbit moves to a
higher orbit while keeping its total mechanical
energy constant. (c) What happens to the speed
of the satellite? 1 - increase 2 - decrease
3 - stay the same
CT5
A satellite that is in low Earth orbit moves to a
higher orbit while keeping its total mechanical
energy constant. (a) What happens to the
potential energy of the satellite? 1 -
increase 2 - decrease 3 - stay the same
14
PHYS 2101
Fall 2009
EX6
If the mean distance from the sun to the Earth is
1.50x1011 m, what is the mass of the sun?
15
PHYS 2101
Fall 2009
16
PHYS 2101
Fall 2009
17
PHYS 2101
Fall 2009
18
PHYS 2101
Fall 2009
EX7
S2 orbits Sagittarius A with a period of T
15.2 y (4.79 x 108 s) along an orbit with a
semimajor axis of a 5.50 light-days (1.42 x
1014 m). What is the mass of Sagittarius A?
