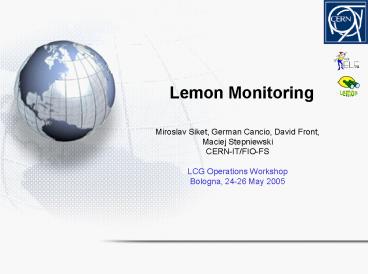

Lemon Monitoring

• Miroslav Siket, German Cancio, David Front,
• Maciej Stepniewski
• CERN-IT/FIO-FS
• LCG Operations Workshop
• Bologna, 24-26 May 2005

2
Outline

• Lemon
• Structure and design
• How it works, deployment
• Use cases, web interface
• Installation and setup
• Summary

3
Lemon LHC Era Monitoring

• Lemon is a system containing tools for monitoring
  status and performance of computers
• Distributed monitoring system scalable to 10k
  nodes
• Provides active monitoring of software and
  hardware in the Computer Center on centrally
  managed clusters
• Facilitates early error detection and problem
  prevention
• Executes corrective actions and sends
  notifications
• Provides persistent storage of the monitoring
  data
• Offers a framework for further creation of
  sensors for monitoring
• Site independent functionality
• Link http//cern.ch/lemon
• Part of the ELFms toolsuite http//cern.ch/elfms

4
Lemon Use

• It is used in-and-outside CERN by
• System administrators, service managers, cluster
  responsibles
• Developers and service/data challenges
• Managers and general users
• Deployments outside CERN
• EDG testbeds
• Accelerator (AB) department at CERN
• CMS online
• GridICE
• BARC India (development partner)

5
Lemon architecture
6
Components

• Lemon is a typical server/client application with
  following components
• MSA Monitoring Sensor Agent (Lemon Agent)
• Daemon on a client machine that spawns multiple
  Monitoring Sensors to measure data in defined
  intervals and sends data to Monitoring Repository
• MS - Monitoring Sensor
• Uses standard C, perl API it is easy to write
  your own sensor
• Several sensors exist for performance, process,
  hw and sw monitoring, grid VOs job reporting,
  database monitoring, security, alarms (total 260
  metrics)
• MR Monitoring Repository
• Server application that receives samples and
  processes/validates them
• Stores the full monitoring history data
• Two implementations - flat files or Oracle DB
  based
• LRF - Lemon RRD Framework
• Pre-processes data into rrd files and creates
  cluster summaries
• These are used for web graphics
• Provides service and cluster overview in its web
  displays
• LAG Lemon Alarm Gateway
• Generic gateway for alarms (in development)
• Gateways to MonALISA and GridICE exist

7
Lemon at CERN

• Lemon monitors about 2200 computers in 100
  clusters
• On average it collects about 70 metrics from each
  host
• Integrated with Sure alarm system
• Collecting about 1.5 GB/day
• LEAF (LHC-Era Automated Fabric) for high-level
  intervention scheduling

Node
Configuration Management
Node Management

• Configuration
• Derived from the Quattor Configuration Database
  (CDB)
• individual configuration per cluster/host
• hierarchical structure
• Alarm system
• Sure legacy system receiving alarms from Lemon
• Integration with new LASER system (LHC alarm
  system) via LAG is ongoing

8
Web interface

• Cluster view displays accumulated statistics and
  status for all machines in the cluster
• Host view gives overview of the host status with
  basic metrics
• Other views available
• Rack view
• Hardware type view
• Other views can be added, working on user defined
  views
• With the newest version (to be released soon)
• Generic entry page displaying status overview of
  the key services
• Configurable views
• In development database services monitoring with
  database specific view

9
Use(ful) case
Reboot occurrence history graph

• Kernel upgrade
• Kernel version is measured on the boot of the
  machine
• Automatic tools for upgrading the kernel on a
  cluster retrieve information from Lemon and
  schedule reboot of a machine based on this info
• Web interface allows monitoring of the progress

10
Computer Center display

• Lemon Web Interface can be interfaced with a
  Computer Center database of objects (racks,
  silos, )
• Provides search of objects as well as listing
• Interfaced through a XML defined geometry of the
  computer center
• Generic design that can be used anywhere

lt?xml version"1.0" ?gt ltCCgt ltROOM
ID0513-S-0034" DESCRIPTIONTape Vault" R"0"
G"0" B"0"gt ltDOORS R"0" G"255"
B"0"gt ltDOOR X"63" Y"39" LX"64" LY"39" /gt
ltDOOR X"34" Y"0" LX"36" LY"0" /gt
lt/DOORSgt ltRACKS R"0" G"0"
B"203"gt ltRACK ID"EA01" X"73" Y"9" LX"75"
LY"10" PLANNED"0"/gt ltRACK ID"EA03" X"73"
Y"8" LX"75" LY"9" PLANNED"0"/gt
lt/RACKSgt ltWALLS R"0" G"0"
B"0"gt ltWALL X"0" Y"0" LX"0" LY"60" /gt
ltWALL X"0" Y"0" LX"76" LY"0" /gt
lt/WALLSgt ltSTEPS R"255" G"163"
B"0"gt ltSTEP X"47" Y"36" LX"52" LY"37" /gt
ltSTEP X"47" Y"37" LX"52" LY"38" /gt
lt/STEPSgt lt/ROOMgt lt/CCgt
11
Service challenges, GRID VOs

• Lemon allows for
• Virtual clusters
• clusters defined on request by service managers
• or defined by scripts updated dynamically on
  demand
• or defined for specific purpose
• Examples Alice MDC, network challenges,
• Clusters defined dynamically
• example hosts running GRID jobs on the batch
  cluster belonging to the given Virtual
  Organization
• hooks in Lemon for defining any dynamic grouping
  of hosts

12
Automatic recovery actions and Alarms

• Alarm Sensor
• For defined values of measured metrics an
  actuator is called with predefined action
• An example ssh daemon dead action
  /sbin/service sshd start
• Definition metric X, field Y ltopgt reference
  value Z gt call actuator
• ltopgt can be ,lt,gt,regexp, range, etc..
• If success log only, else call action up to max
  times
• Each occurrence is logged in the Monitoring
  Repository
• Already about 70 predefined alarms with automatic
  recovery actions
• After first month of deployment it reduced number
  of problem tickets by half
• Correlation engine (CMDaemon)
• Allows global correlations, and in the future
  client/server alarms and recovery actions
• Lemon Alarm gateway (LAG)
• Lemons LAG can be used to feed alarms into
  arbitrary alarm systems (under development)

13
Installation and setup (I)

• Lemon installation consists of three steps
• Server installation
• Client installation
• Web interface installation
• 1. Server installation
• install edg-fabricMonitoring-server rpm (flat
  file server)
• Configure receiving port in /etc/edg-fmon-server.c
  onf
• Start the server daemon
• 2. Client installation
• Install edg-fabricMonitoring-agent rpm (comes
  with default metric configuration)
• Configure server and its port in
  /etc/edg-fmon-agent.conf
• Start the client daemon on all monitored hosts

14
Installation and setup (II)

• 3. Web interface installation
• Install and start apache server (with php) on
  your server
• Install rrdtool and lrf (lemon rrd framework)
  rpms
• Configure your clusters in clusters.conf file and
  start lemonmrd daemon
• Drink Champagne you have Lemon up and running!
  -)
• You can do all this on your laptop!
• Possible additional components
• Computer center synoptic view through xml file
• Problem tracking system integration (through php
  plug-in to your DB/application)
• Quattor CDB configuration view through CDB xml
  profiles
• Oracle based Repository (for very large
  installations with high scalability and increased
  functionality)
• Other, new components are easy to add
• View detailed instructions at http//cern.ch/lemo
  n/doc/installation/installation.html

15
Summary

• Lemon serves to provide monitoring information
  about the farms in Computer Centers (or your
  laptop).
• Lemon provides framework for recovery actions and
  alarms.
• Lemon is easy to install (and it is easy to add
  your own metrics and visualize them).
• It is flexible with respect to your needs you
  can add clusters, views, specify your definition
  of virtual and dynamic clusters.
• It has been a useful tool for general monitoring
  of performance and also for system administrators
  in debugging problems.
• For more information check http//cern.ch/lemon
