Title: Application Paradigms: Unstructured Grids CS433 Spring 2001

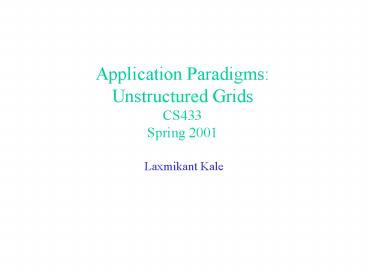

1
Application ParadigmsUnstructured
GridsCS433Spring 2001
  • Laxmikant Kale

2
Unstructured Grids
  • Typically arise in finite element method
  • E.g. Space is tiled with variable-size-and-shape
    triangles
  • in 3D may be tetrahedra, or hexahedra
  • Allows one to adjust the resolution in different
    regions
  • The base data structure is a graph
  • Often, represented as bipartite graph
  • E.g. Triangles (Elements) and Nodes

3
Unstructured grid computations
  • Typically
  • Attributes (stresses, strains, pressure,
    temperature, velocities) are attached to nodes
    and elements
  • Programs loop over elements and loop over nodes,
    separately
  • Each time you visit an element
  • Need to access, and possibly modify, all nodes
    connected to it.
  • Each time you visit a node
  • Typically, access and modify only node attributes
  • Rarely access/modify attributes of elements
    connected to it

4
Unstructured grids parallelization issues
  • Two concerns
  • The unstructured grid graph must be partitioned
    across processors
  • vproc (virtual processor, in general)
  • Boundary values must be shared
  • What to partition and what to duplicate (at the
    boundaries)
  • Partition elements (so each element belongs to
    exactly one vproc)
  • Share nodes at the boundary
  • Each node potentially has several ghost copies
  • Why is this better than partitioning nodes, and
    sharing elements?

5
Partitioning unstructured grids
  • Not so simple as structured grids
  • by rows, by columns, rectangular, .. Dont
    work
  • Geometric?
  • Applicable only if each node has coordinates
  • Even when applicable, may not lead to good
    performance
  • What performance metrics to use?
  • Load balance the number of elements in each
    partition
  • Communication
  • Number of shared nodes (Total)
  • Maximum number of shared nodes for any one
    partition
  • Maximum number of neighbor partitions for any
    partition
  • Why? per message cost
  • Geometric difficult to optimize both

6
Grid partitioning
  • When communication costs are relatively low
  • Either because the data-set is large or the
    computation per element is large
  • Geometric methods can be used
  • Orthogonal Recursive Bisection (ORB)
  • Basic idea Recursively divide sets into two
  • Keep shapes squarish as long as possible
  • For each set
  • Find bounding box (Xmax, Xmin, Ymax, Ymin, ..)
  • Find the longer dimension (X or Y or ..)
  • Find a cut along the longer dimension that will
    divide the set equally
  • Doesnt have to be at the midpoint of the section
  • Partition the element in the two sets based on
    the cut
  • Repeat for each set
  • Variation non-power-of-two processors

7
Grid partitioning quad/oct trees
  • Another Geometric technique
  • At each step, divide the set into 2xD subsets,
    where D is the number of physical dimensions\
  • In 2-D 4 quadrants
  • Dividing line goes thru geometric midpoint of the
    box.
  • Bounding box is NOT recalculated each time in the
    recursion
  • Comparison with ORB

8
Grid partitioning Graph partitioners
  • CHACO and METIS are well-known programs
  • Optimize both load imbalance and communication
    overhead
  • But often ignore per-message cost, or the
    maximum-per-partition costs
  • Earlier algorithm KR (Kernigham-Ritchie)

9
Crack Propagation
  • Explicit FEM code
  • Zero-volume Cohesive Elements inserted near the
    crack
  • As the crack propagates, more cohesive elements
    added near the crack, which leads to severe load
    imbalance
  • Framework handles
  • Partitioning elements into chunks
  • Communication between chunks
  • Load Balancing

Decomposition into 16 chunks (left) and 128
chunks, 8 for each PE (right). The middle area
contains cohesive elements. Pictures S.
Breitenfeld, and P. Geubelle
10
Crack Propagation
Decomposition into 16 chunks (left) and 128
chunks, 8 for each PE (right). The middle area
contains cohesive elements. Both decompositions
obtained using Metis. Pictures S. Breitenfeld,
and P. Geubelle
