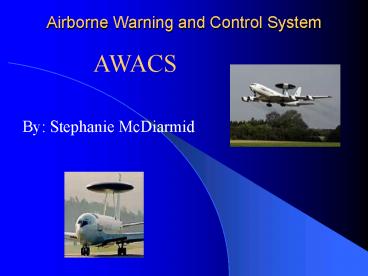

Airborne Warning and Control System

1
Airborne Warning and Control System
AWACS

• By Stephanie McDiarmid

2
Overview

• Radome/Antenna
• Range
• Target Detection
• Modes of Operation

3
Radome/Antenna

• Rotating radome
• 30 ft in diameter
• 6 ft thick
• 11 ft above fuselage
• Held w/ 2 struts

4
View

• Look-down radar
• Surveillance from Earths surface up into the
  stratosphere
• Over land or water
• 360 view of horizon
• Range over 250 miles (375 km)
• Detects air sea targets
• 6 revolutions/min
• 1 rev/4 min in standby

5
Target Identification

• Radar combined w/ Identification Friend or Foe
  (IFF)can look down to detect, identify and track
  enemy and friendly low-flying aircraft by
  eliminating ground clutter that confuse other
  radar systems.

6
Operating Modes

• Pulse Doppler Non Elevation Scan
  (PDNES)surveillance of airborne targets
• Pulse Doppler Elevation Scan (PDES)determines
  target elevation
• Beyond the Horizon Pulse Radar Mode
• Receive onlyfor passive operation
• Maritime Modeuses very short pulse width to
  detect surface ships
• Standby modeno transmit/receive

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
Summary

• Radome/Antenna
• Rotating
• Range
• 250 miles
• Target Detection
• Airborne/Ships
• Modes of Operation
• Surveillance/Elevation

13
References

• http//www.airforce-technology.com/projects/e3awac
  s/
• http//www.af.mil/factsheets/factsheet.asp?fsID98
