Title: Southern Oregon University, May 2003


1

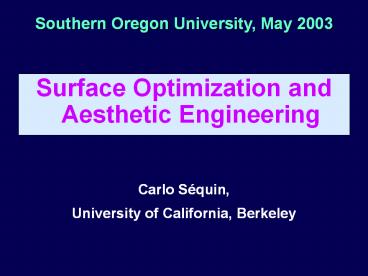

Southern Oregon University, May 2003
  • Surface Optimization and Aesthetic Engineering

Carlo Séquin, University of California,
Berkeley
2
I am a Designer
CCD Camera, Bell Labs, 1973 Soda Hall,
Berkeley, 1994
RISC chip, Berkeley, 1981 Octa-Gear,
Berkeley, 2000
3
Focus of Talk
  • The role of the computer in
  • the creative process,
  • aesthetic optimization.

4
Outline
  • Collaboration with Brent Collins
  • Parameterized Shape Generation
  • Realization by Layered Manufacturing
  • Geometric Sculptures in Snow
  • Aesthetics of Minimal Surfaces
  • Sphere Inversion as a Challenge
  • Search for a Beauty Functional
  • CAD Tools that We Are Lacking

5
Leonardo -- Special Issue
On Knot-Spanning Surfaces An Illustrated Essay
on Topological Art With an Artists Statement by
Brent Collins
George K. Francis with Brent Collins
6
Brent Collins
Hyperbolic Hexagon II
7
Scherks 2nd Minimal Surface
Normal biped saddles
Generalization to higher-order saddles(monkey
saddle)
8
Brent Collins Stacked Saddles
9
Hyperbolic Hexagon by B. Collins
  • 6 saddles in a ring
  • 6 holes passing through symmetry plane at 45º
  • wound up 6-story
    Scherk tower
  • Discussion What if
  • we added more stories ?
  • or introduced a twist before closing the ring ?

10
Closing the Loop
straight or twisted
11
Brent Collins Prototyping Process
Mockup for the "Saddle Trefoil"
Armature for the "Hyperbolic Heptagon"
Time-consuming ! (1-3 weeks)
12
Sculpture Generator I, GUI
13
A Simple Scherk-Collins Toroid
  • Parameters(genome)
  • branches 2
  • stories 1
  • height 5.00
  • flange 1.00
  • thickness 0.10
  • rim_bulge 1.00
  • warp 360.00
  • twist 90
  • azimuth 90
  • textr_tiles 3
  • detail 8

14
A Scherk Tower (on its side)
  • branches 7
  • stories 3
  • height 0.2
  • flange 1.00
  • thickness 0.04
  • rim_bulge 0
  • warp 0
  • twist 0
  • azimuth 0
  • textr_tiles 2
  • detail 6

15
A Virtual Sculpture (1996)
16
V-art
VirtualGlassScherkTowerwith MonkeySaddles(R
adiance 40 hours) Jane Yen
17
Minimal Surfaces
Catenoid
  • At all surface points, Minimal Surfaceshave
    equal and opposite principal curvatures.

18
Main Goal in Sculpture Generator 1
  • Real-time Interactive Speed !
  • Cant afford real surface optimizationto obtain
    true minimal surfaces (too slow)
  • also, this would be aesthetically too limited.
  • ? Make closed-form hyperbolic approximation.

19
Hyperbolic Cross Sections
20
Base Geometry One Scherk Story
  • Hyperbolic Slices ? Triangle Strips
  • precomputed ? then warped into toroid

21
The Basic Saddle Element
  • with surface normals

22
Hyperbolic Contour Lines
  • On a straight tower and on a toroidal ring

23
Part IIIHow to Obtain a Real Sculpture ?
  • Prepare a set of cross-sectional blue printsat
    equally spaced height intervals,corresponding
    to the board thickness that Collins is using
    for the construction.

24
Collins Fabrication Process
Wood master patternfor sculpture
Layered laminated main shape
Example Vox Solis
25
Emergence of the Heptoroid (1)
Assembly of the precut boards
26
Emergence of the Heptoroid (3)
Smoothing the whole surface
27
Slices through Minimal Trefoil
50
10
23
30
45
5
20
27
35
2
15
25
28
SFF (Solid Free-form Fabrication)
Monkey- Saddle Cinquefoil
29
Fused Deposition Modeling (FDM)
30
Zooming into the FDM Machine
31
Various Scherk-Collins Sculptures
32
Part IV
  • But what, if we want to make a really large
    sculpture ?

33
Breckenridge, 2003
  • Brent Collins and Carlo Séquin
  • are invited to join the team
  • and to provide a design.
  • Other Team Members
  • Stan Wagon, Dan Schwalbe, Steve Reinmuth
  • ( Team Minnesota)

34
Stan Wagon, Macalester College, St. Paul, MN
  • Leader of Team USA Minnesota

35
Breckenridge, 1999
  • Helaman Ferguson Invisible Handshake

36
Breckenridge, 2000
  • Robert Longhurst
  • Rhapsody in White
  • 2nd Place

37
Monkey Saddle Trefoil
  • from Sculpture Generator I

38
The Poor Mans Opportunity Snow-Sculpting!Annua
l Championships in Breckenridge, CO
39
Whirled White Web
40
(No Transcript)
41
1240 pm -- 42 F
42
124001
Photo StRomain
43
1241 pm -- 42 F
44
The Winners
  • 1st Canada B.C., 2nd USA
    Minnesota, 3rd USA Breckenridge

sacred geometry very intricate very 21st
century !
45
4 pm
46
Snow Sculpting
  • More on the construction and drama of our snow
    sculpture tonight at 7pm.
  • Also, pictures of some of the other snow
    sculptures.

47
Part V
  • DISCUSSION
  • Aesthetics of Minimal Surfaces

48
Whirled White Web Séquin 2003
Minimal surface spanning three (2,1) torus knots
Maquette made with Sculpture Generator I
49
Tightest Saddle Trefoil Séquin 1997
Shape generated with Sculpture Generator 1
Minimal surface spanning one (4,3) torus knots
50
Atomic Flower II by Brent Collins
  • Minimal surface in smooth edge(captured by John
    Sullivan)

51
Surface by P. J. Stewart (J. Hrdlicka)
  • Minimal surface in three circles

Sculpture constructed by hand
52
Volution Shells (Séquin 2003)
  • Genus 0 and genus 1 generated by Surface Evolver

53
Aesthetics of True Minimal Surfaces
  • Large-area minimal surfaces are a challenge for
    any artist to improve on.
  • For ribbon-like minimal surfaces, the artist
    typically prefers a deeper channel
  • ? more drama and more strength.

54
Part VI
  • SNOWSCULPTING PLANS FOR 2004
  • A realistic possibility a type of Volution
    shell.
  • A really crazy ideaTurning a Snowball Inside
    Out ? ? ?
  • ? Discussion of inadequacy of CAD tools

55
Sphere Eversion
  • In 1980, the blind mathematician B. Morin, (born
    1931) conceived of a way how a sphere can be
    turned inside-out
  • Surface may pass through itself,
  • but no ripping, puncturing, creasing
    allowed,e.g., this is not an acceptable solution

PINCH
56
Morin Surface
  • But there are more contorted paths that can
    achieve the desired goal.
  • The Morin surface is the half-way point of one
    such path

John Sullivan The Optiverse
57
Simplest Model
  • Partial cardboard model based on the simplest
    polyhedral sphere ( cuboctahedron) eversion.

58
Gridded Models for Transparency
  • 3D-Print from Zcorp

SLIDE virtual model
59
Shape Adaption for Snow Sculpture
  • Restructured Morin surface to fit block size
    (10 x 10 x 12)

60
Shape Optimization
  • What is the fairest surface with the
    connectivity of the Morin surface that will fill
    the given bounding box ?
  • Minimal surfaces are of no help, since this
    object clearly must have some positive curvature
    !
  • What other functionals could we use ?Is there a
    Beauty Functional ?

61
Beauty Functional Desirable Properties
  • Smoothness continuous differentiability.
  • Fairness even distribution of curvature
  • Monotonicity preserving no unnecessary bulges,
    ripples.
  • Invariance under rigid-body transforms, uniform
    scaling.
  • Stability small change in specs ? small change
    in shape.
  • Consistency no change if extra point is added on
    the shape.
  • Technical relevance leads to spheres, cylinders,
    cones, tori.

62
Various Optimization Functionals
  • Minimum Length / Area (rubber bands, soap
    films)? Polygons -- Minimal Surfaces.
  • Minimum Bending Energy (stiff Elastica) ? k2
    ds -- ? k12 k22 dA ? Splines
    -- Minimum Energy Surfaces.
  • Minumum Curvature Variation (no natural model
    ?) ? (dk / ds)2 ds -- ? (dk1/ds)2 (dk2/ds)2
    dA ? Circles -- Cyclides Spheres, Cones,
    Tori ? Minumum Variation Surfaces (MVS)

63
Minimum-Variation Surfaces
D4h
Genus 5
Oh
Genus 3
  • The most pleasing smooth surfaces
  • Constrained only by topology, symmetry, size.

64
Optimization With Constraints
  • Create the fairest possible surface that fits all
    the given constraints, which could be
  • Position Give points to be interpolated
  • Normals Define tangent planes
  • Curvature Define a quadric to be matched
  • Pictures based on implementation by Henry Moreton
    in 1993
  • Used quintic Hermite splines for curves
  • Used bi-quintic Bézier patches for surfaces
  • Global optimization of all DoFs (slow!)

65
Comparison MES ?? MVS(genus 4 surfaces)
66
Comparison MES ?? MVS
  • Things get worse for MES as we go to higher genus

Genus-5 MES
MVS
67
Another ProblemMake Surface Transparent
  • Realize surface as a grid.
  • Draw a mesh of smooth lines onto the surface
  • Ideally, these aregeodesic lines.

68
Real Geodesics
  • Chaotic Pathproduced by a geodesic lineon a
    surfacewith concaveas well as convex regions.

69
Geodesic Lines
  • Fairest curve is a straight line.
  • On a surface, these are Geodesic lines (they
    bend with the given surface, but make no
    gratuitous lateral turns).
  • We can easily draw such a curve from an initial
    point in a given direction
  • Step-by-step construction of the next point (or
    of a short line segment).
  • But connecting two given points on a given
    surface by a geodesic is an NP-hard problem.

70
Another Use for Geodesics
  • Map a complex graph onto a genus-3 surface
  • Edges of graph should be nice, smooth curves.

71
Strut Construction in Snow
  • Drawing lines is not good enough for
    snow-sculpturewe need struts of substantial
    thickness.
  • As few struts as possible should give a good
    viewof the whole smoothly curved surface.
  • We will cut windows into a smooth surface, so
    that a network of struts is left standing.
  • Surface of struts should follow curvature of
    surface,and their sides should be normal to the
    surface.
  • How do we create a CAD model of this ?-- Some
    kind of sophisticated CSG operation ?
  • Moreover, the struts in our model should
    beadjustable in width and in depth

72
Best Modeling Effort as of 5/25/03
73
Havent Found Suitable Tools yet
  • We are struggling with subdivision surfaces and
    with sweeps along spline curves
  • We have created our own tools in SLIDE (Scene
    Language for Interactive Dynamic Environments),
    a research system built in my group.
  • SLIDE can create surface-grid representations,
    but only at the chosen sampling density. We need
    super-sampling to obtain curved struts.

74
Conceptual Design (3D Sketching)
  • E.g. creating a new form ( a Moebius bridge )
  • CAD Tools are totally inadequate.
  • Effective design ideation involves more than just
    the eyes and perhaps a (3D?) stylus.
  • WANTEDfull-hand haptics (palm and fingers),
    whole body gestures,group interactions,

75
The Holy Grail of a CAD System (for abstract,
geometric sculpture design)
  • Combines the best of physical / virtual worlds
  • No gravity ? no scaffolding needed
  • Parts have infinite strength ? dont break
  • Parts can be glued together and taken apart
  • Beams may bend like perfect splines (or MVC)
  • Surfaces may stretch like soap films (or MVS)
  • Parts may emulate materials properties (sound).

76
QUESTIONS ?DISCUSSION ?
Write a Comment
User Comments (0)
About PowerShow.com
