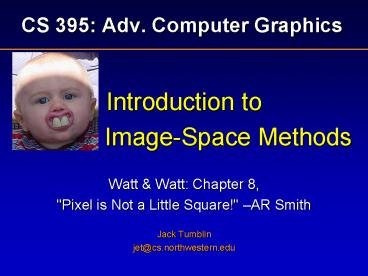

CS 395: Adv. Computer Graphics

1
CS 395 Adv. Computer Graphics

• Introduction to
• Image-Space Methods
• Watt Watt Chapter 8,
• "Pixel is Not a Little Square!" AR Smith
• Jack Tumblin
• jet_at_cs.northwestern.edu

2
Image Space Methods

• A Digital Image a data structure for
  displayed images
• ?What can it do, besides display?
• what can we change?
• Position offset, stretch, squeeze, smear,
  cut, Try It! (Java Applets) http//www.mrl.nyu.
  edu/hertzman/nudge/
• Combine /-, Compositing, (depth images?)
• Separate matte or segmenting
• Elaborate make more of the same picture

3
Real Images Lens-Focused Light

• 3D?2D Light Intensity Map I(x,y)
• Angle(?,?) ?? Position(x,y)
• Blurringsharpness set by focus, lens quality

I(x,y) Image Plane Intensity
Viewed Scene
Angle(?,?)
Position(x,y)
4
Digital Images 2D Grid of Numbers

• NO intrinsic meaning, but ...
• Widely assumed to represent
• Point Samples of a smoothed 2D intensity
  surface
• Uniform sampling pattern (but not always)

(!weasel-word!)
y
x
5
Real vs. Digital

• Real Image 2D Light Intensity map I(x,y)
• Digital Image 2D grid of numbers I(m,n)

(pixels)
I(x,y)
I(m,n)
x,y
m,n
6
Digital Images As Vectors

• Stack up pixel values VERY LONG vector
• 1 digital image 1 point in N-dim. Space
• Nearby points Similar images
• All possible digital images a grid of N-D
  points
• Space of all practical digital images
• 8Meg dimensions (2Mpix RGBA)
• discrete, quantized

I00 I01 I02 I10 I11 I12
I
I00 I01 I02 I03 I04 I05
7
Digital Images As Vectors

• Sensible element-by-element operations
• Add, subtract, scale two images
• 0.5 (I1 - I2 ) out

-

I1
I2
out
8
Digital Images As Vectors

• Sensible element-by-element operations
• Alpha blending or dissolve?-Weighted sum
  of two images 0 lt ? lt 1

? I1
(1-?) I2
out
9
Digital Images As Vectors

• Compositing
• ? Use an ? image
• as opacity

out
(1-?) . I2
? . I1
10
Extended Compositing Methods

• Environment Mattes

Alpha Matte Environment Matte
Photograph
11
http//grail.cs.washington.edu/projects/envmatte/
12
Digital Images As Vectors

• Exploration of the space-of-all-images
• Image shift, scale, rotation, warp, etc.as
  vector operation? awkward...
• Video Textures (Schodl et al.,
  SIGG2000)http//www.gvu.gatech.edu/perception/pro
  jects/videotexture/
• Face Space, eigenfaces, etc
• Gather many example images of facesUse PCA to
  find desirable axes gender, age, facial
  expression...
• Depth images is this still 2D?

13
Texture Synthesis Learned Vectors

• Texture Synthesis/elaborationEfros98,
  Wei/Levoy99, Ashikhmin2000,...

14
Texture Synthesis Learned Vectors

• Core Idea
• for each pixel, make a vector of neighborhood
  pixel values
• Make a dictionary of these vectorsgiven a
  vector ,
• what are the most likely values of ?
• Dictionary crude, local pattern learning
• Use dictionary to build a new image from seed
  pixels/regions chosen at random.

I00 I01 I02 I10 I11 I12
I
15
Texture Synthesis Learned Vectors

• Refinements Extensions
• Faster, simpler methods (Ashkhmin real-time!)
• http//www.cs.utah.edu/michael/ts/
• Hertzmann(2001) Image analogieshttp//mrl.nyu.ed
  u/projects/image-analogies/
• Given images A,B,C, learn A?B mapping. then
  find D Solves A is to B as C is to D
  problems
• Recreates some local effectsbrush strokes, blur,
  etc.
• Wider variety of user-guided reconstruction..
• Recent extensions video textures, depth,
  curves, shapes, textures on surfaces,
  colorizing B/W images...

16
Texture Synthesis Modified Vectors

• Image Inpainting repair damaged images
  http//www.ece.umn.edu/users/marcelo/restoration.h
  tml
• Reaction/Diffusion textures http//www.gvu.gat
  ech.edu/people/faculty/greg.turk/reaction_diffusio
  n/reaction_diffusion.html iteratively compute
  new pixel intensity from neighbors rules.
  Image evolves over time
• Anisotropic Diffusion, Curvature Flow iterative
  rules (PDEs) for progressive edge-preserving
  image smoothing

17
! NOT EQUIVALENT !

• ? Digital image pixel-by-pixel operations ?
• ? Real Image point-by-point operations ?
• Source of much frustration error!
• Digital Image Real Image
• Also see Alvy Ray Smiths article
  entitled A pixel is NOT a little square,
• a pixel is NOT a little square,
• a pixel is NOT a little square! found
  here.

18
Real Digital

• ?

• Image Intensity
• Image Spectral Distribution (color)
• Image Geometry (Position,Angle, Distortion, )
• Image Resolution (sharpness or focus)
• Real Images Smooth,
• Continuous,
• Variable,
• Complete
• Unlimited

• ?
• ?
• ?
• ?

• Digital Images
• Sampled,
• Discrete,
• Quantized,
• Fixed
• Limited

19
Conversion Method?

• Real Image 2D Light Intensity map I(x,y)
• Digital Image 2D grid of numbers I(m,n)

• ??

20
Digital ? Real Reconstruction

• A pixel sets strength of a real Basis
  function (aka reconstruction filters
  impulse response)

Box
I(m,n)
I(x,y)
m,n
x,y
21
Digital ? Real Reconstruction

• A pixel sets strength of a real Basis
  function (aka reconstruction filters
  impulse response)

Linear
1.0
I(m,n)
I(x,y)
0
-1.0
1.0
m,n
x,y
22
Digital ? Real Reconstruction

• A pixel sets strength of a real Basis
  function (aka reconstruction filters
  impulse response)

Cubic
1.0
I(m,n)
I(x,y)
0
-1.0
1.0
2.0
m,n
x,y
23
Real?Digital Sampling

• If I(x,y) is smooth enough already,
• ?Why not just grab I(x,y) values at (m,n) ?

I(m,n)

• ?

m,n
24
Smooth enough to Sample?

• Because smooth enough is undefined
• Samples may hit spurious peaks, valleys

I(x,y)
I(m,n)
BAD!
x,y
m,n
25
Real ? Digital Pre-filter

• Smoothing Defined Linear Pre-filter
• Pixel local weighted average of real
  image around pixel sample point

Weight
1.0
Cubic weights
I(x,y)
1.0
0
-1.0
1.0
2.0
x,y
26
Pre-Filter functions

• Pre-filters anti-aliasing in Comp Graphics
• SHOULD be done by
• continuous integration,
• USUALLY done by
• super-sampling
• ? Quality Measures ?

Box filter
Bi-linear filter
Bi-cubic filter
27
Smoothness Measures

• Sine wave magic
• ALL (continuous) functions are a (possibly
  infinite) weighted sum of sinusoids f(x)
  A0sin(w0x) B0cos(w0x) A1sin(w1x)
  B1cos(w0x)
• For ALL FILTERS (box, linear, cubic,,
  anything)sinusoid in ? scaled, shifted sinusoid
  out
• THUS compute response to ALL signals from
  sinusoids
• High-Frequency Sinusoids in a signal hold ALL
  of its sampling/aliasing troubles!

28
1-D Aliasing Example
Real
Real image I(x,y) sin(2?fx) f3.0
Aliasing when bad conversion scrambles the
frequencies of sinusoids
29
1-D Aliasing Example
Real
Sample
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per cycle)
30
Aliasing Example
Real
Sample
Display
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0
31
Aliasing Example
Real
Sample
Display
Real
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0 Another Real Image I(x,y)
sin(2?fx) where f 39.0
32
Aliasing Example
Real
Sample
Display
Sample
Real
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0 Another Real Image I(x,y)
sin(2?fx) where f 39.0 Sample at x(n) n /
36.0 (0.92 samples per cycle)
33
Aliasing Example
Real
Sample
Display
Display
Sample
Real
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0 Another Real Image I(x,y)
sin(2?fx) where f 39.0 Sample at x(n) n /
36.0 (0.92 samples per cycle) Reconstruct (use
box filter)? approximates f3.0 !!
34
Aliasing Example
Real
Sample
Display
Display
Sample
Real
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0 Another Real Image I(x,y)
sin(2?fx) where f 39.0 Sample at x(n) n /
144.0 ( 4.0 samples per cycle) Reconstruct (use
box filter)? approximates f39.0
35
Aliasing Example
Real
Sample
Display
Display
Sample
Real

• ? How much sampling is enough?
• Depends on quality of reconstruction filter
• Rule-of-Thumb at least 4 samples per cycle of
  the highest frequency sinusoid
• Nyquist Criterion 2 samples/cycle is
  theoretical min.

36
Conclusion

• Digital images are compact, indirect, ambiguous
  descriptions of light distributions
• Digital images are vectors
• Digital image patterns can be learned
• Image-space manipulations must explicitly address
  real-digital (discrete-continuous) conversions
  to avoid aliasing artifacts.

37
Aliasing Example
Real
Sample
Display
Real
Sample
Display
Real image I(x,y) sin(2?fx) f3.0 Sample at
x(n) n / 36.0 (12 samples per
cycle) Reconstruct (use box filter) ?
approximates f3.0 Another Real Image I(x,y)
sin(2?fx) where f 39.0 Sample at x(n) n /
36.0 Reconstruct (use box filter)?
approximates f3.0
38
Image Space Methods

• Intro What can we do with images?
• Re-samplingContinuous Discrete Filters
• Interpolation Whats in-between a pixel?
• Antialiasing What makes a good sampling?
• Math Rigor the Fourier Transform
• Examples box, triangle, Mitchell-Netravali
• Compositing Transparency
• Un-Compositing Matte Separations
• Further extensions
• Environment Matte
• Polynomial Texture Map
• Texture Elaboration, Image Inpainting(Sigg2000)

39
OLD

• ImageA 2D map of light intensities from a
  lens
• Digital Imagea 2D grid of numbers (pixels)
• PROBLEMS
• What is between all those points?
• Why go digital? Why is it better than film?
• How can I combine the best of many pictures? Edit
  easily?
• GOAL
• More Flexibility let me do more than just
  display!

40
Image-Space Techniques

• GOAL More flexibility!
• Compositing /Matte cut-and-paste, transparency
  , the digital optical bench (Pixar84)
• Warp image as a rubber sheet, you can cut,
  stretch, and change at will
• Environment Matte (Salesin99)
• Video Textures(Schodl 2000)
• Polynomial Texture Map (Malzburg2001)
