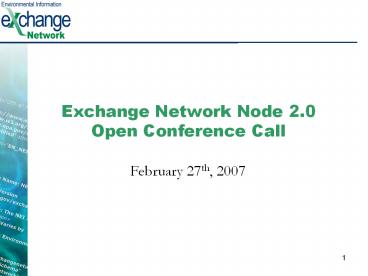

Exchange Network Node 2.0 Open Conference Call

• February 27th, 2007

2
Introductions

• This conference call is hosted by the Network
  Technology Group (NTG), which is the technical
  work group of the Exchange Network (EN)
  governance
• NTG members present
• Connie Dwyer, EPA OEI (EPA Co-chair)
• Glen Carr, Oregon DEQ (State Co-chair)
• Dennis Burling, Nebraska DEQ
• Chris Clark, EPA OEI

3
Conference call agenda

• Provide a detailed description of the proposed
  technical changes from Draft 8 (October 5, 2007)
  to Draft 9 (March 3, 2008)
• Update on revised Node 2.0 Timeline
• Update on Node 2.0 Testing Opportunities
• QA - Collect your feedback on Node 2.0 needs and
  concerns

4
Conference call basics

• Feel free to ask questions at any time during the
  presentation before, during, or after!
• Please put your phone on mute when youre not
  asking questions (if your phone has a mute
  function)
• Please dont put this call on hold if your hold
  function plays music
• This web conference has a chat feature. Please
  feel free to send questions or comments to the
  meeting organizers at any time during the call.

5
The journey from Node 1.1 to Node 2.0

• Late summer 2006 NTG work group starts
  discussing Node 2.0
• June 2007 Node 2.0 revision 7 WSDL,
  Specification release to EN for comment
• June Present continued development of WSDL,
  Specification
• October 5, 2007 Node 2.0 Draft 8 WSDL,
  Specification released
• February 11, 2008 Node 2.0 Draft 8 Unit Testing
  completed
• March 3, 2008 Release of Draft 9 WSDL,
  Specification

6
Basic changes in Node 2.0

• Three major changes to Node technologies
• SOAP 1.2
• Doc/Literal WSDL
• MTOM
• Changes primarily driven by vendor support issues
• These changes will be mostly transparent but are
  important for other reasons
• Bring the Exchange Network up-to-date with
  current standards for web services
• This means that the same platform (e.g. SOAP 1.2
  handler) that runs Node 2.0 can easily be adapted
  to inter-operate with other Web services networks

7
Whats New in Node 2.0 SOAP 1.2 and Doc/Lit WSDL

• Soap 1.2/MTOM
• SOAP 1.1 is no longer supported by Java or MS
  .NET WS toolkits.
• SOAP 1.2 utilizes MTOM (now a W3C standard) to
  attach binary messages which has a unified
  infoset, is simple to design and implement, and
  is the new standard for WS payloads over SOAP.
• Doc/Literal WSDL
• The Node 1.1 WSDL is RPC/Encoded.
• Standard, but inconsistent implementation due to
  encoding type definitions.
• Doc/Literal allows WSDL types to be defined like
  normal XML schema.

8
Node 2.0 Draft 9 Specific Changes

• Parameters
• Parameters are now defined as an
  element/attribute pair.
• Includes ability to specify unique type for each
  parameter.
• All nodes are expected to support String and XML
  parameters.
• Additional allowable types are enumerated in the
  WSDL and are optional for nodes to support.

9
Node 2.0 Draft 9 Specific Changes

• Query Paging
• Expanded from Node 1.1
• Return result set based on rowID, maxRows
• Query paging parameters must always be included
  in the response.
• If a node is unable to page query results, it
  should return the entire result with values of
• rowID 0
• maxRows 0
• lastSet true

10
Node 2.0 Draft 9 Specific Changes

• Synchronous Status Response
• Response for Submit and Solicit includes
• Status Code Received, Pending, Processed,
  Complete, and Failed.
• Status detail contains free form text.
• These return elements are required, however if a
  node cannot support granular status reporting, a
  status code of Received may be returned instead
  of actual values.

11
Node 2.0 Draft 9 Specific Changes

• Automatic Email/Node notification
• Ability to supply either a valid email URI or
  Node URI and automatically receive a notification
  message when a transaction status changes
• New notificationURI WSDL construct allows for
  granular notification
• Only receive emails on error, warning, failure,
  etc.
• Nodes should return a non-critical error if this
  feature is unsupported or if the email address is
  unavailable or invalid

12
Node 2.0 Draft 9 Specific Changes

• Dynamic submission routing
• Via the new recipients parameter
• Specify either a Node URI or email URI
• Nodes receive a forwarded submission
• Emails receive transactionID.
• Creates ability to create ad hoc dataflows
  i.e. dynamic submissions

13
Node 2.0 Draft 9 Specific Changes

• GetServices method
• GetServices Response will return an XML response
  defined in an outside schema. The current
  version of the GetServices schema will be
  specifically referenced in the Specification as
  the required return.
• A GetServices response is required from all EN
  Nodes.
• Nodes that are not able to dynamically generate a
  GetServices response message should return a
  static description of the services offered by the
  node as defined in the Specification.

14
Node 2.0 Draft 9 Specific Changes

• Execute method
• Expandable interface for services
• Future EN Services
• Outside Web Services
• Legacy Node 1.1 applications
• This method will be optional for nodes to
  implement

15
Node 2.0 Timeline

• February 2008
• Modification/revisions to the WSDL,
  specification, and protocol process
• Task force discussion on any issues that arise
  during testing
• Basic Unit Testing of the WSDL and Specification
• NTG review and acceptance of modification and
  revisions
• March 3, 2008
• Node 2.0 WSDL and Specification Draft 9 made
  available to the user community and for comment
• April 2008
• Modification/revisions to the Node 2.0 WSDL and
  Specification
• NTG review and acceptance of modification and
  revisions
• May 2008
• Finalize Node 2.0 WSDL, Protocol, Specification
  and supporting documentation
• June 2, 2008
• Release all Node 2.0 items (Specification, WSDL,
  and Protocol)
• Start Node 2.0 implementations and operations

16
Node 2.0 Unit Testing Summary
Test Case Method Tested Outcome
1. Authenticating a user Authenticate Succeeded
2. Basic Submission Submit Succeeded
3. Synchronous Data Request Query Succeeded
4. Asynchronous Data Request Solicit Succeeded
5. Download Document Download Succeeded
6. Retrieve Status information based on TransactionID GetStatus Succeeded
7. Send Notification to an EN Node Notify Succeeded
8. Node Availability NodePing Succeeded
17
Opportunities for you to participate in Node 2.0
Development

• The NTG is asking for comments and suggestions on
  every aspect of Node 2.0
• Draft 9 WSDL and Specification
• Support Materials
• Exchange Network Guidance
• Please look for Draft 9 distribution package on
  March 3.
• For more specific information on technical Node
  2.0 materials, please visit the Node 2.0 page at
• www.exchangenetwork.net/node

18
Opportunities for you to participate in Node 2.0
Testing

• Node 2.0 Test-tool under development.
• Two phases of testing
• Unit testing individual methods (completed)
• Functional Testing basic exchange scenarios
  (April 2008)
• The NTG is still looking for vendors (or other
  Network Partners) to code additional Nodes,
  including
• .NET, Java and an Open Source Node
• Alternate Web Service Implementations

19
How do I stay connected?

• Updates on Node 2.0 will be posted to the Node
  page on Exchange Network website
  www.exchangenetwork.net/node
• Slides from this call will be posted shortly
• NTG will use Network Alerts to inform you of key
  updates on Node 2.0 and to announce future open
  calls
• NTG will contact those vendors/Network partners
  who express an interest in coding a Node
  implementation to discuss a communications process

20
How to communicate on Node 2.0

• The Exchange Network Message Board has a forum
  set up for you to ask questions and collaborate
  with other Network partners http//www.websitetoo
  lbox.com/tool/post/exnet/vpost?id2212821
• To contact the NTG directly
• E-mail questions to node2.0_at_exchangenetwork.net
• OR
• Contact the NTG co-chairs
