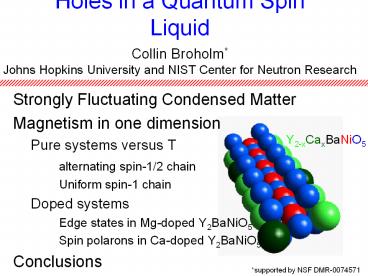

Holes in a Quantum Spin Liquid

1
Holes in a Quantum Spin Liquid
Collin Broholm Johns Hopkins University and NIST
Center for Neutron Research

• Strongly Fluctuating Condensed Matter
• Magnetism in one dimension
• Pure systems versus T
• alternating spin-1/2 chain
• Uniform spin-1 chain
• Doped systems
• Edge states in Mg-doped Y2BaNiO5
• Spin polarons in Ca-doped Y2BaNiO5
• Conclusions

Y2-xCaxBaNiO5
supported by NSF DMR-0074571
2
Uniform spin-1 chain Y2BaNiO5 Ying Chen
JHU Guangyong Xu JHU -gt University of
Chicago G. Aeppli NEC J. F. DiTusa LSU I. A.
Zaliznyak JHU -gt BNL C. D. Frost ISIS T.
Ito Electro-Technical Lab Japan K. Oka
Electro-Technical Lab Japan H. Takagi ISSP and
CREST-JST M. E. Bisher NEC M. M. J. Treacy
NEC R. Paul NIST Center for Neutron
Research Science 289, 419 (2000) Alternating
spin-1/2 chain Cu(NO3)2.2.5D2O Guangyong Xu
JHU -gt University of Chicago Daniel
Reich JHU M. A. Adams ISIS facility PRL 84,
4465 (2000)
Collaborators
Collaborators
3
Dynamic condensed matter Phonons
Weak connectivity
Low energy twist modes
Strong connectivity
Hard spectrum
Ernst el al (1998)
4
Dynamic Condensed matter Magnetic Frustration
ZnCr2O4
S.-H. Lee et al
Weak connectivity triangular motif
Interactions specify local order, not a critical
Q vector
5
Dynamic condensed matter 1D antiferromag.
KCuF3
Chain direction
NDMAP
I.R. divergence destabilizes Neel order
Cooperative singlet ground state
6
Consequences of strong fluctuations
Phonons Thermal contraction
Frustration cooperative paramagnet
c-1
Ernst et al (1998)
0
0 200 400 600 800
1000
T (K)
1D magnons macroscopic singlet
Ajiro et al. (1989)
7
Inelastic Neutron Scattering
8
NIST Center for Neutron Research
9
SPINS Cold neutron triple axis spectrometer at
NCNR
10
Focusing analyzer system on SPINS
11
MAPS Spectrometer at ISIS in UK
12
Y2BaNiO5 Ito, Oka, and Takagi
Cu(NO3)2.2.5 D2O Guangyong Xu
13
Simple example of Quantum magnet
Cu(NO3)2.2.5D2O dimerized spin-1/2 system
Only Inelastic magnetic scattering
14
Dispersion relation for triplet waves
Dimerized spin-1/2 system copper nitrate
Xu et al PRL May 2000
15
Qualitative description of excited states

• A spin-1/2 pair with AFM exchange has a singlet -
  triplet gap

• Inter-dimer coupling allows coherent triplet
  propagation and
• produces well defined dispersion relation

• Triplets can also be produced in pairs with total
  Stot1

16
Creating two triplets with one neutron
Two magnon
One magnon
Tennant et al (2000)
17
Heating coupled dimers
18
SMA fit to scattering data
T-Parameters extracted from fit
More than 1000 data points per parameter!
19
T-dependence of singlet-triplet mode
20
Types of Quantum magnets

• Definition small or vanishing frozen moment at
  low T
• Conditions that yield quantum magnetism
• Low effective dimensionality
• Low spin quantum number
• geometrical frustration
• dimerization
• weak connectivity
• interactions with fermions
• Novel coherent states

21
One dimensional spin-1 antiferromagnet Y2BaNiO5
22
Macroscopic singlet ground state of S1 chain

• Magnets with 2Snz have a nearest neighbor
  singlet covering
• with full lattice symmetry.

• This is exact ground state for spin projection
  Hamiltonian

• Excited states are propagating bond triplets
  separated from the
• ground state by an energy gap

Haldane PRL 1983 Affleck, Kennedy, Lieb, and
Tasaki PRL 1987
23
Single mode approximation for spin-1 chain
Dispersion relation
Equal time correlation function
24
Two length scales in a quantum magnet
Triplet Coherence length length of coherent
triplet wave packet
25
Coherence in a fluctuating system
Short range G.S. spin correlations
Coherent triplet propagation
26
Mix in thermally excited triplets
Coherence length approaches Correlation
length for
27
Coherence and correlation lengths versus T
28
qp Triplet creation spectrum versus T
Anisotropy fine structure
Triplet relaxes due to interaction with thermal
triplet ensemble
There is slight blue shift with increasing T
29
Resonance energy and relaxation rate versus T
Jolicoeur and Golinelli Quantum non-linear s model
30
Pure quantum spin chains- at zero and finite T

• Gap is possible when n(S-m) is integer
• gapped systems alternating spin-1/2 chain,
  integer chain,
• gapless systems uniform spin-1/2 chain
• gapped spin systems have coherent collective mode
• For appreciable gap SMA applies S(q) 1/e(q)
• Thermally activated relaxation due to triplet
  interactions
• Thermally activated increase in resonance energy
• Coherence length exceeds correlation length for
  Tlt D/kB

31
Impurities in Y2BaNiO5

• Mg2on Ni2 sites finite length
  chains
• Ca2 on Y3 sites mobile bond defects

Mg
Ca2
Ni
Y3
Kojima et al. (1995)
32
Zeeman resonance of chain-end spins
g2.16
20
hw (meV)
15
0 2 4 6 8
H (Tesla)
10
I(H9 T)-I(H0 T) (cts. per min.)
0
-5
0 0.5 1 1.5
2
33
Form factor of chain-end spins
Y2BaNi1-xMgxO5 x4
Q-dependence reveals that resonating object is
AFM. The peak resembles S(Q) for pure system.
Chain end spin carry AFM spin polarization of
length x back into chain
34
Impurities in Y2BaNiO5

• Mg2on Ni2 sites finite length
  chains
• Ca2 on Y3 sites mobile bond defects

Mg
Ca2
Ni
Y3
Kojima et al. (1995)
35
Transport in Ca doped Y2BaNiO5
1D conductivity, no Charge ordering
T. Ito et al. Submitted to PRL (2001)
36
Gap modes in Ca-doped Y2BaNiO5
37
Why is Y2-xCaxBaNiO5 incommensurate?

• Charge ordering yields incommensurate spin order
• Quasi-particle Quasi-hole pair excitations in
  Luttinger liquid
• Single impurity effect

dq indep. of x
38
Does d q vary with calcium concentration?
dq not strongly dependent on x
single impurity effect
G. Xu et al. Science (2000)
39
Bond Impurities in a spin-1 chain Y2-xCaxBaNiO5
Ni
Ca2
Y3
O
40
Form-factor for FM-coupled chain-end spins
A symmetric AFM droplet
Ensemble of independent randomly truncated AFM
droplets
41
Measuring Magnetic DOS for Gap modes
42
Spin polaron in Ca-doped Y2BaNiO5
43
Conclusions

• Dilute impurities in the Haldane spin chain
  create sub-gap composite spin degrees of freedom.
• Edge states have an AFM wave function that
  extends into the bulk over distances of order the
  Haldane length.
• Ca doping yields charge polarons with 1 eV
  binding energy
• Holes in Y2-xCaxBaNiO5 are surrounded by AFM spin
  polaron with central phase shift of p
• Spin polaron has fine structure possibly from
  spin space anisotropy
• Neutron scattering can detect the structure of
  composite impurity spins in gapped quantum
  magnets.
• The technique may be applicable to probe
  impurities in other gapped systems eg. high TC
  superconductors.
