The CYK Parsing Method

1

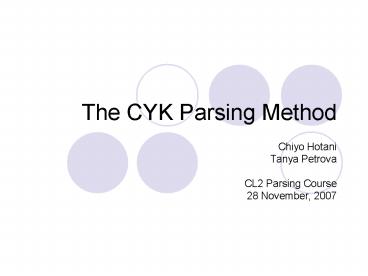

The CYK Parsing Method

• Chiyo Hotani
• Tanya Petrova
• CL2 Parsing Course
• 28 November, 2007

2
Overview

• CYK Recognition with CF grammar
• Basic Algorithm
• Problems unit-rules, ?-rules
• Recognition with a grammar in CNF
• CYK Parsing with CNF
• Parsing with CNF
• Recognition Table
• Chart Parsing
• Summary
• Advantages and Disadvantages
• Other remarks

3
Basic Algorithm of CYK Recognition (1)

• Example Grammar
• A grammar describing numbers in scientific
  notation
• Input 32.5e1

4
Basic Algorithm of CYK Recognition (2)
Digit -gt 0 1 2 3 4 5 6 7 8
9 Sign -gt -
derivations of substrings of length 1
5
Basic Algorithm of CYK Recognition (3)

• NumberS -gt Integer Real
• Integer -gt Digit Integer Digit
• Digit -gt 0 1 2 3 4 5 6 7 8 9

• derivations of substrings of length 1
• Unit Rule rules of the form A?B, where A and B
  are non-terminals. We can have chains of them in
  a derivation.

6
Basic Algorithm of CYK Recognition (4)

• NumberS -gt Integer Real
• Integer -gt Digit Integer Digit
• Fraction -gt . Integer
• Scale -gt e Sign Integer Empty

7
Basic Algorithm of CYK Recognition (5)

• NumberS -gt Integer Real
• Real -gt Integer Fraction Scale

Number does indeed derive 32.5e1.
8
Basic Algorithm of CYK Recognition (6)
?-rules
9
Basic Algorithm of CYK Recognition (7)

• R? Empty, Scale
• sentence z z1 z2 . . . znsubstring of z
  starting at position i, of length l.si,l
  zizi1. . . zil-1
• Rsi,l the set of non-terminals deriving the
  substring si,l

A graphical presentation of substrings
10
CYK recognition with a grammar in CNF

• Required restrictions
• Eliminate ?-rules and unit rules
• Limit the maximum length of RHS of the rule to 2
• CNF
• No ?-rules and unit rules
• all rules have one of the following two forms
  A?a A?BC

11
Our example grammar in CNF
12
CYK Parsing with CNF

• Building the recognition table
• Input
• Our example grammar in CNF
• input sentence 32.5 e 1

13
CYK Parsing with the CNF

• bottom-row read directly from the grammar
  (rules of the form A? a )

14
Two Ways to Copmute a R s i,l

• check each right-hand side
• compute possible right-hand sides from the
  recognition table

15
How this is done

• Example 2.5 e ( s 2, 4)
• 1) N1 not in R s 2, 1 or R s 2, 2
• N1 is a member of R s 2, 3
• But Scale is not a member of R s 5, 1
• 2) R s 2, 4 is the set of Non- Terminals that
  have a right-hand side AB where either
• A in R s 2, 1 and B in R s 3, 3
• A in R s 2, 2 and B in R s 4, 2
• A in R s 2, 3 and B in R s 5, 1
• Possible combinations N1 T2 or Number T2
• In our grammar we do not have such a right-hand
  side, so nothing is added to R s 2, 4.

16
Recognition table
l
i
17
As a result we find out that

• This process is much less complicated than the
  one we saw before

18
Reasons

• We do not have to repeat the process again and
  again until no new Non-Terminals are added to R s
  i,l
• (The substrings we are dealing with
• are really substrings and cannot be equal to
  the string we start with)
• We only have to find one place where the
  substring must be split into two A ? B C
•

•
  Here !

19
Chart Parsing
A chart is just a recognition table.
20
A short retrospective of CYK

• First recognition table using the original
  grammar.
• Then transforming grammar to CNF.

21
A short retrospective of CYK cont.

• CNF is useful for improving the efficiency, but
  it is actually a bit too restrictive
• Disadvantage of CNF
• Resulting recognition table lacks the information
  we need to construct a derivation using the
  original grammar!

22
A short retrospective of CYK cont.

• In the transformation process, some non-terminals
  were thrown away
• (non-productive)
• Missing information could be added.

23
A short retrospective of CYK cont.

• Result almost the same recognition table.
• Extra information on non-terminals
• Obtained in a simpler and much more efficient
  way.

24

• Thank you
• for your attention! ?
