Saving Your Asphalt

1

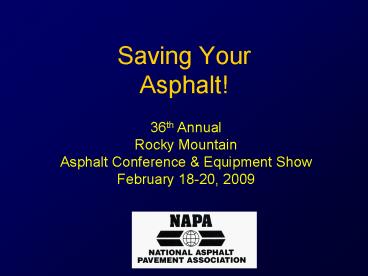

Saving YourAsphalt!
36th Annual Rocky Mountain Asphalt Conference
Equipment Show February 18-20, 2009
2
The Bad News
3
The Good News
Lets not get caught off-guard next time!
4
The Bad News
Natural Disasters
Unnatural Disasters
5
Five Ways to Save Your Asphalt

• Up the RAP
• Rock the Asphalt
• Thinner Overlays
• The Right Asphalt for the Right Occasion
• Raise the Roof with Shingles
• Perpetuate Asphalt Pavements

6
Up the RAP

• Reuse what you have.
• Characterize it like it was any other component
  of your product.
• Process it properly.
• Advantages
• Economics
• Environment
• Performance

7
RAP Guides
8
RAP Example

• Virgin mix requires 5.5 AC
• RAP has 4.0 AC
• Use 30 RAP Reduce virgin AC 1.2
• RAP Processing - 6.00/ton
• AC price 650/ton Aggr. price 10/ton
• On 1 ton HMA reduce AC by 0.012 tons
• Reduce aggregate by 0.28 tons
• SAVE 8.80/ton!

9
AASHTO Survey of States

• Objectives
• Find extent of RAP usage
• Find the roadblocks to usage

10
RAP Use in Base
Allowed
Used
11
RAP Use in Binder
Allowed
Used
12
RAP Use in Surface
Allowed
Used
13
The Survey Says. . .

• We can do more recycling under the existing
  specs. Need to consider how its handled.
• Need to consider availability.
• Not much consistency between states on whats
  allowed.
• We need to work with agencies to get RAP
  percentages increased, especially in surface
  mixes.

14
What is limiting RAP?

• Specification limits Superpave
• Specification limits surface
• Lack of knowledge by specifiers
• Specification limits PMA
• Binder Issues

15
Rock the Asphalt!

• Use Large Stone Mixes where possible.
• Larger aggregate mixes need less asphalt to
  provide the same coating.
• Applications
• Heavy duty pavements
• Base mixes

16
Surface Area
10 Cube of 1/2 Balls Surface Area 6,280 in2
10 Cube of 1 Balls Surface Area 3,142 in2
10
10
10
10
10
10
17
Larger Stone Mixes
18
Large Stone Example

• Compare 1-3/4 mix to 5/8 mix
• LSM uses 1.7 less asphalt
• Save 0.017 tons AC per ton HMA
• Save 11.05 per ton HMA!

19
Issues with LSM

• Segregation
• Equipment wear
• Sampling
• Permeability
• Noise

20
Thinner Overlays

• If overlay placed to correct functional
  deficiency (smoothness) rather than structural,
  consider a thinner overlay.
• Lift thickness related to aggregate size.
• Fine aggregate mixes do not rut more than coarse
  aggregate mixes. NCHRP Report 539

21
Thin Overlay Example

• Say NMAS/lift is 4
• For 12.5 mm mix 50 mm
• AC content 6.0
• 217 lbs/sy 8.14/sy _at_ 75/ton
• For 9.5 mm mix 37.5 mm
• AC content 6.5
• 163 lbs/sy 6.93/sy _at_ 85/ton
• Thinner overlay 18 less asphalt
• Thinner overlay 1.21/sy less

22
When not to use Thin Overlays

• When large NMAS is specified.
• When structural improvement is needed.

23
Dont Be Gauche Use the Right Asphalt

• Polymer modified asphalt has many uses
• Reduce rutting
• Reduce thermal cracking
• Reduce fatigue cracking
• Improve overall durability
• Can also be misused
• Low volume roads
• Overlays of cracked pavements
• Base layers

24
PMA Economics

• Can be 60 to 80/ton higher than unmodified
  asphalt
• Can raise HMA price by 4.80/ton

25
Raise the Roof with Shingles

• Roofing shingles comprised of
• Polymer modified asphalt
• Fiberglass or felt fibers
• Grit angular fine aggregate
• Mineral filler

26
Example

• Roofing shingles contain 20 asphalt
• Use 5 shingles in HMA, reduce 1 asphalt
• Reduce 0.01 ton AC/ton HMA
• Reduce cost by 6.50/ton HMA

27
Issues with Shingles

• Tear-off shingles require more processing than
  manufacturing waste.
• Be careful using tear-offs and RAP in same mix.
  Make sure there is enough virgin asphalt.
• Sizing of shingle particles is important should
  be minus ½ inch.

28
Not What Were Looking For!
29
Perpetual Pavements

• The sixth of five ways to save asphalt!
• Save asphalt and aggregate over the long term.
  Its sustainable.
• Lower Life Cycle Cost
• Lower User Cost

30
Concept

40-75 mm SMA,
OGFC or Superpave
100 mm to 150 mm
Zone Of High Compression
High Modulus Rut Resistant Material (Varies As
Needed)
Flexible Fatigue Resistant Material 75 - 100 mm
Max Tensile Strain
Pavement Foundation
31
Perpetual PavementversusConventional Design
32
Comparison of Structures
Perpetual
Conventional
33
(No Transcript)
34
Material Usage
Save 31
Save 28
Save 28
Save 32
35
Costs
Save 44
36
Summary

• Possible to save both asphalt and aggregate.
• Need to apply proper solutions.
• Need to apply engineering principles.
• DONT SACRIFICE QUALITY!

37
Other Ideas

• Get Pavement considered as part of solution to
  road noise Lower Noise Barriers by 3 ft!
• Use Rubblization with Overlay rather than Remove
  and Replace PCC Save 60 to 70 of Total Cost!
