Low Power Memory Partitioning

1

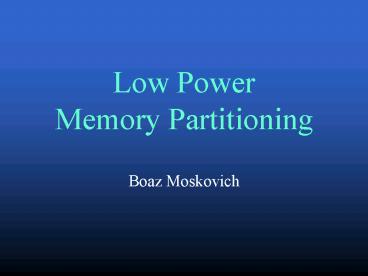

Low PowerMemory Partitioning

• Boaz Moskovich

2
Topics

• Memory synthesis for Embedded Systems flow from
  logical design to physical design
• Focus on low power solution. A new memory (RAM)
  organization, based on the memory access profile
  of the application, will be described

3
Embedded Systems

• A combination of computer hardware andsoftware
  designed to perform a dedicated function
• Properties
• Single purpose
• Repetitive
• Limited Resources
• Outcome - Predictable behavior

4
System-on-a-Chip

• System-on-a-Chip (SoC) is a single chip solution,
  which implements most of the functions of an
  Embedded System product
• Placing memory and CPU on the same chip will
  reduce energy consumption (less wire length)
• On chip Memory occupies large area of the
  chip.Today such memories contain up to 128Kb.
  Infrequently accessed addresses will reside in
  an external (off chip) memory bank.

5
Why to Reduce Energy Consumption

• Problems
• Heat bad for durability, need fanning
• Short battery life
• Important in portable embedded products
• TradeoffWilling to sacrifice area and
  performance for reduced energy consumption

6
Solution

• Memory has 2 operation modes
• Active
• Stand by (Sleep mode) Info is stored but cannot
  be accessed
• Stand by mode consumes much less energy
• SRAM is used because it doesnt need to be
  refreshed

7
Solution (cont.)

• The memory will be split into several partitions
• At any time, only one partition will be active,
  while others will be in stand by
• Changing modes is done according to the R/W
  requests
• The saving is achieved by paying energy toll
  only for the active partition, instead of the
  whole memory

8
Solution (cont.)

• Solution steps
• Analyze memory access pattern of the application
• Invoke algorithm for splitting the memory to
  partitions that provide minimal energy
  consumption
• Create memory partitions based on the algorithm
  output
• Create control unit the Decoder
• Place and Route

9
Partitioning Example

• Highly non uniform access profile with clustered
  high access addresses lead to better energy
  savings
• Uniform access profile or scattered high access
  addresses lead to minimal energy savings

10
The Algorithm
11
The Algorithm purpose

• Get a memory cut set, representing the
  partitions sizes, that provides minimal energy
  consumption
• The cut set will have up to MaxP elements
• Each cut will be a continuous block of memory
• The sum of the cuts lengths is M, the number of
  distinct addresses in the data memory to be
  partitioned

12
The Input ? vector

• ? 0,?1,?2 , ?MaxP-1
• ?i The energy overhead of moving from i to i1
  partitions (?0 monolithic memory)
• This energy overhead is consumed by the control
  unit and the additional wires, and is added to
  the cost of each memory access, without relation
  to the partition size

13
The Input ? vector (cont.)

• The partitioning algorithm must compensate for
  this overhead and also present energy consumption
  improvement
• ? is a conservative estimation that prevents us
  from making marginal partitioning that wont
  improve, or even impair, the energy consumption
  in real life
• Fine tuning of ? will improve the energy savings
• ? depends mostly on the number of partitions, and
  is almost insensitive to the size of the
  partitions

14
The Input ? vector (cont.)

• 2 ways to acquire ? values
• Create synthetic partitions (not based on the
  algorithm)create control unitmeasure the ? in
  the model
• Choose a conservative ? estimationrun the
  algorithm for some samplescreate the partitions
  based on the algorithms outputcreate the
  control unitmeasure the ? in the modeliterate
  the process with new ? until convergence is
  reached

15
The Input Memory Access Analysis

• We need an analysis of the memory access pattern
  of the application
• It can be obtained because of the predictable
  behavior of embedded applications
• The analysis will be stored in 2 vectors of size
  Mr(i) stores the number of reads from address
  iw(i) stores the number of writes to address i

16
The Input Memory Access Analysis

• The analysis can be obtained in 2 ways
• Dynamic method Execution profiling instruction
  level simulators
• Static method Data flow analysis profiles
  accesses of a graph representation of a program
• The static method, when performed on an accurate
  model, will provide more accurate results

17
The Input the Cost Function

• MemE(lo,hi,w,r) hi
  hiEr(hi-lo)?r(i)
  Ew(hi-lo)?w(i) ilo
  ilo
• Er(d) energy consumption for a read access in a
  memory of d words
• Ew(d) energy consumption for a write access in
  a memory of d words
• The amount of energy consumed by the partition
  whose bounds are (lo,hi) and its access profiling
  is given in r() and w()

18
The Algorithm

• Pk (0,hi0,hi01,hi1, hi11,hi2,hik-21
  ,M-1)
• MinConsump energy in monolithic memory
• for k 2 to MaxP
• for each cut set of k partitions ? Pk
• sum overhead for k-partit. (?0?1 ? ? ?
  ?k-1)
• for each partition lo,hi in cut set
• sum MemE(lo,hi,w,r)
• if sum lt MinConsump then
• save the new minimal energy consumption

19
Complexity

• Checking k-way partitioning takes
  operations gt O(Mk-1)
• Checks for maximum of MaxP-way partitioning (the
  best solution out of 1,2,..MaxP partitions)
  takes O(1) O(M) O(M2) O(MMaxP-1) gt
  O(MMaxP-1)
• Therefore MaxP 4 is a practical limitation
• Improvement Work with bigger basic units,
  meaning that each partition size must be a
  multiple of t, where t gt 1

20
Memory Logic Generation
21
Decoder Generation

• The decoder has one input from the CPU address,
  and has 2 outputs to the partitions memory
  select and relative address
• Memory Select selects the active memory
  partition based on the input address. It also
  deactivates the partitions that are not currently
  needed
• Address translation the input absolute address
  is converted to an address relative to the active
  partition

22
Decoder Generation (cont.)

• The decoder is placed between the CPU and the
  memory partitions in order to reduce wire length
• Careful design is needed not to increase system
  delay and thus cause performance degradation
• Example2 memory partitions 0-148,
  149-255Absolute address 168Relative address
  168-149 19The decoder logic is not
  straightforward it is not made of simple logic
  gates, but a series of comparators and subtractors

23
Decoder Generation (cont.)
24
Memory Physical Design
25
Memory Generation

• Memory Generation Tool a tool that generates
  physical layout of a memory component, based on
  requested memory size and aspect ratio (the
  proportion between the height and width of the
  block)
• The algorithm produced the optimal memory cut
  set, in terms of energy consumption, based on
  execution profiling
• Since the algorithm is able to generate
  partitions of any size, but the memory generation
  tool is not that flexible, a match to applicable
  values is done

26
Block Placement and Routing

• We have generated memory partitions and decoder
  physical layouts. Now we need to place and route
  them along with the CPU

27
Block Placement

• 2 Placement methods available
• Automatic placement of blocks with no insight
  of their functionality. We will choose a
  placement method that is motivated to reduce wire
  length in the routing phase.
• Manual using the knowledge of the pins
  positions and block functionality to ease the
  routing phase. Bus channel arrangement will be
  used. In case of highly asymmetrical partitions,
  significant area is wasted.
• Since automatic placement gives more optimal
  results, it is preferred

28
Routing Phase

• 2 methods for routing
• Automatic - with wire length as cost function
• Manual
• Since automatic routing gives more optimal
  results, it is preferred
• Automatic search and repair phase will resolve
  geometric and delay violations

29
Experiments Results
30
Lower Bound for Energy Savings

• For each memory access we pay a fixed overhead
  and the energy consumed by the memory partition,
  which is proportional to its size
• ? 0,20,15,10 is a conservative overhead
  estimation, which values are in respect to the
  energy consumption of the monolithic memory
• The simplest case is partitions of even size,
  regardless of the memory access pattern

31
Lower Bound for Energy Savings

• Expected lower bound for energy savings 31
• These results are for the worst case uniform
  access profile. Highly non uniform access
  profile with clustered high access addresses will
  provide better results

32
Energy Savings vs. Area Penalty
Area penalty is the ratio between the sizes of
the partitioned memory and the monolithic memory
33
Energy Breakdown

34
Software Upgrade Problem

• The suggested solution gives an optimal result
  for a given application access profile
• A software upgrade will probably present a
  different access profile
• Applying the software upgrade to the existing
  chip, will therefore provide non optimal energy
  consumption

35
Suggestion for Improvement

• A highly non uniform access profile that is
  scattered all over the memory cannot be
  optimized, because of the limitation that
  partitions must be contiguous memory blocks
• A compiler/linker suite that uses the access
  profile to group highly accessed memory locations
  together, will solve this problem

36
Conclusions

• The new memory component can achieve a 35 energy
  savings over the monolithic memory
• This memory component will be about 2 times
  bigger in size than the monolithic memory
• The memory component will not impair performance
  in careful design

37
What Have We Learned?

• The importance of reducing energy consumption in
  Embedded Systems
• We have seen a complete design flow of a memory
  component
• The algorithm for partitioning a memory, in order
  to achieve minimal energy consumption
• The logic component that manages this new memory
  model was introduced
• The physical design considerations that were
  taken in the transition from logical view to
  physical view
