Grant Gerhart

1

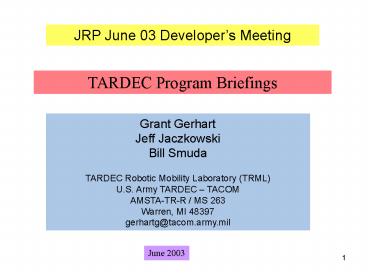

JRP June 03 Developers Meeting
TARDEC Program Briefings
Grant Gerhart Jeff Jaczkowski Bill Smuda TARDEC
Robotic Mobility Laboratory (TRML)U.S. Army
TARDEC TACOMAMSTA-TR-R / MS 263Warren, MI
48397gerhartg_at_tacom.army.mil
June 2003
2
TARDEC UGV Programs

• Vehicle Technology Integration (VTI)
• Omni-Direction Inspection System (ODIS)

3
Vehicle Technology Integration
4
Key Partners
5
Vetronics Technology Integration
Crew integration Automation Testbed (CAT) ATD
Robotic Follower ATD
Two-crew
Decision Aids
multi-role
FCS Crewstations
Advanced
Electronic
Architecture
Ruck
Carrier
Supply Platoon
MANPRINT
Embedded
Advanced
Simulation
Interfaces
NLOS/BLOS Fire
Rear Security
Demonstrate the crew interfaces, automation, and
integration technologies required to operate and
support Future Combat Systems
Pacing Technologies
Pacing Technologies
6
VTI Testbed Approach
Except for Crew Related Systems, much of the CAT
and RF Architecture is Identical
RF
Vetronics Crew Station
CAT
VTI-063

• The Common
• Architecture Involves

Software Open Architecture
Hardware Open Architecture

• Autonomous Mobility
• Obstacle Detection
• Mission Planning
• Software
• Hardware
• Intelligent Agents
• Sensors
• Drive-by-Wire

7
Robotic Follower Approach

• H/W S/W design based on Demo III
• Complement GPS waypoints with high resolution
  terrain data from the CATs onboard sensors.
• Sensor terrain data will be registered to coarser
  onboard DTED map using advanced map registration
  techniques.
• Apply on-road enhancements from DoT.

8
Robotic Follower - Chassis

• Stryker representative of FCS mounted systems
• XUV representative of FCS mule system

9
Leader-Follower Interfaces
Unique requirements for mounted and dismounted
leader interface
10
GSTAMDS Formation Control

Operational Concept

CAT vehicle serves as manned control vehicle

Operator
teleoperates
RF vehicle

XUV autonomously follows RF with required off-set

RF can also perform road following with XUV in tow
Speed

0-10 kph operational speed required for scanning
mission

Up to 40 kph desired for non-scanning vehicle
movement
Tele-operation, control and positioning

Manual vehicle operation 300 meters NLOS via
video feed

lt15cm absolute accuracy using GPS waypoints

lt10cm relative (vehicle to vehicle) accuracy in
RF mode
11
CAT SMI Concept
12
Driving Configuration
13
FCS Unmanned Combat Demo
Targets
ARV-2 Demo III XUV
ARV-1 RF ATD (with COUGAR turret)
Control Vehicle (CV) CAT ATD

• Demonstrated
• 11 Operator to ARV Control
• ARV Engagement

CAT and RF ATDs leveraged to provide maximum
support to Future Combat Systems
14

• The End

15
Robotic Follower ATD Objectives

• Develop, integrate and demonstrate the
  technologies required to achieve unmanned
  follower capabilities for future land combat
  vehicles.
• Key RF Requirements
• Dismounted or Mounted Following.
• Semi-autonomous perception.
• Significant separation times and distances.
• Map data and sensor terrain feature registration.
• Road detection
• On-coming traffic detection.

16
CAT Program Objectives

• Design an advanced 2-man crew station for a
  system lt 20 tons incorporating the FCS fight,
  carrier, reconnaissance, and C2 of unmanned
  systems.

• Key CAT Requirements
• Vehicle Crew Stations
• Control of Unmanned Systems
• Lethality, Survivability, RSTA
• FBCB2
• Commander's Associate
• Section Level Associate
• Voice and Data Comms
• Speech Recognition
• 3D Audio

• Indirect Driving
• Auto-Pilot
• RF Path Generation
• Drive-by-Wire
• Position/Navigation
• Software Reusability
• Closed-Loop Architecture
• Data Capture
• Embedded Simulation System

17
Unmanned Asset Control
Used for planning, overviews, C2 functions
Asset Status
RSTA
