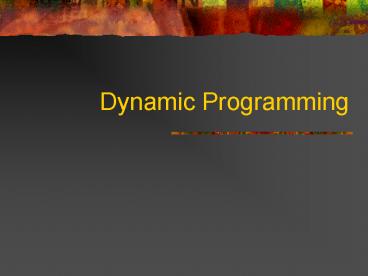

Dynamic Programming

1
Dynamic Programming
2

• The basic idea is drawn from intuition behind
  divide and conquer
• One implicitly explores the space of all
  possible solutions, by decomposing things into a
  series of sub-problems, and then building up
  correct solutions to larger and larger
  sub-problems.

3

• The term Dynamic Programming comes from Control
  Theory, not computer science.
• Programming refers to the use of tables (arrays)
  to construct a solution.
• Used extensively in "Operation Research" given in
  the Math dept.

4
The Main Idea

• In dynamic programming we usually reduce time by
  increasing the amount of space
• We solve the problem by solving subproblems of
  increasing size and saving each optimal solution
  in a table (usually).
• The table is then used for finding the optimal
  solution to larger problems.
• Time is saved since each subproblem is solved
  only once.

5
When is Dynamic Programming used?

• Used for problems in which an optimal solution
  for the original problem can be found from
  optimal solutions to subproblems of the original
  problem
• Usually, a recursive algorithm can solve the
  problem. But the algorithm computes the optimal
  solution to the same subproblem more than once
  and therefore is slow.
• The two examples (Fibonacci and binomial
  coefficient) have such a recursive algorithm
• Dynamic programming reduces the time by computing
  the optimal solution of a subproblem only once
  and saving its value. The saved value is then
  used whenever the same subproblem needs to be
  solved.

6
Principle of Optimality(Optimal Substructure)

• The principle of optimality applies to a problem
  (not an algorithm)
• A large number of optimization problems satisfy
  this principle.
• Principle of optimality
• Given an optimal sequence of decisions or
  choices, each subsequence must also be optimal.

7
Principle of optimality - shortest path problem

• Problem Given a graph G and vertices s and t,
  find a shortest path in G from s to t
• Theorem A subpath P (from s to t) of a
  shortest path P is a shortest path from s to t
  of the subgraph G induced by P. Subpaths are
  paths that start or end at an intermediate vertex
  of P.

Proof If P was not a shortest path from s to
t in G, we can substitute the subpath from s
to t in P, by the shortest path in G from s
to t. The result is a shorter path from s to t
than P. This contradicts our assumption that P
is a shortest path from s to t.
8
Principle of optimality
P (a,b), (b,c) (c.d), (d,e)
P(c.d), (d,e)
f
5
e
3
13
G
10
7
a
b
c
d
3
1
6
G
P must be a shortest path from c to e in G,
otherwise P cannot be a shortest path from a to
e in G.
9
Principle of optimality - MST problem (minimum
spanning tree)

• Problem Given an undirected connected graph G,
  find a minimum spanning tree
• Theorem Any subtree T of an MST T of G, is an
  MST of the subgraph G of G induced by the
  vertices of the subtree. Proof If T is not an
  MST of G, we can substitute the edges of T in
  T, with the edges of an MST of G. This would
  result in a lower cost spanning tree,
  contradicting our assumption that T is an MST of
  G.

10
Principle of optimality
T(c.d), (d,f), (d,e), (a,b), (b,c)
T(c.d), (d,f), (d,e)
f
5
e
3
G
10
2
a
b
c
d
3
1
6
G
T must be an MST of G, otherwise T cannot be an
MST
11
A problem that does not satisfy the Principle of
Optimality

• Problem What is the longest simple route
  between City A and B?
• Simple never visit the same spot twice.
• The longest simple route (solid line) has city C
  as an intermediate city.
• It does not consist of the longest simple route
  from A to C plus the longest simple route from C
  to B.

Longest C to B
D
Longest A to C
B
A
C
Longest A to B
12
Longest Common Subsequence (LCS)
13
Longest Common Subsequence (LCS)

• Problem Given sequences x1..m and y1..n,
  find a longest common subsequence of both.
• Example xABCBDAB and yBDCABA,
• BCA is a common subsequence and
• BCBA and BDAB are two LCSs

14
LCS

• Brute force solution
• Writing a recurrence equation
• The dynamic programming solution
• Application of algorithm

15
Brute force solution

• Solution For every subsequence of x, check if it
  is a subsequence of y.
• Analysis
• Each subsequence of X corresponds to a subset of
  the indices 1, 2, ., m of X. There are 2m
  subsequences of x.
• Each check takes O(n) time, since we scan y for
  first element, and then scan for second element,
  etc.
• The worst case running time is O(n2m).

16
Writing the recurrence equation

• Let Xi denote the ith prefix x1..i of x1..m,
  and
• X0 denotes an empty prefix
• We will first compute the length of an LCS of Xm
  and Yn, LenLCS(m, n), and then use information
  saved during the computation for finding the
  actual subsequence
• We need a recursive formula for computing
  LenLCS(i, j).

17
Writing the recurrence equation

• If Xi and Yj end with the same character xiyj,
  the LCS must include the character. If it did not
  we could get a longer LCS by adding the common
  character.
• If Xi and Yj do not end with the same character
  there are two possibilities
• either the LCS does not end with xi,
• or it does not end with yj
• Let Zk denote an LCS of Xi and Yj

18
Xi and Yj end with xiyj
19
Xi and Yj end with xi ¹ yj
Zk is an LCS of Xi and Yj -1
Zk is an LCS of Xi -1 and Yj
LenLCS(i, j)maxLenLCS(i, j-1), LenLCS(i-1, j)
20
The recurrence equation
21
The dynamic programming solution

• Initialize the first row and the first column of
  the matrix LenLCS to 0
• Calculate LenLCS (1, j) for j 1,, n
• Then the LenLCS (2, j) for j 1,, n, etc.
• Store also in a table an arrow pointing to the
  array element that was used in the computation.
• It is easy to see that the computation is O(mn)

22
Example
To find an LCS follow the arrows, for each
diagonal arrow there is a member of the LCS
23
LCS-Length(X, Y)

• m ? lengthX
• n ? lengthY
• for i ? 1 to m do ci, 0 ? 0
• for j ? 1 to n do c0, j ? 0

24
LCS-Length(X, Y) cont.

• for i ? 1 to m do for j ? 1 to n do if xi
  yj ci, j ? ci-1, j-11 bi, j ?
  D else
• if ci-1, j ? ci, j-1 ci, j ?
  ci-1, j bi, j ? U
  else ci, j ? ci, j-1 bi, j
  ? L
• return c and b

25
Questions

• How do we find the LCS?
• Do we need B?
• Do we need whole C (for finding longest length)?

26
Fibonacci's Series
27
Fibonacci's Series

• Definition S0 0, S1 1, Sn Sn-1
  Sn-2 ngt10, 1, 1, 2, 3, 5, 8, 13, 21,
• Applying the recursive definition we get
• fib (n) 1. if n lt 2 2. return n 3.
  else return (fib (n -1) fib(n -2))

28
Analysis using Substitution of Recursive Fibonacci

• Let T(n) be the number of additions done by
  fib(n)
• T(n)T(n-1)T(n-2)1 for ngt2T(2)1
  T(1)T(0)0
• T(n) ÎO(2n), T(n) ÎW(2n/2)

29
What does the Execution Tree look like?
Fib(5)
Fib(3)
Fib(4)
Fib(3)
Fib(2)
Fib(1)
Fib(2)
Fib(2)
Fib(1)
Fib(1)
Fib(0)
Fib(1)
Fib(0)
Fib(1)
Fib(0)
30
Dynamic Programming Solution for Fibonacci

• Builds a table with the first n Fibonacci
  numbers.
• fib(n) 1. A0 0 2. A1 1 3. for i ? 2 to
  n 4. do A i A i -1 Ai -2 5. return
  A
• Is there a recurrence equation?
• What is the run time?
• What is the space requirements?
• If we only need the nth number can we save space?

31
Binomial Coefficient
32
The Binomial Coefficient
33
The recursive algorithm

• binomialCoef(n, k)1. if k 0 or k n2.
  then return 13. else
• return (binomialCoef( n -1, k -1)
  binomialCoef(n-1, k))

34
binomialCoef(n, k)1. if k 0 or k n2.
then return 13. else return (binomialCoef(
n -1, k -1) binomialCoef(n-1, k))
(
)
The Call Tree
n
k
)
(
)
(
n -1
n-1
k -1
k
)
(
(
)
n -2
n -2
(
(
)
)
n -2
n -2
k -1
k
k -2
k -1
(
)
n -3
(
(
(
)
)
)
n -3
n -3
n -3
(
)
)
(
(
)
n -3
n -3
n -3
(
)
n -3
k
k -1
k -2
k -1
k -2
k -2
k -1
k -3
35
Dynamic Solution

• Use a matrix B of n1 rows, k1 columns where
• Establish a recursive property. Rewrite in terms
  of matrix BB i , j B i -1 , j -1 B
  i -1, j , 0 lt j lt i 1 , j
  0 or j i
• Solve all smaller instances of the problem in a
  bottom-up fashion by computing the rows in B in
  sequence starting with the first row.

36
The B Matrix
0 1 2 3 4 ... j k
01234i n
1
1 1
1 2 1
1 3 3 1
1 4 6 4 1
Bi -1, j -1 Bi -1, j
B i, j
37
Compute B4,2

• Row 0 B0,0 1
• Row 1 B1,0 1 B1,1 1
• Row 2 B2,0 1 B2,1 B1,0 B1,1
  2 B2,2 1
• Row 3 B3,0 1 B3,1 B2,0 B2,1
  3 B3,2 B2,1 B2,2 3
• Row 4 B4,0 1 B4,1 B3, 0 B3, 1
  4 B4,2 B3, 1 B3, 2 6

38
Dynamic Program

• bin(n,k )1. for i 0 to n // every row2. for
  j 0 to minimum( i, k ) 3. if j 0 or j
  i // column 0 or diagonal4. then B i
  , j 15. else B i , j Bi -1, j
  -1 Bi -1, j 6. return B n, k
• What is the run time?
• How much space does it take?
• If we only need the last value, can we save space?

39
Dynamic programming

• All values in column 0 are 1
• All values in the first k1 diagonal cells are 1
• j ¹ i and 0 lt j ltmini,k ensures we only
  compute B i, j for j lt i and only first k1
  columns.

• Elements above diagonal (Bi,j for jgti) are not
  computed since

is undefined for j gti
40
Number of iterations
41
Floyds Algorithm

• All pairs shortest path

42
All pairs shortest path

• The problem find the shortest path between every
  pair of vertices of a graph(expensive using
  brute-force approach)
• The graph may contain negative edges but no
  negative cycles
• A representation a weight matrix where
  W(i,j)0 if ij. W(i,j) if there is no edge
  between i and j. W(i,j)weight of edge
• Note we have shown principle of optimality
  applies to shortest path problems

43
The weight matrix and the graph
1
v1
v2
3
9
5
3
1
2
v5
3
2
v3
v4
4
Adjacency Matrix
44
The subproblems

• How can we define the shortest distance di,j in
  terms of smaller problems?
• One way is to restrict the paths to only include
  vertices from a restricted subset.
• Initially, the subset is empty.
• Then, it is incrementally increased until it
  includes all the vertices.

45
The subproblems

• Let D(k)i,jweight of a shortest path from vi
  to vj using only vertices from v1,v2,,vk as
  intermediate vertices in the path
• D(0)W
• D(n)D which is the goal matrix
• How do we compute D(k) from D(k-1) ?

46
The Recursive Definition

• Case 1 A shortest path from vi to vj restricted
  to using only vertices from v1,v2,,vk as
  intermediate vertices does not use vk.
  Then D(k)i,j D(k-1)i,j.
• Case 2 A shortest path from vi to vj restricted
  to using only vertices from v1,v2,,vk as
  intermediate vertices does use vk. Then
  D(k)i,j D(k-1)i,k D(k-1)k,j.

Shortest path using intermediate verticesV1, .
. . Vk
Vk
Vj
Vi
Shortest Path using intermediate vertices V1, .
. . Vk -1
47
The recursive definition

• Since D(k)i,j D(k-1)i,j or D(k)i,j
  D(k-1)i,k D(k-1)k,j.We conclude
  D(k)i,j min D(k-1)i,j, D(k-1)i,k
  D(k-1)k,j .

Shortest path using intermediate verticesV1, .
. . Vk
Vk
Vj
Vi
Shortest Path using intermediate vertices V1, .
. . Vk -1
48
The pointer array P

• Used to enable finding a shortest path
• Initially the array contains 0
• Each time that a shorter path from i to j is
  found, the k that provided the minimum is saved
  (highest index node on the path from i to j)
• To print the intermediate nodes on the shortest
  path a recursive procedure that print the
  shortest paths from i and k, and from k to j can
  be used

49
Floyd's Algorithm Using n1 D matrices

• Floyd//Computes shortest distance between all
  pairs of //nodes, and saves P to enable
  finding shortest paths1. D0 ? W // initialize
  D array to W 2. P ? 0 // initialize P
  array to 03. for k ? 1 to n4. do for i
  ? 1 to n5. do for j ? 1 to n6.
  if (Dk-1 i, j gt Dk-1 i, k
  Dk-1 k, j ) 7. then Dk i, j ?
  Dk-1 i, k Dk-1 k, j 8.
  P i, j ? k9. else Dk i, j
  ? Dk-1 i, j

50
Example
W D0
1
5
4
3
2
-3
2
P
51
k 1Vertex 1 can be intermediate node
D1

• D12,3 min( D02,3, D02,1D01,3 )
• min (?, 7)
• 7
• D13,2 min( D03,2, D03,1D01,2 )
• min (-3,?)
• -3

D0
P
52
k 2Vertices 1, 2 can be intermediate
D1

• D21,3 min( D11,3, D11,2D12,3 )
• min (5, 47)
• 5
• D23,1 min( D13,1, D13,2D12,1 )
• min (?, -32)
• -1

D2
P
53
k 3Vertices 1, 2, 3 can be intermediate
D2

• D31,2 min(D21,2, D21,3D23,2 )
• min (4, 5(-3))
• 2
• D32,1 min(D22,1, D22,3D23,1 )
• min (2, 7 (-1))
• 2

D3
P
54
Floyd's Algorithm Using 2 D matrices

• Floyd1. D ? W // initialize D array to W
  2. P ? 0 // initialize P array to 03.
  for k ? 1 to n // Computing D from D4.
  do for i ? 1 to n5. do for j ? 1 to
  n6. if (D i, j gt D i, k
  D k, j ) 7. then D i, j ? D
  i, k D k, j 8. P i,
  j ? k 9. else D i, j ? D i, j 10.
  Move D to D.

55
Can we use only one D matrix?

• Di,j depends only on elements in the kth column
  and row of the distance matrix.
• We will show that the kth row and the kth column
  of the distance matrix are unchanged when Dk is
  computed
• This means D can be calculated in-place

56
The main diagonal values

• Before we show that kth row and column of D
  remain unchanged we show that the main diagonal
  remains 0
• D(k) j,j min D(k-1) j,j , D(k-1) j,k
  D(k-1) k,j min 0, D(k-1)
  j,k D(k-1) k,j 0
• Based on which assumption?

57
The kth column

• kth column of Dk is equal to the kth column of
  Dk-1
• Intuitively true - a path from i to k will not
  become shorter by adding k to the allowed subset
  of intermediate vertices
• For all i, D(k)i,k min D(k-1)i,k,
  D(k-1)i,k D(k-1)k,k min D(k-1)i,k,
  D(k-1)i,k0 D(k-1)i,k

58
The kth row

• kth row of Dk is equal to the kth row of Dk-1
• For all j, D(k)k,j min D(k-1)k,j,
  D(k-1)k,k D(k-1)k,j min D(k-1) k,j
  , 0D(k-1)k,j D(k-1) k,j

59
Floyd's Algorithm using a single D

• Floyd1. D ? W // initialize D array to W
  2. P ? 0 // initialize P array to 03.
  for k ? 1 to n4. do for i ? 1 to n5.
  do for j ? 1 to n6. if
  (D i, j gt D i, k D k, j ) 7.
  then D i, j ? D i, k D k, j 8.
  P i, j ? k

Time-complexity T(n)nnn n3
60
Printing intermediate nodes on shortest path from
q to r

• path(index q, r)
• if (P q, r !0)
• path(q, Pq, r)
• println( v Pq, r)
• path(Pq, r, r)
• return
• //no intermediate nodes
• else return
• Before calling path check Dq, r lt ?, and print
  node q, after the call to
• path print node r

P
61
The graph in the Floyd example
62
The final distance matrix D and P
5(1)
The values in parenthesis are the non zero P
values.
63
The call tree for Path(1, 4)
Path(1, 4)
Path(6, 4)
Path(1, 6)
Print v6
P(1, 6)0
Path(6, 3)
Print v3
Path(3, 4)
P(3, 4)0
P(6, 3)0
The intermediate nodes on the shortest path from
1 to 4 are v6, v3. The shortest path is v1, v6,
v3, v4.
64
An alternative computation of P

• Initialization
• Pi, j i if there is an edge from i to j to
  indicate that i is the last node before j on the
  shortest path from i to j
• Pi, j is initialized to NIL if there is no
  edges from i to j
• Update
• Pi, j Pk, j if D i, j gt D i, k D
  k, j . This guarantees Pi ,j contains the last
  node before j on the shortest path from i to j.

65
findPath (i, j)

• if Pi, j NIL return "No path"
  create empty stack S push j on stack S k
  j //k is the last node on the path while Pi,
  k ! i
• //push node before k on stack push
  Pi, k on stack S
• k Pi, k //node before k is new last
  node push i on stack S return S

66
Optimal Binary Search Tree
67
Optimal Binary Search Trees

• Problem
• Given sequence K k1 lt k2 lt lt kn of n sorted
  keys, with a search probability pi for each key
  ki.
• Want to build a binary search tree (BST) with
  minimum expected search cost.
• Actual cost of items examined.
• For key ki, cost depthT(ki)1, where depthT(ki)
  depth of ki in BST T .
• Minimizes the expected search time for a given
  probability distribution

68
Optimal Binary Search Tree
Average number of comparisons
69
Optimal Binary Search Tree
Let T be a binary search tree that contains Ki ,
Ki1 , . . . , Kj for some 1 i j n. We
define the cost of average search time as
Recurrence relation
Let TL and TR be the left and right sub-trees of
T. Then
70
Optimal Binary Search Tree

• Principle of optimality Applied to Optimal Binary
  Search Trees
• Let T be a binary search tree that has minimum
  cost among all trees containing keys Ki , Ki1 ,
  . . . , Kj and let Km be the key at the root of T
  (so i m j ). Then TL, the left subtree of T,
  is a binary search tree that has minimum cost
  among all trees containing keys Ki , . . , Km-1
  and TR, the right subtree of T, is a binary
  search tree that has minimum cost among all trees
  containing keys Km1 , . . . , Kj.

71
Expected Search Cost
Sum of probabilities is 1.
72
Example

• Consider 5 keys with these search
  probabilitiesp1 0.25, p2 0.2, p3 0.05, p4
  0.2, p5 0.3.

k2
i depthT(ki) depthT(ki)pi 1 1
0.25 2 0 0 3
2 0.1 4 1
0.2 5 2 0.6
1.15
k1
k4
k3
k5
Therefore, Esearch cost 2.15.
73
Example

• p1 0.25, p2 0.2, p3 0.05, p4 0.2, p5
  0.3.

i depthT(ki) depthT(ki)pi 1 1
0.25 2 0 0 3
3 0.15 4 2
0.4 5 1
0.3 1.10
Therefore, Esearch cost 2.10.
This tree turns out to be optimal for this set of
keys.
74
Example

• Observations
• Optimal BST may not have smallest height.
• Optimal BST may not have highest-probability key
  at root.
• Build by exhaustive checking?
• Construct each n-node BST.
• For each, assign keys and compute expected
  search cost.
• But there are ?(4n/n3/2) different BSTs with n
  nodes.

75
Optimal Substructure

• One of the keys in ki, ,kj, say kr, where i r
  j, must be the root of an optimal subtree for
  these keys.
• Left subtree of kr contains ki,...,kr?1.
• Right subtree of kr contains kr1, ...,kj.
• To find an optimal BST
• Examine all candidate roots kr , for i r j
• Determine all optimal BSTs containing ki,...,kr?1
  and containing kr1,...,kj

kr
ki
kr-1
kr1
kj
76
Recursive Solution

• Find optimal BST for ki,...,kj, where i 1, j
  n, j i?1. When j i?1, the tree is empty.
• Define
• Ai, j expected search cost of optimal
  BST for ki,...,kj.
• If j i?1, then Ai, j 0.
• If j i,
• Select a root kr, for some i r j .
• Recursively make an optimal BSTs
• for ki,..,kr?1 as the left subtree, and
• for kr1,..,kj as the right subtree.

77
Computing an Optimal Solution

• For each subproblem (i,j), store
• expected search cost in a table A1 ..n1 , 0
  ..n
• Will use only entries Ai, j , where j i?1.
• Rooti, j root of subtree with keys ki,..,kj,
  for 1 i j n.
• P1..n1, 0..n sum of probabilities
• pi, i?1 0 for 1 i n.
• pi, j pi, j-1 pj for 1 i j n.
• The Optimal Solution is
• A1, n (minimum search time)
• Root1, n R (1ltrltn)
• Make an optimal binary search tree based on the
  root at R with keys k1,, kn.

78
Memoization
79
Idea

• Memoization is used for recursive code that
  solves sub problems more than once.
• The idea is to modify the recursive code, and
  use a table to store the solution for every
  problem that was already solved.
• We can still use the recursive call with more
  efficiency
•

80
Initialization

• Before you can apply the recursive code, you need
  to initialize the table to some "impossible
  value".
• For example if the function can have only
  positive values you can initialize the table to
  negative values.

81
Method

• The recursive code is changed to first check the
  table to determine whether you have already
  solved the current problem or not.
• If the value in the table is still the initial
  value you know that you have not yet solved the
  current problem, so you apply the modified
  recursive code and store the solution in the
  table.
• Otherwise, you know that the value is the
  required solution and use or return it directly.

82
Example 1

• The following code is for a memoized version of
  recursive Fibonacci.
• MemoizedFib(n)
• for (i0 iltn i)
• Ai-1 //initialize the array
• return LookupFib(n)
•
•
• LookupFib(n) //compute fn if not yet done
• if An-1 //initial value
• if nlt1 //base case
• An n //store solution
• //solve and store general case
• else An (LookupFib(n-1)LookupFib(n-2))
• return An //return fn An

83
Example 2

• The following code is for a memoized version of
  the recursive code for binomial coefficients
•
• memoizedBC(n, k)
• for i0 to n
• for j0 to min(i, k)
• Bi, j -1 //initialize array
• return binomialCoef(n, k)
•
• binomialCoef(n, k)
• if B(n, k) -1 //Bn, k not yet
  computed
•   if k 0 or k n //Base case
•   Bk, n 1 //solve base case and store
•   //solve and store general case
•   else Bk,n(binomialCoef(n-1,k
  1)binomialCoef(n-1, k))
• return Bn, k

84
Example 3

• Give a memorized version of the longest common
  subsequence that runs in O(mn) time. This version
  is slightly different since the base cases are
  directly stored into the table during
  initialization.
•
• Memoized-LCS-Length(X, Y)
• m lt- lengthX
• n lt- lengthY
• for i lt- 1 to m do //initialize column 0
• ci, 0 lt- 0
• for j lt- 1 to n do //initialize row 0
• c0, j lt- 0
• for i lt- 1 to m do //initialize remaining matrix

• for j lt- 1 to n do
• ci, j lt- -1
• L-LCS-Length(X, Y, m, n)//call with m and n
• return c, b

85
Example 3 (contd)

• L-LCS-Length(X, Y, i, j)
• if ci, j - 1
• if xi yj
• L-LCS-Length(X, Y, i - 1, j -1)
• c i j lt- ci - 1, j - 1 1
• bi, j lt- D
• return
• L-LCS-Length(X, Y, i - 1, j)
• L-LCS-Length(X, Y, i, j - 1)
• if ci - 1, j gt ci, j - 1
• ci, j lt- ci - 1, j
• bi, j lt- U
• else
• ci, j lt- ci, j - 1
• bi, j lt- L
• return
