Title: multimodal%20emotion%20recognition

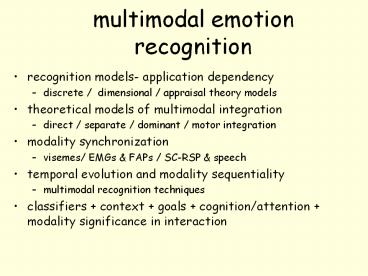

1
multimodal emotion recognition
  • recognition models- application dependency
  • discrete / dimensional / appraisal theory models
  • theoretical models of multimodal integration
  • direct / separate / dominant / motor integration
  • modality synchronization
  • visemes/ EMGs FAPs / SC-RSP speech
  • temporal evolution and modality sequentiality
  • multimodal recognition techniques
  • classifiers context goals
    cognition/attention modality significance in
    interaction

2
multimodal emotion recognition
  • Two approaches have been developed and used for
    audiovisual emotion recognition
  • Separated Recognition
  • An attention-feedback recurrent neural
    network applied to emotion recognition from
    speech.
  • A neurofuzzy system including a-priori
    knowledge used for emotion recognition from
    facial expressions.

3
Separated Recognition
  • The goal was to evaluate performance of the
    obtained recognition by each modality. Visual
    feeltracing was required.
  • Pause detection tune-based analysis, with
    speech playing the main role, was the means to
    synchronise the two modalities.

4
Emotion analysis facial expressions
  • A rule-based system for emotion recognition was
    created, characterising a users emotional state
    in terms of the six universal, or archetypal,
    expressions (joy, surprise, fear, anger, disgust,
    sadness.
  • Rules have been created in terms of the MPEG-4
    FAPs for each of these expressions.

5
Sample Profiles of Anger
A1 F422, 124, F31-131, -25, F32-136,-34,
F33-189,-109, F34-183,-105, F35-101,-31,
F36-108,-32, F3729,85, F3827,89 A2
F19-330,-200, F20-335,-205, F21200,330,
F22205,335, F31-200,-80, F32-194,-74,
F33-190,-70, F34-190,-70 A3 F19
-330,-200, F20-335,-205, F21200,330,
F22205,335, F31-200,-80, F32-194,-74,
F3370,190, F3470,190
6
Emotion analysis facial expressions
G the value of a corresponding FAP
f Values derived from the calculated distances
7
(No Transcript)
8
Expressions Rule more often activated (
examined cases)
  • Anger open_jaw_low, lower_top_midlip_medium,
    raise_bottom_midlip_high, raise_left_inner_eyebrow
    _low, raise_right_inner_eyebrow_low,
    raise_left_medium_eyebrow_low, raise_right_medium_
    eyebrow_low, squeeze_left_eyebrow_high,
    squeeze_right_eyebrow_high, wrinkles_between_eyebr
    ows_high, raise_left_outer_cornerlip_medium,
    raise_right_outer_cornerlip_medium (47)
  • Joy open_jaw_high, lower_top_midlip_low,
    raise_bottom_midlip_verylow, widening_mouth_high,
    close_left_eye_high, close_right_eye_high (39)
  • Disgust open_jaw_low, lower_top_midlip_low,
    raise_bottom_midlip_high, widening_mouth_low,
    close_left_eye_high, close_right_eye_high,
    raise_left_inner_eyebrow_medium,
    raise_right_inner_eyebrow_medium,
    raise_left_medium_eyebrow_medium,
    raise_right_medium_eyebrow_medium,
    wrinkles_between_eyebrows_medium 33)

9
Expressions Rule more often activated (
examined cases)
  • Surprise open_jaw_high, raise_bottom_midlip_veryl
    ow, widening_mouth_low, close_left_eye_low,
    close_right_eye_low, raise_left_inner_eyebrow_high
    , raise_right_inner_eyebrow_high,
    raise_left_medium_eyebrow_high,
    raise_right_medium_eyebrow_high,
    raise_left_outer_eyebrow_high, raise_right_outer_e
    yebrow_high, squeeze_left_eyebrow_low,
    squeeze_right_eyebrow_low, wrinkles_between_eyebro
    ws_low (71)
  • Neutral open_jaw_low, lower_top_midlip_medium,
    raise_left_inner_eyebrow_medium,
    raise_right_inner_eyebrow_medium,
    raise_left_medium_eyebrow_medium,
    raise_right_medium_eyebrow_medium,
    raise_left_outer_eyebrow_medium,
    raise_right_outer_eyebrow_medium,
    squeeze_left_eyebrow_medium, squeeze_right_eyebrow
    _medium, wrinkles_between_eyebrows_medium,
    raise_left_outer_cornerlip_medium,
    raise_right_outer_cornerlip_medium (70)

10
Expression based Emotion Analysis Results
  • These rules were extended to deal with 2-D
    continuous (activation-evaluation) 4 quadrant
    emotional space
  • They were applied to QUB SALAS generated data to
    test the performance to real life emotion
    expressive data sets.

11
(No Transcript)
12
(No Transcript)
13
Clustering/Neurofuzzy Analysis of Facial Features
  • The rule-based expression/emotion analysis system
    was extended to handle specific characteristics
    of each user in continuous 2-D emotional
    analysis.
  • Novel clustering and fuzzy reasoning techniques
    were developed and used for producing specific
    FAP ranges (around 10 clusters) for each user and
    providing rules to handle them.
  • Results on the continuous 2-D emotional framework
    with SALAS data indicate that a good performance
    (reaching 80) was obtained applying the adapted
    systems to each specific user.

14
Direct Multimodal Recognition
  • The attention-feedback recurrent neural network
    architecture (ANNA) was applied to emotion
    recognition based on all input modalities.
  • Features extracted from all input modalities
    (linguistic, paralinguistic speech, FAPs) were
    provided by processing and analysing common SALAS
    emotional expressive data.

15
Emotion Recognition based on ANNA
  • ANNA hidden layer emotion state, feedback
    control for attention ( IMC)
  • Learning laws for ANNA developed
  • ANNA fuses all modalities or only one

16
BASIC EMOTION RECOGNITION ARCHITECTURE
Feature vector Inputs
Attention control system
Output as recognised emotional state
?
?
Emotion state as hidden layer
17
Text Post-Processing Module
  • Prof. Whissell compiled
  • Dictionary of Affect in Language (DAL)
  • Mapping of 9000 words ? (activation-evaluation),
    based on students assessment
  • Take words from meaningful segments obtained by
    pause detection ? (activation-evaluation) space
  • But humans use context to assign emotional
    content to words

18
ANNA on top correlated ASSESS features
  • Quadrant match using top 10 activation features
    top 10 evaluation features and activation
    evaluation output space

Feeltracer jd cc dr em
Avg Quad Match 0.42 0.39 0.37 0.45
Std Dev 0.03 0.02 0.02 0.04
19
ANNA on top correlated ASSESS features
  • Half-plane match using top 10 activation features
    and activation only output space

Feeltracer jd cc dr em
Avg Quad Match 0.75 0.66 0.64 0.74
Std Dev 0.02 0.02 0.02 0.03
20
Multi-modal Results
  • 500 training epochs, 3 runs per dataset, final
    results being averaged (with associated Sdev).
  • 5 hidden layer (EMOT) neurons and 5 feedback
    layer (IMC) neurons learning rate fixed at
    0.001.
  • Of each dataset 4 parts used for training and 1
    part for testing the net on unseen inputs.
  • AActivation, EEvaluation FT stands for the
    FeelTracer used as supervisor AVG denotes the
    average quadrant match (for 2D-space) or average
    half-plane match for (1D-space) over 3 runs.
  • PCA on the ASSESS features to reduce them from
    about 500 to around 7-10 as describing most of
    the volatility.

21
Multi-modal Results Using A Output only
  • Classification using A output only relatively
    high
  • (in three cases up to 98, and with two more at
    90 or above)
  • Effectiveness of data from FeelTracer EM
  • Average success rates of (86, 88, 98, 89,
    95, 98, 98) for 7 choices of input
    combinations (ass/fap/dal/af/df/ad/adf)
  • Also high success with Feeltracer JD
  • Consistently lower values for FeelTracer DR
  • (all in 60-66 band)
  • Also for CC (64, 54, 75, 63, 73, 73, 73).

22
Ontology Representation Facial
Expression/Emotion Analysis
  • Use ontologies for real life usage of facial
    expression/emotion analysis results
  • Extensibility
  • (Ontologies form an excellent basis for
    considering issues like constrained reasoning,
    personalisation, adaptation, which have been
    shown crucial for applying our results to real
    life applications )
  • Standardisation
  • (OWL ontologies form a standard knowledge
    representation and reasoning Web framework)

23
Facial Emotion Analysis Ontology Development
  • An ontology has been created to represent the
    geometry and different variations of facial
    expressions based on the MPEG-4 Face Animation
    Parameters (FDPs) and Face Definition Parameters
    (FAPs).
  • The ontology was built using the ontology
    language OWL DL and the Protégé OWL ontologies
    development Plugin.
  • The ontology will be the tool for extending the
    obtained results to real life applications
    dealing with specific users profiles
    constraints.

24
Concept and Relation Examples
  • Concepts
  • Face
  • Face_Animation_Parameter
  • Face_Definition_Parameter
  • Facial_Expression
  • Relations
  • is_Defined_By
  • is_Animated_By
  • has_Facial_Expression
