Learning Bayesian Belief Networks

1

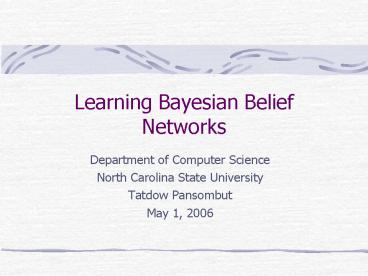

Learning Bayesian Belief Networks

• Department of Computer Science
• North Carolina State University
• Tatdow Pansombut
• May 1, 2006

2
Outline

• Notation
• Introduction
• Inference Models Classical vs. Bayesian
• Definition of Bayesian Belief Networks
• Representation of Bayes Nets
• Building A Model
• Types of Learning Bayes Nets
• Issues in Learning Bayes Nets
• Batch Learning
• Limitations
• Conclusions
• Questions and Comments

3
Notation

• BBN (BBNs) Bayesian Belief Network (Bayesian
  Belief Networks)
• H Hypothesis Space, h ? H
• G (V,E) is a directed acyclic graph (DAG), V(G)
  is the vertex set, and E(G) is the edge set.
• Parent set of u ?(u) v?V(G) there exists an
  edge from v to u in G

4
Introduction

• Problem Learning under uncertainty
• Goal Build a system that achieves the best
  expected outcome
• Model Probabilistic Model
• Tool Bayes Nets

5
Classical vs. Bayesian Inference Model

• Bayesian Inference Model Allow the use of prior
  knowledge.
• Let P(h?) be a degree of belief in h given
  current state of information ?.
• New evidence is presented.
• Update using Bayess Theorem

6
Classical Probability Calculus (1)

• A random variable u ? U
• Domain of u d(u)
• Sample space SU
• Probability of variable u degree of belief in u,
  denoted by P(u)
• Conditionally Independence a and b are
  conditionally independent if P(a c) P(a b,
  c).
• A Joint probability distribution of a set U of
  random variables

7
Classical Probability Calculus (2)

• A world consists of
• Domain
• Sample Space
• A Joint probability distribution over U

8
Definition of Bayesian Belief Networks (1)

• Let U u1,,un.
• A Bayesian Belief Network B over U B (Bs, ?)
• Bs has global structure G (V,E).
• ? is a set of parameters that encodes the local
  conditional probability.

9
Definition of Bayesian Belief Networks (2)

• A Global structure G (V,E) is a DAG such
  that
• V(G) U
• ui ? U is labeled by an event or random
  variables.
• ui ? U is labeled by conditional probability
  P(ui?(ui)).

10
Definition of Bayesian Belief Networks (3)

• Let ?i be a set of all unique instantiations of
  uis parents.
• Example
• ?3 (u10, u20),
• (u10, u21),
• (u11, u20),
• (u11, u21),
• ?1 ?2 ?

11
Definition of Bayesian Belief Networks (4)

• A set of parameters ?
• ? ? ui ? U, j ? ?i, k ? d(ui)
  ?(i,j,k)P(uik ?i j, ?, G)

12
Representation of Bayes Nets

• Let U u1,, un.
• A Bayes Net B over U represents a joint
  probability distribution

13
Building A Model (1)

• Assume that the true relationships among
  variables is governed by MT.
• MT (VT, PT)
• Given a training set D
• Goal Build a model ML to approximate MT in the
  form of a BBN B with global structure G.

14
Building A Model (2)

• Input P (the joint probability distribution over
  VT of the training set D)
• Output A DAG G
• Procedure
• Assign an order d to all variables in VT.
• For each u ? VT, identify predecessors ?(u) that
  render u independent of all other predecessors.
• Assign a direct edge from each element of ?(u) to
  u.

15
Types of Learning Bayes Nets

• Learners input
• A Batch Learning
• input training set
• output a BBN
• Adaptive Learning
• input a BBN and new example(s)
• output a new BBN

• Property of a network
• Qualitative Property structure of the network
• Quantitative Property conditional probabilities

16
Issues In Learning Bayes Nets

• Hidden variables
• Feature Selection
• Causal relationships
• 1. Expert knowledge
• 2. Temporal Precedence

17
Batch Learning (1)

• Input a set of discrete variables U and a
  database (training set) D
• Output A BBN

18
Batch Learning (2)

• Important Assumption MT is a BBN with unknown
  structure and parameters
• Let be the hypothesis that D is generated by
  a network structure Bs.
• Learning a BBN search for the hypothesis
  corresponding to the best network structure
  given Hypothesis Space H.

19
Batch Learning (3)

• Model Selection Given the search space of
  models, output the best model.
• Neighborhood
• Scoring criterion
• Search Procedure/Strategy

20
Bayesian Scoring Metric (1)

• Goal Output the most accurate network structure
  given a database.
• In theory Find with the highest
  .
• In practice Find with the highest
  .

21
Bayesian Scoring Metric (2)

• Notation
• qi is the number of instances in ?i.
• Nijk is the number of cases in D where ui k and

• ?i j.
• is the number of elements in d(ui).
• ?(.) is the Gamma function.

22
Bayesian Scoring Metric (3)
23
Bayesian Scoring Metric (4)

• Algorithm K2
• Input a set of variables U, an order d, an upper
  bound , and a database D.
• Output For ui ? U, ?(ui)
• Bayesian Scoring Metric estimation function

24
Bayesian Scoring Metric (5)

• Assumptions for K2
• Prior knowledge is uninformative.
• Database is a Monte Carlo sampling of a
  belief-network with only variables in U.
• All cases in database are independent.
• Cases are complete.
• If p and q are components of different
  conditional probability distributions, then the
  value assigned of p is independent of the value
  assigned to q.
• Initially indifferent about value assignment of
  conditional probability.
• Specify order d.
• Prior probability of all network structures are
  equal.

25
MDL Metric (1)

• Goal Output the network structure with minimum
  description length (MDL).
• MDL is the sum of the encoding length of the
  model (network) and the length of the data given
  the model.
• Trade-off between accuracy and usefulness

26
MDL Metric (2)

• Problems with the most accurate but complex
  model
• 1. Hard for human understanding
• 2. Can at best represent the distribution of
  training set.
• 3. Computationally difficult to learn and use.

27
MDL Metric (3)

• Let be the number of uis parents.
• Let be the number of bits needed to store a
  numerical value.
• Encoding length of the network

28
MDL Metric (4)

• Encoding length of the data using the network
• Kullback-Leibler cross entropy
• P and Q are the distributions over the same space
  SU.
• SU is exponential in number of variables.

29
Scoring Criterion Property

• Asypmtotically Consistent
• Locally Consistent
• Score Equivalence
• Decomposable

30
Learning Methods focusing on Search Procedures

• A search procedure works in combination with a
  family of scoring metrics.
• Greedy Search Equivalence (GES)
• K-greedy Search Equivalence (KES)

31
Greedy Equivalence Search

• Procedure
• Divide the search space into equivalence classes
  of DAGs.
• Start with an equivalence class of DAGs with no
  edge.
• Perform a forward equivalence search.
• Perform a backward equivalence search.

• With asymptotically consistent scoring criterion
  an parameter-optimal DAG model
• With locally consistent scoring criterion an
  inclusion-optimal DAG model
• Problem local maxima.

32
K-greedy Equivalence Search

• Procedure
• Let G be a DAG with no edge.
• Let Sh be a set of DAGs resulting from adding or
  removing one edge from G whose score is higher
  than Gs.
• Choose a random Sr ? Sh of size (k Sr).
• Let G be the DAG in Sr with highest score.

• With locally consistent scoring criterion an
  inclusion-optimal DAG model

33
Limitations (1)

• Given a Hypothesis Space H and a probability
  distribution P over H
• Learning by update P using Bayess Theorem

34
Limitations (2)

• Implicit condition
• Explicit condition

35
Limitations (3)
36
Conclusions

• A BBN is a powerful model for reasoning under
  uncertainty.
• Need to make assumptions to measure the
  goodness of the network.
• Without some assumptions, finding a network
  structure with the highest score is NP-hard 1.
• 1 Chickering, D. M, Heckerman D., and Meek C.
  (2004). Large-Sample Learning of Bayesian
  Networks is NP-Hard, In Journal of Machine
  Learning Research 5, 1287-1330.

37
Questions and Comments
