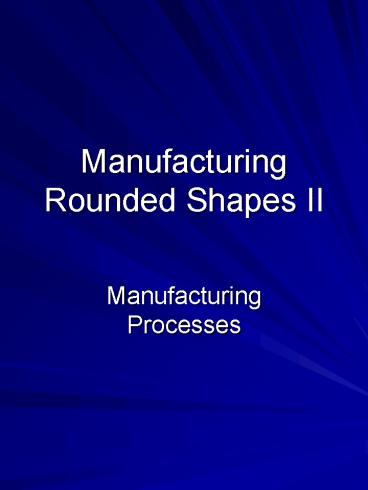

Manufacturing Rounded Shapes II

1
ManufacturingRounded Shapes II

• Manufacturing Processes

2
Outline

• Specialized Turning Operations
• High-Speed Machining
• Ultraprecision Machining
• Hard Turning
• Cutting Screw Threads
• Knurling
• Boring and Boring Machines
• Drilling and Drills
• Reaming and Reamers
• Tapping and Taps
• Chip Collection

3
High-Speed Machining

• Decreases cutting time by increasing cutting
  speed
• Approximate Range of Cutting Speeds
• High Speed 2000-6000 ft/min
• Very High Speed 6000-60000 ft/min
• Ultrahigh Speed gt60000 ft/min
• Decreases total energy required
• - Power for high-speed machining .004 W/rpm
• Power for normal machining
• .2-.4 W/rpm
• Most important when cutting time is a significant
  part of the manufacturing time

4
High-Speed Machining

• Factors
• Stiffness of the machine tools
• Stiffness of tool holders and workpiece holders
• Proper spindle for high speeds and power
• Sufficiently fast feed drives
• Automation
• A proper cutting tool for high cutting speeds
• Ability to hold the piece in fixtures at high
  speed

5
UltraprecisionMachining

• Used for very small surface finish tolerances in
  the range of .01 µm
• The depth of cut is in the range of nanometers
• Machine tools must be made with high stiffness

6
UltraprecisionMachining

• Factors
• Stiffness, damping, and geometric accuracy of
  machine tools
• Accurate linear and rotational motion control
• Proper spindle technology
• Thermal expansion of machine tools, compensation
  thereof, and control of the machine tool
  environment
• Correct selection and application of cutting
  tools
• Machining parameters
• Performance and tool-condition monitoring in real
  time, and control thereof

7
Hard Turning

• Used for relatively hard, brittle materials
• Produces parts with good dimensional accuracy,
  smooth surface finish, and surface integrity
• May be used as an alternative to grinding

8
Hard TurningProcedure
9
Hard TurningStatistics
Heat dissipated by chips
Tool forces radial force is greatest
10
Hard TurningChip Formation
Brittle materials form segmented chips, which
cause a large force against the cutting edge
11
Hard Turning

• Advantages (as an alternative to grinding)
• Lower cost of machine tools
• Ability to machine complex parts in a single
  setup
• Ability to create various part styles or small
  part numbers efficiently
• Less industrial waste
• Ability to cut without fluids (eliminates
  grinding sludge)
• Easily automated

12
Hard TurningSurface Finish
NO YES
A hard journal bearing surface should have a
surface with deep valleys and low peaks
13
Cutting Screw Threads

• Cutting threads on a lathe is slower than newer
  methods
• Die-Head Chasers
• used to increase production rate of threading
  on a lathe
• Solid Threading Dies
• used for cutting straight or tapered threads
  on the ends of pipes or tubing

14
Cutting Screw Threads
15
Cutting Screw Threads
16
Die-Head Chasers and Solid Threading Dies

• Straight chaser cutting die (top)
• Circular chaser cutting die (bottom left)
• Solid threading die (bottom right)

17
Screw Machine
18
Screw Machine
19
Cutting Screw Threads

• Design Considerations
• Threads should not be required to reach a
  shoulder
• Avoid shallow blind tapped holes
• Chamfer the ends of threaded sections to reduce
  burrs
• Do not interrupt threaded sections with slots,
  holes etc.
• Use standard thread tools and inserts as much as
  possible
• The walls of the part should be thick enough to
  withstand clamping and cutting forces
• Design the part so that cutting operations can be
  completed in a single setup

20
Knurling

• Used to create a uniform roughness pattern on
  cylindrical surfaces
• Performed on parts where friction is desired
  (knobs, grip bars etc.)
• Types
• Angular Knurls
• create a pattern of diamond-shaped ridges
• Straight Knurls
• create a pattern of straight longitudinal ridges

21
Knurling Results
22
Knurling Operation
23
Boring andBoring Machines

• Boring produces circular internal profiles
• Small pieces can be bored on a lathe boring
  mills are used for larger workpieces

24
Boring Operation
25
Boring Operation
26
Boring andBoring Machines

• Design Considerations
• Avoid blind holes when possible
• A higher ratio of the length to the bore diameter
  will cause more variations in dimensions because
  the boring bar will deflect more
• Avoid interrupted internal surfaces

27
Drilling and Drills

• Types of drill
• Twist drill (most common)
• Gun drill
• Trepanner
• Pilot Holes
• Sometimes, when drilling large-diameter holes,
  it is necessary to drill a smaller hole first to
  guide the large drill

28
Types of Drillsand Drilling Operations
29
Drill Terminology
30
Drill Point Angle
Point Angle
118 Standard
135 Harder Materials stainless steel,
titanium Minimizes burring
90 Softer Materials plastic
31
Trepanners
32
Drills and Drilling

• Deep Holes
• Complications may occur when drilling a hole
  longer than 3 times the drill diameter
• Problems
• Chip removal
• Coolant dispensing to the cutting edge
• Tool deflection

33
Drills and Drilling

• Small Holes
• Small drills
• .0059-.04 in
• Microdrilling
• .0001-.02 in

34
Microdrills
35
Pilot Holes
36
Drills and Drilling

• Forces and Torque
• Thrust force
• acts perpendicular to the axis of the hole
  large forces can cause the drill to bend or break
• Torque
• the torque acting to turn the drill
• These values are difficult to calculate

37
Drill Feedand Speed

• V pDN/12
• V cutting speed in ft/min
• Velocity at which the drill edge moves along the
  workpiece surface
• D diameter of the drill
• N RPM of the drill
• Feeds for drills are listed as in/rev or m/rev.
  Multiply these by the RPM to obtain the feed in
  in/min or m/min. The feed cannot be controlled
  accurately on a drill press fed by hand.

38
Drill Feedand Speed
39
Drill Feedand Speed

• Example
• Work Material Aluminum
• Tool Material High Speed Steel
• Drill Diameter .5 in
• Recommended Cutting Speed 200-300 ft/min (from
  table)
• N 12V/pD
• N12(200-300)/(p.5)
• 1528-2293 RPM
• Recommended Feed for aluminum, .5in .006-.01
  in/rev (from table)
• f (.006-.01)1528 RPM 9.2-15.2 in/min

40
Drilling MaterialRemoval Rate

• Material Removal Rate
• MRR (pD2/4)f N
• D drill diameter
• f feed, in/rev or mm/rev
• N RPM

41
Drilling MaterialRemoval Rate

• Example
• Drill Diameter .5 in
• Feed .006 in/rev
• RPM 1528 RPM
• MRR (pD2/4)f N
• (p(.5)2/4).0061528
• 1.8 in3/min

42
Drilling Operation
43
Reaming and Reamers

• Used to improve the dimensional accuracy or
  surface finish of an existing hole
• Types of reamers
• Hand reamers
• Rose reamers
• Fluted reamers
• Shell reamers
• Expansion reamers
• Adjustable reamers

44
Types of Reamers
45
Reamer Terminology
46
Tapping and Taps

• Used to make internal threads in workpiece holes
• Types of taps
• Tapered taps
• Bottoming taps
• Collapsible taps

47
Tap Terminology
48
Drilling, Reamingand Tapping

• Design Considerations
• Holes should be drilled on flat surfaces
  perpendicular to the hole axis to prevent drill
  deflection
• Avoid interrupted hole surfaces
• The bottoms of blind holes should match standard
  drill point angles
• Avoid blind holes when possible if large
  diameter holes are to be included, make a
  pre-existing hole in fabrication
• Design the workpiece so as to minimize fixturing
  and repositioning during drilling
• Provide extra hole depth for reaming or tapping
  blind or intersecting holes

49
Summary

• Specialized cutting procedures exist for unusual
  materials and requirements
• Proper procedure, securing of the workpiece, and
  feeds and speeds must be considered to prevent
  damage and injuries

50
