A Ground Vehicle Simulation Design

1

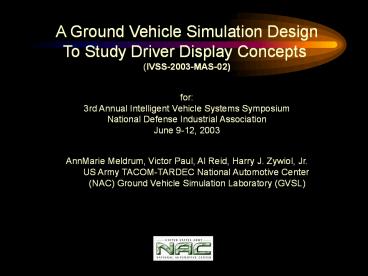

A Ground Vehicle Simulation Design To Study
Driver Display Concepts (IVSS-2003-MAS-02) for
3rd Annual Intelligent Vehicle Systems
Symposium National Defense Industrial
Association June 9-12, 2003 AnnMarie Meldrum,
Victor Paul, Al Reid, Harry J. Zywiol, Jr. US
Army TACOM-TARDEC National Automotive Center
(NAC) Ground Vehicle Simulation Laboratory (GVSL)
2
Briefing Outline
Background and Goal Simulation
Design Requirements Simulation Design
Features Conclusions
3

• Background
• Increased fidelity and use of Driving Simulators
• New vehicle designs are exploring advanced
  driving interfaces (displays, controls,
  information)
• Current Effort
• - Design a virtual motion simulation to enable
• - trade studies
• - supplement Crew station tech demos(e.g. FTTS,
  CAT)
• that models the ground vehicle dynamics
  environment.
• Goal
• Satisfy FCS, Objective Force mobility, human
  factors requirements
• operate on-the-move (tele-ops, C2, increased op
  tempo)
• function without adverse physical effects
  (mitigate sickness, info overload)

4
Simulation Design Requirements
Displays mimic two-man crew,
head mounted flat
panel Motion full 6
DOF Protocol Design of
Experiments (DOE) Console
wheeled vehicle with control loading Vehicle
Dynamics multi-body, Stryker design Database
turns, hills, cross-country Audio
own vehicle sounds Data
Acquisition to enable results of trades
5
Simulation Design Features
Cab display
Symbology
Heading, speed, gear Integrated with display
3-panel, 120x30 FOV, 21 inch
Console
Terrain/database
Roads, turns, features
Steering loader, brake, accel, gear
6
Simulation Design
Features (Contd)
HMD
Vehicle Dynamics
COTS, Kaiser ProView, XL 50, 40x30 FOV
Multi-body, reacts to terrain and driver inputs
Motion Base, Audio
Head Trackers(2)
COTS, InterSense InertiaCube Mounted on head and
motion base
Full 6-DOF, motion, audio cues
7
Experiment Protocol
Design of Experiments Two fixed factors HMD
versus flat panel Analysis - Independent
variables Fixed factorial, repeated
measures 2x4x2 (displays x vibration levels x
course segments) Dependent variables road
following, speed, long and lat acceleration,
steering wheel reversals, questionnaire
ratings 12 subjects, civilian local population
Determine influence of displays, vibration,
course on driver performance.
Questionnaires(9) ANOVA
Separate Multivariate ANOVAs - Vibration and
course segments
8
Conclusions

• Experiment not yet conducted (stay tuned)
• Simulation design set up for vehicle/crew-station
  trade studies
• Effects of Active, Passive Suspension, hybrids on
  Crew Performance
• Joystick, yoke, steering wheel controlsfeed-throu
  gh vibration,
• and road feel characteristic settings?
• Optimum display design what data information
  to display,
• how to best render data to make informed
  decisions
• Optimize camera locations
• Relatively? easy to modify simulation for
  tele-operations, UGV studies

9
For further information on this or any other GVSL
products Harry J. Zywiol, Jr. Team Leader,
Motion Base Technologies TACOM-TARDEC 6501 E.
Eleven Mile Road Warren, MI 48397-5000 AMSTA-TR-N
MS 157, Bldg 215 586-574-5032 zywiolh_at_tacom.army
.mil http//www.tacom.army.mil/tardec/nac/teams/mb
t/overview.htm
