1

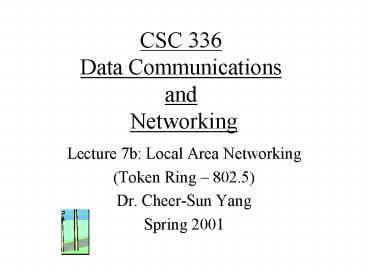

CSC 336 Data Communications and Networking
  • Lecture 7b Local Area Networking
  • (Token Ring 802.5)
  • Dr. Cheer-Sun Yang
  • Spring 2001

2
(No Transcript)
3
offices
offices
4
(No Transcript)
5
Topologies
  • Bus A single communication line, typically a
    twisted pair, coaxial cable, or optical fiber,
    represents the primary medium.
  • Ring packets can only be passed from one node to
    its neighbor.
  • Star A hub or a computer is used to connect to
    all other computers.
  • Tree no loop exists (logical connection).

6
Token Passing
  • Token Ring (802.5) P. 183, Section 6.3
  • Token Bus (802.4) P. 186, Section 6.4

7
(No Transcript)
8
Token Passing
  • The difficulty with many networks is that no
    central control or authority makes decisions on
    who sends when.
  • Token passing is designed to deal with this issue
    and hopefully the link utilization can be
    increased.

9
Token Passing
  • In order to send, a station must obtain an
    admission pass, called a token.
  • In a token ring, the token is passed from one
    station to another.
  • When a station does not need it, it simply passes
    it on.
  • Token ring network must pass the token orderly to
    its neighbor.
  • Token bus network can pass a token to any other
    station directly.

10
Token Passing
  • However, a token bus network cannot be added as
    simply as with the CSMA/CD bus.
  • All stations must know who and where its neighbor
    is in a token bus.

11
6.3 Token Ring IEEE 802.5
  • Each repeater connects to two others via
    unidirectional transmission links
  • Single closed path
  • Data transferred bit by bit from one repeater to
    the next
  • Repeater regenerates and retransmits each bit
  • Repeater performs data insertion, data reception,
    data removal
  • Repeater acts as attachment point
  • Packet removed by transmitter after one trip
    round ring

12
Token Ring (802.5)
  • MAC protocol
  • Small frame (token) circulates when idle
  • Station waits for token
  • Changes one bit in token to make it SOF for data
    frame
  • Append rest of data frame
  • Frame makes round trip and is absorbed by
    transmitting station
  • Station then inserts new token when transmission
    has finished and leading edge of returning frame
    arrives
  • Under light loads, some inefficiency
  • Under heavy loads, round robin

13
Dedicated Token Ring
  • 1997 update to IEEE 802.5
  • Central hub
  • Acts as switch
  • Full duplex point to point link
  • Concentrator acts as frame level repeater with
    immediate access possible
  • No token passing if using a switch to connect all
    stations

14
802.5 Physical Layer
  • Data Rate 4 16 100
  • Medium UTP,STP,Fiber
  • Signaling Differential Manchester
  • Max Frame 4550 18200 18200
  • Access Control TP or DTR TP or DTR DTR
  • Note 1Gbit in development

15
Ring Repeater States
16
Listen State Functions
  • Scan passing bit stream for patterns
  • Address of attached station
  • Token permission to transmit
  • Copy incoming bit and send to attached station,
    while forwarding each bit
  • Modify bit as it passes
  • e.g. to indicate a packet has been copied (ACK)

17
Transmit State Functions
  • Station has data
  • Repeater has permission
  • May receive incoming bits
  • If ring bit length shorter than packet
  • Pass back to station for checking (ACK)
  • May be more than one packet on ring
  • Buffer for retransmission later

18
Bypass State
  • Signals propagate past repeater with no delay
    (other than propagation delay)
  • Partial solution to reliability problem (the
    failure of one station can cause the network
    failure).
  • Improved performance

19
Ring Media
  • Twisted pair
  • Baseband coaxial
  • Fiber optic
  • Not broadband coaxial
  • Would have to receive and transmit on multiple
    channels, asynchronously

20
Two observations
  1. 1. Ring contention is more orderly than
  2. with an Ethernet. No wasted bandwidth.

21
Two observations
  • 2. The failure of one station can cause network
    failure. More discussion will be provided in next
    slide.

22
Advantage of Token Ring
  • The flexible control over access that it
    provides.
  • The access is fair.
  • It is easy to provide priority and guaranteed
    bandwidth services.

23
Disadvantage of Token Ring
  • Token maintenance requires extra work.
  • Loss of token prevents further utilization of the
    ring.
  • Duplication token can disrupt the operation.
  • A monitor station is required. It becomes a
    crucial point for a single point failure.

24
Potential Ring Problems
  • Break in any link disables network
  • Repeater failure disables network
  • Installation of new repeater to attach new
    station requires identification of two
    topologically adjacent repeaters
  • Method of removing circulating packets required
  • With backup in case of errors
  • Mostly solved with star-ring architecture (the
    wire center approach).

25
Network Failure Problem
  • The failure of one station can cause
    network failure This problem can be solved by
    using a wire center (Fig. 6.11). Instead of
    connecting neighboring stations directly, they
    all communicate through a wire center. The wire
    center contains a bypass relay. If a station
    fails, the bypass relay will allow a frame to
    bypass the station.
  • This architecture is called a Star Ring
    Architecture.

26
(No Transcript)
27
Star Ring Architecture
  • Feed all inter-repeater links to single site
  • Concentrator
  • Provides central access to signal on every link
  • Easier to find faults
  • Can launch message into ring and see how far it
    gets
  • Faulty segment can be disconnected and repaired
    later
  • New repeater can be added easily
  • Bypass relay can be moved to concentrator
  • Can lead to long cable runs
  • Can connect multiple rings using bridges

28
Timing Jitter
  • Clocking included with signal
  • e.g. differential Manchester encoding
  • Clock recovered by repeaters
  • To know when to sample signal and recover bits
  • Use clocking for retransmission
  • Clock recovery deviates from midbit transmission
    randomly
  • Noise
  • Imperfections in circuitry
  • Retransmission without distortion but with timing
    error
  • Cumulative effect is that bit length varies
  • Limits number of repeaters on ring

29
Solving Timing Jitter Limitations
  • Repeater uses phase locked loop
  • Minimize deviation from one bit to the next
  • Use buffer at one or more repeaters
  • Hold a certain number of bits
  • Expand and contract to keep bit length of ring
    constant
  • Significant increase in maximum ring size

30
A Closer Look on Token Passing
  • 20 stations, each separated by 10 meters, for a
    total ring length of 200 meters
  • Transmission at 4Mbps, or one bit every 0.25 ?sec
  • Propagation speed of 2108 m/s
  • How long does it take to travel around the ring
    once? - 1 ?sec
  • How many bits can a station send in 1 ?sec?

31
A Closer Look on Token Passing
  • A 4 bits.
  • To get more bits on the ring, each station delays
    one bit-time allowing it to examine each bit
    before deciding whether to copy it or repeat it.
    (one bit-time 0.25 ?sec)
  • How many bits can a station send then?

32
(No Transcript)
33
Token and Frame Formats
  • Start Delimiter (SD), End Delimiter (ED) 1 octet
  • Access Control (AC) 1 octet, 3 priority bits, 1
    token bit, 1 monitor bit, 3 reserved bits.
  • Token bit determines the frame type, i.e. token
    frame or data frame.
  • Priority bit can be used to set the tokens
    priority.
  • Monitor bit and reserved bits are used for ring
    maintenance.

34
Token and Frame Formats
  • Frame Control (FC) used to distinguish control
    frame from data frame.
  • Frame Status(FS) 1 octet (acxxacxx) a address
    recognized bit, c frame copied bit, x undefined
    bit.
  • a 0, c 0 dest not present or not power up
  • a 1, c 0 dest present but frame is not
    accepted
  • a 1, c 1 dest present and frame copied.

35
Token RingOperation
36
Priority Scheme
  • A station having a higher priority frame to
    transmit than the current frame can reserve the
    next token for its priority level as the frame
    passes by.
  • When the next token is issued at a station A, it
    will be at the reserved priority level. The
    station reserving the token can use this token to
    transmit data frame.
  • The station A is responsible to down-grade the
    priority of the token later.

37
Priority Scheme
  • A sends a frame to B at priority 0.
  • When the frame passes by D, D makes a reservation
    at priority 3.
  • When the token is sent back to A, A changes the
    priority to 3 and issues a new token.
  • D can use this token to send a frame to any
    station.
  • After the data is seized by the destination and
    the token is passed back to A, A is responsible
    for changing the priority back to 0. (Why A?)

38
Priority Scheme
  • In this case, station A is called a stacking
    station.
  • When it generates a new token with a higher
    priority, it also keeps the old priority in a
    stack locally.
  • Thus, a stacking station is the only station in
    which the old priority is kept.

39
Reserving and Claiming Tokens
B
A
token
C
D
40
Reserving and Claiming Tokens
B
A
Station A requests the token and sends its data
to D
C
D
41
Reserving and Claiming Tokens
B
A
C
D
Station C can reserve the next open token By
entering its priority code in the AC field.
42
Reserving and Claiming Tokens
B
A
Station D copies the frame and sends the data
back to the ring.
C
D
43
Reserving and Claiming Tokens
B
A
Station A receives the frame and releases the
token
C
D
44
Reserving and Claiming Tokens
B
A
C
D
Station C can send its data now.
45
(No Transcript)
46
Priority Scheme
47
Time Limits
  • Token holding time the time duration a station
    is allowed to hold the token
  • Token rotation time the total time a token is
    allowed to rotate around the ring.
  • TRT gt N THT

48
Ring Maintenance
  • Things can go wrong. For example
  • A station sends a short frame over a long ring
    and subsequently crashes. It is not able to drain
    the token. This frame is called an orphan frame.
  • A station receives a frame or token crashes
    before it can send it. Now there is no token
    circulating.
  • Line noise damages a frame.

49
Ring Maintenance
  • Some problems can be handled by giving one of the
    stations a few different responsibilities and
    designating it a monitor station.
  • When a monitor station receives a frame, it sets
    the monitor bit to 1. If the frame is received
    the second time and the monitor bit is still set
    to 1, the monitor station deletes the frame.

50
Ring Maintenance
  • 2. The monitor station also detect a lost token
    using a built-in timer which is determined based
    on the length of the ring, number of stations,
    and maximum frame size. Whenever the monitor
    sends a frame or token, it starts the timer. If
    the monitor does not receive another frame or
    token before the timer expires, it assumes that
    the token is lost. It then creates another one.

51
Ring Maintenance
  • Some problems cannot be solved even with a
    monitor station. For example, what if the
    malfunction station is the monitor station? What
    if a break in the ring causes a lack of tokens?
    Sending new ones does nothing to correct the
    problem. These problems are handled using control
    frames.

52
Ring Maintenance
  • Some example control frames
  • Claim token frame for submitting bids to elect
    a monitor station.
  • Active monitor present (AMP) frame to notify
    others that a monitor station has been produced.
  • Standby monitor present (SMP) frame.
  • Beacon frame to inform stations that a problem
    has occurred and the token-passing protocol has
    stopped.

53
(No Transcript)
54
Ring Efficiency
  • T1 time to send a frame
  • T2 time to send a token

55
Other Ring Networks FDDI
  • 100Mbps
  • LAN and MAN applications
  • Token Ring

56
(No Transcript)
57
Encoding Schemes
  • 4B/5B-NRZI
  • MLT-3

58
(No Transcript)
59
FDDI MAC Frame Format
60
(No Transcript)
61
FDDI MAC Protocol
  • As for 802.5 except
  • Station seizes token by aborting token
    transmission
  • Once token captured, one or more data frames
    transmitted
  • New token released as soon as transmission
    finished (early token release in 802.5)

62
FDDI Operation
63
FDDI Physical Layer
  • Medium Optical Fiber Twisted Pair
  • Data rate 100 100
  • Signaling 4B/5B/NRZI MLT-3
  • Max repeaters 100 100
  • Between repeaters 2km 100m

64
LAN Generations
  • First
  • CSMA/CD and token ring
  • Terminal to host and client server
  • Moderate data rates
  • Second
  • FDDI, FDDI II
  • Backbone
  • High performance workstations
  • Third
  • ATM
  • Aggregate throughput and real time support for
    multimedia applications

65
Third Generation LANs
  • Support for multiple guaranteed classes of
    service
  • Live video may need 2Mbps
  • File transfer can use background class
  • Scalable throughput
  • Both aggregate and per host
  • Facilitate LAN/WAN internetworking

66
ATM LANs
  • Asynchronous Transfer Mode
  • Virtual paths and virtual channels
  • Preconfigured or switched
  • Gateway to ATM WAN
  • Backbone ATM switch
  • Single ATM switch or local network of ATM
    switches
  • Workgroup ATM
  • End systems connected directly to ATM switch
  • Mixed system

67
Example ATM LAN
68
ATM LAN HUB
69
Compatibility
  • Interaction between end system on ATM and end
    system on legacy LAN
  • Interaction between stations on legacy LANs of
    same type
  • Interaction between stations on legacy LANs of
    different types

70
Fiber Channel - Background
  • I/O channel
  • Direct point to point or multipoint comms link
  • Hardware based
  • High Speed
  • Very short distance
  • User data moved from source buffer to destiation
    buffer
  • Network connection
  • Interconnected access points
  • Software based protocol
  • Flow control, error detection recovery
  • End systems connections

71
Fiber Channel
  • Best of both technologies
  • Channel oriented
  • Data type qualifiers for routing frame payload
  • Link level constructs associated with I/O ops
  • Protocol interface specifications to support
    existing I/O architectures
  • e.g. SCSI
  • Network oriented
  • Full multiplexing between multiple destinations
  • Peer to peer connectivity
  • Internetworking to other connection technologies

72
Fiber Channel Elements
  • End systems - Nodes
  • Switched elements - the network or fabric
  • Communication across point to point links

73
Fiber Channel Network
74
Fiber Channel Protocol Architecture (1)
  • FC-0 Physical Media
  • Optical fiber for long distance
  • coaxial cable for high speed short distance
  • STP for lower speed short distance
  • FC-1 Transmission Protocol
  • 8B/10B signal encoding
  • FC-2 Framing Protocol
  • Topologies
  • Framing formats
  • Flow and error control
  • Sequences and exchanges (logical grouping of
    frames)

75
Fiber Channel Protocol Architecture (2)
  • FC-3 Common Services
  • Including multicasting
  • FC-4 Mapping
  • Mapping of channel and network services onto
    fiber channel
  • e.g. IEEE 802, ATM, IP, SCSI

76
Wireless LANs
  • IEEE 802.11
  • Basic service set (cell)
  • Set of stations using same MAC protocol
  • Competing to access shared medium
  • May be isolated
  • May connect to backbone via access point (bridge)
  • Extended service set
  • Two or more BSS connected by distributed system
  • Appears as single logic LAN to LLC level

77
Types of station
  • No transition
  • Stationary or moves within direct communication
    range of single BSS
  • BSS transition
  • Moves between BSS within single ESS
  • ESS transition
  • From a BSS in one ESS to a BSS in another ESS
  • Disruption of service likely

78
Wireless LAN - Physical
  • Infrared
  • 1Mbps and 2Mbps
  • Wavelength 850-950nm
  • Direct sequence spread spectrum
  • 2.4GHz ISM band
  • Up to 7 channels
  • Each 1Mbps or 2Mbps
  • Frequency hopping spread spectrum
  • 2.4GHz ISM band
  • 1Mbps or 2Mbps
  • Others under development

79
Media Access Control
  • Distributed wireless foundation MAC (DWFMAC)
  • Distributed coordination function (DCF)
  • CSMA
  • No collision detection
  • Point coordination function (PCF)
  • Polling of central master

80
802.11 MAC Timing
81
Reading
  • Chapter 6 6.1-6.5
Write a Comment
User Comments (0)
About PowerShow.com
