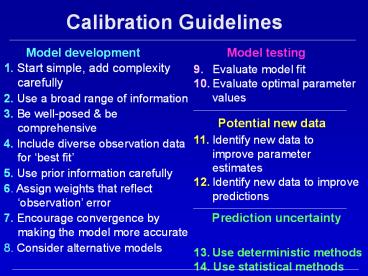

Calibration Guidelines

1
Calibration Guidelines
Model development
Model testing
9. Evaluate model fit 10. Evaluate optimal
parameter values 11. Identify new data to
improve parameter estimates 12. Identify new data
to improve predictions 13. Use deterministic
methods 14. Use statistical methods
1. Start simple, add complexity carefully 2. Use
a broad range of information 3. Be well-posed
be comprehensive 4. Include diverse observation
data for best fit 5. Use prior information
carefully 6. Assign weights that reflect
observation error 7. Encourage convergence by
making the model more accurate 8. Consider
alternative models
Potential new data
Prediction uncertainty
2
Guideline 13 Evaluate Prediction Uncertainty
and Accuracy Using Deterministic Methods

• Use regression to evaluate predictions
• Consider model calibration and Post-Audits from
  the perspective of the predictions.
• Book Chapter 14

3
Using regression to evaluate predictions

• Determine what model parameter values or
  conditions are required to produce a prediction
  value, such as a concentration value exceeding a
  water quality standard.
• How? Modify the model to simulate the prediction
  conditions (e.g. longer simulation time, add
  pumping, etc.). Include the prediction value as
  an observation in the regression use a large
  weight.
• If the model is thought to be a realistic
  representation of the true system
• If estimated parameter values are reasonable, and
  the new parameter values do not produce a bad fit
  to the observations
• The prediction value is consistent with the
  calibrated model and observation data. The
  prediction value is more likely to occur under
  the simulated circumstances.
• If the model cannot fit the prediction, or a good
  fit requires unreasonable parameter values or a
  poor fit to the observations
• The prediction value is contradicted by the
  calibrated model and observation data. The
  prediction value is less likely to occur under
  the simulated circumstances.

4
Using regression to evaluate predictions

• This method does not provide a quantifiable
  measure of prediction uncertainty, but it can be
  useful to understand the dynamics behind the
  prediction of concern.

5
Guideline 14 Quantify Prediction Uncertainty
Using Statistical Methods
Goal Present predicted values with uncertainty
measured often intervalsTwo Categories of
Statistical Methods
1. Inferential Methods - Confidence Intervals
2. Sampling Methods - Deterministic with
assigned probability - Monte Carlo (random
sampling)
6
Guideline 14 Quantify Prediction Uncertainty
Using Statistical Methods

• Advantage of using regression to calibrate
  models use related inferential methods to
  quantify some prediction uncertainty.
• Sources of uncertainty accounted for
• Error and scarcity of observations and prior
  information
• Lack of model fit to observations and prior
  information
• Translated through uncertainty in the parameter
  values
• More system aspects defined with parameters ?
  more realistic uncertainty measures
• Intervals calculated using inferential statistics
  do not easily include uncertainty in model
  attributes not represented with parameters, and
  nonlinearity can be a problem even for nonlinear
  confidence intervals. Both can be addressed with
  sampling methods.

7
Confidence Intervals

• Confidence intervals are ranges in which the true
  predictive quantity is likely to occur with a
  specified probability (usually we use 95, which
  means the significance level is 5).
• Linear confidence intervals on parameter values
  calculated as
• bj ? 2?sbj where sbj s2(XTw X)1jj
• Linear confidence intervals on parameter values
  reflect
• Model fit to observed values (s2)
• Observation sensitivities (X xij ?yi/ ?bj)
• Accuracy of the observations as reflected in the
  weighting (w)
• Linear confidence intervals on predictions
  propagate para-meter uncertainty and correlation
  using prediction sensitivities
• zk ? c?szk where szk (?zk/?b) s2(XTw X)1
  (?zk/?b)

8
Types of confidence intervals on predictions

• Individual
• If only one prediction is of concern.
• Scheffe simultaneous
• If the intervals for many predictions are
  constructed and you want intervals within which
  all predictions will fall with 95 probability
• Linear Calculate interval as zk ? c?szk
• For individual intervals, c?2.
• For Scheffe simultaneous cgt2
• Nonlinear
• Construct a nonlinear 95 confidence region on
  the parameters and search the region boundary for
  the parameter values that produce the largest and
  smallest value of the prediction. Requires a
  regression for each limit of each confidence
  interval.

9

• Choosing a significance level identifies a
  confidence region defined by a contour.
• Search the region boundary (the contour) for
  parameter values that produce the largest and
  smallest value of the prediction. These form the
  nonlinear confidence interval.
• The search requires a nonlinear regression for
  each confidence interval limit.
• Nonlinear intervals are always Sheffe intervals

Objective function surface for the Theis equation
example (Book, fig. 5-3)
10
Book fig 8.3, p. 179. Modified from Christensen
and Cooley, 1999
11
Example Confidence Intervals on Predicted
Advective-Transport Path
Plan View
Book fig 2.1a, p. 22
Linear individual intervals
Book fig 8.15a, p. 210
12
Linear Individual
Linear Simultaneous (Scheffe dNP)
Book fig 8.15, p. 210
Nonlinear Simultaneous (Scheffe dNP)
Nonlinear Individual
13
The limits of nonlinear intervals are always a
model solution
Confidence intervals on advective-transport
predictions at 10, 50, and 100 years. (Hill and
Tiedeman, 2007, p. 210)
Nonlinear individual intervals
Linear individual intervals
14
Suggested strategies when using confidence and
prediction intervals to indicate uncertainty

• Calculated intervals do not reflect model
  structure error. Generally indicate the minimum
  likely uncertainty (though nonlinearity makes
  this confusing).
• Include all defined parameters. If available, use
  prior information on insensitive parameters so
  that the intervals are not unrealistically large.
• Start with linear confidence intervals, which can
  be calculated easily.
• Test model linearity to determine the likely
  accuracy of linear intervals.
• If needed and as possible, calculate nonlinear
  intervals (in PEST-2000 as the Prediction
  Analyzer in MODFLOW-2000 as the UNC Package
  working on UCODE_2005).
• Use simultaneous intervals if multiple values are
  considered or the value is not completely
  specified before simulation.
• Use prediction intervals (versus confidence
  intervals) to compare measured and simulated
  values. (not discussed here)

15
Use deterministic sampling with assigned
probability to quantify prediction uncertainty

• Samples are generated using deterministic
  arguments like different interpretations of the
  hydrogeologic framework, recharge distribution,
  and so on.
• Probabilities are assigned based on the support
  the different options have from the available
  data and analyses.

16
Use Monte Carlo methods to quantify prediction
uncertainty

• Used to estimate prediction uncertainty by
  running forward model many times with different
  input values.
• The different input values are selected from a
  statistical distribution.
• Fairly straightforward to describe results and to
  conceptualize process.
• Can generate parameter values using measures of
  parameter uncertainty and correlation calculated
  from regression output. Results are closely
  related to confidence intervals.
• Can also use sequential, indicator, other
  simulation methods to generate realizations
  with specified statistical properties.
• Need to be careful in generating parameter values
  / realizations. The uncertainty of the prediction
  can be greatly exaggerated by using realizations
  that clearly contradict what is known about the
  system.
• Good check only consider generated sets that
  respect known hydrogeology and produce a
  reasonably good fit to any available observations.

17
Example of using Monte Carlo methods to quantify
prediction uncertainty

• Example from Poeter and McKenna (GW, 1995)
• Synthetic aquifer with proposed water supply well
  near a stream.
• Could the proposed well be contaminated from a
  nearby landfill?
• Used Monte Carlo analysis to evaluate the
  uncertainty of the predicted concentration at the
  proposed supply well.

Book p. 343
18
Monte Carlo approach from Poeter and McKenna 1995

• Generate 400 realizations of the hydrogeology
  using indicator kriging.
• Generate using the statistics of hydrofacies
  distrubutions. Assign K by hydrofacies type.
• Generate using also soft data about the
  distribution of hydrofacies. Assign K by
  hydrofacies type.
• Generate using also soft data about the
  distribution of hydrofacies. Assign K by
  regression using head and flow observations.
• For each realization simulate transport using
  MT3D. Save predicted concentration at the
  proposed well for each run.
• Construct histogram of the predicted
  concentrations at the well.

True concentration
Book p. 343
19
Use inverse modeling to produce more realistic
prediction uncertainty

• The 400 models were each calibrated to estimate
  the optimal Ks for the hydrofacies.
• Realizations were eliminated if
• Relative K values not as expected
• Ks unreasonable
• Poor fit to the data
• Flow model did not converge
• Remaining realization 2.5 10
• Simulate transport using MT3D.
• Construct histogram.
• Huge decrease in prediction uncertainty
  prediction much more precise than with other
  types of data
• Interval includes the true concentration value
  the greater precision appears to be realistic

True concentration
20
Software to Support Analysis of Alternative models

• MMA Multi-Model Analysis Computer Program
• Poeter, Hill, 2007. USGS.
• Journal article Poeter and Anderson, 2005, GW
• Evaluate results from alternative models of a
  single system using the same set of observations
  for all models.
• Can be used to
• rank and weight models,
• calculate model-averaged parameter estimates and
  predictions, and
• quantify the uncertainty of parameter estimates
  and predictions in a way that integrates the
  uncertainty that results from the alternative
  models.
• Commonly the models are calibrated by nonlinear
  regression, but could be calibrated using other
  methods. Use MMA to evaluate calibrated models.

21
MMA (Multi-Model Analysis)

• By default, models are ranked using
• Akaike criteria AIC and AICc (Burnham and
  Anderson, 2002)
• Bayesian methods BIC and KIC (Neuman, Ming, and
  Meyer).

22
MMA How do the default methods compare?

• Burnham and Anderson (2002) suggest that use of
  AICc is advantageous because
• AICc does not assume that the true model is among
  the models considered.
• So, AICc tends to rank more complicated models
  (models with more parameters) higher as more
  observations become available. This does make
  sense, but.
• What does it mean?

23
Model discrimination criteria
n NOBS NPR
AIC n ? ln(sML2) 2 ? NP
2 ? NP ? (NP1) (n NP 1)
AICc n ? ln(sML2) 2 ? NP
BIC n ? ln(sML2) NP ? ln(n)
sML2 SSWR/n the maximum-likelihood estimate
of the variance. First term tends to decrease as
parameters are added
Other terms increase as parameters are added (NP
inc.)
More complicated models are preferred only if the
decrease of the first term is greater than the
increase of the other terms.
24

• Plot the added terms to see how
• much the first term has to
• decrease for a more complicated
• model to be preferable.
• Plots a and b show that as NOBS
• increases
• AICc ? AIC.
• AICc gets smaller, so it is easier for models
  with more parameters to compete.
• BIC increases! It becomes harder for models with
  more parameters to compete.
• Plot a and c show that when
• NOBS and NP both increase
• AIC and AICc increase proportionately.
• BIC increases more.

?30
?30
?30
25
KIC

• KIC (n-NP) ? ln(sML2) NP ln(2p) lnXTw X
• Couldnt evaluate for the graph because
• the last term is model dependent.
• Asymptotically, performs like BIC.

26
MMA Default method for calculating posterior
model probabilities

• Use criteria differences, delta values. For
  AICc,
• Posterior model probabilityModel weightsAkaike
  Wts
• Inverted evidence ratio, as a percent 100 ? pj
  /plargest
• the evidence
  supporting model i relative
• to the best model,
  as a percent.
• So if 5, the data provide 5 as much
  support for that model as for the most likely
  model

pi
27
Example(MMA documentation)

• Problem Remember that Delta
• The delta value is the difference, regardless of
  how large the criterion is. The values can become
  quite large if the number of observations is
  large.
• This can produce some situations that dont make
  much sense.
• A tiny percent difference in the SSWR can result
  in one model being very probable and the other
  not at all probable.
• Needs more consideration.

28
MMA Other Model criteria and weights

• Very general.
• MMA includes an equation interface contributed to
  the JUPITER API by John Doherty.
• Also, values from a set of models such as the
  largest, smallest, or average prediction can be
  used.

29
MMA Other features

• Can omit models with unreasonable estimated
  parameter values. These are through user-defined
  equation like KsandltKclay.
• Always omits models for which regression did not
  converge.
• Requires specific files to be produced for each
  model being analyzed. These are produced by
  UCODE_2005, but could be produced by other
  models.
• Input structure uses JUPITER API input blocks,
  like UCODE_2005

30
Example complete input file for simplest situation
BEGIN MODEL_PATHS TABLE nrow18 ncol1
columnlabels PathAndRoot ..\DATA\5\Z2\1\Z ..\DATA\
5\Z2\2\Z ..\DATA\5\Z2\3\Z ..\DATA\5\Z2\4\Z ..\DATA
\5\Z2\5\Z ..\DATA\5\Z3\1\Z ..\DATA\5\Z3\2\Z ..\DAT
A\5\Z3\3\Z ..\DATA\5\Z3\4\Z ..\DATA\5\Z3\5\Z ..\DA
TA\5\Z4\1\Z ..\DATA\5\Z4\2\Z ..\DATA\5\Z4\3\Z ..\D
ATA\5\Z4\4\Z ..\DATA\5\Z4\5\Z ..\DATA\5\Z5\1\Z ..\
DATA\5\Z5\2\Z ..\DATA\5\Z5\3\Z END MODEL_PATHS
31
MMA Uncertainty Results
Head, in meters
32
Exercise

• Considering the linear and nonlinear confidence
  intervals on slide 11 of this file, answer the
  following questions
• Why are the linear simultaneous Scheffe intervals
  larger than the linear individual intervals?
• Why are the nonlinear intervals so different?

33
Important issues when considering predictions

• Model predictions inherit all the simplifications
  and approximations made when developing and
  calibrating the model!!!
• When using predictions and prediction uncertainty
  measures to help guide additional data collection
  and model development, do so in conjunction with
  other site information and other site objectives.
• When calculating prediction uncertainty include
  the uncertainty of all model parameters, even
  those not estimated by regression. This helps the
  intervals reflect realistic uncertainty.

34
Calibration Guidelines
Model development
Model testing
9. Evaluate model fit 10. Evaluate optimal
parameter values 11. Identify new data to
improve parameter estimates 12. Identify new data
to improve predictions 13. Use deterministic
methods 14. Use statistical methods
1. Start simple, add complexity carefully 2. Use
a broad range of information 3. Be well-posed
be comprehensive 4. Include diverse observation
data for best fit 5. Use prior information
carefully 6. Assign weights that reflect
observation error 7. Encourage convergence by
making the model more accurate 8. Consider
alternative models
Potential new data
Prediction uncertainty
35
Warning!

• Most statistics have limitations. Be aware!
• For the statistics used in the Methods and
  Guidelines, validity depends on accuracy of
  model, and model being linear with respect to the
  parameters
• Evaluate likely model accuracy using
• Model fit (Guideline 8)
• Plausibility of optimized parameter values
  (Guideline 9)
• Knowledge of simplifications and approximations
• Model is nonlinear, but these methods were found
  to be useful. Methods not useful if the model is
  too nonlinear.

36
The 14 Guidelines

• Organized common sense with new perspectives and
  statistics
• Oriented toward clearly stating and testing all
  assumptions
• Emphasize graphical displays that are
• statistically valid
• informative to decision makers

We can do more with our data and models!!
mchill_at_usgs.gov tiedeman_at_usgs.gov
water.usgs.gov
