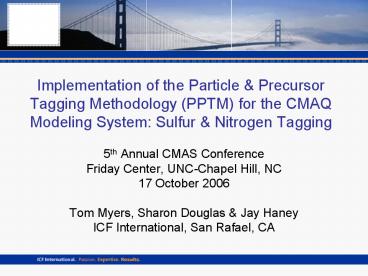

Title: Implementation of the Particle


1
Implementation of the Particle Precursor
Tagging Methodology (PPTM) for the CMAQ Modeling
System Sulfur Nitrogen Tagging
  • 5th Annual CMAS Conference
  • Friday Center, UNC-Chapel Hill, NC
  • 17 October 2006
  • Tom Myers, Sharon Douglas Jay Haney
  • ICF International, San Rafael, CA

2
Presentation Outline
  • Conceptual overview of PPTM
  • Implementation of PPTM for sulfur and nitrogen in
    the CMAQ model
  • Testing example results
  • S tagging application for pulp paper sector

3
Overview of PPTM Concepts
  • Emissions (or initial/boundary condition) species
    are tagged in the emissions (or IC/BC) files and
    continuously tracked throughout the simulation
  • Tags can be applied to source regions, source
    categories, individual sources, initial
    conditions, and/or boundary conditions
  • PPTM quantifies the contribution of tagged
    sources to simulated species concentrations
    deposition
  • Base simulation results not affected by tagging

4
Overview of PPTM Concepts
  • Within the model, tagging is accomplished by the
    addition of duplicate species (e.g., SO2_t1,
    SO2_t2)
  • Tagged species have the same properties and are
    subjected to the same processes (e.g., advection,
    chemical transformation, deposition) as the
    actual species
  • Mercury (Hg), sulfur (S), and nitrogen (N)
    tagging completed tagging for elemental carbon
    (EC) and organic carbon (OC) under
    development/testing

5
Example Uses of PPTM for Sulfur and Nitrogen
  • Determine the contribution of SO2 emissions from
    an individual source, group of sources, or source
    category (e.g., electric generating units (EGUs),
    pulp and paper facilities) to sulfate and overall
    PM2.5 concentrations
  • Quantify/compare the contribution of NOx
    emissions from transportation sources, area
    sources (e.g., wood burning stoves) offroad
    sources (e.g., IC engines, construction
    equipment)

6
Implementation of PPTM for CMAQ Sulfur Nitrogen
  • CMAQ version 4.5
  • Tagged S elements include
  • SO2, ASO4I, ASO4J, SULF (for internal tracking)
  • Tagged N species include
  • ANH4I, ANH4J, ANO3I, ANO3J, NO, NO2, NO3, N2O5,
    HNO3, HONO, PNA, PAN, NTR, NH3

7
Implementation of PPTM for CMAQ Sulfur Nitrogen
  • Key considerations/assumptions
  • Linear processes simulated directly
  • Potentially non-linear processes calculated for
    total species and apportioned to tags
  • Additional terms from some processes saved to
    ensure proper allocation
  • Gas-phase chemistry routines have additional
    production loss terms added NO, NO2, NO3, N2O5
    changes apportioned based on NOx totals for each
    tag

8
Implementation of PPTM for CMAQ Sulfur Nitrogen
  • Key considerations/assumptions
  • Other N species calculated with additional
    chemistry terms adjusted so net production/loss
    for sum of tags matches that for the whole
  • Simulation calculates the overall species value
    as the sum of all tags tags must be defined to
    add up to the whole

9
Implementation of PPTM for CMAQ Sulfur Nitrogen
  • CPU requirements increased by approximately 15
    for 3 S tags and 50 for 3 N tags
  • Documentation/users guide available from EPA or
    ICF as follows

Douglas, S., T. Myers and Y. Wei. 2006.
Implementation of Sulfur and Nitrogen Tagging in
the Community Multiscale Air Quality (CMAQ)
Model. Prepared for EPA, OAQPS, Research
Triangle Park, NC. ICF International, San
Rafael, California (06-076).
10
Example Sulfur Tagging Results
11
CMAQ PPTM Contribution to Monthly Average Sulfate

12
CMAQ PPTM Contribution to Monthly Average Sulfate

13
CMAQ PPTM Contribution to Monthly Average Sulfate

14
CMAQ PPTM Site-specific SO4 Contributions
(IMPROVE Sites)

ugm-3
CMAQ simulated monthly average contribution to
sulfate from three example EGU facilities.
15
Sulfur Tagging Application for the Pulp Paper
Sector
  • Based on CAIR 2010 modeling emission inventory
  • 1 month simulation period (July)
  • (Annual simulation ongoing)
  • Tags applied for 10 pulp paper sources and
    IC/BCs

16
CMAQ PPTM Monthly Average Sulfate for July 2010

17
CMAQ PPTM Contribution to Monthly Average Sulfate

18
CMAQ PPTM Contribution to Monthly Average Sulfate

19
CMAQ PPTM Site-specific SO4 Contributions
(IMPROVE Sites)

ugm-3
CMAQ simulated monthly average contribution to
sulfate from regional pulp paper facilities.
20
CMAQ PPTM Site-specific SO4 Contributions (Urban
Sites)

ugm-3
CMAQ simulated monthly average contribution to
sulfate from regional pulp paper facilities.
21
CMAQ PPTM Site-specific SO4 Contributions (Urban
Sites)

ugm-3
CMAQ simulated monthly average contribution to
sulfate from regional pulp paper facilities.
22
Example Nitrogen Tagging Results
23
Example CMAQ PPTM Nitrogen Tagging Results Great
Smoky Mtns
NH4
NOx
NO3
24
Example CMAQ PPTM Nitrogen Tagging Results Great
Smoky Mtns
NOx
NH4
NO3
25
Summary of CMAQ PPTM Status and Next Steps
  • PPTM has been successfully implemented in the
    CMAQ model for S, N (and Hg) and quantifies the
    contribution of tagged sources to simulated PM
  • Application interpretation of results is
    straightforward (no hidden assumptions)
  • Initial test results indicate that numerical
    effects (uncertainties) are small, compared to
    contribution estimates
  • Next steps include
  • Complete implementation for OC EC
  • Add OPTM (for ozone)
