Grids for the LHC

1

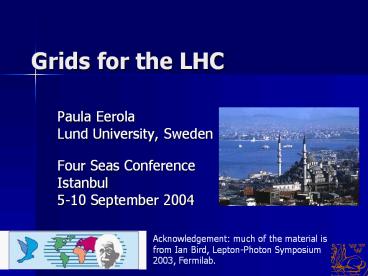

Grids for the LHC

• Paula Eerola
• Lund University, Sweden
• Four Seas Conference
• Istanbul
• 5-10 September 2004

Acknowledgement much of the material is from Ian
Bird, Lepton-Photon Symposium 2003, Fermilab.
2
Outline

• Introduction
• What is a Grid?
• Grids and high-energy physics?
• Grid projects
• EGEE
• NorduGrid
• LHC Computing Grid project
• Using grid technology to access and analyze LHC
  data
• Outlook

3
Introduction

• What is a Grid?

4
About the Grid

• WEB get information on any computer in the world
• GRID get CPU-resources, disk-resources,
  tape-resources on any computer in the world
• Grid needs advanced software, middleware, which
  connects the computers together
• Grid is the future infrastructure of computing
  and data management

5
Short history

• 1996 Start of the Globus project for connecting
  US supercomputers together (funded by US Defence
  Advanced Research Projects Agency...)
• 1998 early Grid testbeds in the USA -
  supercomputing centers connected together
• 1998 Ian Foster, Carl Kesselman
• GRID Blueprint for a new Computing
  Infrastructure
• 2000 PC capacity increases, prices drop ?
  supercomputers become obsolete ? Grid focus is
  moved from supercomputers to PC-clusters
• 1990s WEB, 2000s GRID?
• Huge commercial interests IBM, HP, Intel,

6
Grid prerequisites

• Powerful PCs are cheap
• PC-clusters are everywhere
• Networks are improving even faster than CPUs
• Network Storage Computing exponentials
• CPU performance ( transistors) doubles every 18
  months
• Data storage (bits per area) doubles every 12
  months
• Network capacity (bits per sec) doubles every 9
  months

7
Grids and high-energy physics?

• The Large Hadron Collider, LHC, start 2007
• 4 experiments, ATLAS, CMS, ALICE, LHCb, with
  physicists from all over the world
• LHC computing data processing, data storage,
  production of simulated data
• LHC computing is of unprecedented scale

Massive data flow The 4 experiments are
accumulating 5-8 PetaBytes of data/year
8

• Needed capacity
• Storage 10 PetaBytes of disk and tape
• Processing 100,000 of todays fastest PCs
• World-wide data analysis
• Physicists are located in all the continents

• Computing must be distributed for many reasons
• Not feasible to put all the capacity in one
  place
• Political, economic, staffing easier to get
  funding for resources at home country
• Faster access to data for all physicists around
  the world
• Better sharing of computing resources required
  by physicists

9
LHC Computing Hierarchy
Tier 0 CERN. Tier 0 receives raw data from the
Experiments and records them on permanent mass
storage. First-pass reconstruction of the data,
producing summary data.
Tier 1 Centres large computer centers (about
10). Tier 1s provide permanent storage and
management of raw, summary and other data needed
during the analysis process.
Tier 2 Centres smaller computer centers
(several 10s). Tier 2 Centres provide disk
storage and concentrate on simulation and
end-user analysis.
10
Grid technology as a solution

• Grid technology can provide optimized access to
  and use of the computing and storage resources
• Several HEP experiments currently running (Babar,
  CDF/DO, STAR/PHENIX), with significant data and
  computing requirements, have already started to
  deploy grid-based solutions
• Grid technology is not yet off-the shelf product
  ? Requires development of middleware, protocols,
  services,

Grid development and engineering projects EDG,
EGEE, NorduGrid, Grid3,.
11
Grid projects
12
US, Asia, Australia

• USA
• NASA Information Power Grid
• DOE Science Grid
• NSF National Virtual Observatory
• NSF GriPhyN
• DOE Particle Physics Data Grid
• NSF TeraGrid
• DOE ASCI Grid
• DOE Earth Systems Grid
• DARPA CoABS Grid
• NEESGrid
• DOH BIRN
• NSF iVDGL

• Asia, Australia
• Australia ECOGRID, GRIDBUS,
• Japan BIOGRID, NAREGI,
• South Korea National Grid Basic Plan, Grid
  Forum Korea,

13
Europe

• EGEE
• NorduGrid
• EDG, LCG
• UK GridPP
• INFN Grid, Italy
• Cross-grid projects in order to link together
  Grid projects

• Many Grid projects have particle physics as the
  initiator
• Other fields are joining in healthcare,
  bioinformatics,
• Address different aspects of grids
• Middleware
• Infrastructure
• Networking, cross-Atlantic interoperation

14
A seamless international Grid infrastructure to
provide researchers in academia and industry with
a distributed computing facility
PARTNERS 70 partners organized in nine regional
federations Coordinating and Lead Partner
CERN CENTRAL EUROPE FRANCE - GERMANY
SWITZERLAND ITALY - IRELAND UK - NORTHERN
EUROPE - SOUTH-EAST EUROPE - SOUTH-WEST EUROPE
RUSSIA - USA

• STRATEGY
• Leverage current and planned national and
  regional Grid programmes
• Build on existing investments in Grid
  Technology by EU and US
• Exploit the international dimensions of the
  HEP-LCG programme
• Make the most of planned collaboration with NSF
  CyberInfrastructure initiative

• ACTIVITY AREAS
• SERVICES
• Deliver production level grid services
  (manageable, robust, resilient to failure)
• Ensure security and scalability
• MIDDLEWARE
• Professional Grid middleware re-engineering
  activity in support of the production services
• NETWORKING
• Proactively market Grid services to new research
  communities in academia and industry
• Provide necessary education

15
EGEE goals and partners

• Create a European-wide Grid Infrastructure for
  the support of research in all scientific areas,
  on top of the EU Reseach Network infrastructure
  (GEANT)
• Integrate regional grid efforts

• 9 regional federations covering 70 partners in 26
  countries
• http//public.eu-egee.org/

16
EGEE project

• Project funded by EU FP6, 32 MEuro for 2 years
• Project start 1 April 2004
• Activities
• Grid Infrastructure Provide a Grid service for
  science research
• Next generation of Grid middleware ? gLite
• Dissemination, Training and Applications
  (initially HEP Bio)

17
EGEE timeline
18
Grid in Scandinavia the NorduGrid Project

• Nordic Testbed for
• Wide Area Computing and Data Handling
• www.nordugrid.org

19
NorduGrid original objectives and current status

• Status 2004
• The project has grown world-wide nodes in
  Germany, Slovenia, Australia,...
• 39 nodes, 3500 CPUs
• Created own NorduGrid Middleware, ARC (Advanced
  Resource Connector), which is operating in a
  stable way
• Applications massive production of ATLAS
  simulation and reconstruction
• Other applications AMANDA simulation, genomics,
  bio-informatics, visualization (for
  metheorological data), multimedia applications,...

• Goals 2001 (project start)
• Introduce the Grid to Scandinavia
• Create a Grid infrastructure in Nordic countries
• Apply available Grid technologies/middleware
• Operate a functional Testbed
• Expose the infrastructure to end-users of
  different scientific communities

20
Current NorduGrid status
21
The LHC Computing Grid, LCG

• The distributed computing environment to analyse
  the LHC data
• lcg.web.cern.ch

22
LCG - goals

• Goal prepare and deploy the computing
  environment
• that will be used to analyse the LHC data
• Phase 1 2003 2005
• Build a service prototype
• Gain experience in running a production grid
  service
• Phase 2 2006 2008
• Build and commission the initial LHC computing
  environment

2003
2006
2005
2004
23
LCG composition and tasks

• The LCG Project is a collaboration of
• The LHC experiments
• The Regional Computing Centres
• Physics institutes
• Development and operation of a distributed
  computing service
• computing and storage resources in computing
  centres, physics institutes and universities
  around the world
• reliable, coherent environment for the
  experiments
• Support for applications
• provision of common tools, frameworks,
  environment, data persistency

24
Resource targets 04
  CPU (kSI2K) Disk TB Support FTE Tape TB
CERN 700 160 10.0 1000
Czech Rep. 60 5 2.5 5
France 420 81 10.2 540
Germany 207 40 9.0 62
Holland 124 3 4.0 12
Italy 507 60 16.0 100
Japan 220 45 5.0 100
Poland 86 9 5.0 28
Russia 120 30 10.0 40
Taiwan 220 30 4.0 120
Spain 150 30 4.0 100
Sweden 179 40 2.0 40
Switzerland 26 5 2.0 40
UK 1656 226 17.3 295
USA 801 176 15.5 1741
Total 5600 1169 120.0 4223
25
LCG status Sept 04

• Tier 0
• CERN
• Tier 1 Centres
• Brookhaven
• CNAF Bologna
• PIC Barcelona
• Fermilab
• FZK Karlsruhe
• IN2P3 Lyon
• Rutherford (UK)
• Univ. of Tokyo
• CERN

• Tier 2 centers
• South-East Europe HellasGrid, AUTH, Tel-Aviv,
  Weizmann
• Budapest
• Prague
• Krakow
• Warsaw
• Moscow region
• Italy

26
LCG status Sept 04

• First production service for LHC experiments
  operational
• Over 70 centers, over 6000 CPUs, although many of
  these sites are small and cannot run big
  simulations
• LCG-2 middleware testing, certification,
  packaging, configuration, distribution and site
  validation
• Grid operations centers in RAL and Taipei (US)
  performance monitoring, problem solving 24x7
  globally
• Grid call centers in FZK Karlsruhe and Taipei.
• Progress towards inter-operation between LCG,
  NorduGrid, Grid3 (US)

27

Outlook
EU vision of e-infrastructure in Europe
28
Moving towards an e-infrastructure
29
Moving towards an e-infrastructure
30
Summary

• Huge investment in e-science and Grids in Europe
• regional, national, cross-national, EU
• Emerging vision of European-wide e-science
  infrastructure for research
• High Energy Physics is a major application that
  needs this infrastructure today and is pushing
  the limits of the technology
