Title: ACCESSIBLE PEDESTRIAN SIGNALS


1

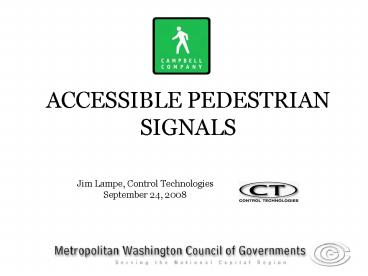

ACCESSIBLE PEDESTRIAN SIGNALS
Jim Lampe, Control Technologies September 24, 2008
2
Agenda
  • What is APS
  • APS Background History
  • Todays Challenges
  • APS in the MUTCD
  • APS Research
  • Future Considerations
  • Legal Issues
  • Information Sources
  • Next Generation- Campbell Advanced APS
  • Demonstration

3
What is APS
A device that communicates information about
pedestrian timing/phasing in a non-visual format
such as audible tones, verbal messages and/or
vibrotactile surfaces
4
What is APS
5
APS History
  • Audible indicators available for over 30 years
  • Audible Peds- Bird chirp, Cuckoo
  • NCUTCD Signals Technical Committee (STC)
    discussed and tried to deal with APS for over 20
    years.
  • No agreement on needs among STC, NCUTCD
    Visually Impaired Community.
  • American Council for the Blind (Pro)
  • National Federation of the Blind (Against, but
    warming)
  • 1992 Americans with Disabilities Act required
    access to public right-of way for people with
    disabilities.
  • 1997 STC finally decided to move forward and
    assigned issue to Pedestrian Task Force (PTF).

6
APS History
  • 1998 TEA 21 US Access Board commissioned paper
    by Dr. Billie (Beezy) Louise Bentzen. Driving
    force, created a lot of wording for 2000 MUTCD
    edition.
  • June 1998 four members of PTF met with
    representatives of various organizations set up
    for the interests of the visually impaired.
  • January 1999 After 19 hours, PTF and groups
    hammered out proposed wording. Campbell involved
    from the beginning.
  • Result Wording that developed into sections of
    the 2000 MUTCD

7
Todays Challenges (For Visually Impaired Peds)
  • Traffic volumes increased substantially in 20
    years
  • Increased background noise
  • Streets widened with multiple thru and turn lanes
  • Signal phasing more complex
  • Right/ left turn on Red
  • Quieter automobiles

8
Format of the MUTCD
  • Standard a statement of required, mandatory, or
    specifically prohibitive practice regarding a
    TCD (shall)
  • Guidance a statement of recommendation, but not
    mandatory, practice in typical situations with
    deviations allowed based on engineering studies
    (should)
  • Option a statement of practice that is a
    permissive condition and carries no requirement
    or recommendation may contain allowable
    modifications to standard or guidance (may)
  • Support an informational statement that does
    not carry any degree of mandate, recommendation
    authorization, or prohibition or enforceable
    condition.

9
APS in the MUTCD (2000)
  • Section 4E.06 Accessible Pedestrian Signals
  • Audible Tones
  • Verbal Messages
  • Vibrotactile
  • Section 4E.08 Accessible Pedestrian Signal
    Detectors
  • Locator Tones
  • STC recommendations to NCUTCD deliberately chose
    to avoid standardization on devices, and instead
    standardized on methods of dealing with the
    issue, allowing agencies to explore the new
    technologies coming on the market.
  • 17 countries use the same APS standard, were
    different.

10
APS in the MUTCD (2000)
  • Accessible Device Examples
  • Fully Integrated Pedestrian Station
  • Sound emitted from pedestrian station
  • PPB integral to pedestrian station
  • Vibrotactile device integral to pedestrian
    station
  • Speaker on Pedestrian Display
  • Sound emitted from Pedestrian Display
  • Vibrotactile devices (not for long)
  • VTO

11
APS in the MUTCD (2003)
  • 2003 MUTCD Changes
  • In 4E.09 Accessible Pedestrian Detectors a
    support statement was changed to a standard for
    emphasis
  • Definition Changed- An accessible pedestrian
    signal detector shall be defined as a device
    designated to assist the pedestrian who has
    visual or physical disabilities in activating the
    pedestrian phase

12
APS in the MUTCD (2003)
  • 2003 MUTCD Changes
  • In 4E.09 Accessible Pedestrian Detectors
    clarified APS pushbutton location (Guidance)
  • Pushbuttons for accessible pedestrian signals
    should be located as follows
  • Adjacent to a level all-weather surface
  • Within 5 feet of the crosswalk extended
  • Within 10 feet of the edge of the curb, shoulder,
    or pavement, and
  • Parallel to the crosswalk to be used.

13
APS in the MUTCD (2003)
  • Recommended Pushbutton Locations

14
APS in the MUTCD (2003)
  • 2003 MUTCD Changes
  • In 4E.10 Pedestrian Intervals and Signal Phases
    the Guidance was changed for calculating the
    pedestrian clearance time
  • The pedestrian clearance time should be
    sufficient to allow a pedestrian crossing in the
    crosswalk who left the curb or shoulder during
    the WALKING PERSON signal indication to travel at
    a walking speed of 1.2 m (4ft) per second, to at
    least the far side of the traveled way or to a
    median of sufficient width for pedestrians to
    wait.

15
APS in the MUTCD (2003)
  • 2003 MUTCD Changes
  • In 4E.08 Pedestrian Signal Detectors an option
    was added
  • At signalized locations with demonstrated need
    and subject to equipment capabilities,
    pedestrians with special needs may be provided
    with additional crossing time by means of an
    extended pushbutton press
  • We dont know of anyone doing this yet but the
    controller manufacturers are preparing

16
APS Research
  • APS Research - Recent Research Outcomes
  • TRB Paper APS The effect of Pushbutton
    Location and Audible WALK indications on
    Pedestrian Behavior
  • Speed in locating the pushbutton appears to be
    significantly influenced by the relationship
    between pushbutton location and geometry at each
    corner.
  • If two pushbuttons are on a single pole, verbal
    WALK messages resulted in better accuracy than
    different sounds
  • For two pushbuttons on one corner, mounted on two
    poles, rapid tick sound works best

17
APS Research
APS Research - Recent Research Outcomes
  • Primary APS Features
  • Pushbutton Locator Tones
  • Tactile Arrow
  • Actuation Identification
  • Audible Walk Indication
  • Vibrotactile WALK Indication
  • Responsive to Ambient Sound
  • Secondary APS Features
  • Audible Beaconing

18
Future Considerations
  • NCUTCD Recommended Changes in the NPA (Notice of
    Proposed Amendment)
  • In 4E.06 Accessible Pedestrian Signals Research
    outcomes APS Shall meet all of the following
  • APS shall have both audible and vibrotactile WALK
    indications. Vibrotactile Only gone.
  • APS shall have audible walk indication during
    walk interval only.
  • Apply to Countdowns?
  • APS shall not provide audible pedestrian change
    interval indication.
  • Apply to Countdowns? Shouldnt initiate walk in
    clearance phase
  • Audible walk indications shall be a percussive
    tone.
  • Quicker and clearer than verbal message (4-7
    second avg. walk time)
  • Vibrotactile walk shall be by tactile arrow on
    Pushbutton.

19
Future Considerations
  • NCUTCD Recommended Changes in the NPA
  • In 4E.09 Accessible Pedestrian Detector
    strengthened APS pushbutton location requirements
  • When pedestrian actuation is used, pushbuttons
    shall be located to meet all of the following
  • Unobstructed and Adjacent to a level all-weather
    surface
  • Within 5 feet of the crosswalk extended
  • Between 1.5 and 6 feet of the edge of the curb,
    shoulder, or pavement
  • Was 10
  • Parallel to the crosswalk to be used, and
  • At a maximum mounting height of 4 feet above
    sidewalk.
  • Most installed 36-42

20
Future Considerations
  • NCUTCD Recommended Changes in the NPA
  • In 4E.06 Accessible Pedestrian Signals research
    outcomes Audible Beaconing
  • Audible Beaconing is the use of an audible signal
    in such a way that blind pedestrians can home in
    on the signal.
  • Not all crosswalks at an intersection need
    audible beaconing beaconing can actually cause
    confusion if used at all crosswalks.
  • Audible beaconing should only be considered
    following an engineering study at
  • Crosswalks longer than 70 feet skewed multiple
    legs

21
Future Considerations
  • NCUTCD Recommended Changes in the NPA
  • 4E.10 Pedestrian Intervals and Signal Phases -
    Walking Speed 4.0 vs. 3.5 vs. 3.0 fps
  • The pedestrian clearance time shall be
    sufficient to allow a pedestrian crossing in the
    crosswalk who left the curb or shoulder during
    the WALKING PERSON (symbolizing WALK) signal
    indication to travel at a walking speed of 1.1 m
    (3.5 ft) per second, to at least the far side of
    the traveled way or to a median of sufficient
    width for pedestrian to wait.

22
Future Considerations
  • NCUTCD Recommended Changes in the NPA
  • 4E.10 Pedestrian Intervals and Signal Phases -
    Walking Speed 4.0 vs. 3.5 vs. 3.0 fps
  • In addition, the total of the WALK interval and
    the pedestrian clearance times shall also be
    sufficient to allow a pedestrian crossing in the
    crosswalk who left the pedestrian detector at the
    beginning of the Walking Person (symbolizing
    WALK) signal indication to travel at a walking
    speed of 0.9m (3 ft) per second to the far side
    of the traveled way being crossed. Additional
    time required to satisfy the conditions of this
    paragraph shall be added to the subject phase
    pedestrian clearance time. See also the second
    option

23
Future Considerations
  • MUTCD do not require signals to be accessible,
    but based on current discussions at federal
    agencies and NCUTUCD, future changes are not just
    possible, but probable.
  • i.e. Draft Public Right-of-Way Advisory Group
    (PROWAG) on APS requires APS where pedestrian
    signals are installed.

24
Legal Issues
  • Recent Legal Settlement Various Organizations
    for the Visually Impaired vs. San Francisco
    Municipal Transportation Agency
  • Requires Installation of APS
  • Dedicates 1.6 M Over the next 2.5 years for APS
    at a minimum of 80 Intersections
  • Uses Rapid Tick sound with WALK Display
  • Includes Locator Tone, Vibrotactile, Extended
    Press for Street Name Information.
  • Commits City to Seek Funding, Develop Policy for
    Requesting APS, Work with Community

25
Information Sources
  • TRB- Accessible Pedestrian Signals Synthesis and
    Guide to Best Practice
  • www.accessforblind.org
  • www.walkinginfo.org

26
Campbell Company
  • Fully Integrated Pedestrian Stations

27
Current Features
  • Acknowledgement
  • Visual
  • Audible Wait
  • Audible Walk Signals
  • Tones
  • Verbal Messages
  • Vibrotactile Walk Signal
  • Target Beaconing with Synchronized PPBs (Hard
    Wired)
  • Current State APS Driven off of Outputs
  • Locator Tones
  • Ambient Gain Control
  • Extended Press Functions
  • Information
  • Volume
  • Actuation of APS

28
Next Generation- Campbell Advanced APS
  • Future State Driven via Ethernet (EoP) utilizing
    NTCIP
  • May be hard wired in TS1
  • Advanced Pedestrian Controller Full Real Time
    Diagnostics MMU / CCU internal to PMU
  • Failsafe goes to standard PPB. No Noise/No
    Vibratactile
  • Fully Synchronized Operations
  • Configurable with laptop and WEB based interface

29
Next Generation- Campbell Advanced APS
  • Wireless Clock (WWVB) allows time operations
  • Bluetooth interface allows personal hand held
    devices to communicate with the pedestrian
    station
  • Current device Nokia Phone
  • Future devices Advanced Pedestrian Assistant
    (UI)
  • GPS will alert pedestrian if they leave crosswalk
    boudaries
  • Strong platform for future features (firmware
    upgrades) based on user feedback

30
Thank You!
Jim Lampe, Control Technologies September 24, 2008
Write a Comment
User Comments (0)
About PowerShow.com
