Presented by: Craig Drumheller

1

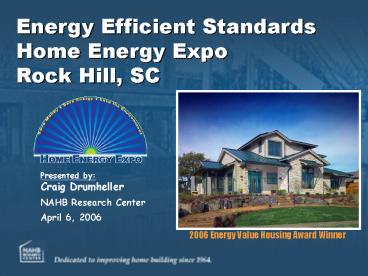

Energy Efficient Standards Home Energy Expo Rock
Hill, SC
Presented byCraig Drumheller NAHB Research
Center April 6, 2006
2006 Energy Value Housing Award Winner
2
Acknowledgements

• Maryland Energy Administration (MEA)
• Northeast Energy Efficiency Partnerships, Inc.
  (NEEP)
• Building Codes Assistance Project (BCAP)
• United States Department of Energy (USDOE)
• Energy and Environmental Building Association
  (EEBA)

3
The Business of Building

• Builders Must Balance a Number of Issues to
  Succeed Including
• Make a Profit!
• Land Costs, Availability
• Zoning Issues, Building Codes
• Offer Competitive Prices
• Marketing
• Quality Sub-contractors
• Rising Cost of Materials
• New Products, Construction Techniques
• Indoor Air Quality, Mold, etc.
• Liability, Customer Service

Energy Efficiency
4
Energy Code Overview

• Nearly every state has an energy code
• Energy codes are fairly new
• Within last 40 years
• Some states still have no energy code
• North Carolina
• Currently Amended 2000 IECC in effect
• July 2006 Amended 2003 IECC becomes code
• South Carolina
• 2003 IECC currently in effect

5
IECC 2003 Energy Code

• What is The Energy Code ?
• Dictates reasonably efficient minimum
  requirements for new construction, additions and
  retrofits.
• Regulates Design and Selection of
• Building Envelope
• Mechanical Systems
• Electrical Systems
• Service Water Heating Systems

6
International Family of Codes
7
The IECC the IRC

• IECCChapters 4, 5 or 6 Can Be Used to
  Demonstrate Compliance, or

IRCChapter 11 Must Be Used to Demonstrate
Compliance (Almost Identical to Chapter 6 of the
IECC)
8
Areas of the Building that Must Comply

• New Construction
• Heated and Cooled Space
• Temperatures within the space are 50ºF or higher
  (heating), 85ºF or lower (cooling) during normal
  operation
• Heated and/or cooled air (positive supply)

9
Exempt Buildings

• No heating or cooling
• Historical
• Existing Buildings
• Low peak energy for all purposes
• lt3.4 Btu/hr/ft2 of floor area
• lt 1.0 W/ft2 of floor area

10
Compliance Options
Residential Bldgs
Basic Requirements
Compliance Options
Prescriptive Method Chapter 11 IRC Chapter 6 IECC
REScheckSoftwareSystem
Component Method Chapter 5 IECC
Performance Method Chapter 4 IECC(HERS)
Plan Review Field Inspections
11
Basic Requirements

• Air Leakage
• Vapor Retarders
• Materials and Equipment Information
• Duct Insulation
• Duct Construction
• Temperature Controls
• HVAC Piping Insulation
• Swimming Pools
• Service Hot Water Systems
• Electrical

Building Plans
12
Basic Requirements
Infiltration Control Seal all joints,
penetrations and other such openings in the
building envelope
13
Infiltration Control
14
Hole to be Sealed
Be sure to use fire resistive materials as
required by IRC !
15
Air Tight Recessed Fixture

• 3 Options
• IC Air Tight (Tested) Fixture, or
• Build an Air Tight Box over the Fixture or

• IC Rated with No Penetrations

Newer Energy Code Requirement
16
Basic Requirements

• Vapor Retarders
• Install on warm-in-winter side of Building
  Envelope
• Use in unvented framed walls, floors, and
  ceilings
• Must have Perm rating of ? 1.0 per ASTM E96-80

Siding
Outside Sheathing
Studs Insulation
Vapor Retarder
Vapor
Sheet Rock
Revised Energy Code Requirement
Note Humid Counties are exempted
17
North Carolina Climate Zones
18
South Carolina Climate Zones
19
Vapor Retarders
One Example Poly Vapor RetarderNote Not
appropriate for the Carolinas
Another Example Kraft-Faced Vapor
RetarderGood choice for non-humid counties.
20
Windows, Glazed Doors, and Skylights

• U-factor Requirements
• NFRC Rating for all Manufactured Fenestration or
• Tables 102.5.2(1) U-factor Default Table for
  Windows, Glazed Doors and Skylights

21
Material Identification
22
HVAC Duct Insulation
Revised Energy Code Requirement
23
Heating and Cooling Degree Days
Heating
Cooling
http//www.ncdc.noaa.gov/oa/documentlibrary/clim81
supp3/clim81.html
24
Duct Systems Air Sealing
South Carolina requires all ducts to be sealed
North Carolina has an exception for sealing ducts
in conditioned space
25
Additions

• If Over 500 sf Standard Energy Code Options

• If 500 sf or less Prescriptive Table Can be Used

Addition must comply without using the Existing
Building
26
Additions Replacement Windows
27
Compliance Options
Residential Bldgs
Basic Requirements
Compliance Options
Prescriptive Method Chapter 11 IRC Chapter 6 IECC
REScheckSoftwareSystem
Component Method Chapter 5 IECC
Performance Method Chapter 4 IECC(HERS)
Plan Review Field Inspections
28
Residential Building Compliance

• Chapter 11 of the IRC
• Energy Chapter (Almost Identical to Chapter 6 of
  the IECC)
• Glazing Percentage Restrictions
• Must be Less Than 15 for Detached 1 2 Family
  Buildings
• Must be Less Than 25 for Townhouses
• Very Simple
• No Flexibility
• Very Stringent

29
Chapter 11 Prescriptive Requirements
30
R-Values

• Higher R-value Better Insulated
• R-value Applies to
• All Walls
• Floors
• Roofs
• R1/U

R-30
R-19
R-11
31
U-Values

• Lower U-value Better Insulated
• U-value applies to
• Windows
• Skylights
• Doors

32
NFRC Label
New
Old
National Fenestration Rating Council (NFRC)
product ratings are available on-line at
www.nfrc.org
33
Definition of Conditioned Space

Outdoors
ConditionedSpace
34
The Building Envelope Can Be Deceiving
35
Rules of the Game

• Insulation R-values -- Count for Insulation Only
• Door U-values lt 0.35
• Exception -- One Door (Prescriptive Approach)
• Window U-value -- Exclude 1 Allowed Area from
  Requirement (Prescriptive Approach)
• Basement Windows Count in Window Area even if
  basement Walls Dont Count in Exterior Wall Area
• Ceiling Insulation R-value -- R-30 for R-38, R-38
  for R-49 if Using Raised or Oversize Truss
  Construction
• Floors Over Outside Air Must Meet Ceiling
  Insulation Requirements

36
Window Area Calculation

• Percent of Gross Exterior Wall Area
• Wall area shall be gross area of exterior walls
• Glazing Area Percent

Glazing Area
X 100
Gross Area of Exterior Wall
37
Basement Walls
52
4
52
4
Grade Line
4
49
4
Above Grade per Basement Wall Definition
BASEMENT WALL. The opaque portion of a wall which
encloses one side of a basement and having an
average below- grade area greater than or equal
to 50 percent of its total wall area, including
openings.
38
Raised Heel Trusses
39
Compliance Options
Residential Bldgs
Basic Requirements
Compliance Options
Prescriptive Method Chapter 11 IRC Chapter 6 IECC
REScheckSoftwareSystem
Component Method Chapter 5 IECC
Performance Method Chapter 4 IECC(HERS)
Plan Review Field Inspections
40
Structure of the Energy Code

• Chapter 1 Administrative Enforcement
• Chapter 2 Definitions
• Chapter 3 Design Conditions
• Chapter 4 Residential - Systems Analysis
• Chapter 5 Residential - Component Performance
• Chapter 6 Simplified Prescriptive Requirements
• Chapter 7 Building Design for All Commercial
  Buildings
• (ASHRAE 90.1-2001 Energy Code Reference)
• Chapter 8 Design by Acceptable Practice for
  Commercial Buildings
• Chapter 9 Climate Maps
• Chapter 10 Referenced Standards

Residential Sections to be Covered Only
41
Residential Buildings
New Construction
42
Chapter 6 Prescriptive Requirements

• All Components of the Building Must Meet Strict
  Minimum Requirements
• Advantages
• Simple
• Disadvantages
• No Trade-offs or Flexibility
• Very Stringent
• Usually more expensive

43
Simplified Prescriptive Package Approach
44
Chapter 5 Component Performance
45
Chapter 5 Residential Building design by
component performance approach

• Individual Component Approach
• Each building component must comply
• Total Building Envelope Performance
• Similar to Chapter 4 of the IECC
• Difficult to do without computer program
• Acceptable Practice by individual components
• Combines opaque walls and windows for a net
  R-value
• Prescriptive approach- most common use of IECC
• Based on window to wall ratio
• Multiple prescriptive tables

46
Prescriptive Packages

• Straight Forward Pre-calculated Compliance
  Approach
• Climate Zone Dependent
• R U-value Requirements Specified
• Only Calculation Glazing Area Percentage

47
Chapter 4 - Systems Analysis (HERS Rating)
(Proposed Building Exactly Meeting the Minimum
Energy Code Requirements)
(Compares Total Annual Energy Use of the Two
Buildings)
48
Compliance Options
Residential Bldgs
Basic Requirements
Compliance Options
Prescriptive Method Chapter 11 IRC Chapter 6 IECC
REScheckSoftwareSystem
Component Method Chapter 5 IECC
Performance Method Chapter 4 IECC(HERS)
Plan Review Field Inspections
49
www.EnergyCodes.gov
50
REScheck TM Software

• Software evaluates specific designs quickly
• Allows trade-offs
• Building envelope components
• Heating and cooling efficiencies

51
Software Steps

• 1. Choose Your Building Location and Type
  (Single-family or Multifamily Building)
• 2. Select the Applicable Code From the Code Menu
• 3. Create a Building Description and Enter
  Building Component Information
• 4. Add a High-efficiency Equipment Trade-off (If
  Applicable)
• 5. Save Your Building Description and Create a
  Report

52
REScheck Example
53
General Example
54
Should Be 2003 IECC
ComplianceCertificate
55
Inspection Checklist for Code Official
56
www.energycodes.gov
57
N
National
Association
A
of
Home
Builders
H
B
Research
Center
R
C
N
A
H
B
C
R
Presented by Craig Drumheller NAHB Research
Center 400 Prince Georges Blvd. Upper Marlboro,
MD 20774 301-430-6307 CDrumheller_at_nahbrc.org
www.nahbrc.org
