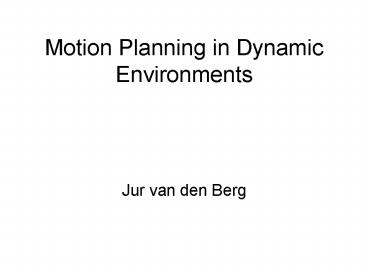

Title: Motion Planning in Dynamic Environments


1
Motion Planning in Dynamic Environments
  • Jur van den Berg

2
Outline
  • Recap Configuration Spaces, PRM
  • Moving obstacles
  • Configuration-time space
  • Time constraints
  • Exact methods
  • PRM?
  • RRT
  • Roadmap based
  • Multi-Robot Motion Planning

3
Configuration Space
  • Static environment
  • Dimension DOF
  • Translating in 2D
  • Minkowski Sums

Workspace
Configuration Space
4
Configuration Space
  • Articulated Robots (2 Rotating DOF)
  • Hard to compute explicitly

Workspace
Configuration Space
5
Probabilistic Roadmap Method
  • Collision-test
  • Preprocessing create roadmap
  • Query find path in roadmap (multiple-shot)

Preprocessing
Query
6
Probabilistic Roadmap Method
  • High-dimensional Configuration Spaces
  • Probabilistically complete

6 DOF Articulated Robot
6 DOF (3T 3R) Freeflying Robot
7
Dynamic Environments
  • Moving Obstacles Static Obstacles

Frogger
6 DOF Articulated Robot
8
Configuration-Time Space
  • One additional dimension time
  • Obstacles are stationary in CT-space

Configuration Space
Configuration-Time Space
9
Path Constraints
  • Cannot go backward in time
  • Maximum velocity

2D Configuration-Time Space
3D Configuration-Time Space
10
Goal Specification
  • Specific configuration and moment in time
  • Specific configuration, as fast as possible

g (x, y, t)
g (x, y)
11
Exact Algorithms
  • Cell decomposition (2D Translation time)
  • Piecewise linear motions of obstacles
  • No bound on velocity of robot

12
Exact Algorithms
  • Asteroid Avoidance (2D Translation time)
  • Constant linear motions of obstacles
  • Constant number of obstacles
  • Bound on velocity of robot
  • Time-minimal path
  • Polynomial time algorithm

13
Exact Algorithms
  • Robots with more degrees of freedom
  • Rotating obstacles
  • At least exponential running time
  • General problem PSPACE-hard

14
Other Approaches
  • Path-velocity decomposition
  • First plan path in configuration space
  • Then tune velocity along path

Workspace
2D Configuration-Time Space
15
Path-Velocity Decomposition
  • Reduces problem to 2D
  • Cell decomposition, visibility graph

Cell decomposition
(Adapted) Visibility Graph
16
Probabilistic Approaches
  • PRM?

17
Probabilistic Approaches
  • PRM?
  • Directed Edges

18
Probabilistic Approaches
  • PRM?
  • Directed Edges
  • Transitory Configuration Space
  • Multiple-shot paradigm does not hold

19
Probabilistic Approaches
  • Repetitive dynamic environments
  • Specific class of problems
  • Period is least common multiple of obstacles

Roadmap in Configuration-Time Space
Resulting Path
20
Probabilistic Approaches
  • (Rapid Random Trees) RRT
  • Single-shot
  • Build tree oriented along time-axis

21
Probabilistic Approaches
  • Advantages
  • Any dimensional configuration-spaces
  • Any behavior of obstacles
  • Only requirement is robot configured at c
    collision-free at time t ?
  • Disadvantages
  • Narrow passages
  • All effort in query phase

22
Roadmap-based Approaches
  • Roadmap-velocity decomposition
  • First build roadmap in configuration space
  • Then find trajectory on roadmap avoiding moving
    obstacles

Roadmap in Workspace
Roadmap-Time Space
23
Roadmap-based Approaches
  • Discretize Roadmap-time space
  • Select time step Dt
  • Constrain velocity to be -vmax, 0, vmax
  • Find shortest path using A

24
Roadmap-based Approaches
25
Multi-Robot Motion Planning
  • Environment static obstacles (possibly dynamic
    obstacles as well)
  • N robots with start and goal position

12 Robots
24 Robots
26
Composite Configuration Space
  • Configuration spaceC C1 ? C2 ? ? CN
  • Dimension is sum of DOFs of all robots
  • Very high-dimensional
  • Cylindrical obstacles

Composite Configuration Space 3 Robots, 1 DOF
each
27
Prioritized Multi-Robot Planning
  • Assign priorities to robots
  • Plan path for robot in order of priorities
  • Treat previously planned robots as moving
    obstacles

24 Robots
Problematic Case
28
Next Class
  • Unknown obstacle motions
  • Online planning
  • Continuous push by real-world time

29
References
  • Introduction
  • M. de Berg, M. van Kreveld, M. Overmars, O.
    Schwarzkopf. Computational Geometry, Algorithms
    and Applications (book)
  • S. LaValle. Planning Algorithms (book freely
    available on-line)
  • J. van den Berg. Path Planning in Dynamic
    Environments (PhD thesis)
  • Exact Planning with Moving Obstacles
  • J. Reif, M. Sharir. Motion Planning in the
    Presence of Moving Obstacles
  • K. Fujimura, H. Samet. Planning a Time-Minimal
    Motion among Moving Obstacles
  • Path-Velocity Decomposition
  • K. Kant, S. Zucker. Toward Efficient Trajectory
    Planning the Path-Velocity Decomposition
  • K. Fujimura. Time-Minimum Routes in
    Time-Dependent Networks
  • Probabilistic Approaches
  • D. Hsu, R. Kindel, J.-C. Latombe, S. Rock.
    Randomized Kinodynamic Motion Planning with
    Moving Obstacles
  • J. van den Berg, M. Overmars. Path Planning in
    Repetitive Environments
  • Roadmap-Based Approaches
  • J. van den Berg, M. Overmars. Roadmap-Based
    Motion Planning in Dynamic Environments
  • Prioritized Multi-Robot Motion Planning
  • J. van den Berg, M. Overmars. Prioritized Motion
    Planning for Multiple Robots

30
Motion Planning in Dynamic Environments 2
  • Jur van den Berg

31
Outline
  • Recap Configuration-Time space
  • Offline vs. Online (real-time)
  • Anytime (partial) planning
  • Known vs. Unknown Trajectories
  • Continuous cycle of sensing and planning
  • Static vs. Dynamic
  • Estimating future trajectories

32
Configuration-Time Space
  • Natural space for planning problem
  • Time as additional dimension

Configuration Space
Configuration-Time Space
33
Offline vs. Online Planning
  • Offline enough time for planning
  • Online plan while the world is changing
  • Real world time and time modeled in CT space are
    related
  • Applications offline
  • Multi-robot motion planning
  • Applications online
  • Real-time vehicle navigation

34
Online Real-Time Planning
  • t 0

Configuration-Time Space
Configuration Space
35
Online Real-Time Planning
  • t 0.5

Configuration-Time Space
Configuration Space
36
Online Real-Time Planning
  • t 1

Configuration-Time Space
Configuration Space
37
Online Real-Time Planning
  • t 1.5

Configuration-Time Space
Configuration Space
38
Online Real-Time Planning
  • t 2

Configuration-Time Space
Configuration Space
39
Online Real-Time Planning
  • t 2.5 Query! Move from s to g asap. v 1

Configuration-Time Space
Configuration Space
40
Online Real-Time Planning
  • t 3 Planning in progress

Configuration-Time Space
Configuration Space
41
Online Real-Time Planning
  • t 3.5 Planning in progress

Configuration-Time Space
Configuration Space
42
Online Real-Time Planning
  • t 4 Planning ready!

Configuration-Time Space
Configuration Space
43
Online Real-Time Planning
  • t 4.5

Configuration-Time Space
Configuration Space
44
Online Real-Time Planning
  • t 5

Configuration-Time Space
Configuration Space
45
Online Planning
  • Planning takes time!
  • If query (s, g) is posed at real-world time tw
  • Reserve t time for planning
  • Find path in CT beginning at (s, tw t)
  • Start planning at real-world time tw
  • Requirement planning must finish before
    real-world time tw t has come

46
Problem!
  • Planners do not guarantee to finish within a
    preset amount of time t
  • RRT
  • Roadmap-based

47
Anytime or Partial Planning
  • Not necessarily plan all the way to the goal
  • Returns best initial path when time runs out
  • Continue planning while executing path
  • Planning must always be ahead of execution

t t
t gt t
t gtgt t
48
Issue
  • How to choose a good value for t
  • Large t large latency
  • Small t risky small look-ahead

49
Example
  • (James Kuffner, CMU)

50
Unknown Trajectories
  • Obstacles have unknown future trajectories
  • Available information
  • Past trajectories
  • Current observations (velocity)

51
Trajectory Estimation
  • Estimate future trajectory based on past
    trajectory and current observation

known
assume static
worst case
extrapolation
52
Trajectory Estimation
  • Estimated trajectories are less valuable further
    away in the future
  • Continuously updating estimations

53
Continuous cycle of sensing and planning
  • Receive query (s, g) at time tw
  • Read sensor input at time tw
  • Reserve t time for planning
  • Plan path with start configuration-time (s, tw
    t) based on estimations acquired at time tw
  • Start planning at time tw

54
Continuous cycle
  • Finish planning at time tw t
  • Resulting path p0 T ? C
  • Start executing path p0 at time tw t
  • Read sensor input at time tw t
  • Reserve t time for planning
  • Plan path with start configuration-time (p0(tw
    2t), tw 2t) based on estimations acquired at
    time tw t
  • Start planning at time tw t

55
Continuous cycle
  • Finish planning at time tw 2t
  • Resulting path p1 T ? C
  • Start executing path p1 at time tw 2t
  • Read sensor input at time tw 2t
  • Reserve t time for planning
  • Plan path with start configuration-time (p1(tw
    3t), tw 3t) based on estimations acquired at
    time tw 2t
  • Start planning at time tw 2t

56
Continuous cycle
  • Finish planning at time tw kt
  • Resulting path pk 1 T ? C
  • Start executing path pk 1 at time tw kt
  • Read sensor input at time tw kt
  • Reserve t time for planning
  • Plan path with start configuration-time (pk
    1(tw (k 1)t), tw (k 1)t) based on
    estimations acquired at time tw kt
  • Start planning at time tw kt

57
Continuous cycle
  • Until the goal has been reached
  • A path whose planning starts at time t is used
    between t t and t 2t
  • Paths must be valid for at least t time
  • Estimates must be valid for at least 2t time

58
Example
  • Linear extrapolation of obstacles trajectories

Configuration space
Configuration-time space
59
A good value for t
  • Large t
  • Large look-ahead
  • Heavy reliance on estimates
  • Slow reaction on changes in environment (may be
    unsafe)
  • Spends much time on (portions of) path that will
    not be used
  • Important decisions in near-future based on
    unreliable estimates of far future
  • Small t
  • Small look-ahead (may be unsafe)
  • Hard to bias the search in the direction of the
    goal
  • Current works
  • Choose t based on dynamicity of the environment

60
Worst-case estimates
  • Obstacles have known maximum velocity
  • Region containing them is a growing disc, or a
    cone in CT-space

61
Planning amidst growing discs
  • Paths avoiding the growing discs are inherently
    safe, regardless of value of t

62
Planning amidst growing discs
  • Space fills up quickly continuous replanning
  • Robot must move faster than obstacles
  • O(n3 log n) algorithm very fast in practice

63
Advanced trajectory estimation
  • Based on statistical data

64
Obstacle avoidance
  • Highly reactive
  • No planning (no look-ahead)
  • Velocity Obstacles

65
Obstacle avoidance
  • Example

66
Next Class
  • Kinodynamic Motion Planning
  • State Space
  • Planning in Dynamic Environments with Kinodynamic
    Constraints

67
References
  • Introduction
  • J. van den Berg. Path Planning in Dynamic
    Environments (PhD thesis)
  • Online Motion Planning in Unknown Environments
  • S. Petty, T. Fraichard. Safe Motion Planning in
    Dynamic Environments
  • D. Hsu, R. Kindel, J.-C. Latombe, S. Rock.
    Randomized Kinodynamic Motion Planning with
    Moving Obstacles
  • J. van den Berg, D. Ferguson, J. Kuffner. Anytime
    Path Planning and Replanning in Dynamic
    Environments
  • Planning among Growing Discs
  • J. van den Berg, M. Overmars. Planning the
    Shortest Safe Path amidst Unpredictably Moving
    Obstacles
  • Trajectory Estimation
  • D. Vasquez, F. Large, T. Fraichard, C. Laugier.
    Moving obstacles motion prediction for
    autonomous navigation.
  • Velocity Obstacles
  • P. Fiorini, Z. Shiller. Motion Planning in
    Dynamic Environments using Velocity Obstacles
  • F. Large, S. Sckhavat, Z. Shiller, C. Laugier.
    Using non-linear velocity obstacles to plan
    motions in a dynamic environment

68
Motion Planning with Kinematic and Dynamic
Constraints
  • Jur van den Berg

69
Outline
  • Kinematic Constraints
  • Dynamic Constraints
  • Newtonian Point Mass
  • State space
  • PRM?
  • Discretization
  • RRT
  • Kinematic and Dynamic Constraints

70
Kinematic Constraints
  • So far omni-directional maneuverability
  • Kinematic constraints restrict motion
  • Example car

71
Car-like Robot
  • Configuration (x, y, q)
  • Constraints
  • x(t) v cos q
  • y(t) v sin q
  • q(t) (v / L) tan f
  • f ? fmax
  • L length, f steering angle,v speedt
    time (parameter)

72
Car-like Robot
  • Three configuration parameters (x, y, q)
  • Two inputs f steering angle,v speed
  • Underactuated / non-holonomic system

73
Bounded Curvature Path Planning
  • Forward moving car
  • Existence among polygonal obstacles exponential
    in number of vertices
  • Dubins Shortest paths without obstacles
  • Consists of straight-lines and maximal turns

74
Shortest Bounded Curvature Path
  • Forward moving car
  • Without obstacles O(1)
  • Inside convex polygon O(n log2 n)
  • Among moderate obstacles O(n2 log n)
  • General polygonal environment ?

75
Forward and Backward moving car
  • Shortest path without obstacles O(1)
  • Path existence in general polygonal environment
  • PRM Implementation

76
More complicated kinematics
  • Car pulling trailers
  • Configuration(x, y, q0, q1, )
  • Inputsspeed s, steering angle f
  • How to connect two configurations by a feasible
    path?
  • PRM?
  • RRT

77
Example Needle Steering
  • Movie
  • Constant curvature path
  • Avoiding obstacles

78
Dynamic Constraints
  • So far velocity could change instantly
  • Dynamic Constraints bound acceleration
  • Example Newtonian point mass
  • F lt Fmax
  • a F / m
  • v(t) a
  • p(t) v(t)

79
State space
  • State of robotconfiguration velocity
  • (px, py, vx, vy)
  • Four-dimensional state-space
  • Examplevelocity tangent to path, forces in red

80
State space
  • Shortest path between two states
  • No obstacles
  • Not a straight-line in state space!
  • Because velocity must be tangent to path (p(t)
    v(t))

81
Two-Point Boundary Value Problem
  • Start state (pxs, pys, vxs, vys)
  • Goal state (pxg, pyg, vxg, vyg)
  • Find path p 0, T ? R2, such that
  • px(0) pxs, py(0) pys, px(T) pxg, py(T)
    pyg
  • px(0) vxs, py(0) vys, px(T) vxg, py(T)
    vyg
  • ?t t ? 0, T px(t)2 py(t)2 ? Fmax / m
  • ?t t ? 0, T px(t)2 py(t)2 ? vmax
  • Preferrably T is minimal among all possible paths
    p
  • How to solve this problem??

82
Pontryagins minimum principle
  • Complicated
  • Not solvable in general
  • Only for very simple cases (like Newtonian point
    mass)
  • Can be used in PRM implementation

83
Planning with Dynamic Constraints
  • With obstacles
  • No exact solutions known
  • NP-complete
  • Path existence?
  • Other solutions approximation algorithm

84
Approximation Discretization
  • Algorithm approximates time-optimal trajectory
  • Fix small time-step Dt
  • Use bang-bang control, i.e, acceleration either
    maximal, or 0

85
Approximation Discretization
  • Given current state (p, v)
  • a ? (-1, 0, 1 amax, -1, 0, 1 amax)
  • v v aDt
  • p p vDt 1/2aDt2
  • Result Grid in state-time space of reachable
    states
  • Spacings in grid amaxDt along velocity axes,
    1/2amaxDt2 along position axes

86
Discretized Grid
  • Bounded configuration space, bounded velocity
    finite grid
  • Implicit Directed Acyclic Graph in grid
  • Search using Dijkstra, A
  • Collision-check for obstacles

87
Obstacles in State Space
  • Cylindrical. Only the position matters, not the
    velocity

88
Kinodynamic Systems
  • Both Kinematic and Dynamics Constraints
  • Kinematic constraints
  • x(t) v cos q
  • y(t) v sin q
  • q(t) (v / L) tan f
  • f ? fmax
  • Dynamic constraints
  • v(t) a
  • a ? amax
  • v ? vmax

89
Kinodynamic Systems
  • Adapted RRT

90
Traditional RRT
  • For configuration spaces
  • Voronoi bias

91
RRT for Kinodynamic Systems
  • Dont sample in space, but (randomly) select node
    from tree.
  • Randomly select a control input
  • Until goal (region) is reached

92
More Examples
  • Rotating Hovercraft

93
More Examples
  • XWing

94
More Examples
  • Car pulling trailers (complicated kinematics --
    no dynamics)

95
Problem
  • Hard to reach specific goal position
  • Involves two-point boundary value problem
  • Therefore goal region
  • Previous examples?

96
Online Kinodynamic Planning
  • Partial plans. Tree is not built all the way to
    the goal
  • Potentially unsafe leaf maybe in inevitable
    collision state

97
Potential Solution
  • Augment state-space obstacles with regions of
    inevitable collision
  • Hard to compute conservative approximation
  • Can possibly be done in preprocessing

98
Kinodynamic Planning in Dynamic Environments
  • Add time-dimension to state-space
  • Kinodynamic RRT can be used without much
    adaptation
  • Other approach decouple kinematic planning from
    dynamic planning and avoiding moving obstacles.

99
Decoupled Planning
  • First plan path (or roadmap) obeying kinematic
    and geometric constraints (static obstacles)
  • Then plan motion on the path (roadmap) obeying
    dynamic constraints and avoids collisions with
    moving obstacles
  • Using discretization method (with extra dimension
    time)

100
(No Transcript)
101
References
  • Introduction
  • S. LaValle. Planning Algorithms (book)
  • Bounded curvature path existence / shortest path
  • S. Fortune, G. Wilfong. Planning constrained
    motion.
  • J. D. Boissonat, S. Lazard. A polynomial-time
    algorithm for computing a shortest path of
    bounded curvature amidst moderate obstacles
  • Sylvain Lazard. Shortest Paths of Bounded
    Curvatuere in a Convex Polygon
  • PRM for Car-like robots
  • P. Svestka, M. Overmars. Motion Planning for
    Car-like Robots using a Probabilistic Learning
    Approach
  • Needle Steering
  • http//www.haptics.me.jhu.edu/needlesteering/
  • Dynamic Planning Discretization
  • B. Donald, P. Xavier, J. Canny, J. Reif.
    Kinodynamic Motion Planning
  • Kinodynamic RRT
  • S. LaValle, J. Kuffner. Randomized Kinodynamic
    Planning
  • Inevitable Collision States
  • T. Fraichard, H. Asama. Inevitable Collision
    States. A step towards safer robots?
  • Kinodynamic RRT in Dynamic Environments
  • D. Hsu, R. Kindel, J.-C. Latombe, S. Rock.
    Randomized Kinodynamic Motion Planning with
    Moving Obstacles
  • Decoupled Kinodynamic Planning in Dynamic
    Environments
Write a Comment
User Comments (0)
About PowerShow.com
